Volkswagen New Beetle. Manual - part 402

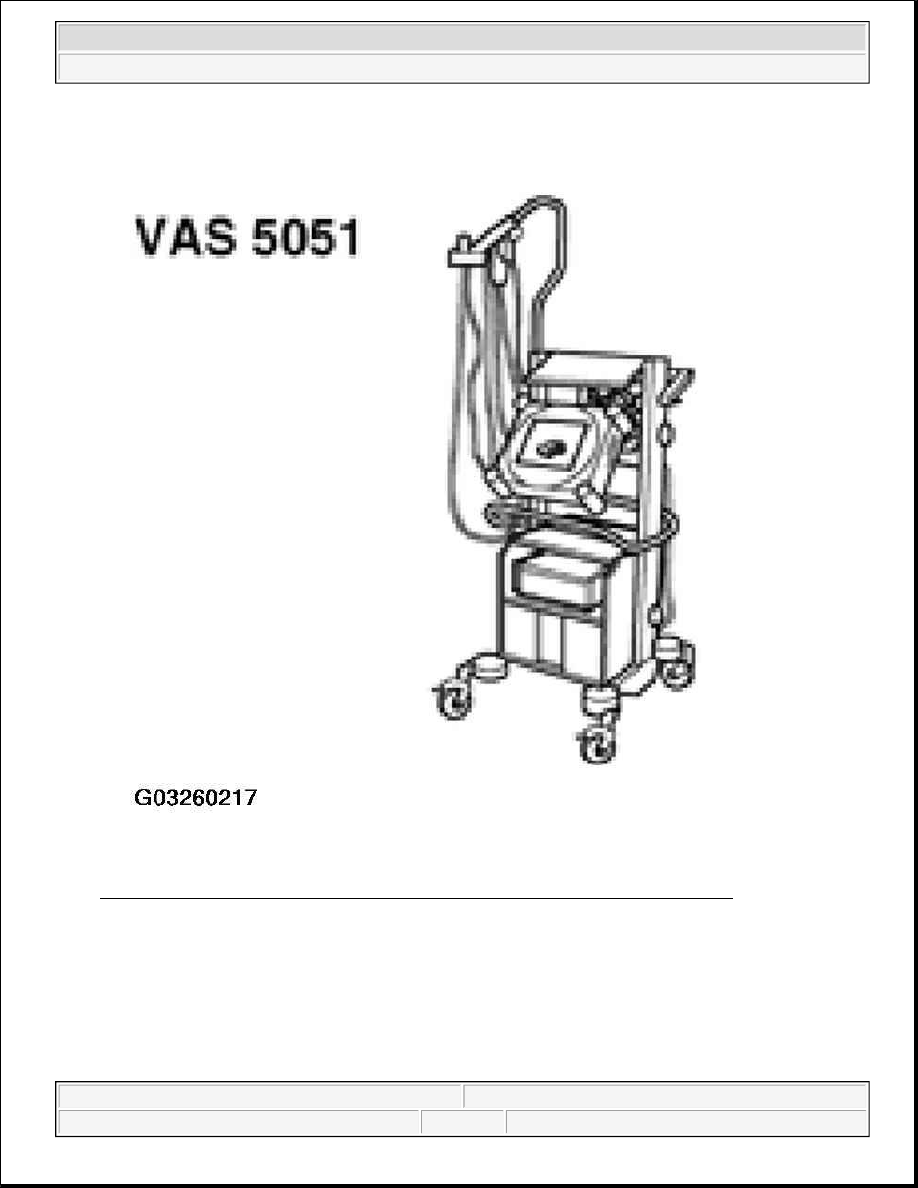

Fig. 92: Identifying VAS 5051 Vehicle Diagnostic Testing And Information System
Courtesy of VOLKSWAGEN UNITED STATES, INC.

After all Control Modules have been registered and DTC memories checked:

z

Select "Go to"

z

Select "Function / Component Selection"

z

Select "Body"

z

Select "Electrical System



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Select "01 -Systems capable of self-diagnosis"

z

Select "Telematics NAR"

z

Select "Functions - Telematics NAR" and press ">" to confirm.

z

Select "Telematics control module, coding"

z

Follow testers prompts.

TELEMATIC CONTROL MODULE -J499-, RECONFIGURING

After replacing the Telematic Control Module, the control module must be coded and OnStar(R) system needs
to be reconfigured as described below. Have the VIN and customer details on hand.

Special tools, testers and auxiliary items needed

z

VAS 5051 Vehicle Diagnostic Testing and Information System

z

Cable adapter VAS 5051/5a or VAS 5051/6a

Prerequisite

z

Telematics control module is coded, See TELEMATIC CONTROL MODULE -J499-, CODING .

Reconfiguration

NOTE:

z

DO NOT exchange Telephone/Telematic Control Modules between
vehicles! Each module contains specific Station Identification (STID) and
Electronic Serial Number (ESN) data unique to the VIN. This data is used
by OnStar(R) and National Cellular Telephone Network to identify the
vehicle and administer the customer's account.

z

Failure to reconfigure the control module after replacement will prevent
OnStar(R) services and features from functioning, and will result in a
customer return for repair.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



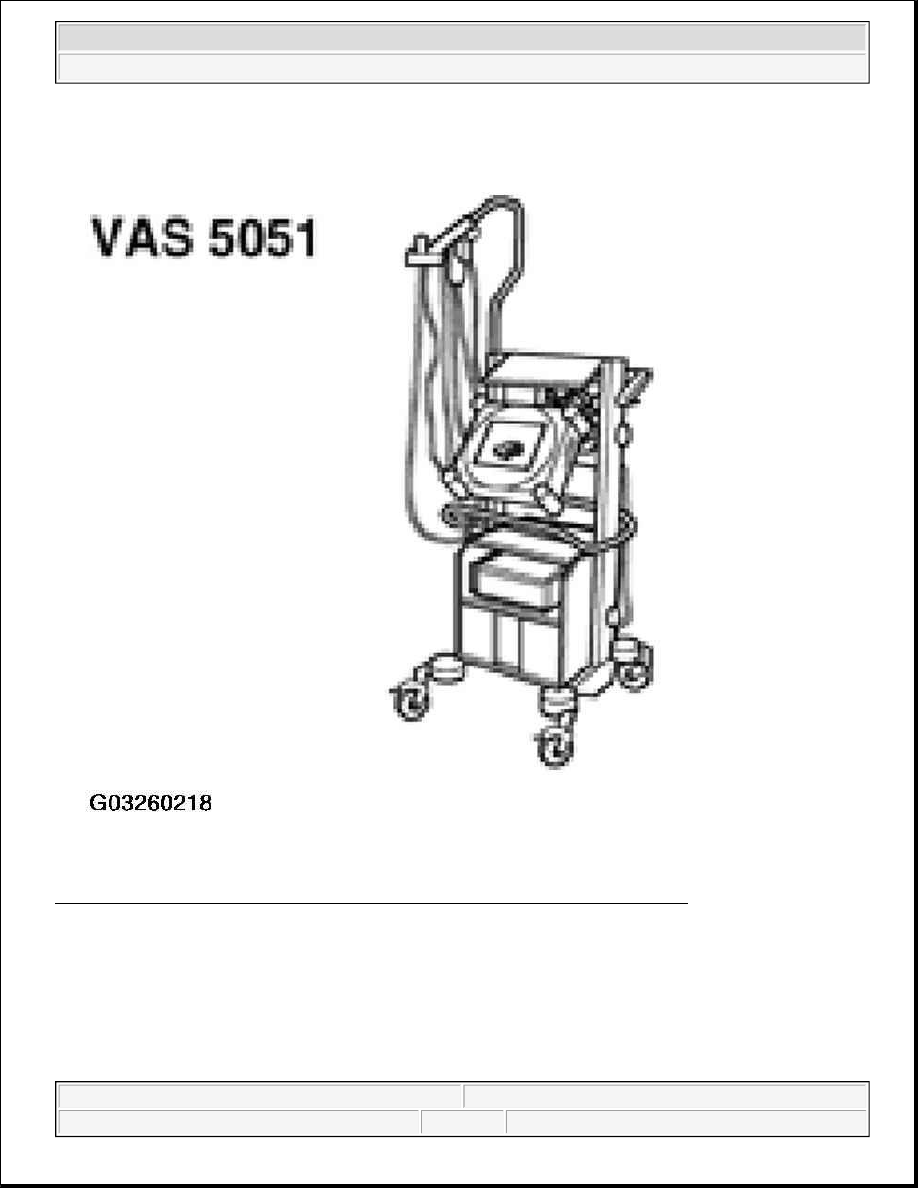

Fig. 93: Identifying VAS 5051 Vehicle Diagnostic Testing And Information System
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Where applicable, carefully record the 8 character Station Identification (STID) number and Electronic
Serial Number (ESN) from labels on replacement module.

z

Connect VAS 5051 with adapter cable to Data Link Connector (DLC) and select mode "Guided Fault
Finding"

z

Enter appropriate model, equipment and model year information and press ">" to confirm.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



After all Control Modules have been registered and DTC memories checked, see "Continued for all".

If the STID number and ESN DO NOT appear on labels on the new control module, proceed as
follows:

z

Select "Go to"

z

Select "Function / Component Selection"

z

Select "Body"

z

Select "Electrical System

z

Select "01 -Systems capable of self-diagnosis"

z

Select "Telematics NAR" (Display may appear as "Telematics")

z

Select "Functions - Telematics NAR" and press ">" to confirm.

z

Select "Check control module versions -Telematics NAR".

z

Record ESN and STID number from appropriate display fields.

Continued for all:

z

Select "Go to"

z

Select "Function / Component Selection"

z

Select "Body"

z

Select "Electrical System

z

Select "01 -Systems capable of self-diagnosis"

z

Select "Telematics NAR" (Display may appear as "Telematics")

z

Select "Functions - Telematics NAR" and press ">" to confirm.

z

Select "check/erase DTC memory Telematics NAR"

z

Switch off ignition and wait a few moments.

z

Switch on ignition.

z

Enter address word 75 - "Telematics"

z

Select "Go to"

z

Select "Function / Component Selection"

z

Select "Body"

z

Select "Electrical System

z

Select "01 -Systems capable of self-diagnosis"

z

Select "Telematics NAR"

z

Select "Functions - Telematics NAR" and press ">" to confirm.

z

Select "check DTC memory - Telematics NAR".

No DTCs must be present.

z

Check and confirm the green telematics indicator lamp in Telematics Control Head is on.
