Volkswagen New Beetle. Manual - part 400





Installing

Install in reverse order of removal.

z

Check telematic system coding and recode if necessary, See TELEMATIC CONTROL MODULE -
J499-, CODING
 .

TELEMATIC CONTROL MODULE -J499-, REMOVING AND INSTALLING

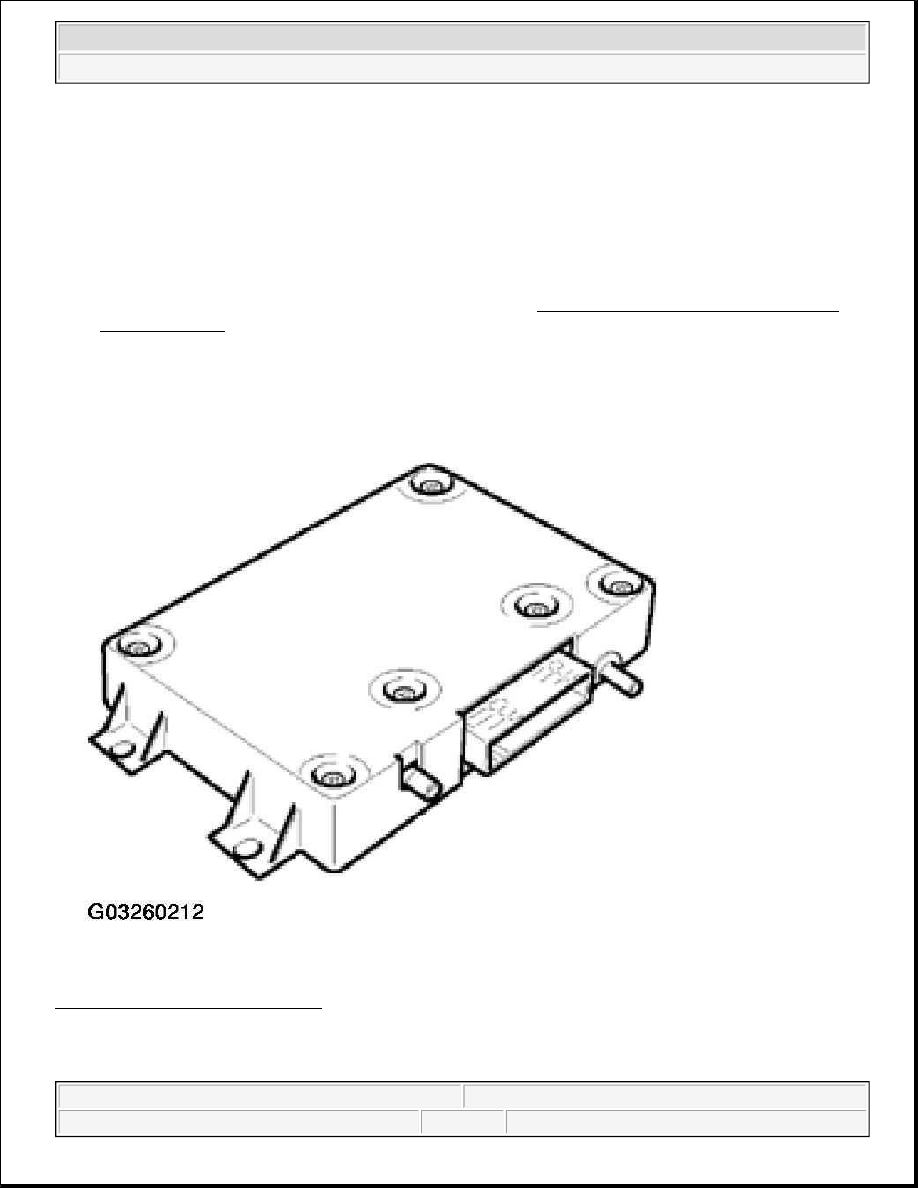

Fig. 87: Telematic Control Module
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION: Telematic control head buttons cannot be removed, dismantled or

serviced separately. Should malfunctions occur, replace complete control
head.

NOTE:

z

If the telematic control module is replaced, the OnStar(R) system needs to



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Removing

z

Remove right rear side panel trim

See SIDE PANEL TRIM, REMOVING AND INSTALLING .

z

Remove speaker retaining bracket -1-.

z

Disconnect electrical connector behind speaker -2-.

be reconfigured, See TELEMATIC CONTROL MODULE -J499-,
RECONFIGURING .

z

DO NOT exchange Telephone/Telematic Control Modules between
vehicles! Each module contains specific Station Identification (STID) and
Electronic Serial Number (ESN) data unique to the VIN. This data is used
by OnStar(R) and National Cellular Telephone Network to identify the
vehicle and administer the customer's account.

z

Using the VAS 5051 Vehicle Diagnostic Testing and Information system in
operating mode "Guided Fault Finding, and function" -J499- Telematic
control module, replacing" it is possible to read the telematic control
module coding from the existing module before removal. Note code prior
to removal in order input code into replacement control module.

NOTE:

Before beginning repairs on the electrical system, disconnect battery! See
BATTERY, DISCONNECTING AND RECONNECTING .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Fig. 88: Removing Speaker Retaining Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Pull out protective shield -1- inserted under speaker



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



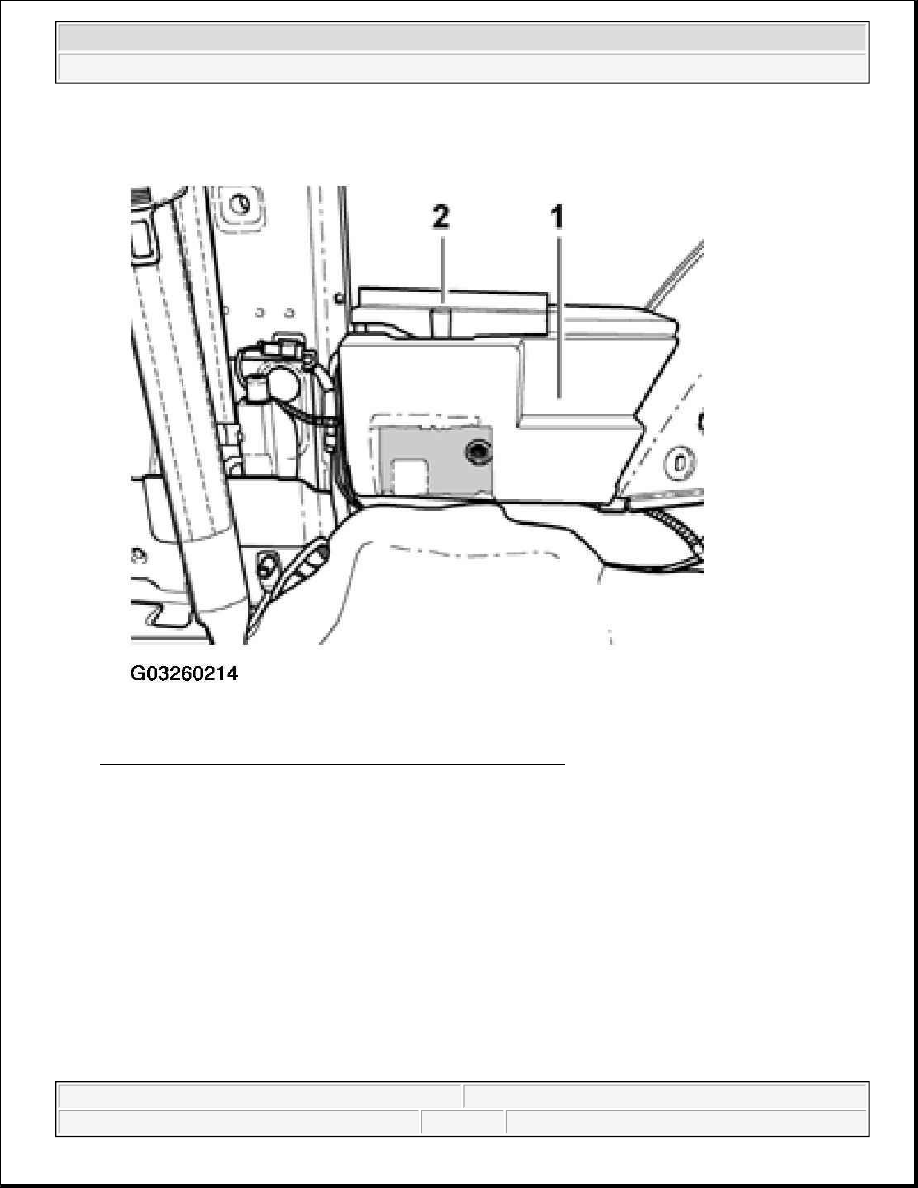

Fig. 89: Removing Protective Shield Inserted Under Speaker
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Pull out lid -2- from protective shield

z

First disconnect 42-pin connection -2- from control module, as follows:
