Volkswagen New Beetle. Manual - part 398





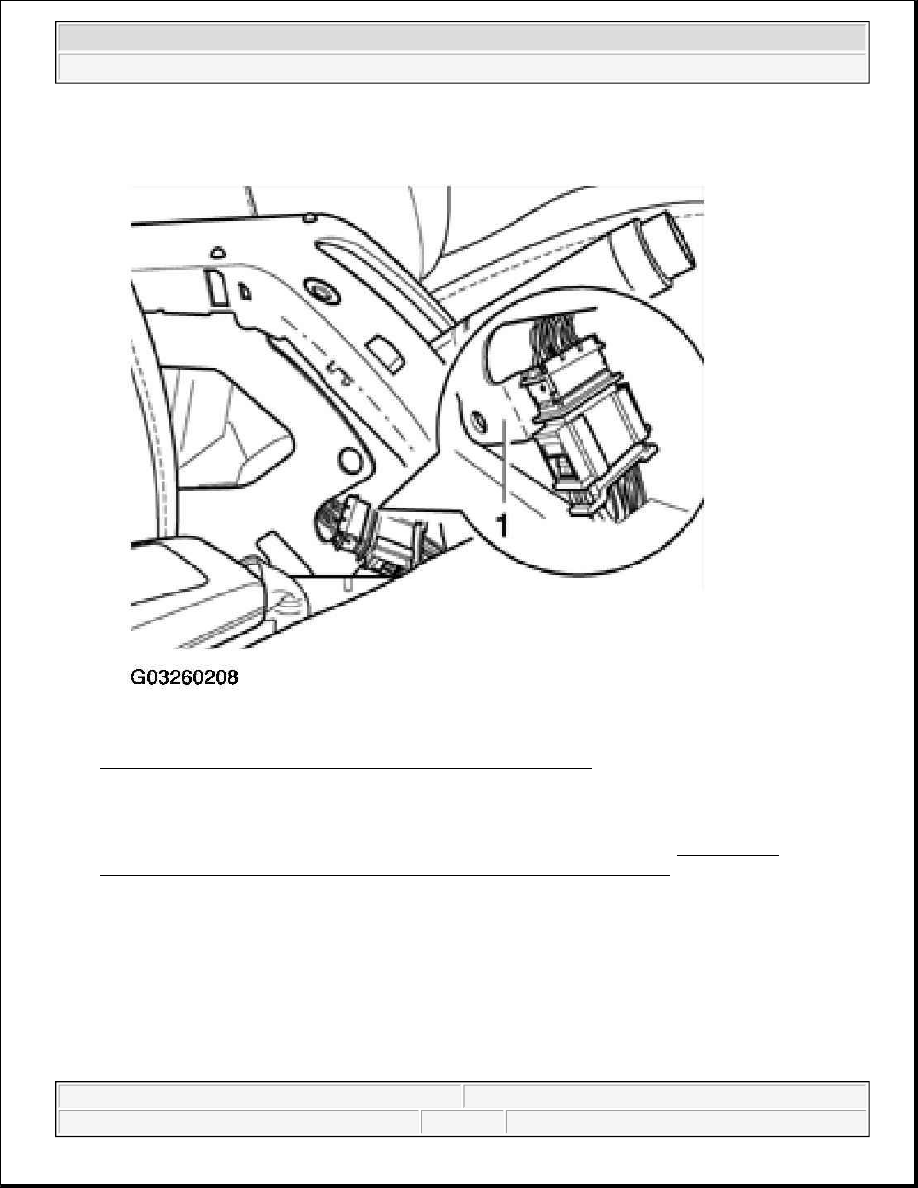

Fig. 83: Clip Connector/Clip Assembly To Inner Console Frame
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Continue with reassembly of all console-mounted components and trim in reverse order of removal

z

Code "Sound System" for CD operation using VAG 1551/1552 Scan Tool (ST) Radio system
"Premium V" and "Premium V - Monsoon", On Board Diagnostic (OBD)


z

Refer to Radio/CD changer owner's guide and check proper operation of CD changer.

Removing

Special tools, testers and auxiliary items needed.

NOTE:

Radio/CD OBD function is inoperative if radio system is not coded for CD
operation.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Radio removal tool 3316 (two identical pieces).

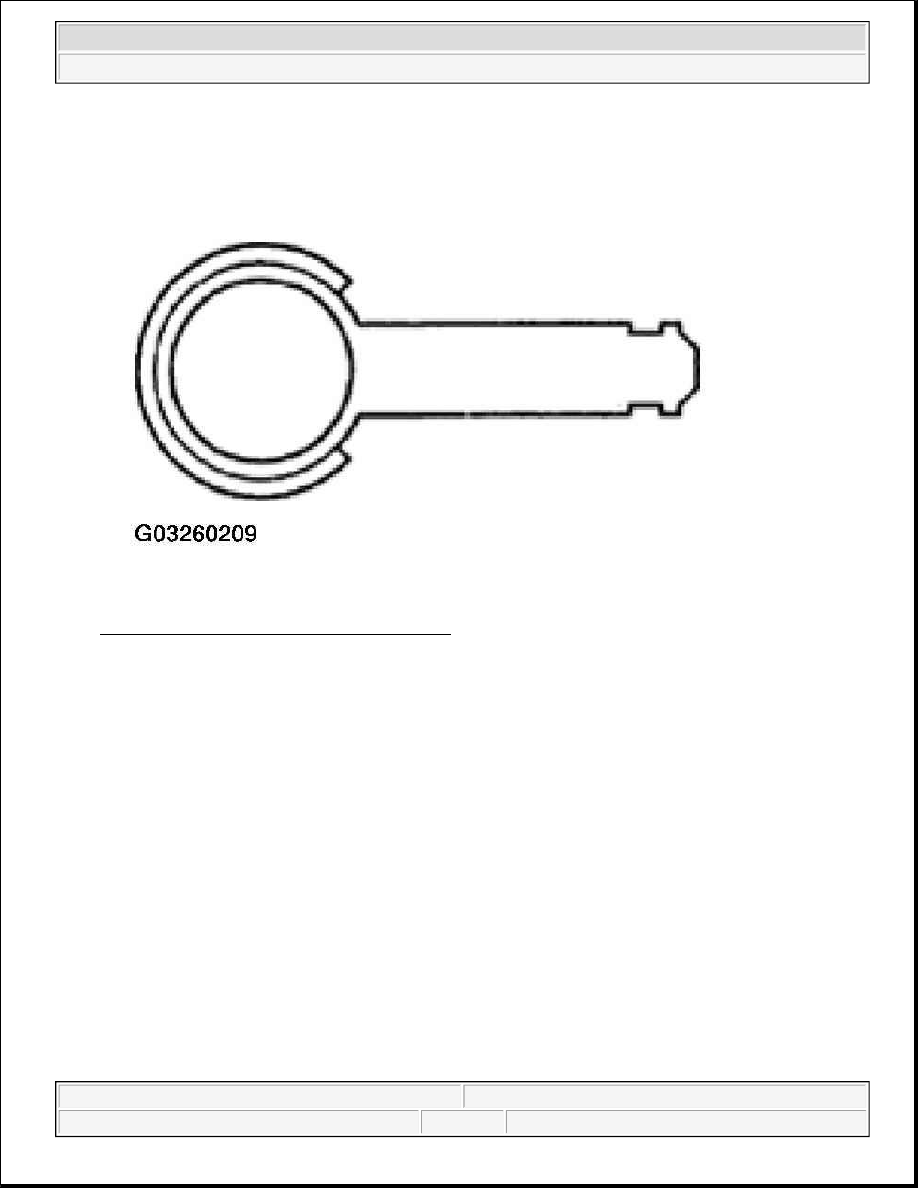

Fig. 84: Identifying Radio Removal Tool 3316
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

z

Insert CD changer removal tools into CD changer as illustrated -arrow- until they are felt to engage.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



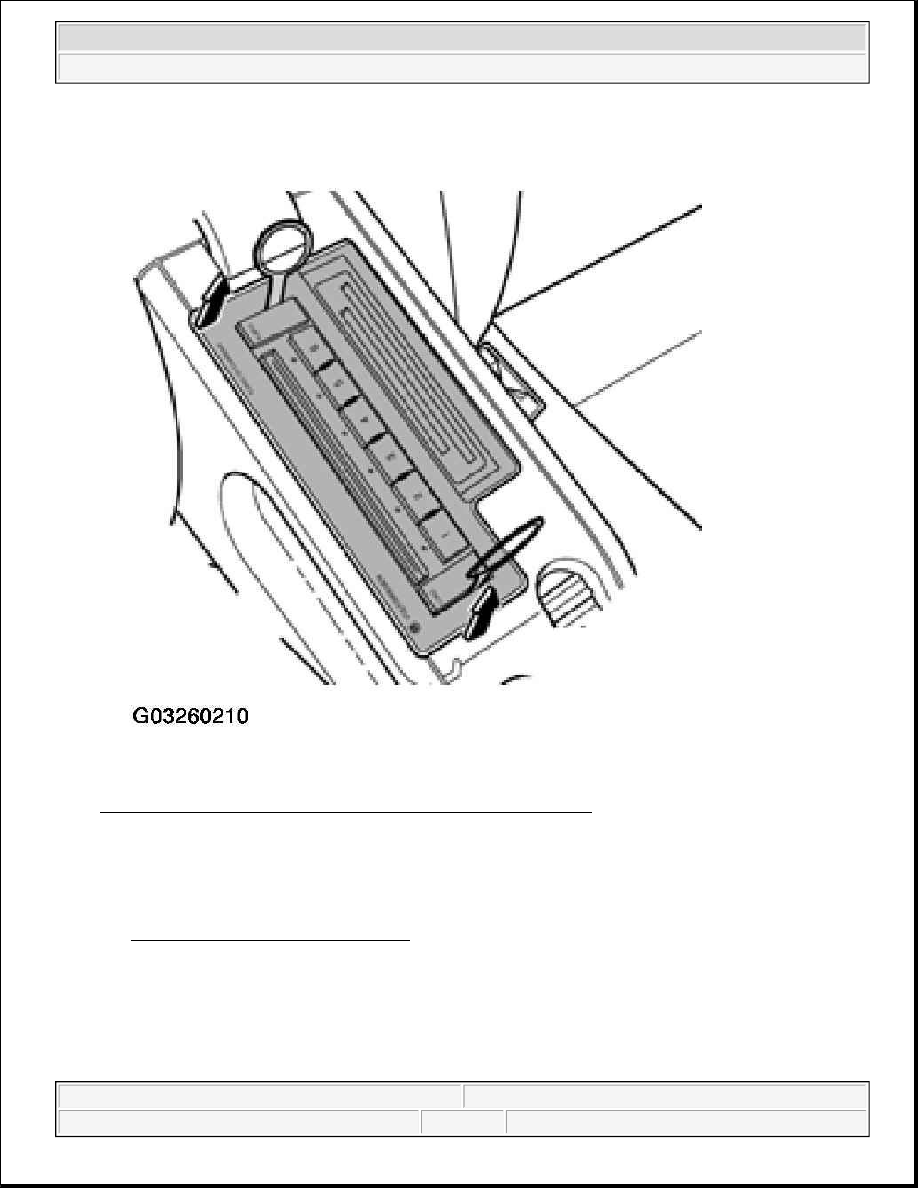

Fig. 85: Inserting CD Changer Removal Tools Into CD Changer
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Lift CD player from console using handles on tool 3316.

z

If it is necessary to disconnect the electrical connections, remove right console side cover trim

See STORAGE, COVERS AND TRIMS .

z

Disconnect electrical harness connections.

TELEMATICS

GENERAL INFORMATION



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Before troubleshooting or servicing, technicians must be familiar with all telematics functions, operating
specifics and the particular service plan which the customer subscribes to.

Refer to "Volkswagen Telematics by On Star(R)" Self Study Program (SSP) and "Volkswagen Telematics by
OnStar(R) Owner's Manual and/or OnStar(R) "Quick Reference Guide" to become familiar with applicable
features and functions.

Telematics, technical features

Telematics is an in-vehicle communication system that uses cellular and Global Positioning System (GPS)
technologies to provide the customer with safety, security and convenience services.

GPS is a "constellation" of 24 satellites that orbit the earth and constantly broadcast radio signals. The
Telematics/Telephone Control Module receives GPS data, decodes it, and transmits the vehicle's location to the
service provider's call center via the national cellular network.

Telematics services for Volkswagen customers are provided by On Star(R) via a dedicated call center. Service
plans may provide route directions and concierge services as well as emergency or vehicle repair services. For
details, See Volkswagen Telematics by OnStar(R); Owner's Manual.

Utilization of available Telematics services/features take place via customer's voice control, See Volkswagen
Telematics by OnStar(R); Owner's Manual.

Upon customer request, the Volkswagen Telematics by OnStar(R) call center can remotely perform or activate
the following vehicle functions:

z

Lock vehicle

z

Unlock vehicle

z

Activate Hazard Lights

z

Activate horn

During events where the Airbag Control Module processes a crash signal, the vehicle hazard lights are activated
and the doors are unlocked via the respective door control modules. In addition, the telematics system
automatically places an emergency call to the OnStar(R) call center.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
