Volkswagen New Beetle. Manual - part 399





Telematics hardware includes the driver operated telematics control head (which contains the OnStar(R) control
buttons and telematics indicator lamp), microphone, roof mounted GPS/Cellular antenna and
Telematics/Telephone Control Module (with supporting software) and related wiring.

All telematics components are factory installed/integrated into the vehicle electrical system.

Telematics system/component overview, see Telematic system, component overview .

ON BOARD DIAGNOSTIC (OBD)

The telematics system has extensive On Board Diagnostic (OBD) capabilities.

The Telematics/Telephone Control Module has a Diagnostic Trouble Code (DTC) memory. If a malfunction
occurs in one of the components or wires which is monitored by the system, a record of the type of malfunction
is stored in DTC memory. OBD program functions are performed using VAS 5051 Vehicle Diagnostic Testing
and Information System in mode "Guided Fault Finding".

TELEMATIC SYSTEM, COMPONENT OVERVIEW

1. Antenna -R11-, Antenna Amplifier -R24- and Antenna for Navigation System (GPS) -R50-

z

On roof, rear

z

Removing and installing, See GPS/Telematics antenna, removing and installing .

2. Dual Horn Auxiliary Relay -J733-

z

On 13-position auxiliary relay panel, above relay panel.

3. Auxiliary Emergency Flasher Relay -J517-

z

On 13-position auxiliary relay panel, above relay panel.

4. Warning Lamp Auxiliary Relay -J734-

z

On 13-position auxiliary relay panel, above relay panel.

5. Telephone Microphone -R38-

z

Integrated with front interior light module.

z

Removing and installing, See TELEPHONE MICROPHONE -R38-, REMOVING AND
INSTALLING
 .

6. Telematic Control Head -E264-

z

Integrated with rear view mirror.

z

OnStar(R) buttons, description, See TELEMATIC CONTROL HEAD - ONSTAR(R)
CONTROL BUTTONS, DESCRIPTION
 .

z

Includes telematics indicator lamp -7-.

z

Removing and installing, See TELEMATIC CONTROL HEAD -E264-, REMOVING AND
INSTALLING
 .

7. Telematics Indicator Lamp -K186-

NOTE:

The following list refers to items in Fig. 86 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

In Telematic Control Head.

z

LED indicates telematic system operational status. Description, See TELEMATIC CONTROL
HEAD - ONSTAR(R) TELEMATICS INDICATOR LAMP, DESCRIPTION
 .

z

Telematic system, troubleshooting using telematics indicator lamp, See TELEMATICS
SYSTEM, TROUBLESHOOTING USING TELEMATICS INDICATOR LAMP
 .

8. Radio -R-

z

In center console.

9. Telematic Control Module -J499-

z

Installed behind right rear side panel trim under rear speaker.

z

Removing and installing, See TELEMATIC CONTROL MODULE -J499-, REMOVING AND
INSTALLING
 .

z

Control module multi-pin connector terminal assignments, See TELEMATIC CONTROL
MODULE -J499- MULTI-PIN CONNECTOR ASSIGNMENTS
.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



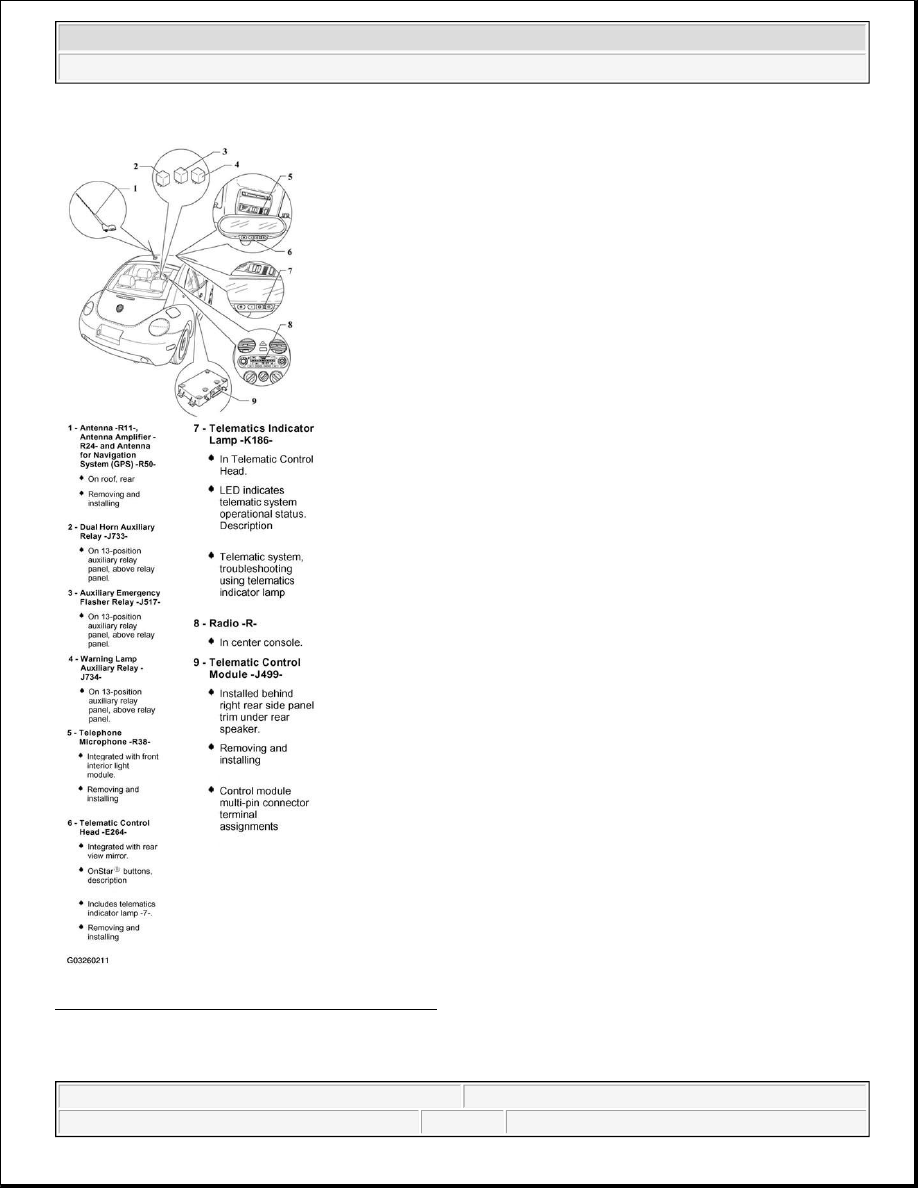

Fig. 86: Identifying Telematic System Component
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TELEMATIC CONTROL HEAD - ONSTAR(R) CONTROL BUTTONS, DESCRIPTION



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



The telematics control head is integrated to the interior rear view mirror. The control head contains three
separate buttons as well as a system telematics indicator lamp (LED).

The OnStar(R) ("On*") button is used to contact the OnStar(R) call center to request various convenience
services. It is also used to initialize/activate the owner's subscription to OnStar(R) services and/or update the
customer's account in the event that the Telephone/Telematics Control Module requires replacement.

The Emergency button is used to contact the OnStar(R) call center to request emergency services such as fire
department, police etc.

The Communication ("DOT") button is used to end a call to the OnStar(R) call center, place or answer personal
calls or cancel a call if one of the other buttons is accidentally pressed.

For complete system operation details, See Volkswagen Telematics by OnStar(R) & Owner's Manual.

TELEMATIC CONTROL HEAD - ONSTAR(R) TELEMATICS INDICATOR LAMP, DESCRIPTION

The telematics indicator lamp is located between the OnStar(R) and Emergency buttons. The green light comes
on after a self-check routine is performed (approx. 10-15 seconds after ignition is switched on).

Indications:

z

Green: Indicates system has passed self-test and is ready to place or receive calls. Light remains on even
in areas without cellular coverage.

z

Blinking green: Indicates a call has been initiated or is in progress.

z

Red: Indicates system has not passed self-test or indicates system malfunction.

TELEMATIC CONTROL HEAD -E264-, REMOVING AND INSTALLING

Removing

z

Remove Interior rear view mirror

See INTERIOR REAR VIEW MIRROR, REMOVING AND INSTALLING .

NOTE:

Use of certain OnStar(R) services requires a subscriber's Personal
Identification Number(s) (PIN).

NOTE:

Additional information and system troubleshooting using telematics indicator
lamp, See TELEMATICS SYSTEM, TROUBLESHOOTING USING TELEMATICS
INDICATOR LAMP .

NOTE:

Before beginning repairs on the electrical system, disconnect battery! See
BATTERY, DISCONNECTING AND RECONNECTING .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
