Volkswagen New Beetle. Manual - part 401





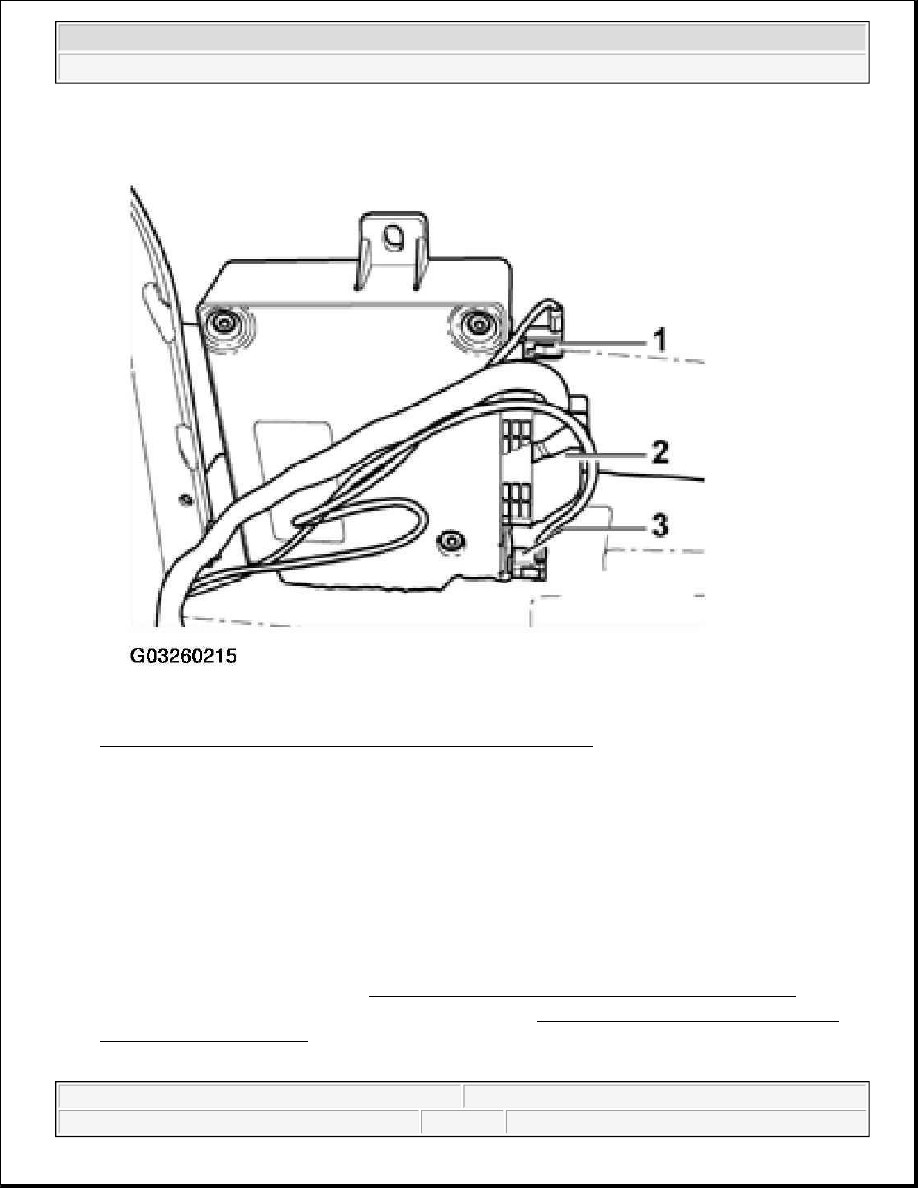

Fig. 90: Disconnecting 42-Pin Connection From Control Module
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Depress clip and slide locking lever

z

Then disconnect antenna cable connections -1- and -3- from control module.

Installing

Install in reverse order of removal, noting the following:

If telematics control module was replaced:

z

Code telematics control module, See TELEMATIC CONTROL MODULE -J499-, CODING .

z

Reconfigure telematics system for OnStar(R) functions, See TELEMATIC CONTROL MODULE -
J499-, RECONFIGURING
 .

TELEMATIC CONTROL MODULE -J499- MULTI-PIN CONNECTOR ASSIGNMENTS



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



42 pin multi-connector -T42-

1. Signal activation - Dual Horn Auxiliary Relay

2. Signal activation - "lock vehicle"

3. Cellular telephone connection -Audio in (not used)

4. Cellular telephone connection - Battery Feedback(not used)

5. Cellular telephone connection - Ground (GND)

6. Cellular telephone connection - TXD-transfer (not used)

7. Cellular telephone connection - RTS (not used)

8. Cellular telephone connection - shielding Ground (GND) (not used)

9. not used

10. Line (+) Output to radio

11. Auxiliary speaker (+) (not used)

12. Telephone microphone (+)

13. K-wire, Data Link Connector (DLC)

14. Power supply - Terminal 15

15. Telematic indicator LED "red" (in Telematic Control Head)

16. Telematic indicator LED "green" (in Telematic Control Head)

17. not used

18. Ground (GND) (Terminal 31)

19. Ground (GND) (Terminal 31)

20. not used

21. not used

22. Signal activation - Auxiliary Emergency Flasher Relay

23. Signal activation - "unlock vehicle"

24. Cellular telephone connection - Audio out (not used)

25. Cellular telephone connection - Audio Ground (GND) (not used)

26. Cellular telephone connection - power supply (not used)

27. Cellular telephone connection - RXD (not used)

28. Cellular telephone connection - RTS (not used)

29. Signal status - Telephone (not used)

30. not used

31. Line (-) Output to radio

32. Auxiliary speaker (-) (not used)

33. Telephone microphone (-)

34. Mute - Radio

NOTE:

The following list refers to items in Fig. 91 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



35. Input "SOS" from telematic control head

36. Input "Power" from telematic control head

37. not used

38. Crash-Signal from airbag control module

39. Terminal 30 (B+)

40. Terminal 30 (B+)

41. Emergency (backup) battery (+) (not used)

42. Emergency (backup) battery (-) (not used)

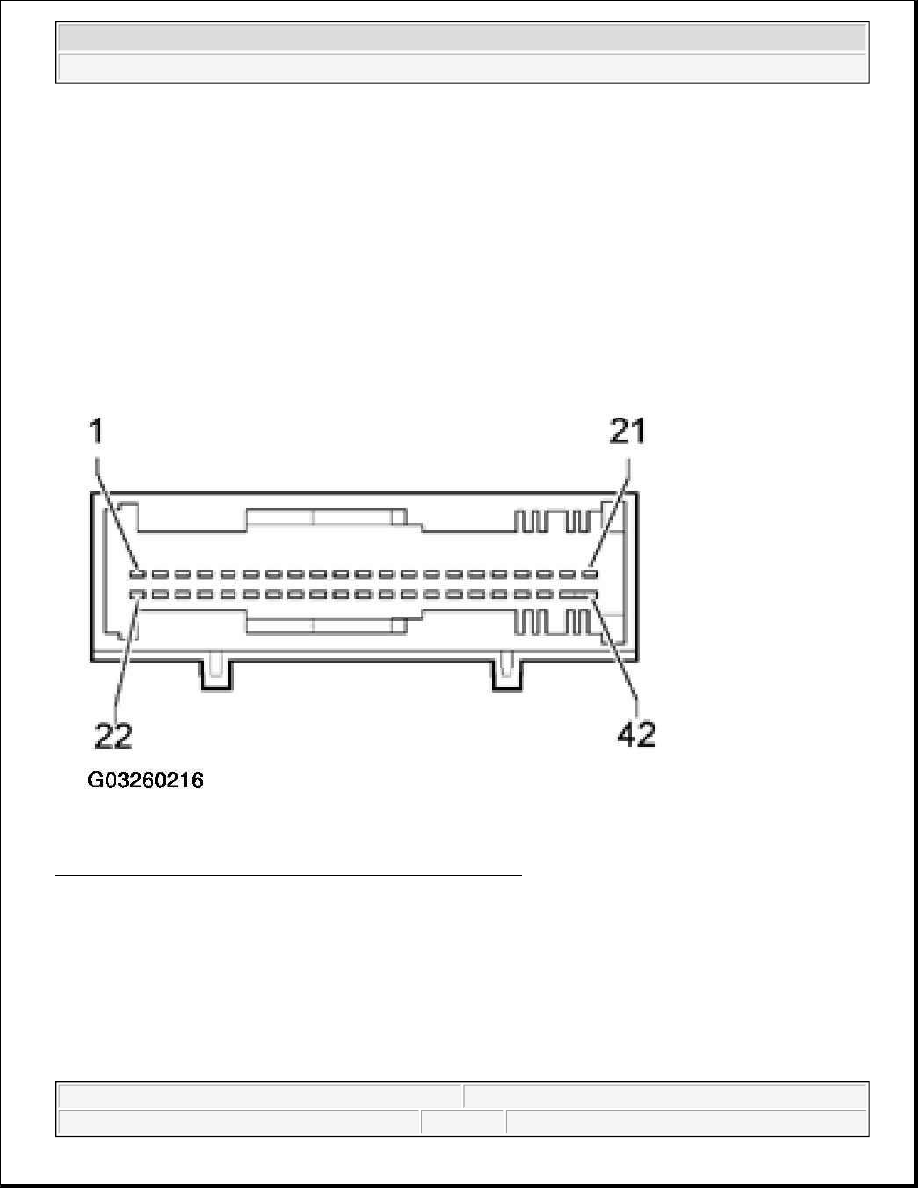

Fig. 91: Identifying 42-Pin Multi-Connector -T42- Terminals
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TELEMATIC CONTROL MODULE -J499-, CODING

After replacing the Telematic Control Module, the control module must be coded and OnStar(R) system needs
to be reconfigured.

Special tools, testers and auxiliary items needed

z

VAS 5051 Vehicle Diagnostic Testing and Information System



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Cable adapter VAS 5051/5a or VAS 5051/6a

Telematic Control Module -J499-, coding

z

Connect VAS 5051 with adapter cable to Data Link Connector (DLC) and select mode "Guided Fault
Finding"

z

Enter appropriate model, equipment and model year information and press ">" to confirm.

NOTE:

z

DO NOT exchange Telephone/Telematic Control Modules between
vehicles! Each module contains specific Station Identification (STID) and
Electronic Serial Number (ESN) data unique to the VIN. This data is used
by OnStar(R) and National Cellular Telephone Network to identify the
vehicle and administer the customer's account.

z

Using the VAS 5051 Vehicle Diagnostic Testing and Information system in
operating mode "Guided Fault Finding, and function" -J499- Telematic
control module, replacing" it is possible to read the telematic control
module coding from the existing module before removal. Note code prior
to removal in order input code into replacement control module.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
