Most electrical consumers and features in the vehicle are developed to include radio interference measures.
These include:

z

Coolant fan -V7-

z

Windshield wiper motor -V-

z

Rear window wiper motor -V12-

Additional Ground (GND) connections on vehicle with radio or prepared for radio:

z

Ground (GND) strap from left wheel housing to fender

CD CHANGER

GENERAL INFORMATION

The optional CD changer wiring and mounting is pre-installed in production. Installation applications:

z

m.y. 1998: H, See CD CHANGER - M.Y. 1988, INSTALLING .

z

m.y. 1999 through 07.02 production:, See CD CHANGER - M.Y. 1999 THROUGH 07.02
PRODUCTION, INSTALLING .

z

from 08.02 production:, See CD CHANGER - FROM 08.02 PRODUCTION, INSTALLING AND
REMOVING .

CD CHANGER - M.Y. 1988, INSTALLING

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



The following describes the factory-approved service installation of Volkswagen CD changers into m.y. 1998
New Beetle models equipped with "Premium V" radios.

CD changer: 1J5 035 111

Installation kit: 1 C0 098 201

Installing

Installed position: Left rear of luggage compartment, just behind folding rear seat.

CD prep (changer cable and connector routing) is visible from inside luggage compartment, at left rear wheel
well.

z

Lift luggage compartment carpet.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

CAUTION:

z

Part numbers are for reference only. Always check with your Parts
Department for the most up to date information.

z

Always confirm CD changer and radio compatibility with your Parts
Department.

NOTE:

z

Carefully review all of the following instructions before proceeding with
installation.

z

Never install CD changer in a location, position, or manner other than
specified by these instructions.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



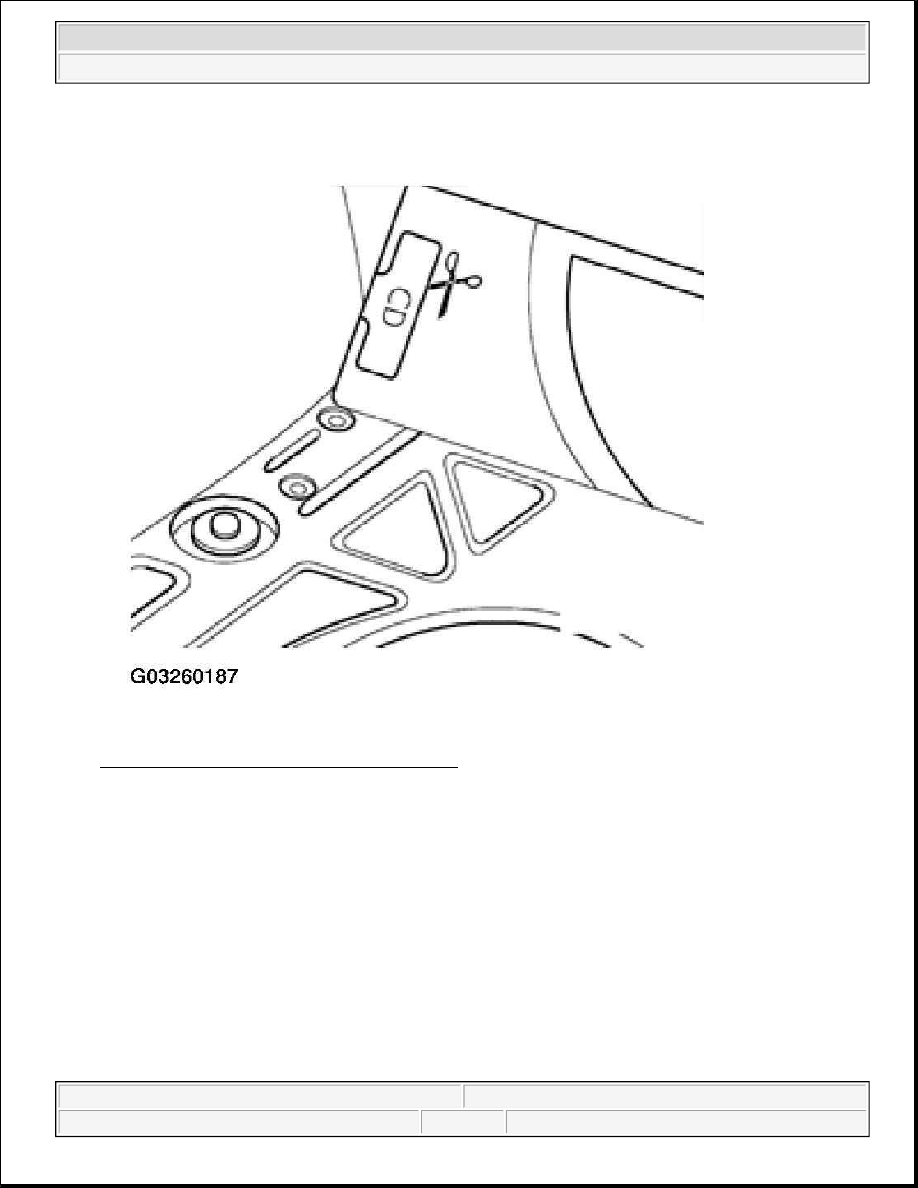

Fig. 62: Lifting Luggage Compartment Carpet
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

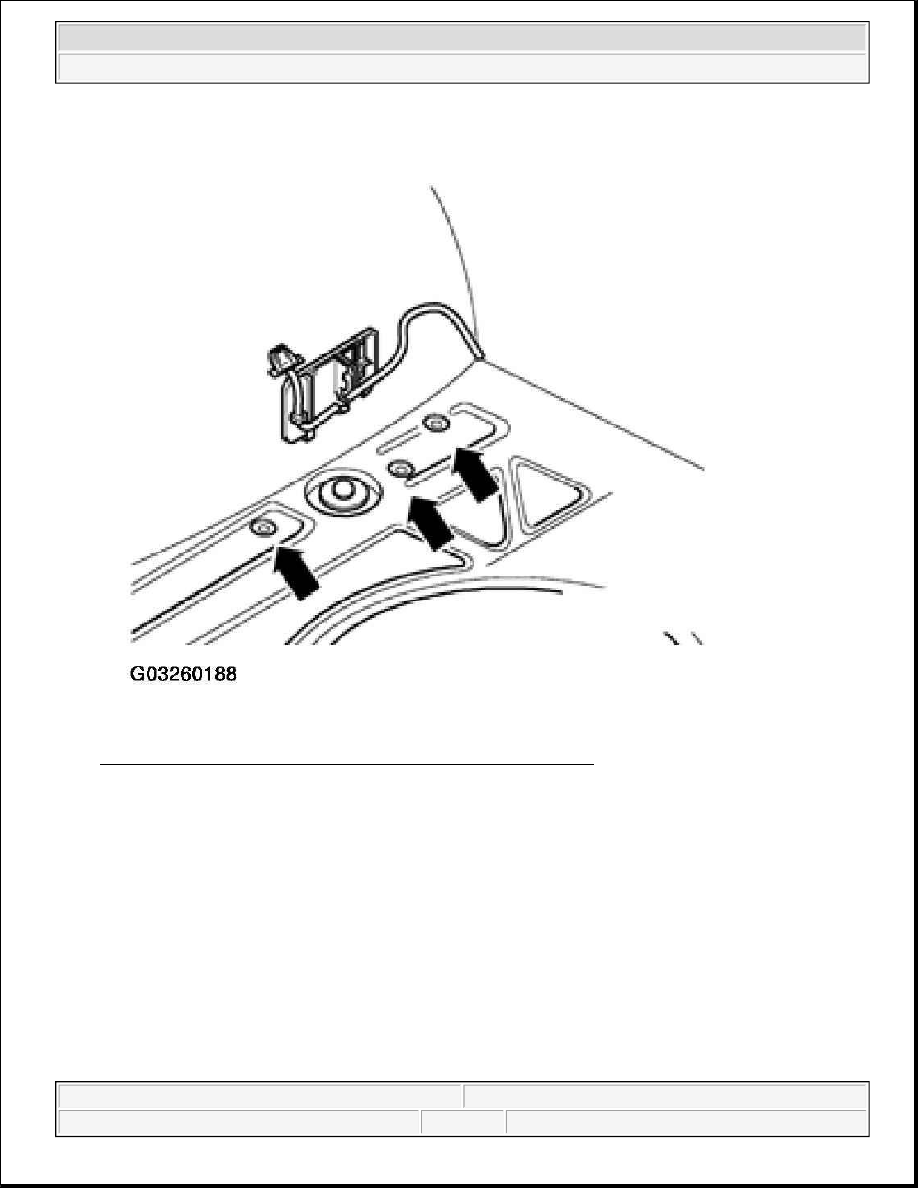

Note location of three CD changer bracket mounting holes -arrows-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Fig. 63: Identifying Three CD Changer Bracket Mounting Holes
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Depending on production, one of two different types of CD changer (cable) prep may be used.

Version 1

CD changer connector -1- and cable secured by clip on left side of luggage compartment.

z

Remove clip -arrow- and fold back connector.

Version 2



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
