Fig. 59: Identifying Radio Buttons
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

If a button is pressed beyond desired number, the sequence will start over at 1 after 9 is pressed.

z

When entire code is entered, press right side of "Seek/Track" rocker button -C- (">") for about 2 seconds,
until an audible signal is heard.

NOTE:

z

If a wrong code was accidentally entered, the display will flash "SAFE"
initially, and then remain on.

z

The coding procedure may be repeated a second time (the number of
coding attempts is displayed). If a wrong code is entered again, the radio
will be disabled for an hour. If this happens, leave the radio ON and the
key in the ignition for one hour. After the hour has elapsed, the number of
attempts stops being displayed and the electronic lock can be cancelled.

z

The cycle is: 2 attempts, 1 hour locked



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



ANTENNA SYSTEM

GENERAL INFORMATION

ROOF MOUNTED ANTENNA, ASSEMBLY

1. Antenna rod

Fig. 60: Identifying Radio Buttons
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION: Before working on the electrical system:

z

Determine the correct coding for the anti-theft radio.

z

Switch ignition off.

z

Disconnect the battery Ground (GND) strap.

z

After reconnecting the battery, re-code and check operation of the
anti-theft radio. Also check operation of the clock and the power
windows according to the Repair Manual and/or the Owner's Manual.

NOTE:

The following list refers to items in Fig. 61 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



2. Antenna base

z

The amplifier coil is located in the antenna base

z

Removing and installing: lower molded headlining at rear

3. Antenna cable

z

Routing: From roof antenna to front of center console

4. Hex nut M14 with serrated washer

z

Serrated washer is attached to hex nut with plastic ring

z

Apply contact grease to the inside of the roof in area of serrated washer

5. Gasket



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

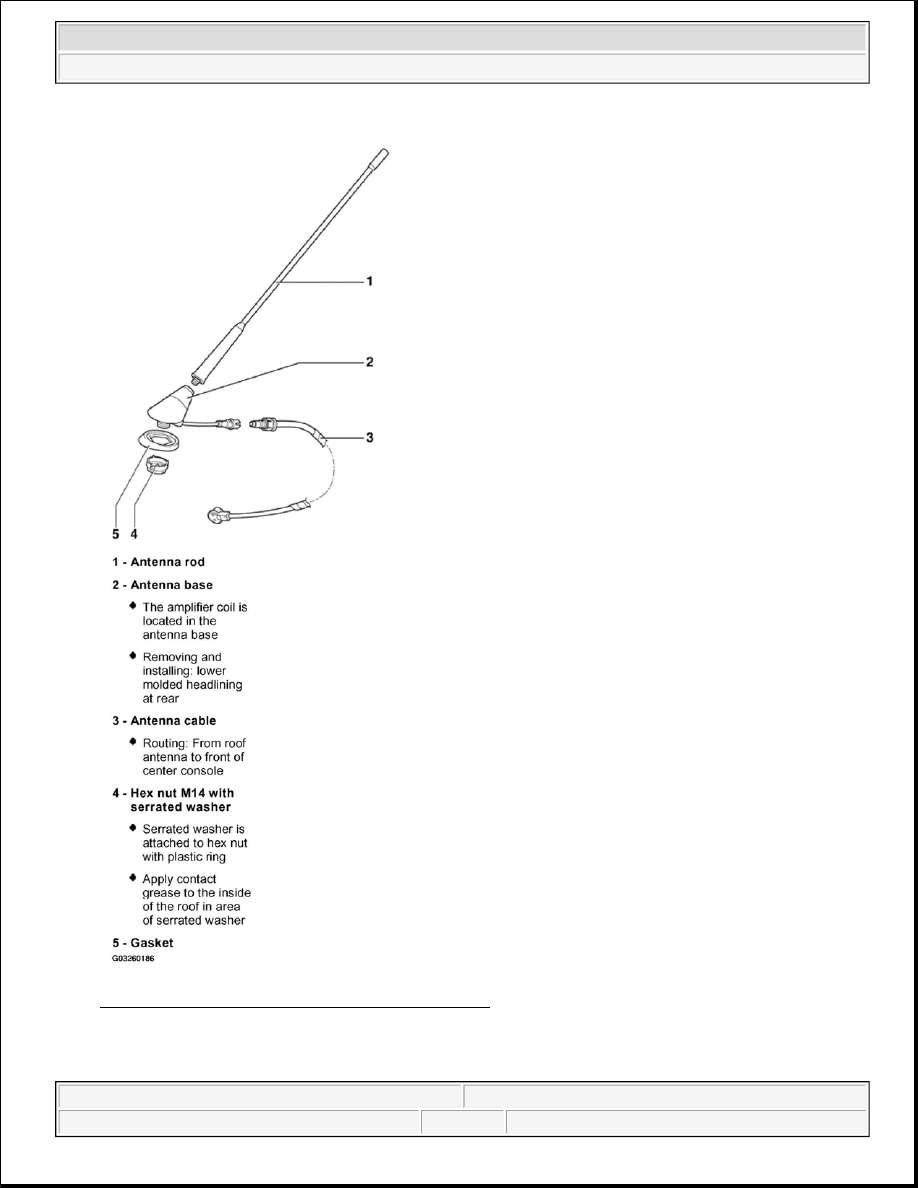

Fig. 61: Exploded View Of Roof Mounted Antenna
Courtesy of VOLKSWAGEN UNITED STATES, INC.

RECEPTION INTERFERENCE, SUPPRESSION MEASURES



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
