Remove door trim panel, (or rear trim panel)

See INTERIOR TRIM .

z

Disconnect electrical connection.

z

Carefully drill out rivets -arrows- and remove loudspeaker.

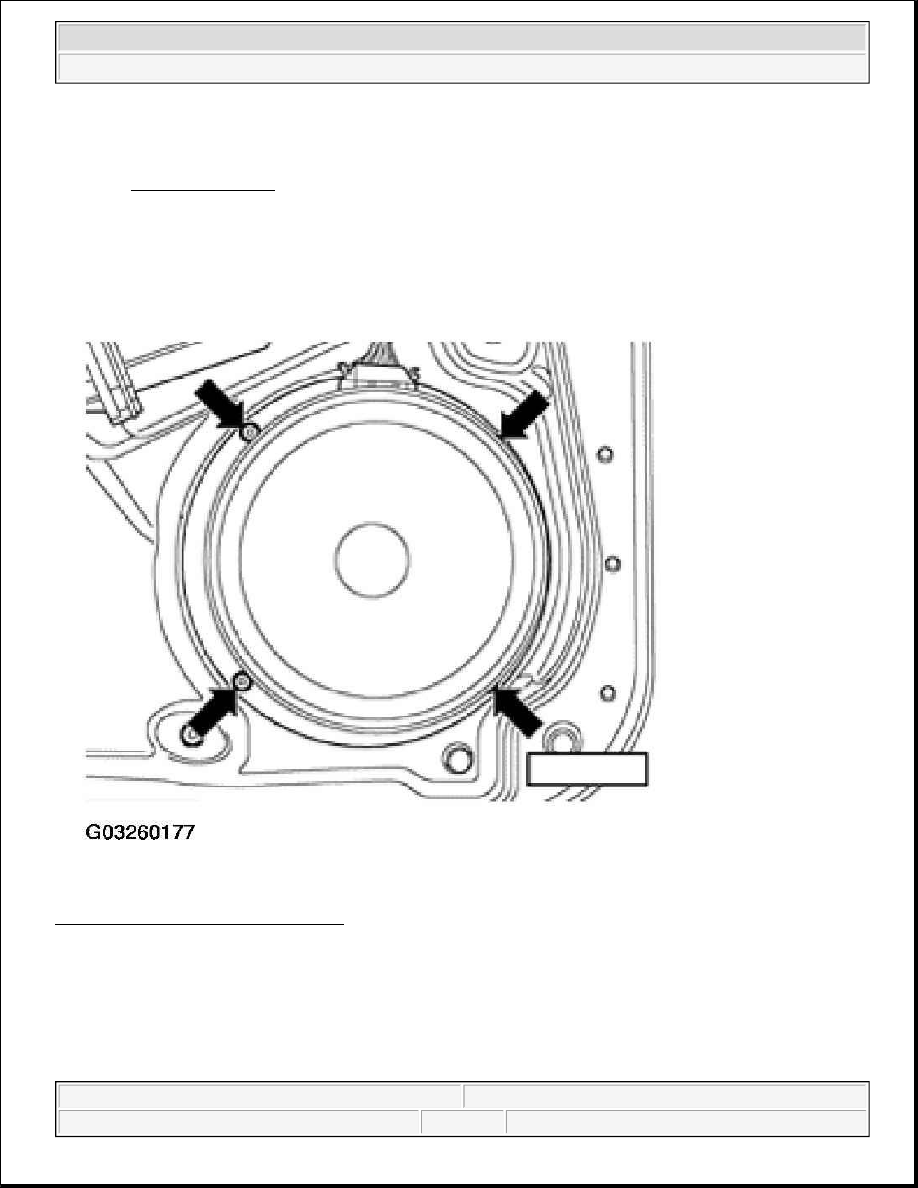

Fig. 52: Locating Loudspeaker Rivets
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION:

z

To prevent corrosion, make sure that all metal particles from drilling
are removed from inside the door.

z

If the paint on door frame is damaged during drilling, touch-up
immediately.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Installing

z

Secure loudspeaker with locally available pop rivets of proper length and diameter.

DOMED TREBLE AND BASS LOUDSPEAKERS (MONSOON ONLY), REMOVING AND
INSTALLING

Removing

z

Slide instrument panel center cover -1- in direction of -arrow A- and remove.

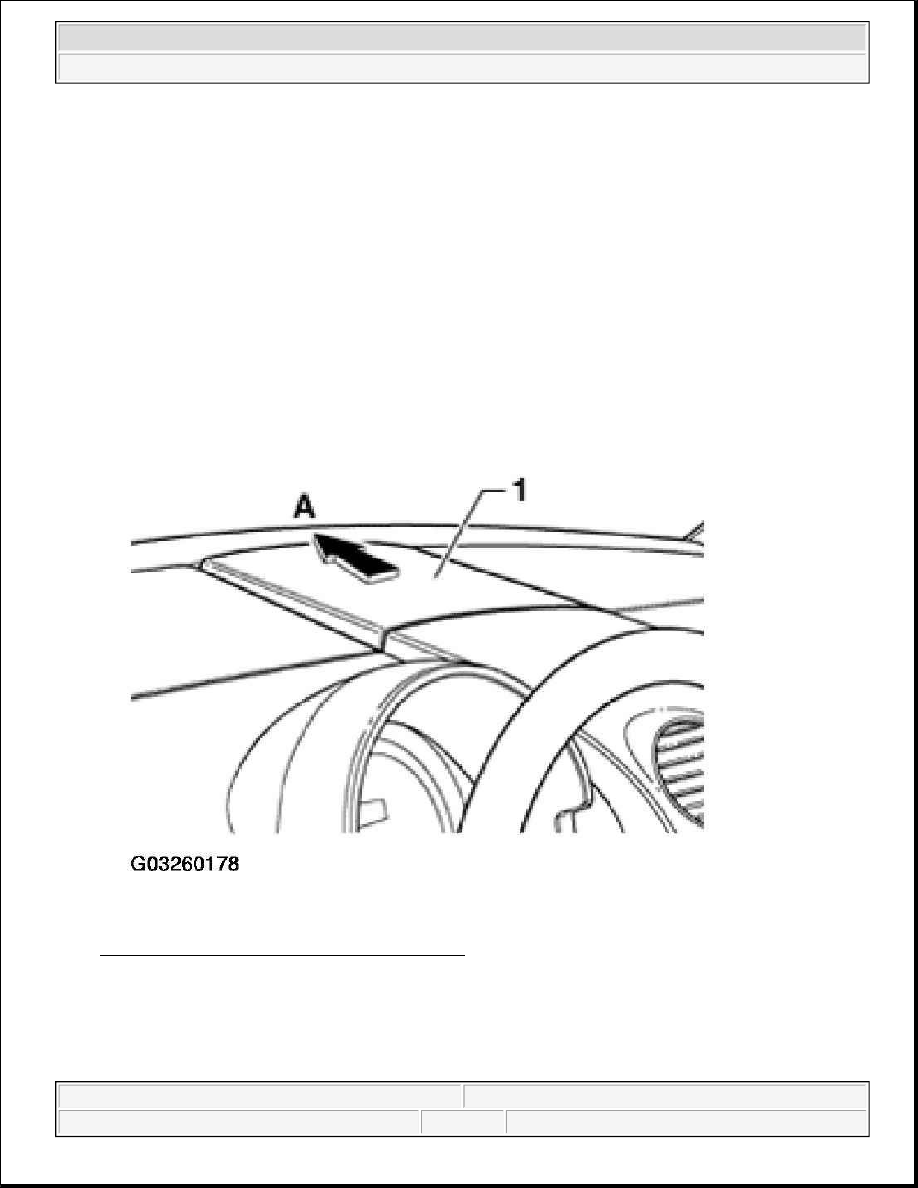

Fig. 53: Sliding Instrument Panel Center Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Remove screws -arrows-.

NOTE:

Do not forget rubber insulation ring between door trim and loudspeaker when
reinstalling door trim.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



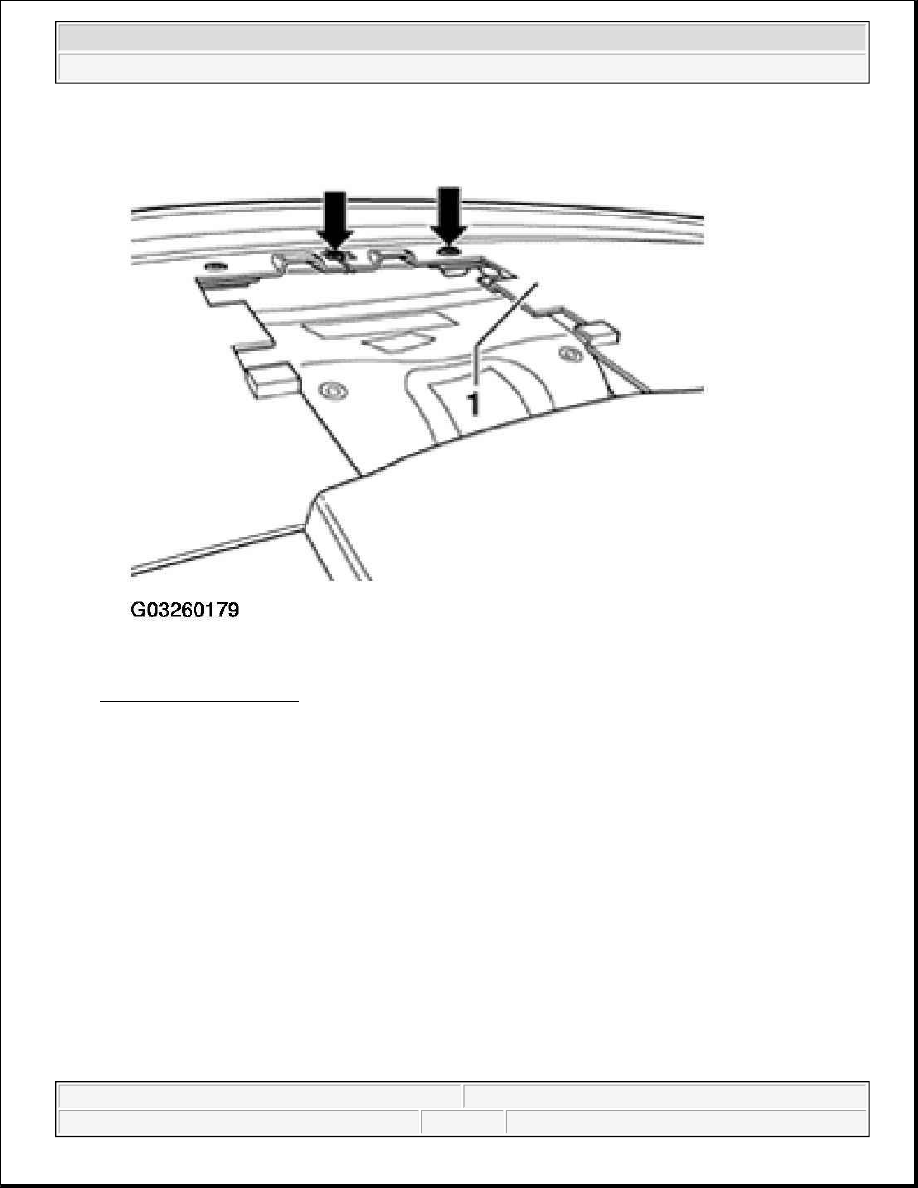

Fig. 54: Removing Screws
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Lift inner plenum chamber cover slightly.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



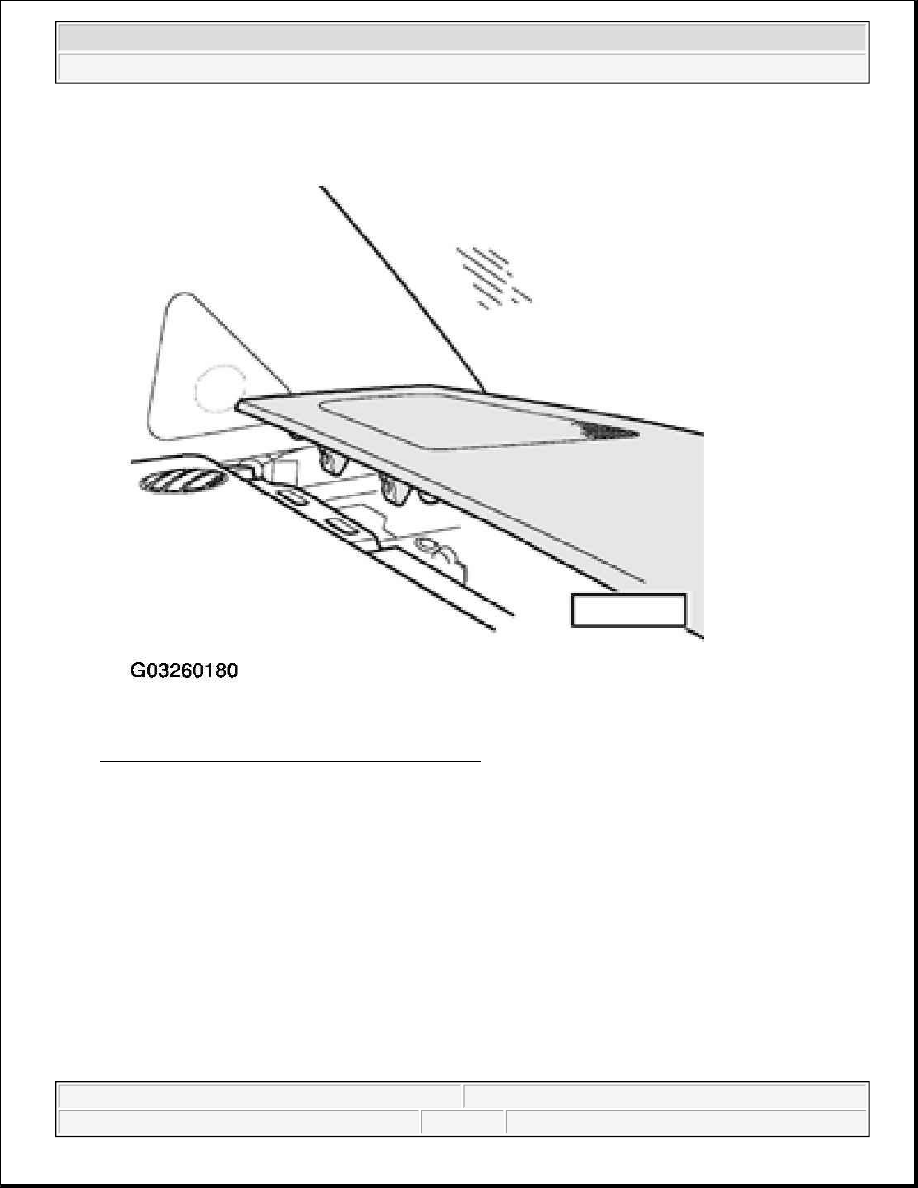

Fig. 55: Removing Inner Plenum Chamber Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Depress locking tabs and disconnect electrical connection -arrows-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
