SPEAKER SYSTEM, OVERVIEW

Speaker layout on left side of vehicle is shown. Right side speaker layout is identical.

1. Radio

z

In center console

z

Removing and installing, See RADIO, REMOVING AND INSTALLING

2. Bass loudspeaker (with Monsoon only)

z

In inner plenum under cover

z

Removing, See DOMED TREBLE AND BASS LOUDSPEAKERS (MONSOON ONLY),
REMOVING AND INSTALLING


3. Domed treble loudspeaker (with Monsoon only)

z

In inner plenum under cover

z

Removing, See DOMED TREBLE AND BASS LOUDSPEAKERS (MONSOON ONLY),
REMOVING AND INSTALLING


4. Domed treble loudspeaker

z

In A-pillar

z

Removing, See DOMED TREBLE LOUDSPEAKERS, REMOVING AND INSTALLING

5. Roof antenna

z

Amplified mast type antenna mounted on roof, see ROOF MOUNTED ANTENNA,
ASSEMBLY
 .

6. Not applicable

7. Bass loudspeaker

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

NOTE:

Vehicles equipped with "Monsoon" sound systems include high power handling
speakers specifically designed for the "Monsoon" system. Always confirm
radio system installed and check with the parts department for proper
replacement speaker applications.

NOTE:

The following list refers to items in Fig. 50 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

In rear side panel

z

Removing and installing, See FRONT AND REAR BASS LOUDSPEAKERS, REMOVING
AND INSTALLING


8. Bass loudspeaker

z

In front door

z

Removing and instaling, See FRONT AND REAR BASS LOUDSPEAKERS, REMOVING
AND INSTALLING




2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

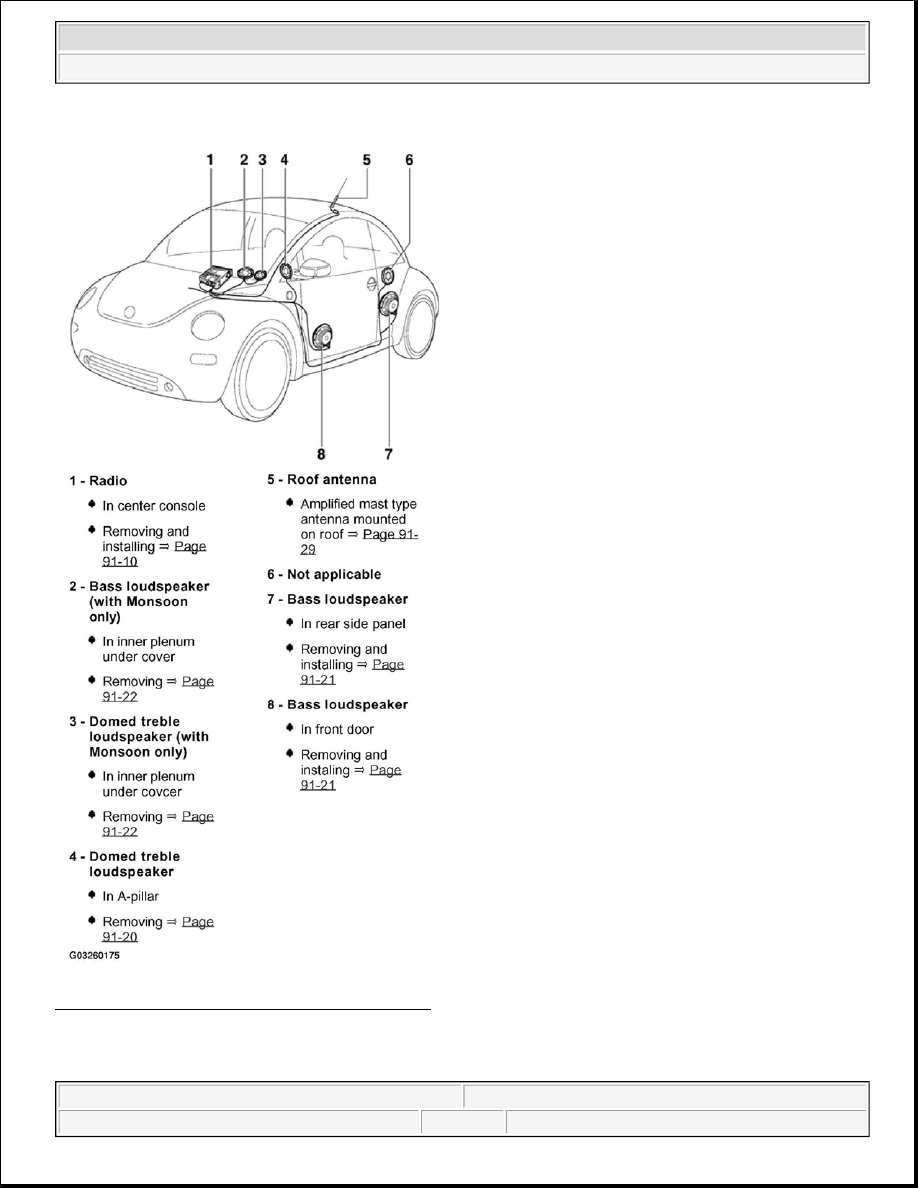

Fig. 50: Identifying Speaker System Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DOMED TREBLE LOUDSPEAKERS, REMOVING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

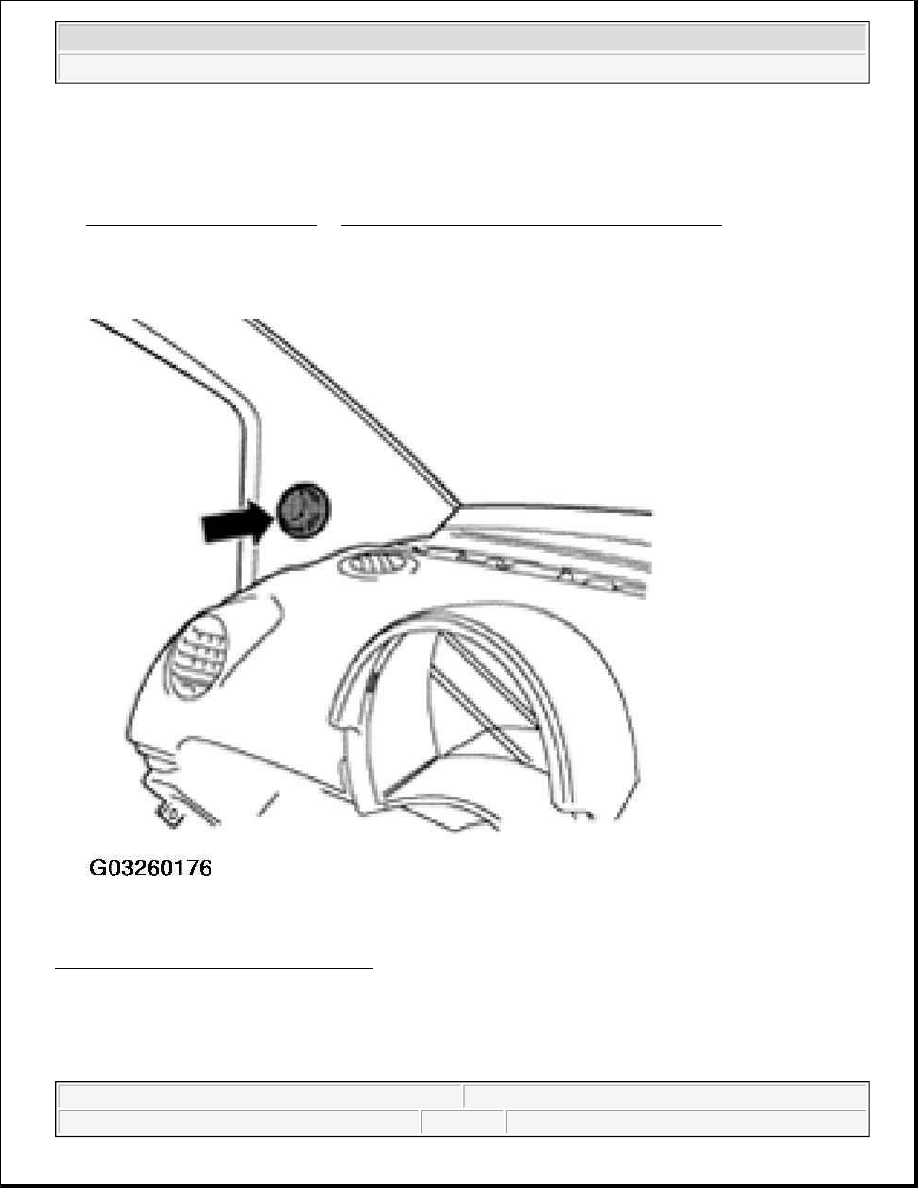

Speakers -arrow- in front A-pillars are permanently attached to the interior A-pillar trim cover.

Remove/replace entire A-pillar trim cover

See PILLARS AND SIDE TRIMS or PILLARS AND SIDE TRIMS (CONVERTIBLE) .

Fig. 51: Identifying Front Pillars Speaker
Courtesy of VOLKSWAGEN UNITED STATES, INC.

FRONT AND REAR BASS LOUDSPEAKERS, REMOVING AND INSTALLING

Removing



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
