Volkswagen New Beetle. Manual - part 385





11. Remote control (serial input)

12. Open

Multi-pin connector I, -T20- part 3, blue

13. CD changer- DATA IN

14. CD changer - DATA OUT

15. CD changer- CLOCK

16. CD changer - Positive (B+) supply

17. CD changer - Control signal

18. CD changer - Ground (GND) supply

19. CD changer - Line out, left

20. CD changer - Line out, right



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



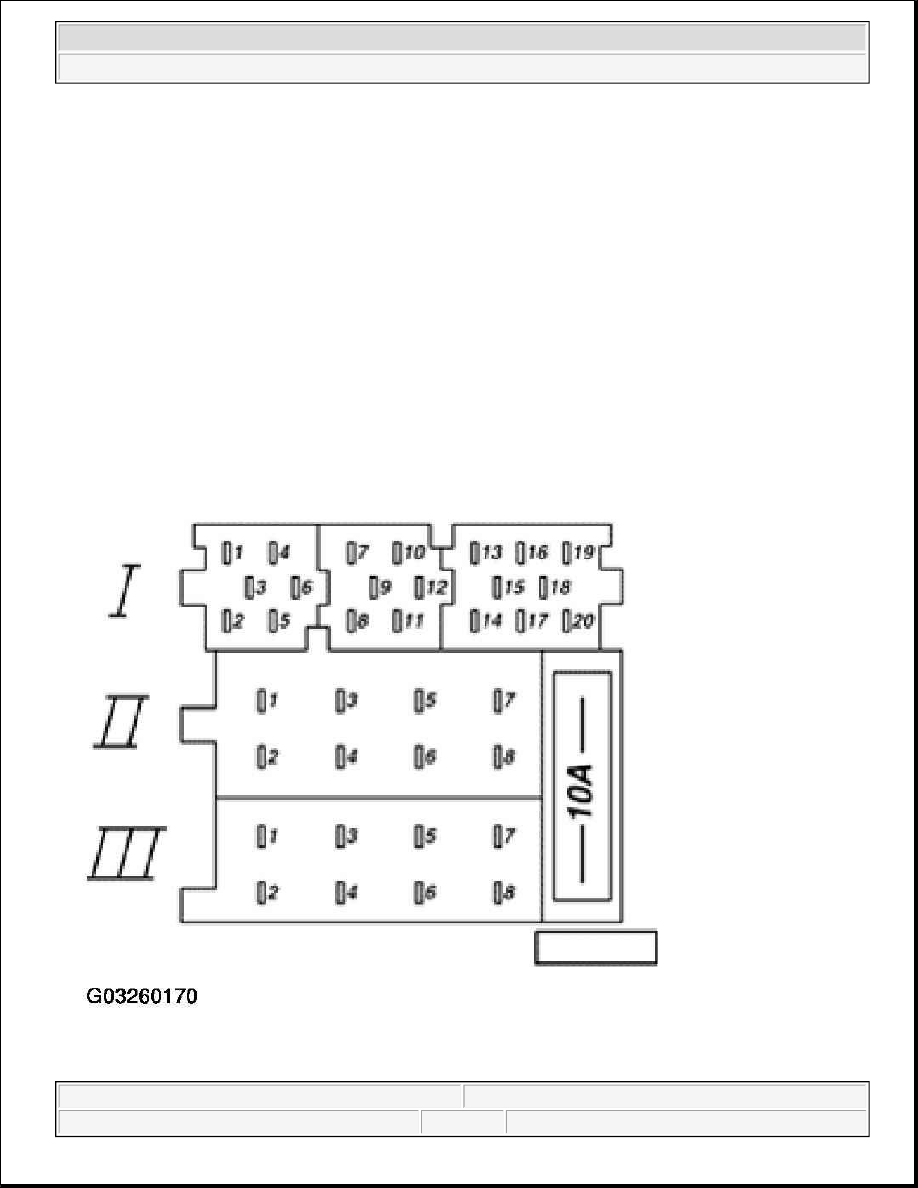

Fig. 45: Identifying Multi-Pin Connector
Courtesy of VOLKSWAGEN UNITED STATES, INC.

"Premium V" Multi-pin connector II, -T8a-, 8-pin, brown

1. Right rear loudspeaker +

2. Right rear loudspeaker -

3. Right front loudspeaker +

4. Right front loudspeaker -

5. Left front loudspeaker +

6. Left front loudspeaker -

7. Left rear loudspeaker +

8. Left rear loudspeaker -

"Premium V - Monsoon" Multi-pin connector II, -T8a-, 8-pin, brown

1. Amplifier + right rear speaker signal

2. Amplifier - right rear speaker signal

3. Amplifier + right front speaker signal

4. Amplifier - right front speaker signal

5. Amplifier + left front speaker signal

6. Amplifier - left front speaker signal

7. Amplifier + left rear speaker signal

8. Amplifier - left rear speaker signal

Multi-pin connector III, -T8-, 8-pin, black

1. Signal for anti-theft alarm system

2. Open

3. Data Link Connector (DLC) K wire

4. Ignition switch -S- contact

5. Positive (B+) supply, terminal 30 (control input for "SAFE" display/anti-theft)

6. Illumination, terminal 58b

7. Battery positive (B+) supply (terminal 30)

NOTE:

The following list refers to items in Fig. 45 .

NOTE:

The following list refers to items in Fig. 45 .

NOTE:

The following list refers to items in Fig. 45 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



8. Ground (GND) supply

RADIO, REMOVING AND INSTALLING

GENERAL INFORMATION

RADIO "PREMIUM V" & "PREMIUM V -MONSOON", REMOVING AND INSTALLING

Special tools, testers and auxiliary items needed

Radio release tool T10057.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

NOTE:

If radio is exchanged or replaced

z

Anti-theft security code for new radio must be entered before use, See
ANTI-THEFT SECURITY CODE . Be sure to advise customer of new
security code.

z

Confirm radio coding for sound system functions using On Board
Diagnostic program function 07: "Code Control Module". See Code
Control Module (function 07) .

z

Radio sound system coding must be performed to account for presence of
CD changer (if installed), Monsoon system (where applicable) and interior
sound field differences between models.

NOTE:

Before removing the radio obtain anti-theft security code from customer -
vehicle papers. If the radio has been replaced, always activate the anti-theft
coding, See ANTI-THEFT SECURITY CODE . Be sure to advise customer of new
security code.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

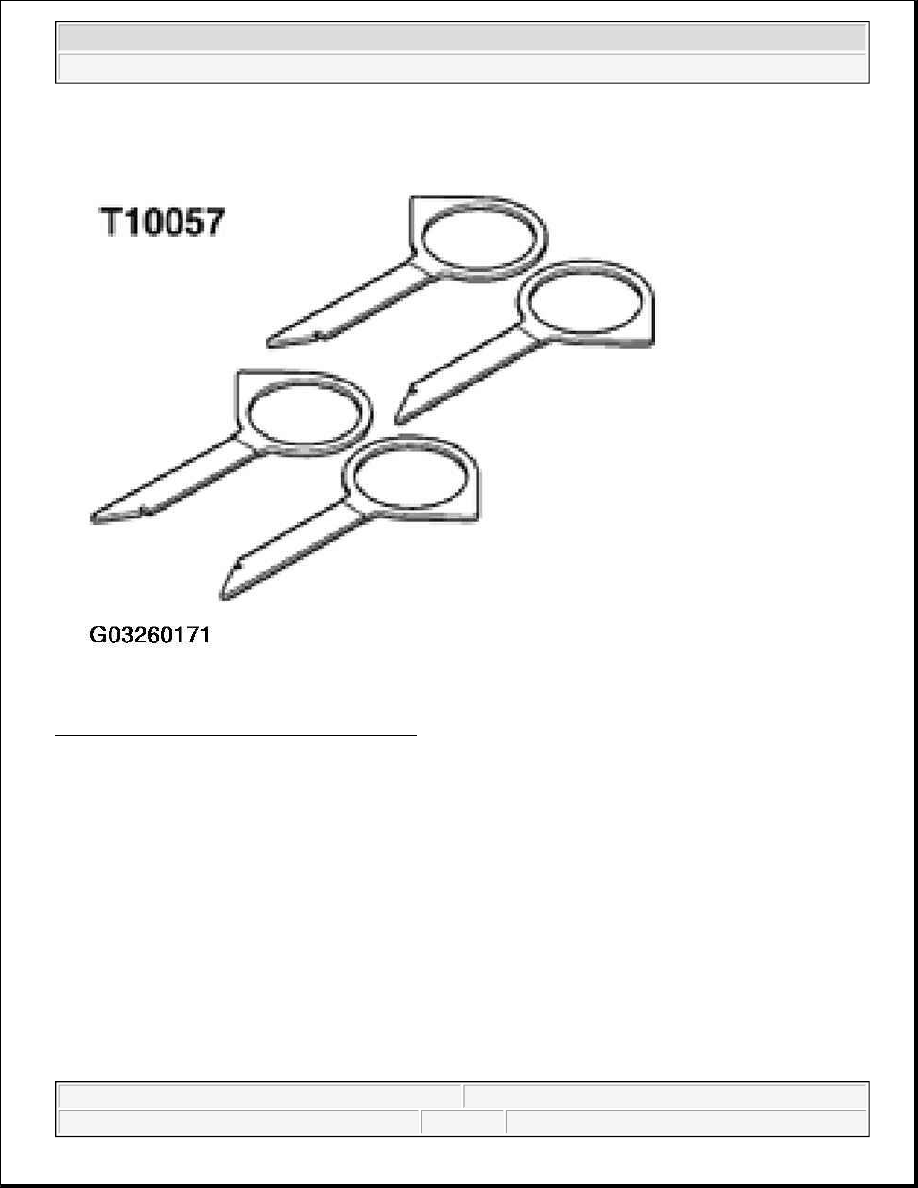

Fig. 46: Identifying Radio Release Tool T10057
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

z

Slide radio release tool T10057 into release slots -arrows- until they engage.

z

Pull radio out of instrument panel using grip rings of release tools.

NOTE:

z

The radio release tool T10057 must not be pushed to the side or tilted.

z

To remove the release tools from the radio the locating lugs on the side of
the radio must be pressed inward.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
