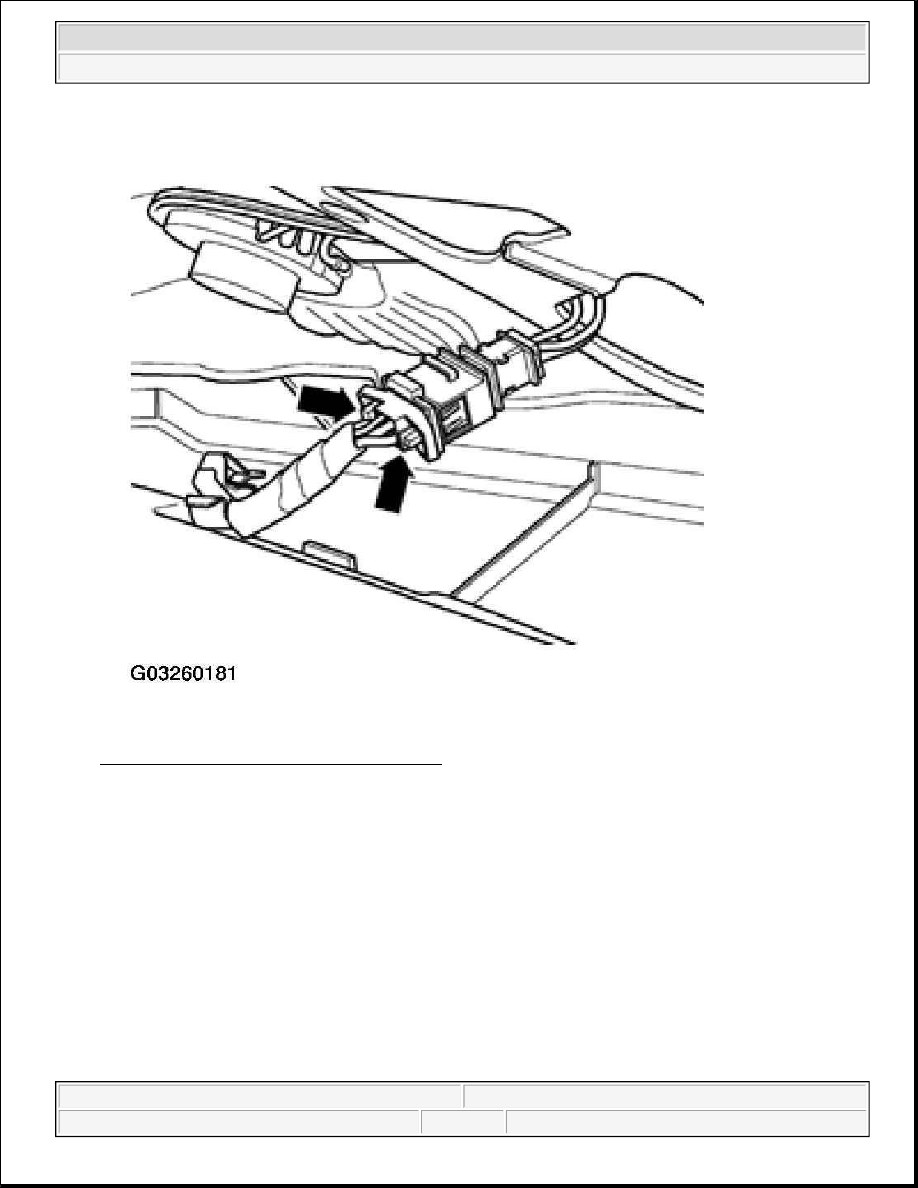

Fig. 56: Disconnecting Electrical Connection
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Carefully drill out rivets -arrows- or remove screws -arrows- as applicable and remove loudspeaker.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

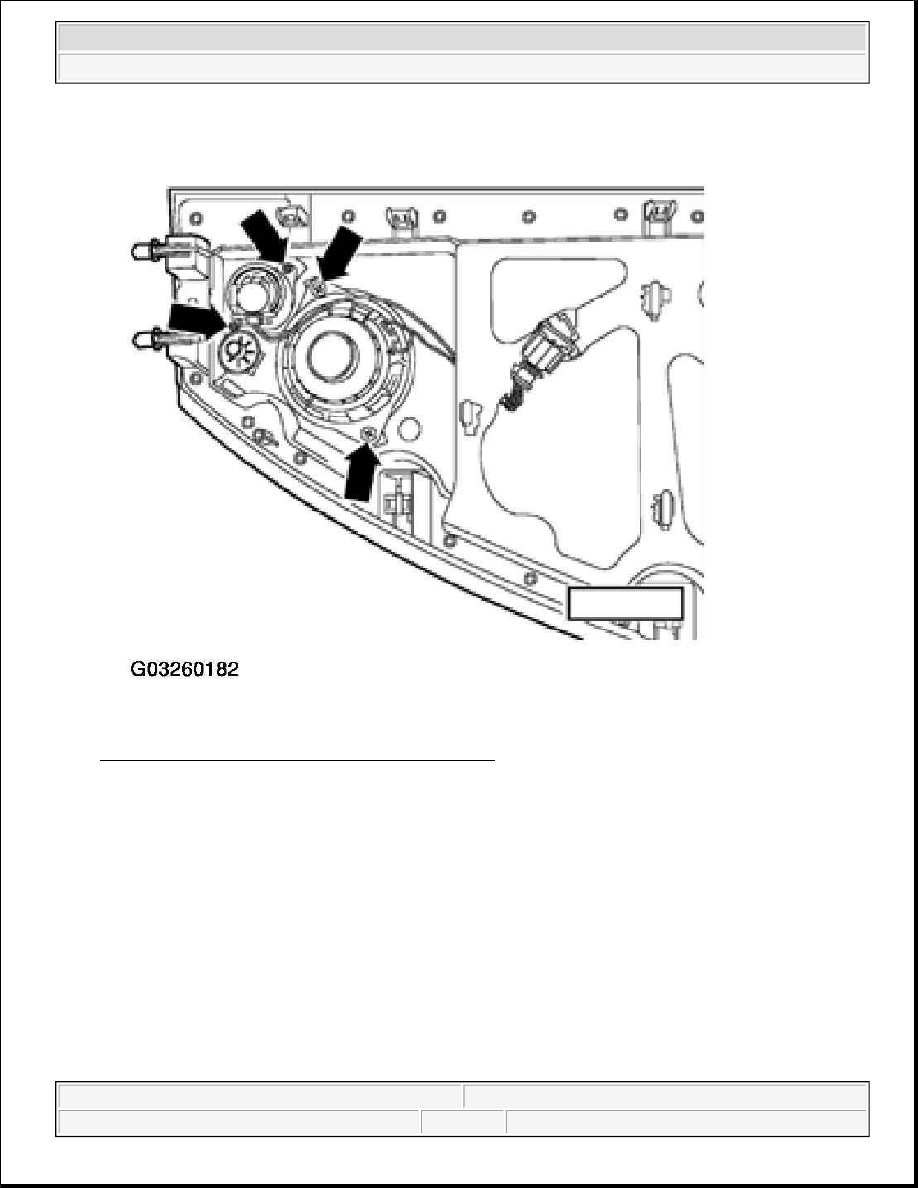

Fig. 57: Removing Loudspeaker Rivets And Screws
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing

z

Install in reverse order of removal, noting the following.

z

Screws: tightening torque: 3 N.m (27 in lb)

z

Secure loudspeaker with locally available pop rivets of proper length and diameter.

NOTE:

Installation position.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Fig. 58: Installing Loudspeaker Rivets And Screws
Courtesy of VOLKSWAGEN UNITED STATES, INC.

ANTI-THEFT SECURITY CODE

GENERAL INFORMATION

All radios are equipped with an electronic anti-theft system.

The electronic anti-theft system is activated and locks the radio as soon as:

z

Voltage supply (terminal 30) drops below a predetermined voltage value.

z

The radio unit is disconnected from voltage supply (terminal 30) (e.g. when removing radio unit).

z

Vehicle battery (terminal 30) has been disconnected.

A radio which is locked by the electronic anti-theft system, is indicated by the letters "SAFE," which appears on



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



the display when the radio is switched on.

ANTI-THEFT SECURITY CODE, INPUTTING

The radio will only work, if the correct code number for the anti-theft system is entered.

Perform steps in the exact order given below:

z

Obtain anti-theft code number from radio card.

z

Switch radio on.

"SAFE" will appear on the display.

After 3 seconds, the number 1000 will appear on the display.

z

Use station preset buttons (B) -1- to -4- to enter the 4digit code number.

z

Press preset button -1- to enter first digit in the code number, preset button -2- for second digit and so on.

z

To enter code number, press applicable button repeatedly until desired number appears on display.

The value range for each of the 4 digits is between 0 and 9.

NOTE:

z

The anti-theft protection code can be found along with the radio number
on the radio card. See Owner's Manual.

z

For safety reasons, never leave the radio card in the car. If necessary, ask
the customer for the code.
