Volkswagen New Beetle. Manual - part 357





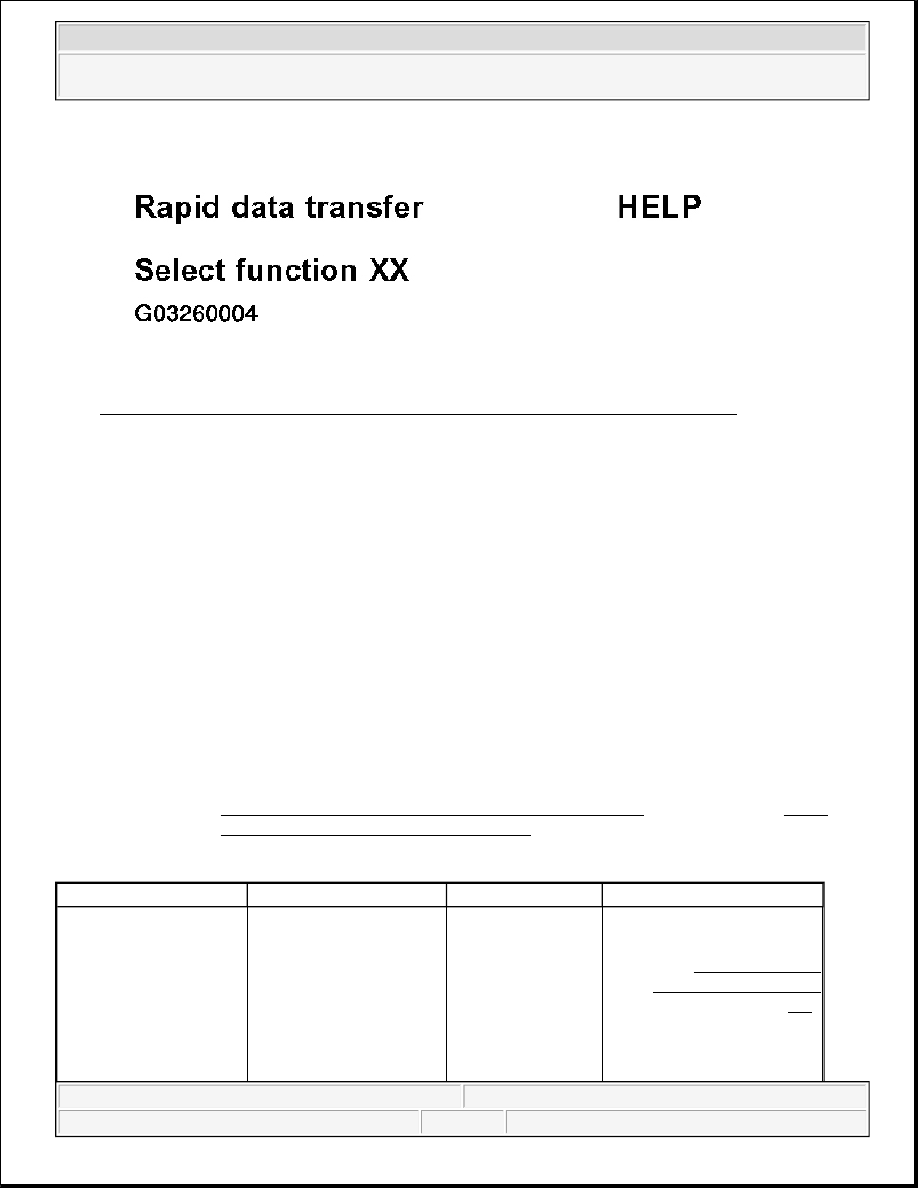

Fig. 105: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) TABLE

DIAGNOSTIC TROUBLE CODES (DTC)TABLE (FROM 06.99 & UP)

NOTE:

z

The following table lists all malfunctions, with the corresponding 5 digit
code numbers, that can be recognized by control module with indicator
unit in instrument cluster insert -J285- and printed out by the VAG 1551
Scan Tool (ST).

z

If malfunctions do not occur regularly, these are displayed as occurring
sporadically ("SP").

z

DTC codes appear only on print-out.

z

Before replacing components, check the wiring and connections to these
components as well as ground connections, according to wiring diagram.

z

When repair has been carried out, Diagnostic Trouble Code (DTC) memory
must always be erased and checked again with VAG 1551 Scan Tool (ST).

z

If there is a specific complaint and no malfunctions are recognized after
checking Diagnostic Trouble Code (DTC) memory, carry out function 03
Output Diagnostic Test Mode (DTM), (function 03) , or function 08 Read
Measuring Value Block (function 08) .

VAG 1551 print out

Possible cause

Possible effects

Corrective Action

00771

(1)



Sender for fuel gauge -
G-

z

Open/short circuit
to B+

z

Short circuit to
ground

z

Open or short

circuit between -G-

and instrument

cluster

z

G- malfunctioning

Fuel gauge display

shows value 0

("empty")

z

Read measuring value

block, function 08. See

Read Measuring

Value Block (function

08)

z

Check for open or

short circuit using

wiring diagram



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Replace sender for fuel

gauge -G-

00779

(2)



Outside Air Temperature
sensor -G17-

z

Open/Short circuit
to B+

z

Short circuit to
ground

z

Open or short

circuit in wiring.

z

Outside air

temperature sensor -

G17-

malfunctioning

Display for outside

temperature display

shows three dashes

(-)

z

Check for open or

short circuit using

wiring diagram

z

Replace outside air

temperature sensor -

G17-

01039

(3)



Engine Coolant
Temperature (ECT)
sensor -G2-

z

Open/Short circuit
to B+

z

Short circuit to
ground

z

Wiring open circuit

or short between -

G2- and instrument

cluster

z

ECT sensor -G2-

malfunctioning

Coolant temperature

gauge needle on left

stop

z

Read measuring value

block, function OR,

see Read Measuring

Value Block (function

08)

z

Check for open or

short circuit in wiring

using wiring diagram

z

Replace ECT sensor -

G2-

01044
Control module
incorrectly coded

z

A control module

connected to vehicle

CAN Data Bus

network is

incorrectly coded

z

A control module

connected to vehicle

CAN Data Bus

network is

malfunctioning

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Check DTC memory

of all control modules

connected to vehicle

CAN Data Bus,

troubleshoot and repair

as necessary.

z

Confirm correct

coding of all control

modules coding

connected to vehicle

CAN Data Bus.

z

Replace control

module.

01312
Data Bus Drive

z

Faulty

z

Fault in CAN Data

Bus wiring

z

Data Bus Drive in

Bus-Off condition

Driveability

problems (shift

pressure, load shift

impact) no driving

dynamic regulation

z

Read measuring value

block, function OR,

see Read Measuring

Value Block (function

08)

z

Check DTC memory

of all control modules

connected to vehicle

CAN Data Bus,

troubleshoot and repair

as necessary



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Confirm correct

coding of all control

modules coding

connected to vehicle

CAN Data Bus.

z

Check CAN Data Bus

wiring using wiring

diagram

01314
Engine Control Module
(ECM) -J220-

z

No communication

No data transfer from

Engine Control Module

(ECM) over CAN Data

Bus network.

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Check DTC memory

of ECM, troubleshoot

and repair as

necessary.

z

Check CAN Data Bus

wiring to ECM using

wiring diagram.

01315
Transmission Control
Module (TCM)-J217-

z

No communication

No data transfer from

Transmission Control

Module (TCM) over CAN

Data Bus network.

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Check DTC memory

of TCM, troubleshoot

and repair as

necessary.

z

Check CAN Data Bus

to TCM using wiring

diagram.

01316
ABS Control Module
(w/EDL) -J204-

z

No communication

No data transfer from

ABS control module over

CAN Data Bus network.

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Check DTC memory

of ABS control

module, troubleshoot

and repair as necessary

z

Check CAN Data Bus

network to ABS

control module using

wiring diagram

01317
Control module with
indicator unit in
instrument cluster insert
-J285-

z

No communication

z

Malfunction in

CAN Data Bus

wiring

z

-J285-

malfunctioning

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Read measuring value

block of Data Bus On

Board Diagnostic

Interface -J533- in

instrument cluster. See

Read Measuring

Value Block (function

08)

z

Check DTC memory

of all control modules

which are connected to

vehicle CAN Data

Bus, troubleshoot and

repair as necessary



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



OUTPUT DIAGNOSTIC TEST MODE (DTM), (FUNCTION 03)

The Output Diagnostic Test Mode is part of the electrical check. The following components can be checked by
the Output Diagnostic Test Mode (DTM):

z

Speedometer

z

Tachometer

z

Coolant temperature gauge

z

Fuel gauge

z

Malfunction lamps

z

Seat belt warning lamp (when activated using code)

z

Buzzer/Gong

z

Displays (odometer, multi-function indicator or digital clock, selector lever position display for automatic
gearboxes)

{

If malfunction is determined when performing Output DTM, exchange instrument cluster.

{

If no malfunction is determined when performing Output DTM, check wiring and connections to
instrument cluster using wiring diagram.

Output Diagnostic Test Mode (DTM), initiating

z

Connect VAG 1551 Scan Tool (ST), input address word 17 "Instrument cluster".

z

Check CAN Data Bus

wiring using wiring

diagram

65535
Control Module

z

Malfunctioning



Instrument cluster

malfunctioning

z

Replace instrument

cluster.

Other DTCs

If other DTC's are displayed that are not shown in this DTC table, perform On
Board Diagnostic (OBD) of anti-theft immobilizer system using VAS 5051
Vehicle Diagnostic Testing and Information System.

(1)

DTC will load into memory only after malfunction is present continuously for a minimum of 20
seconds. During first 20 seconds "Sensor cannot be tested at this time" is displayed.

(2)

For vehicles with a multi-function indicator.

(3)

DTC display "Open circuit/short to B+" is loaded into memory when malfunction is present on
engine having run for a minimum of 30 minutes.

NOTE:

z

Output Diagnostic Test Mode (DTM) cannot be initiated or will be
interrupted if engine is running or vehicle is moving,

z

Use -C- button to exit test sequence at any time.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
