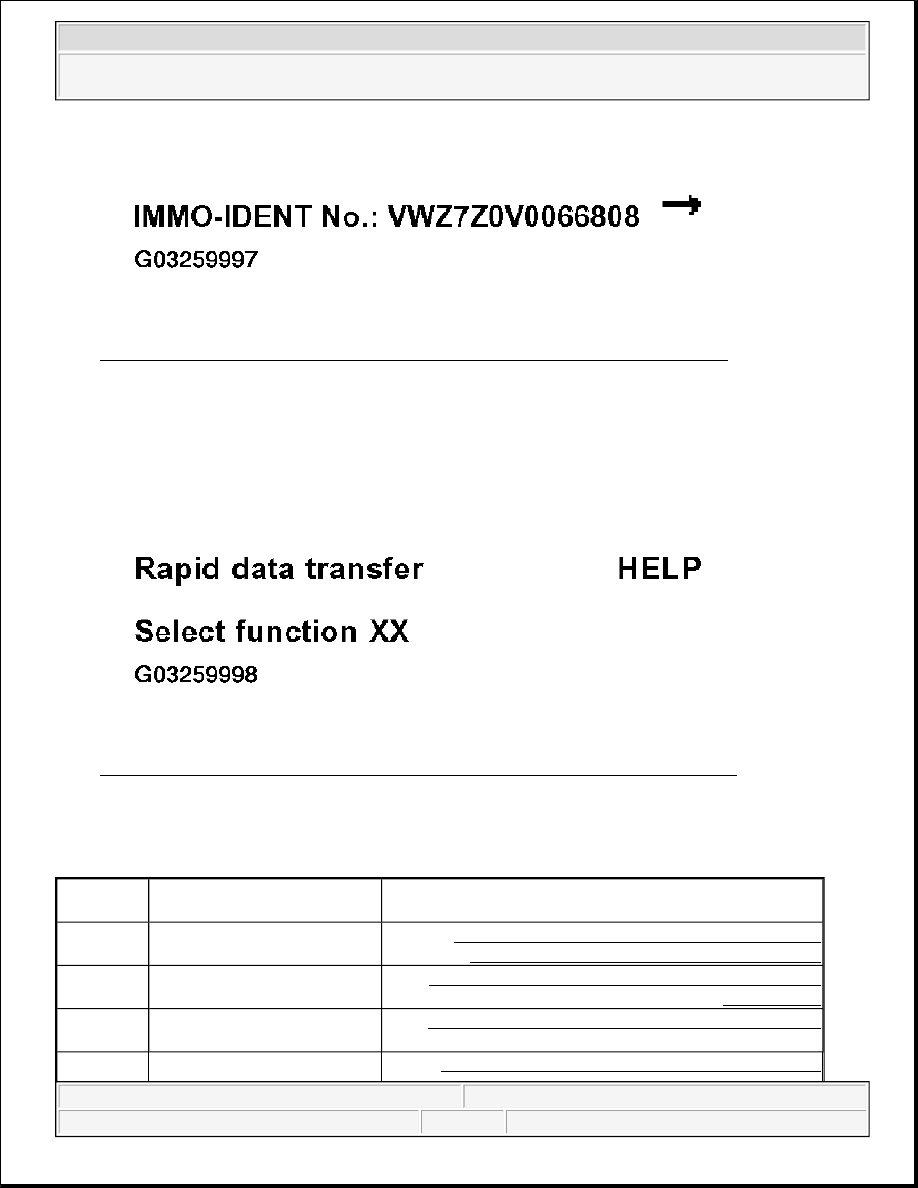

Fig. 98: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (9 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

z

List of available functions

Fig. 99: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (10 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

List of available functions

LIST OF AVAILABLE FUNCTIONS (FROM 06.99 & UP)

Function
No.

Function Explanation

See

01 -

Check control module version

VAG 1551 Scan Tool (ST), connecting, selecting

functions & checking control module versions

02 -

Check Diagnostic Trouble

Code (DTC) memory

Diagnostic Trouble Code (DTC) memory, checking

(function 02)

03 -

Output Diagnostic Test Mode

(DTM)

Output Diagnostic Test Mode (DTM), (function 03)

05 -

Erase DTC memory

See Diagnostic Trouble Code (DTC) memory, erasing



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display (select function):

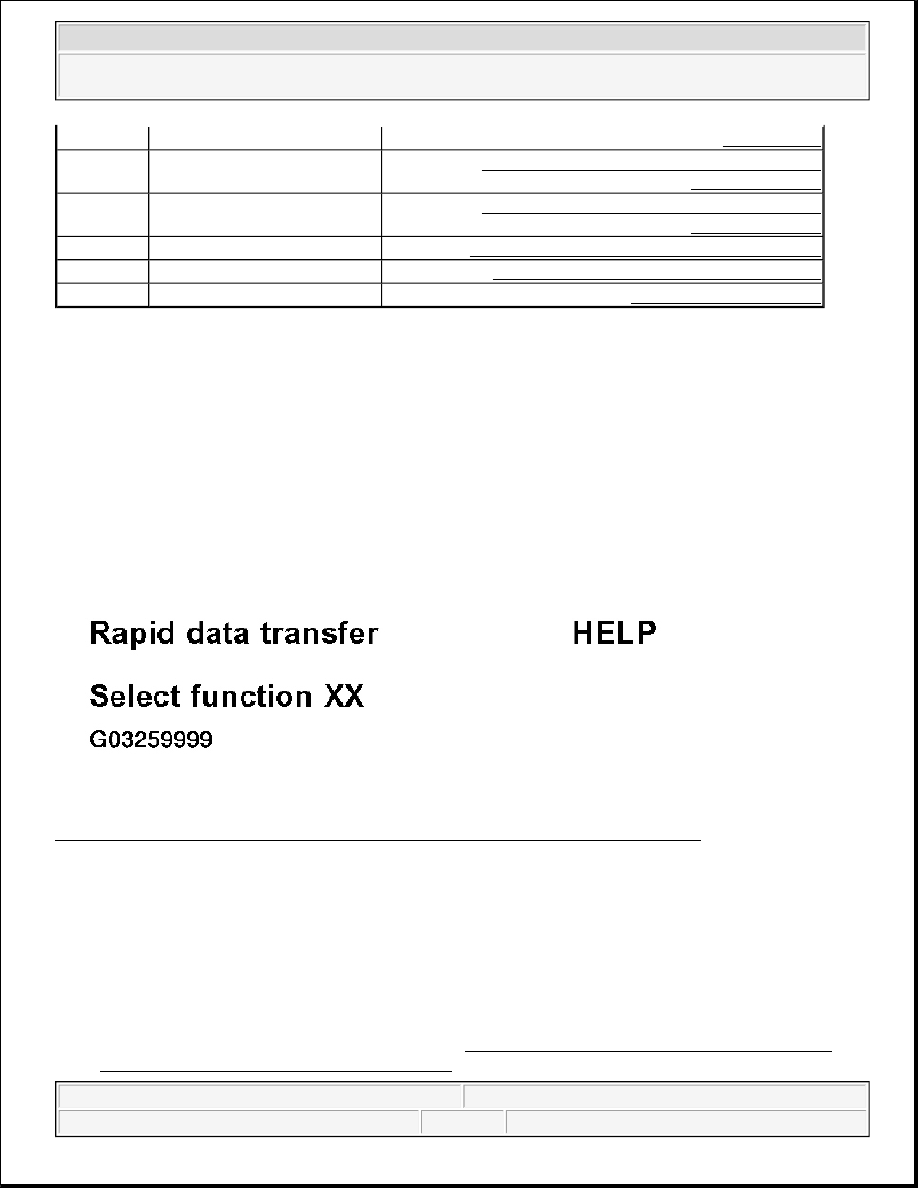

Fig. 100: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (11 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING (FUNCTION 02)

z

Connect VAG 1551 Scan Tool (ST), input address word 17, "Instrument cluster", and press --> button
until "Select function XX" appears in display, See VAG 1551 Scan Tool (ST), connecting, selecting
functions & checking control module versions

(function 05)

06 -

End output

INSTRUMENT CLUSTER 10.00, CODING

(FUNCTION 07)

07 -

Code control module 10.00

INSTRUMENT CLUSTER 10.00, CODING

(FUNCTION 07)

07 -

Code control module 10.00

Instrument cluster 10.00, coding (function 07)

08 -

Read measuring value block

Read Measuring Value Block (function 08)

10 -

Adaptation

Adaptation (function 10)

NOTE:

z

Press HELP button to print out a complete list of available functions. This
list indicates function capability of VAG 1551 Scan Tool (ST) only, and
does not necessarily reflect function capability of vehicle systems
equipped with OBD. For instrument cluster address word 17, do not
attempt to select functions other than those listed above.

z

After function is completed and forwarded with --> button, VAG 1551 Scan
Tool (ST) returns to following start position:

NOTE:

DTCs stored in memory along with corresponding malfunction descriptions can
only be displayed by initiating the On Board Diagnostic program and checking
DTC memory (function 02).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Switch on printer with the Print button (indicator lamp in key lights up).

Indicated on display (select function):

z

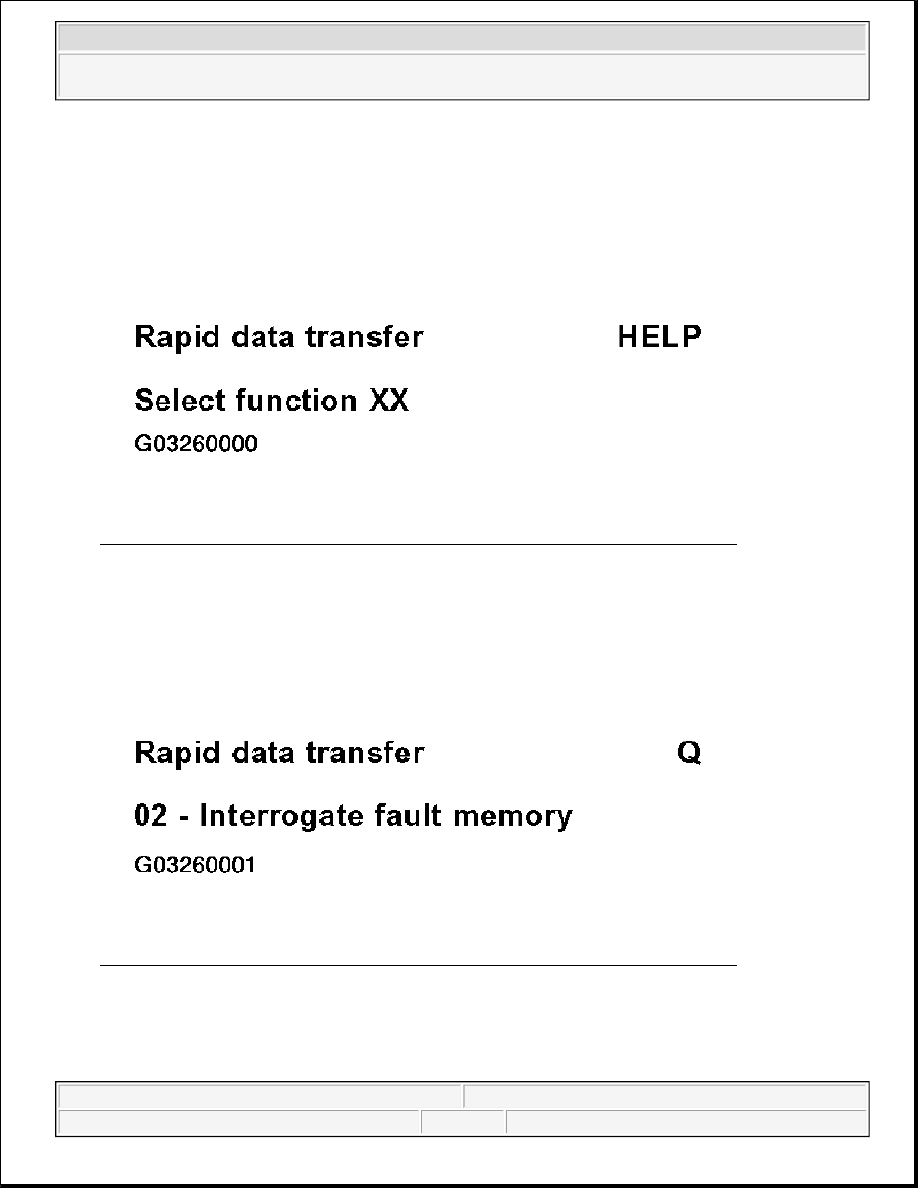

Press buttons -0- and -2- to select function 02, check Diagnostic Trouble Code (DTC) memory.

Fig. 101: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 102: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

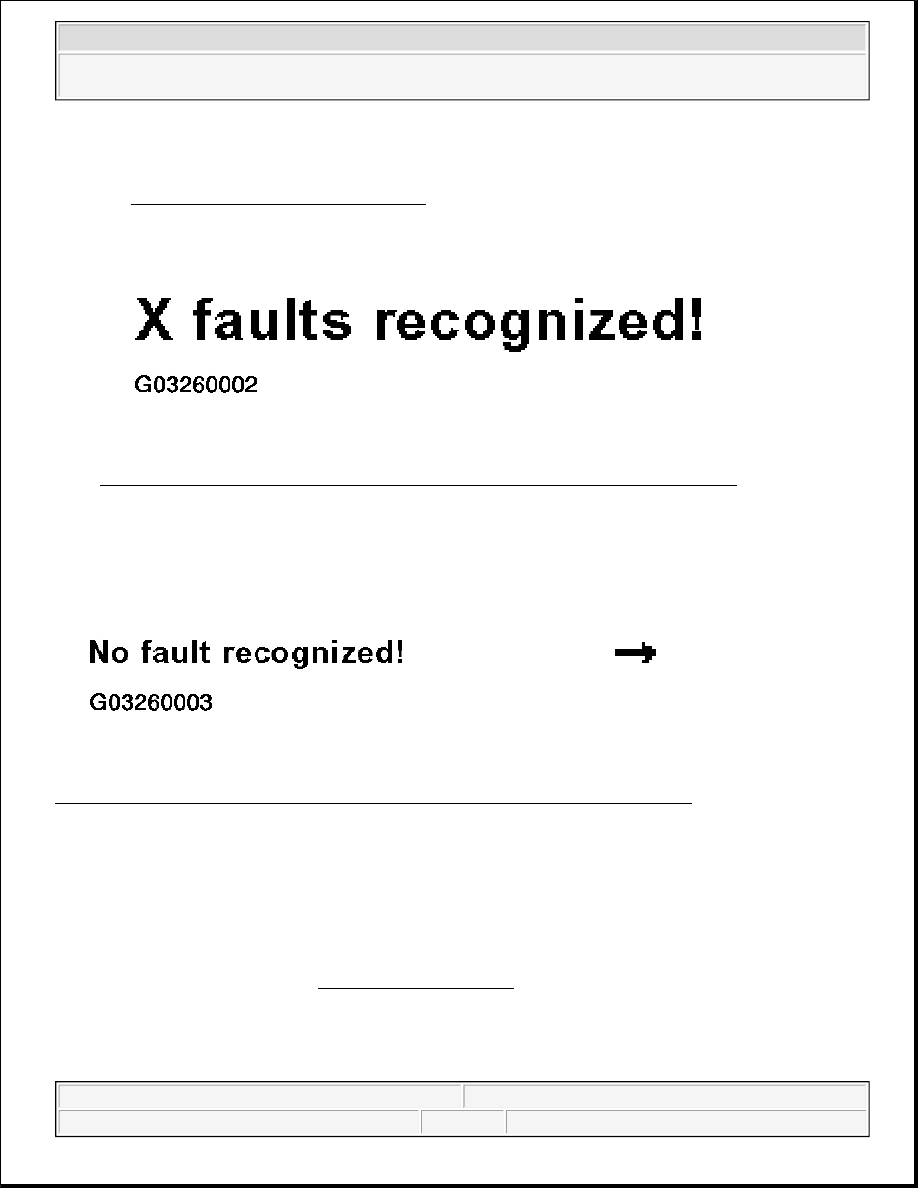

The number of stored malfunctions appears in the display.

The number of stored DTCs or "No DTC s recognized" appears in the display and are printed out one after



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



another.

z

When the last DTC has been displayed and printed out, rectify malfunctions as described in DTC table,
See Diagnostic Trouble Code (DTC) Table .

Fig. 103: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If "No DTC recognized" is displayed the program will return to the initial point after pressing --> button.

Fig. 104: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

If display not indicated as shown

See Scan tool operating instructions.

z

End output (function 06). See End Output (function 06) .

z

Switch off ignition and disconnect Data Link Connector (DLC).
