Volkswagen New Beetle. Manual - part 355

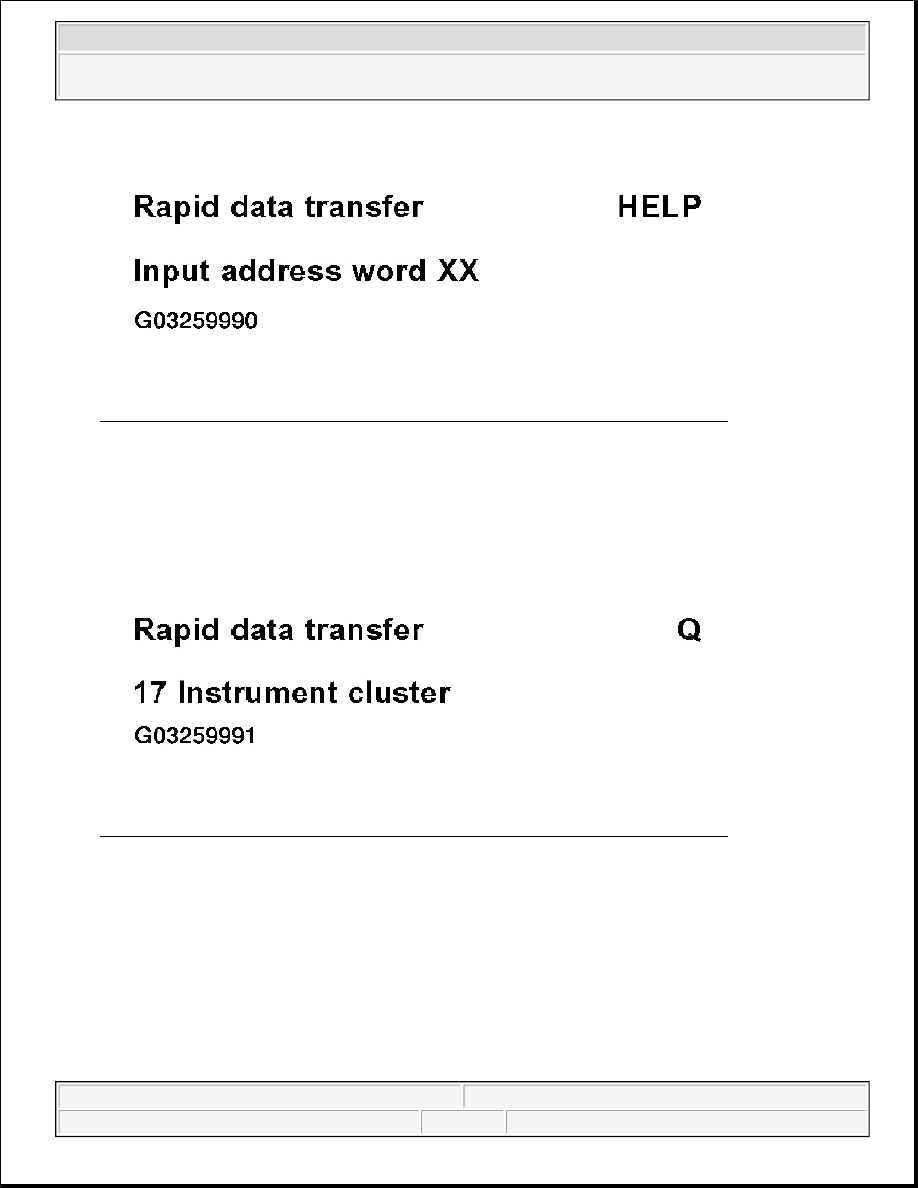

Fig. 91: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (2 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 92: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (3 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

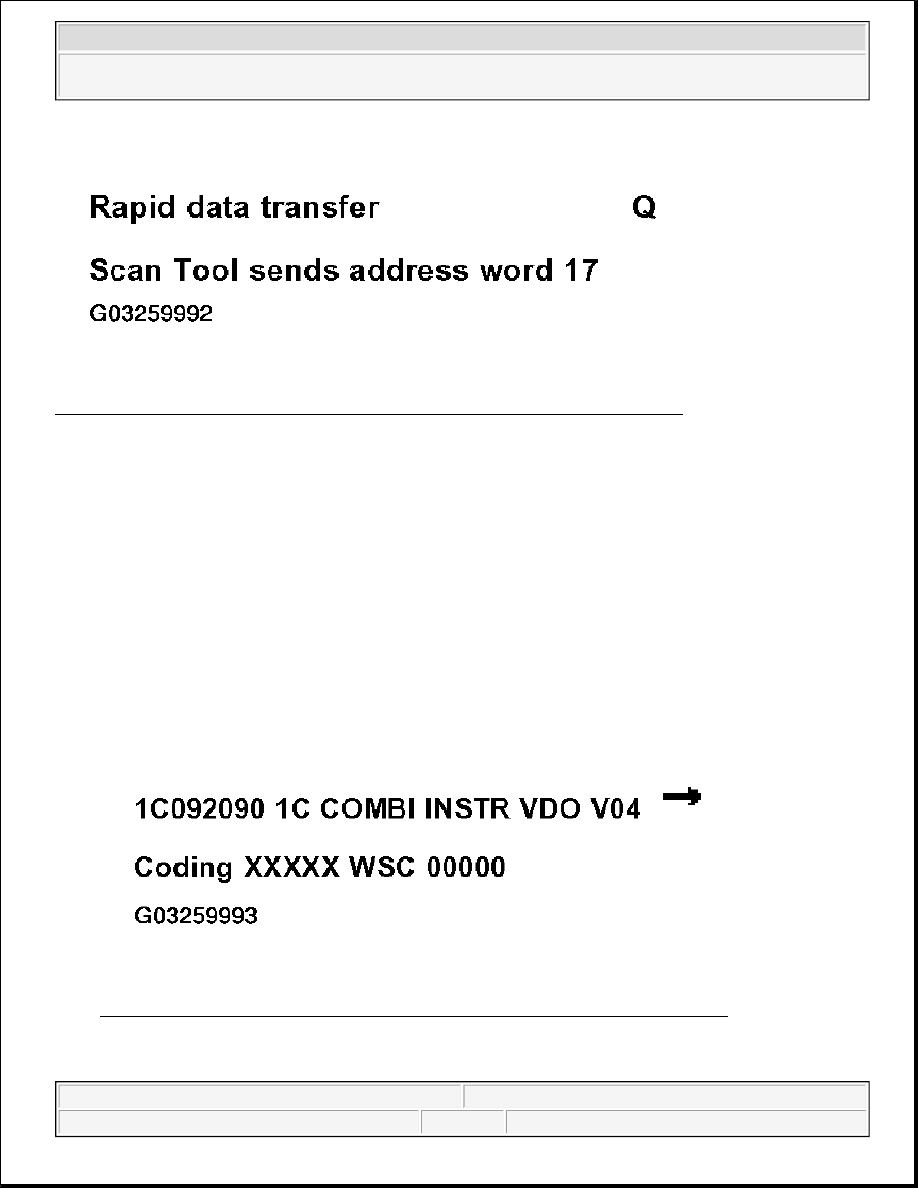

Fig. 93: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (4 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module version, checking

Indicated on display (example only: instrument cluster with manufacturer code VDO):

Readout, top line

z

1CO 920 90 = Control module part number.

z

1C Combi instrument = Model & system designation

z

VDO (VDO), MMO (Motometer) M73 (Magneti Marelli) = Manufacturer's code (On new instrument
clusters manufacturer code BOO may appear.)

z

V04 = Software version

Fig. 94: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (5 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Readout, bottom line



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Coding XXXXX = Code number

z

WSC 00000 = Workshop code (On control modules not previously coded (e.g.: on new replacements),
the workshop code is automatically stored in the control module memory when accessing OBD functions
for the first time. An existing workshop code indicates location which last performed coding on the unit.)

CAUTION: Part numbers are for reference only. Always check with your Parts

Department for the latest parts information.

NOTE:

z

If this message appears in thay:

{

Press --> button.

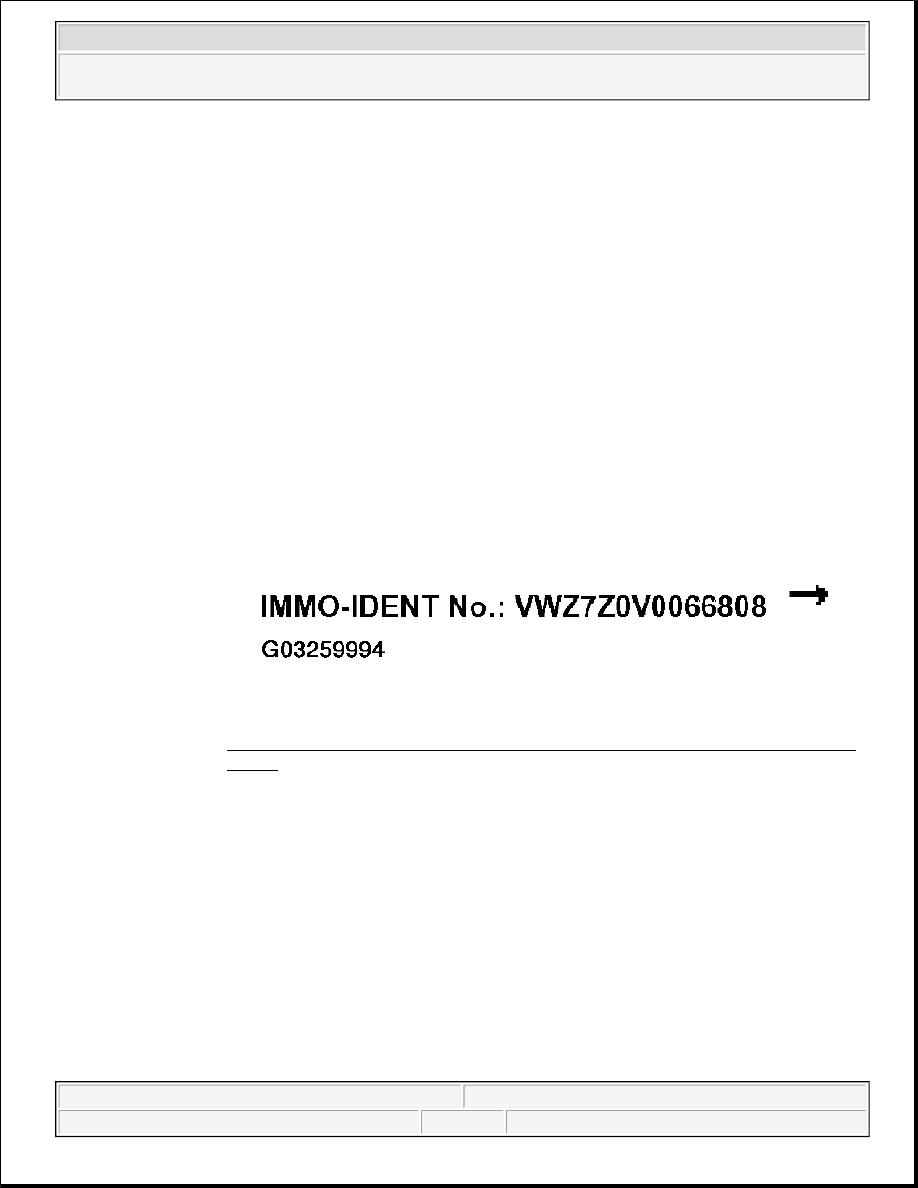

MMO instrument clusters are identified by IMMO-IDENTNO: VWZ6

VDO instrument clusters are identified by IMMO-IDENTNO: VWZ7

M73 instrument clusters are identified by IMMO-IDENTNO: VWZ5

Fig. 95: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (6
Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

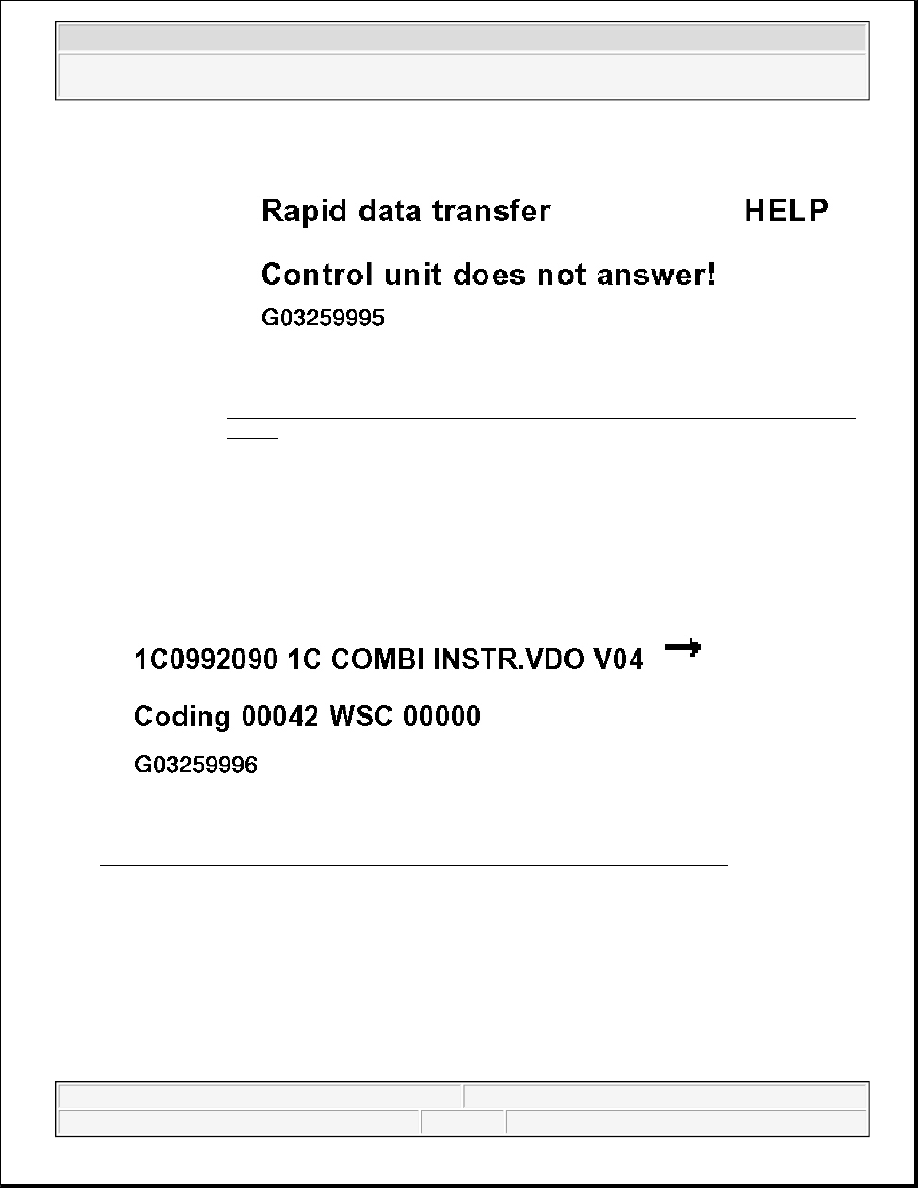

If this message appears in the display:

Will be indicated on display:

{

Press "HELP" button to print out a list of possible malfunction causes.

{

After rectifying malfunction, re-enter address word 17 for instrument
cluster and press Q button to confirm.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display:

z

Press --> button.

Fig. 97: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (8 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press --> button.

Fig. 96: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (7
Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
