Volkswagen New Beetle. Manual - part 353





1. Instrument cluster -K-

z

Monitored by OBD

2. Engine coolant temperature (ECT) sensor -G2-

z

Location depends on type of engine

z

Monitored by OBD

3. Speedometer vehicle speed sensor (VSS) -G22-

z

Location, See Fig. 84

4. Sender for fuel gauge sender -G-

z

Location, See Fig. 85

z

Monitored by OBD

5. Outside air temperature sensor -G17-

z

Location, See Fig. 86

z

Monitored by OBD



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

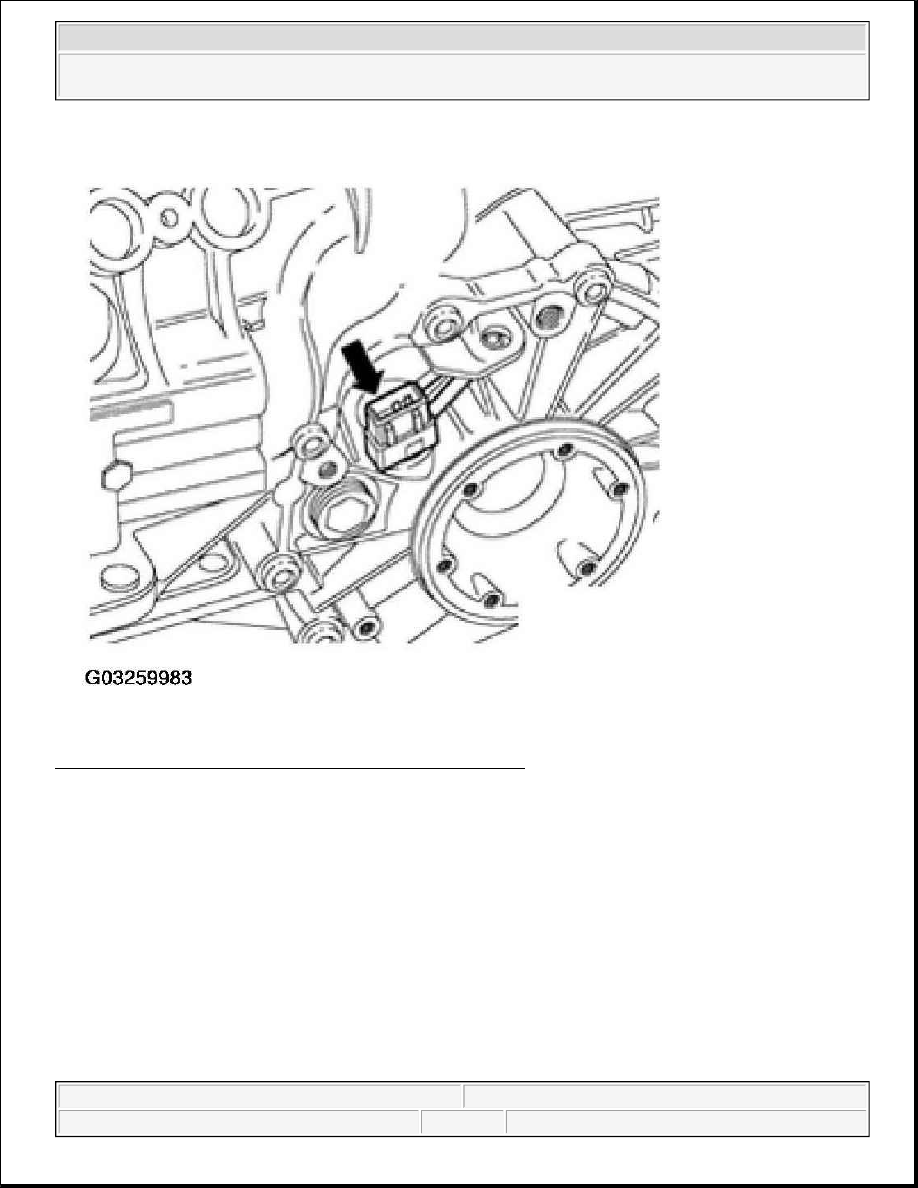

Fig. 84: Identifying Speedometer Vehicle Speed Sensor (VSS)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The speedometer sensor -arrow- is located in the area of the left-hand drive shaft flange on manual and
automatic gearbox vehicles.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

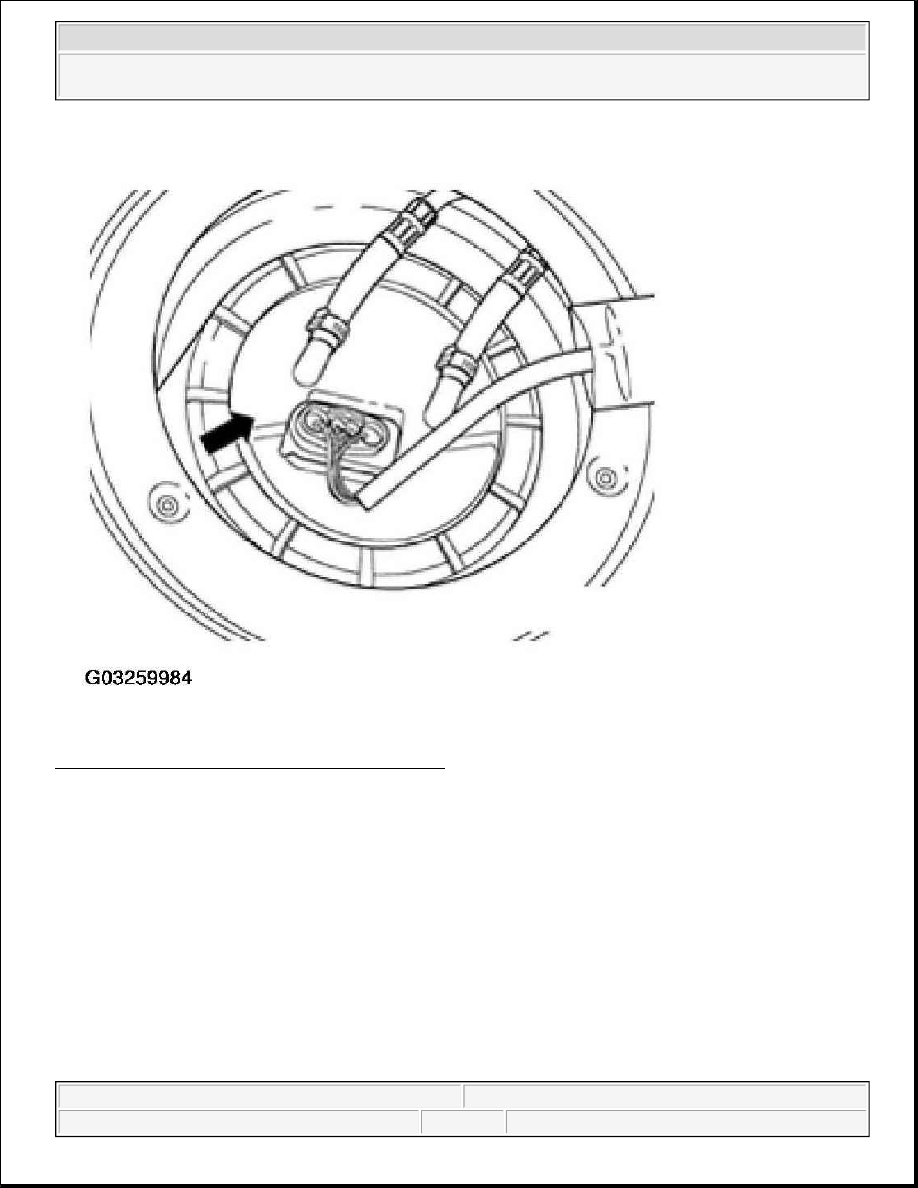

Fig. 85: Identifying Sender For Fuel Gauge Sender
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The sender for fuel gauge -G- is located in the fuel tank on the fuel delivery unit -arrow-.

To remove and install fuel delivery unit, see appropriate article in ENGINE/FUEL SYSTEM.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

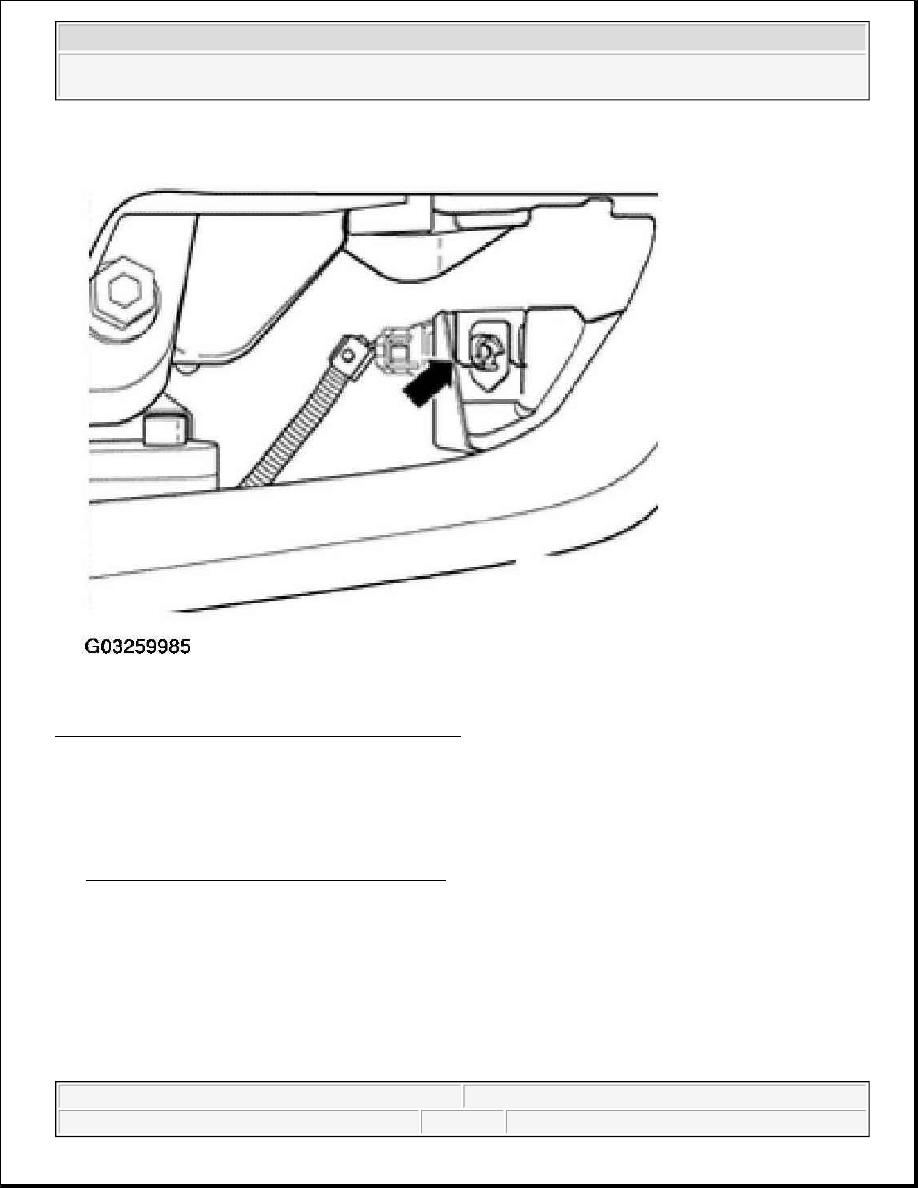

Fig. 86: Identifying Outside Air Temperature Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The outside air temperature sensor -G17- is located on left of front bumper behind the outer air grille.

Unclip air grille to remove sender.

See FRONT BUMPER, ASSEMBLY OVERVIEW .

VAG 1551 SCAN TOOL (ST), CONNECTING, SELECTING FUNCTIONS & CHECKING CONTROL
MODULE VERSIONS

Special tools, testers, and auxiliary items

z

VAG 1551 or VAG 1552 Scan Tool (ST)

z

Optional: VAS 5051 Vehicle Diagnostic Tester



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
