Volkswagen New Beetle. Manual - part 354





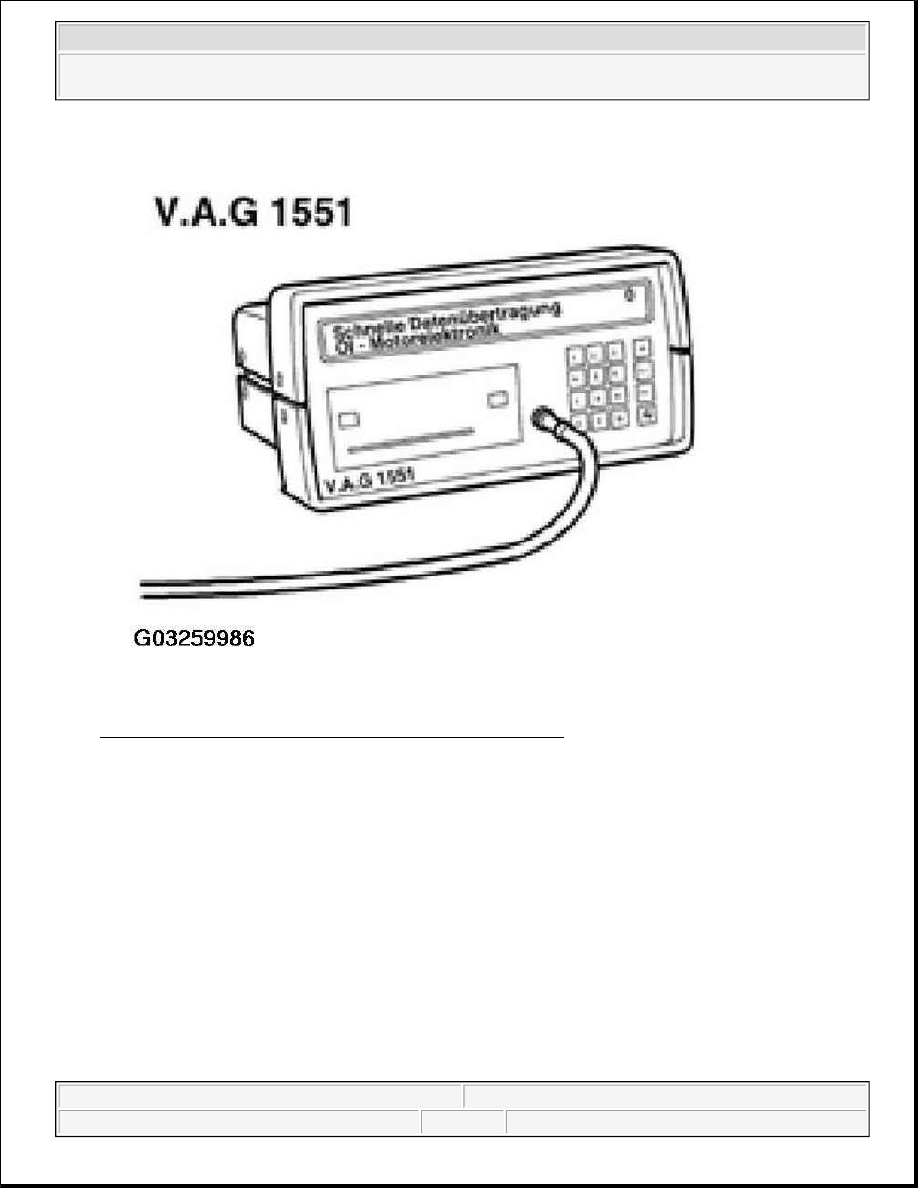

Fig. 87: Identifying VAG 1551 Or VAG 1552 Scan Tool (ST)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VAG 1551/3 or 1551/3B adapter cable



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

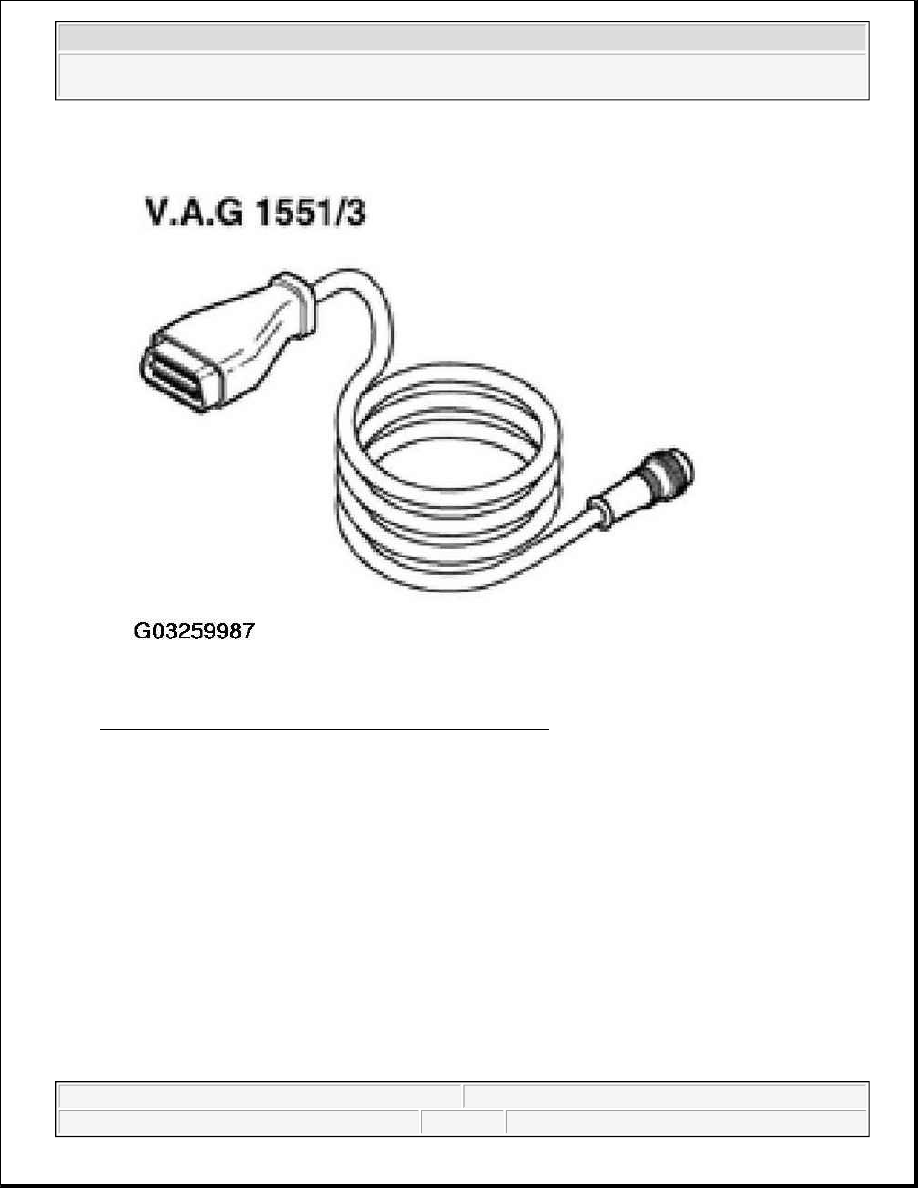

Fig. 88: Identifying VAG 1551/3 Or 1551/3B adapter cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Prerequisites:

z

All fuses OK according to wiring diagram.

z

Battery (B+) voltage at least 9 Volts.

Connecting

With ignition switched off, connect VAG 1551 Scan Tool (ST) with adapter cable 1551/3 to the Data Link
Connector (DLC) located above ashtray

NOTE:

z

VAG 1552 Scan Tool (ST) may be used instead of the VAG 1551 Scan Tool
(ST), however a print-out is not possible.

z

The following procedure and display references pertain only to VAG 1551
Scan Tool (ST).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

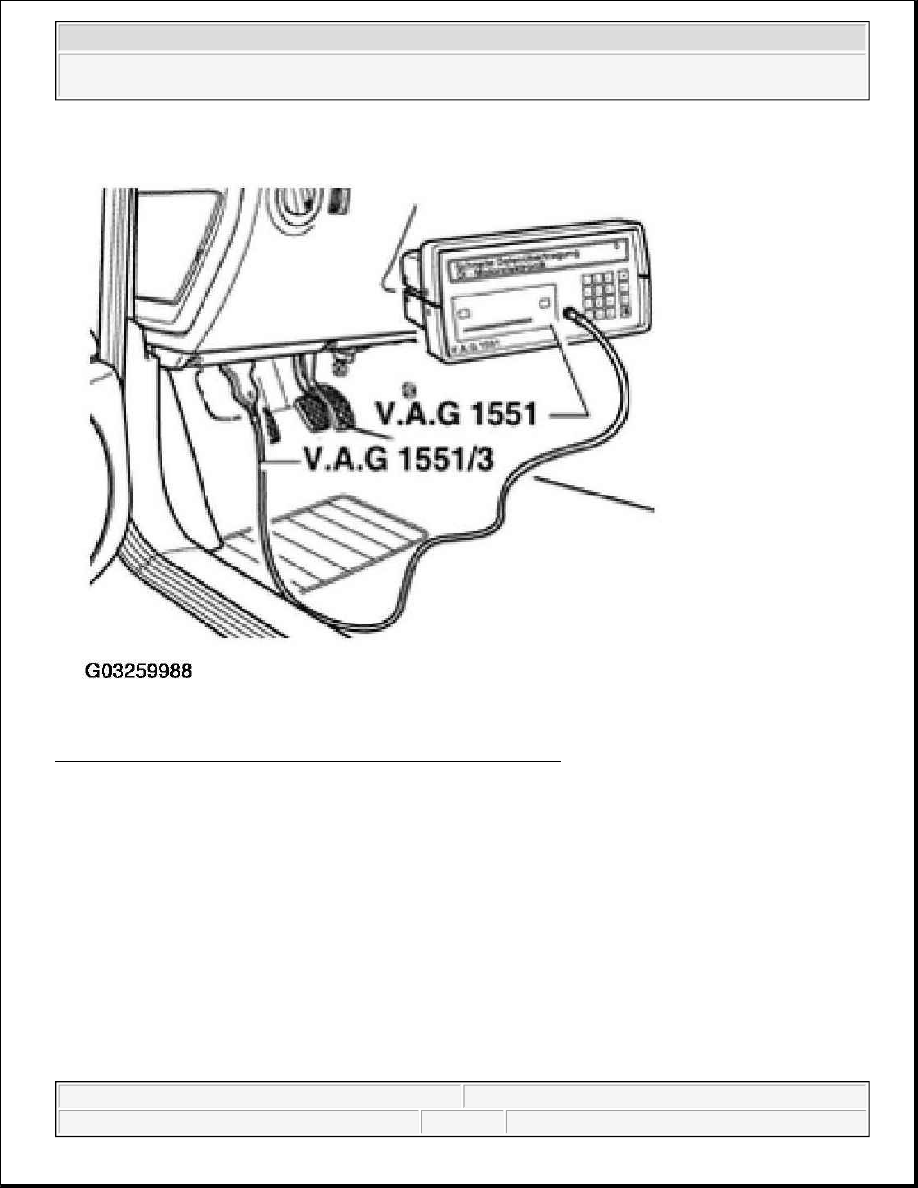

Fig. 89: connecting VAG 1551 Scan Tool To Data Link Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

*Is displayed alternately



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

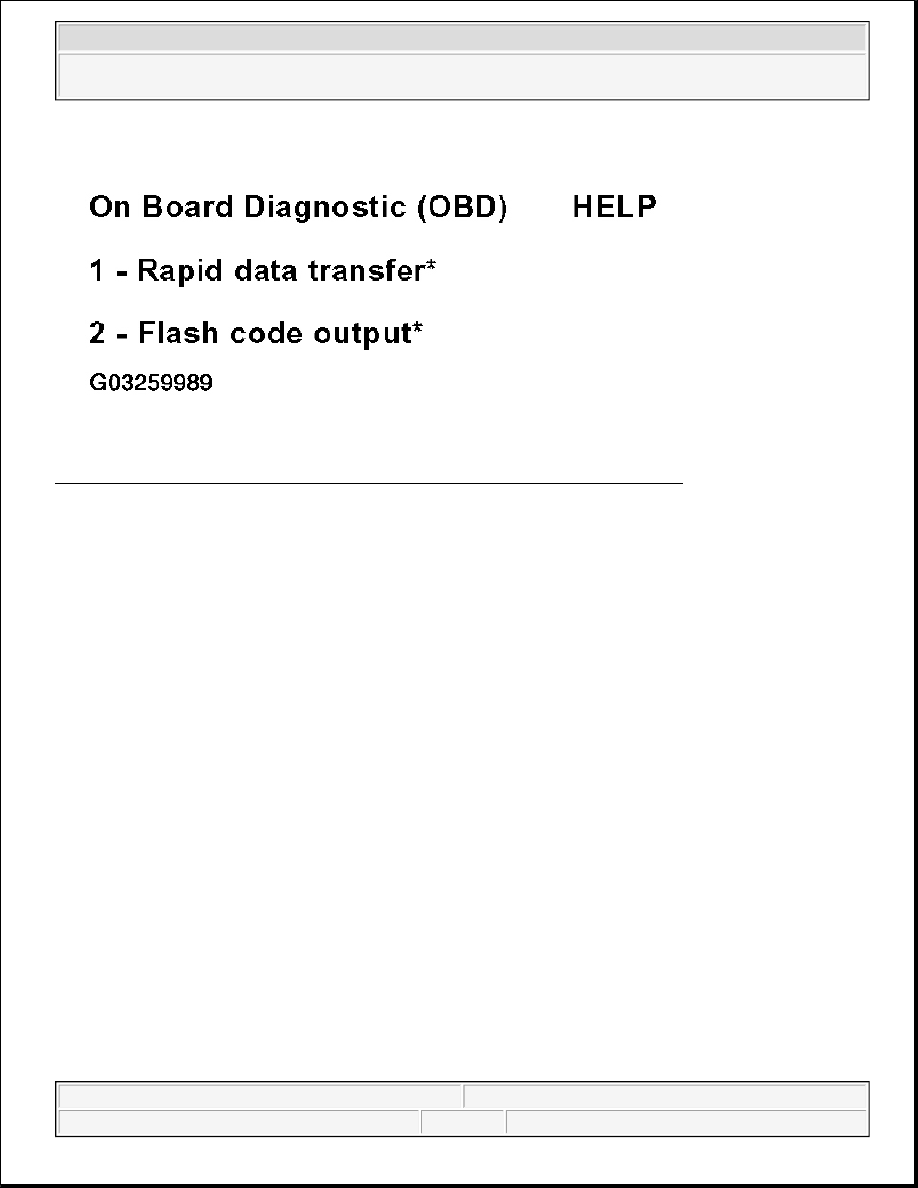

Fig. 90: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (1 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch on ignition.

z

Switch on printer with the Print button (indicator lamp in button lights up).

z

Press button 1 for "Rapid data transfer" mode.

Indicated on display:

z

Press buttons -1- and -7- to select instrument cluster address word 17.

NOTE:

z

If display remains blank, check Scan Tool (ST) voltage supply according to
wiring diagram.

z

Additional operating instructions can be called up by pressing HELP
button.

z

The --> button is used to advance through program sequence.

z

In operating mode 1 "Rapid data transfer," function 00 "Automatic test
sequence" can be carried out. The DTC memory of all control modules
with OBD capability are checked automatically.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
