After control module identification and immobilizer identification number is displayed:

z

Press --> button.

Indicated on display (select function):

z

Press buttons -0- and -3- to select function 03 "Output Diagnostic Test Mode (DTM)".

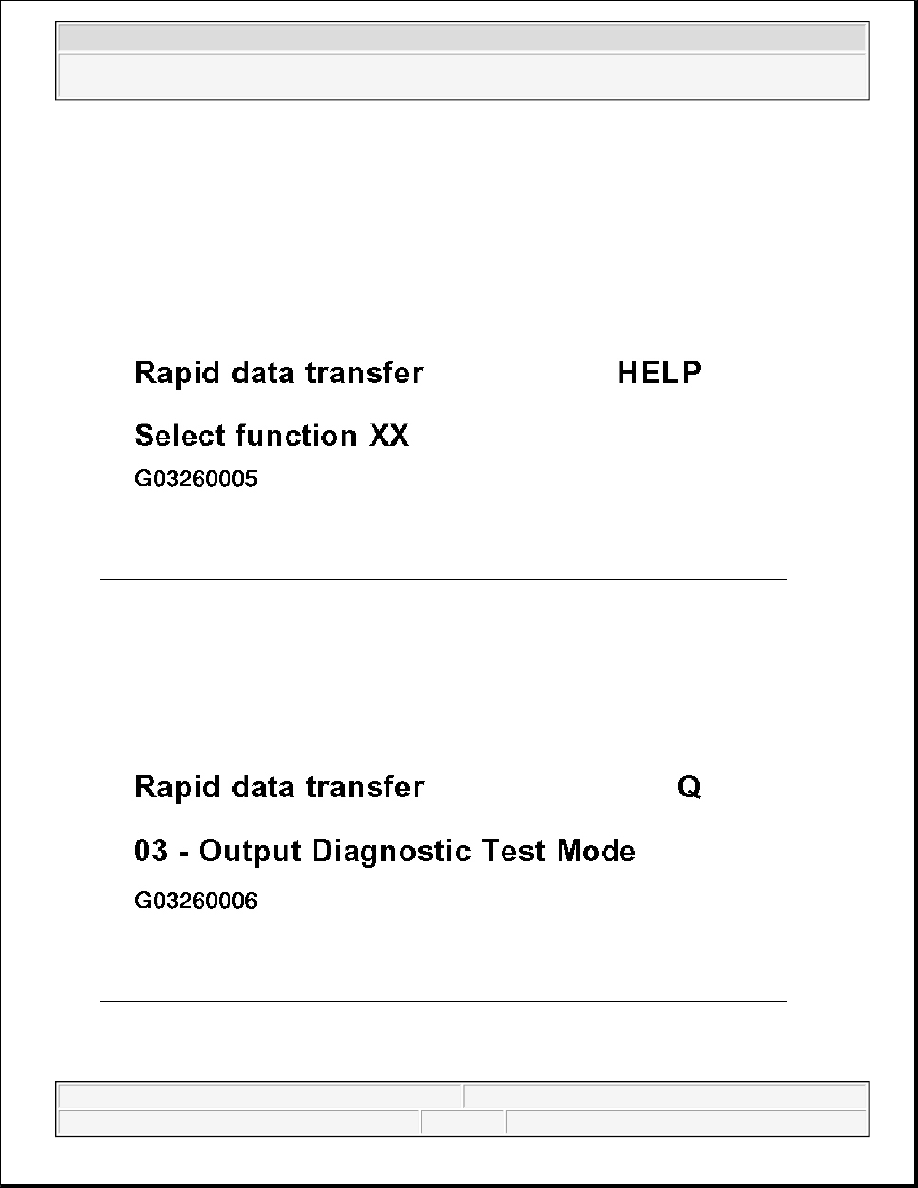

Fig. 106: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (1 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

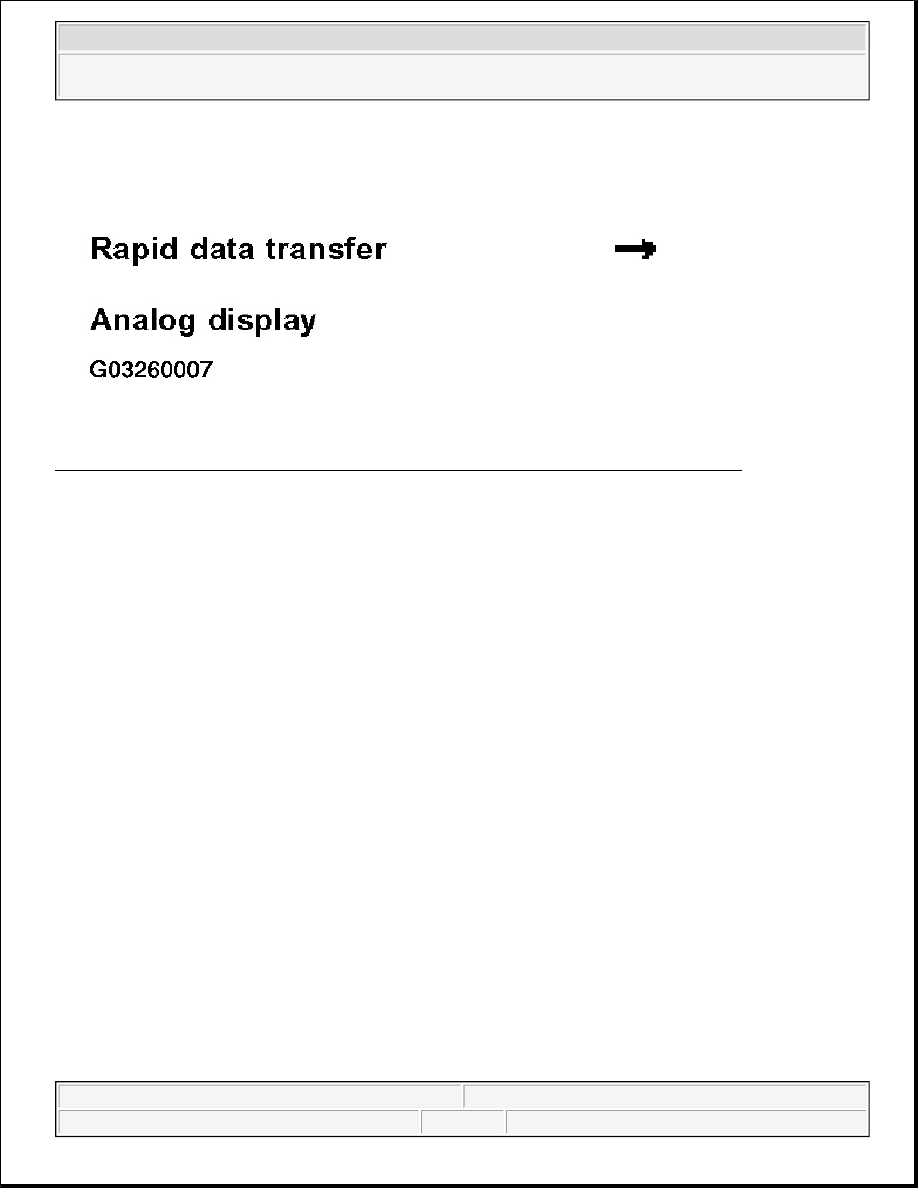

Fig. 107: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (2 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

No indication on all displays and all warning lights to be checked are unlit.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display

Fig. 108: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (3 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After pressing -Q- button, the following instrument functional checks are carried out.

z

Tachometer needle moves over complete display range

z

Speedometer needle moves over complete display range

z

Coolant temperature needle moves over complete display range

z

Fuel gauge needle moves over complete display range

After all instrument display range checks, the following constant values are displayed:

Coolant temperature gauge: 90°C

Tachometer: 3000 rpm

Speedometer:100km/h (65 mph)

Fuel gauge:1/2

z

Press --> button.

Indicated on display:

The warning lamps are activated and light continuously (includes all warning lamps for vehicle equipment
having output DTM capability coded into the instrument cluster

NOTE:

z

On VDO instrument clusters, the instruments are activated simultaneously

z

On MMO instrument clusters, the instruments are activated sequentially



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Press --> button.

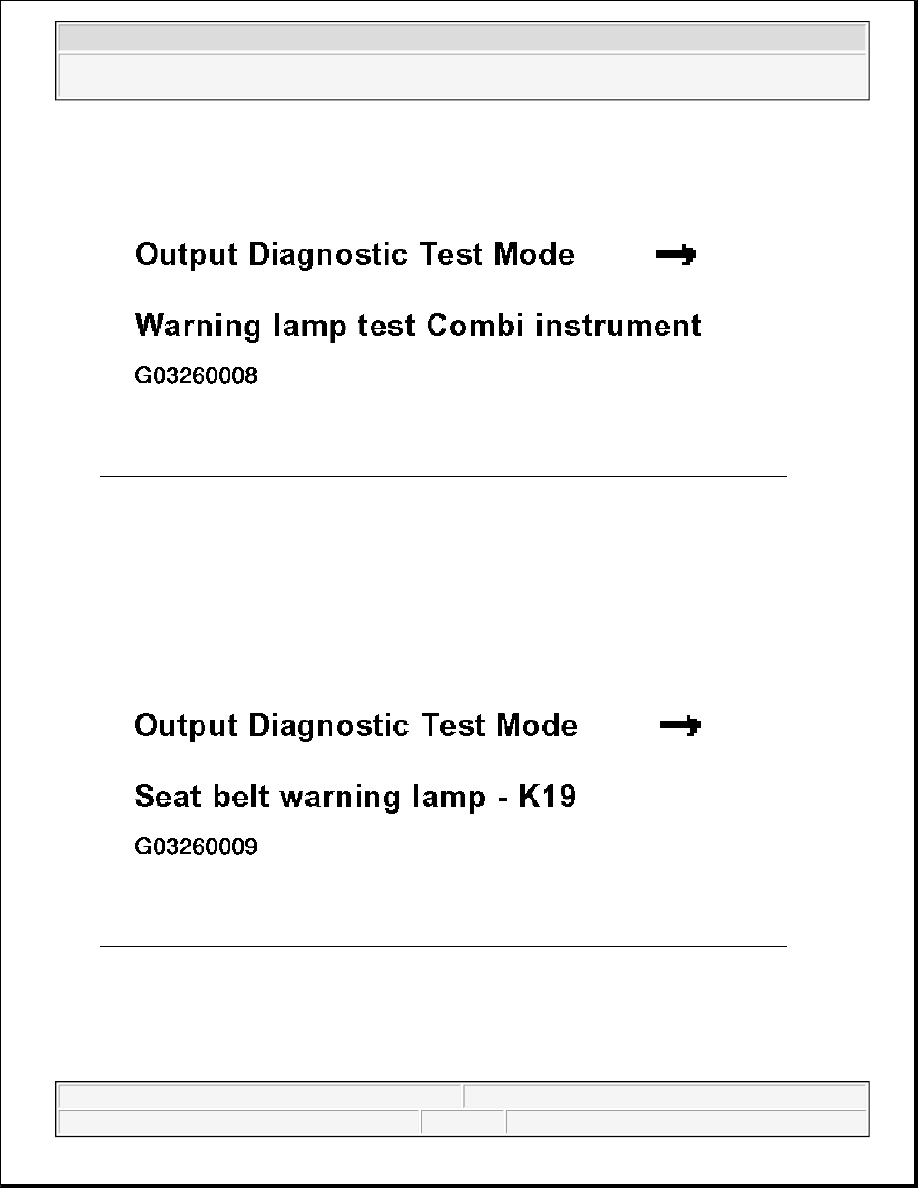

Fig. 109: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (4 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Seat belt warning lamp -K19- lights (when activated by code).

z

Press --> button.

Fig. 110: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (5 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

The buzzer/gong is activated and a warning tone is emitted at intervals.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Press --> button.

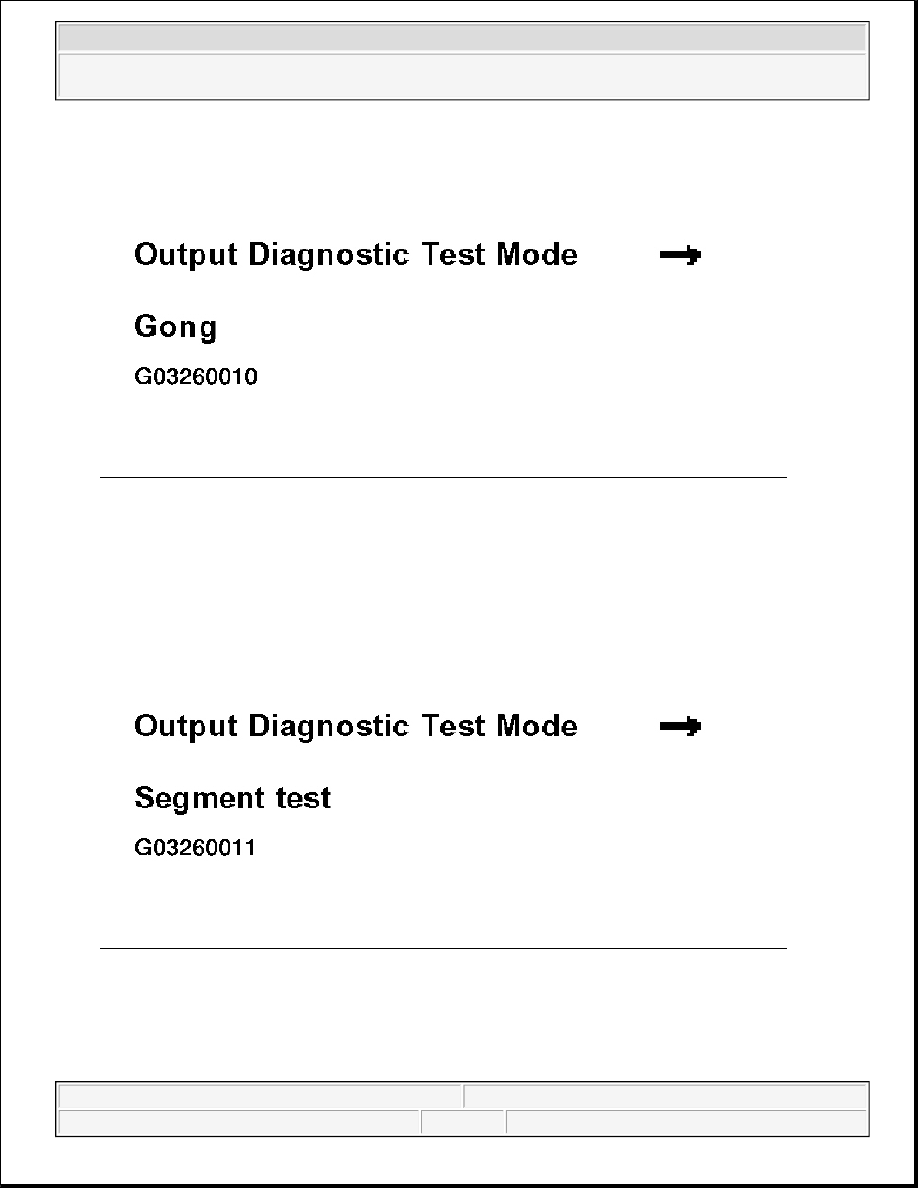

Fig. 111: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (6 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

All liquid crystal segments in the speedometer display and tachometer are activated and appear on the display.

z

Press --> button.

Fig. 112: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (7 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
