Volkswagen New Beetle. Manual - part 348





Example:

The malfunctioning instrument cluster has an odometer reading of 89627 (either kilometers or miles). The
odometer display can be transferred to the new instrument cluster as follows:

z

Connect VAG1551 Scan Tool (ST), select 1 "Rapid Data Transfer", switch on ignition, input address
word 17 "Instrument Cluster".

z

Press -Q- button to confirm input.

Various data appears in the display. The manufacturer's code is also displayed, See INSTRUMENT
CLUSTER 06.99, ON BOARD DIAGNOSTIC (OBD)
 .

z

Press --> button.

Indicated on display

z

Press button -1- twice to select "Login Procedure" function 11

z

Press -Q- button to confirm input.

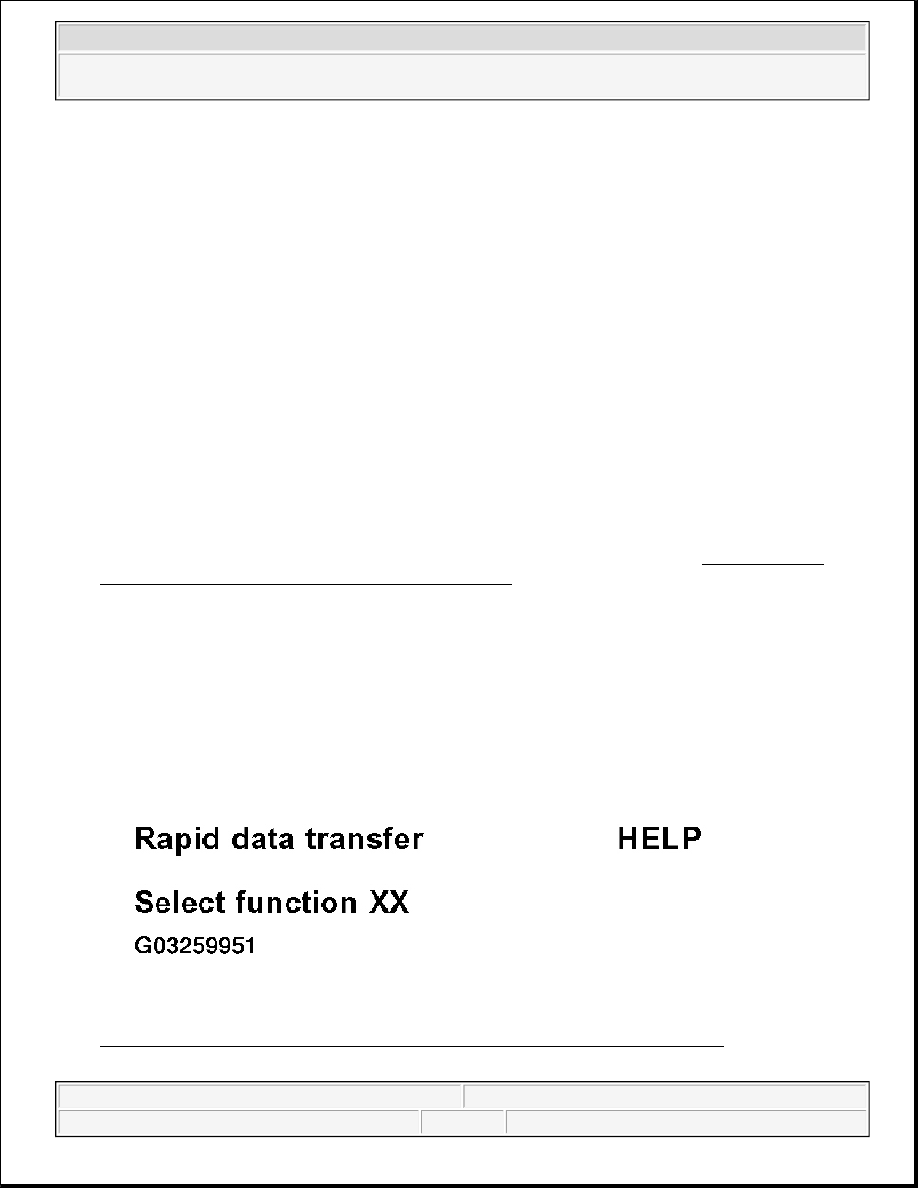

Fig. 52: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (1 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

positive (upwards) direction.

z

Adaptation can be interrupted with the "C" button of the VAG 1551/1552
Scan Tool (ST).

z

Correcting a false entry which has been confirmed is not possible. The
instrument cluster must be exchanged for a new one.

z

Adaptation value on instrument clusters for Canadian models must be
entered in kilometers.

z

Adaptation value on instrument clusters for US models must be entered in
miles.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display

z

Press -Q- button to confirm input.

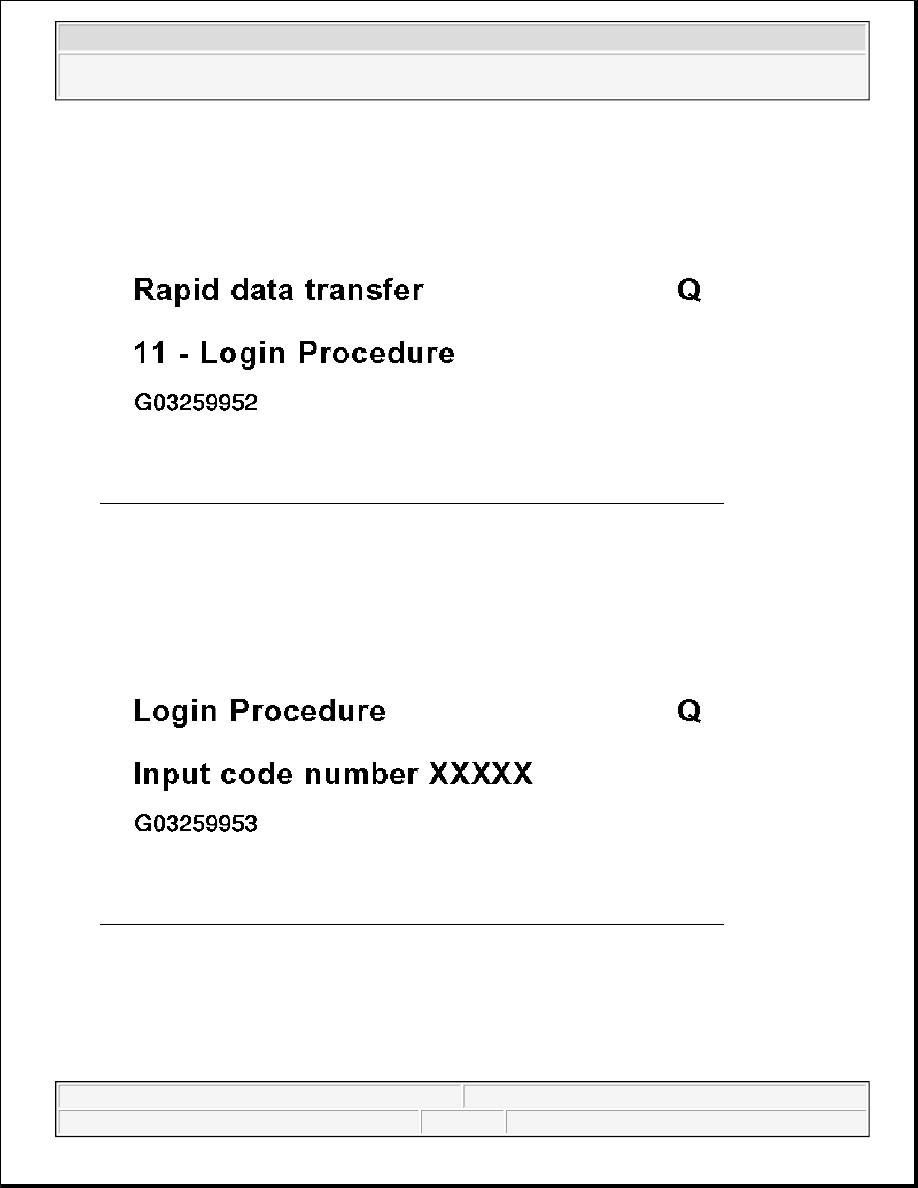

Fig. 53: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (2 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Input code number 13861.

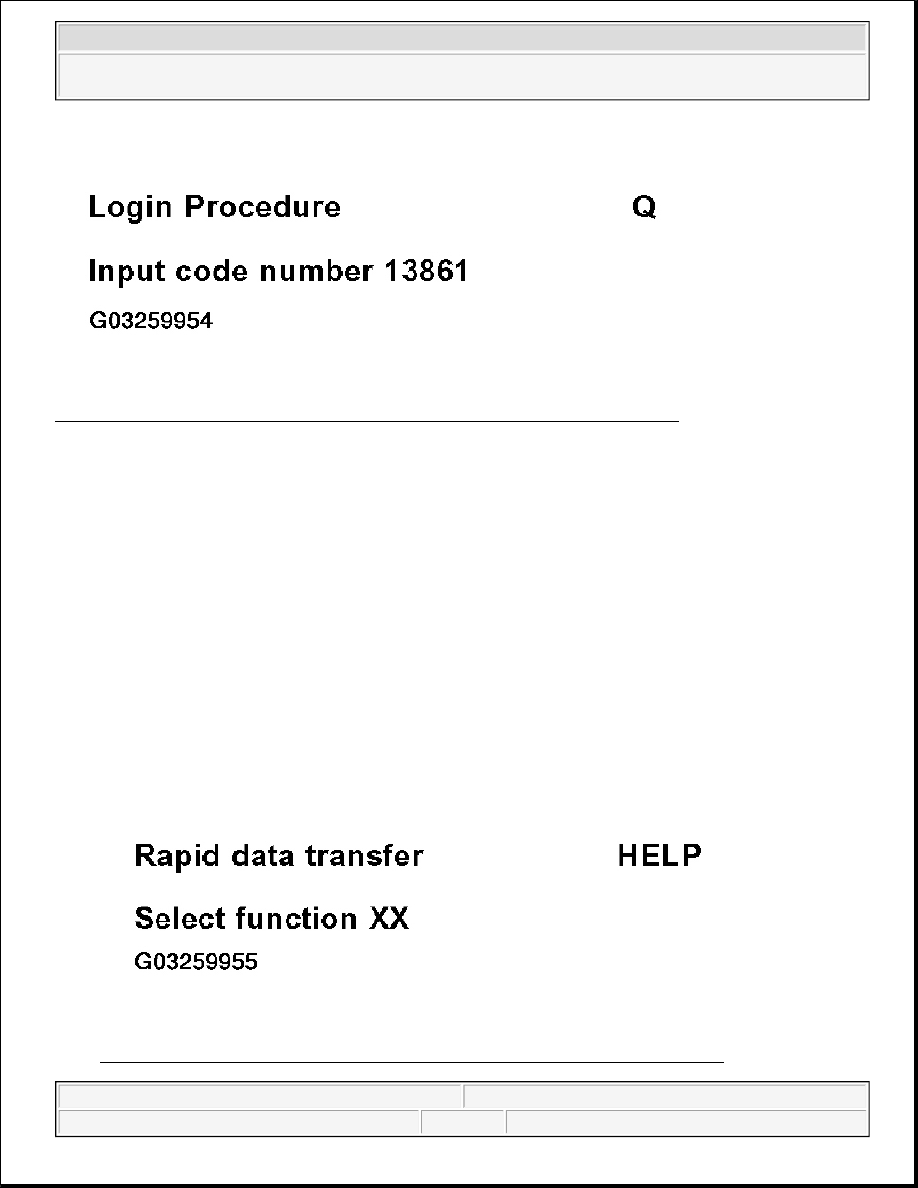

Fig. 54: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (3 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 55: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (4 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If a wrong code number is entered 3 times, "FAIL" appears in odometer display.

In this case the ignition must be switched off and on again, and the login procedure repeated using the correct
code number.

Electronic radio theft protection must disengage.

See

z

Press -Q- button to confirm input.

Indicated on display

z

Press buttons -1- and -0- to select function 10, "Adaptation".

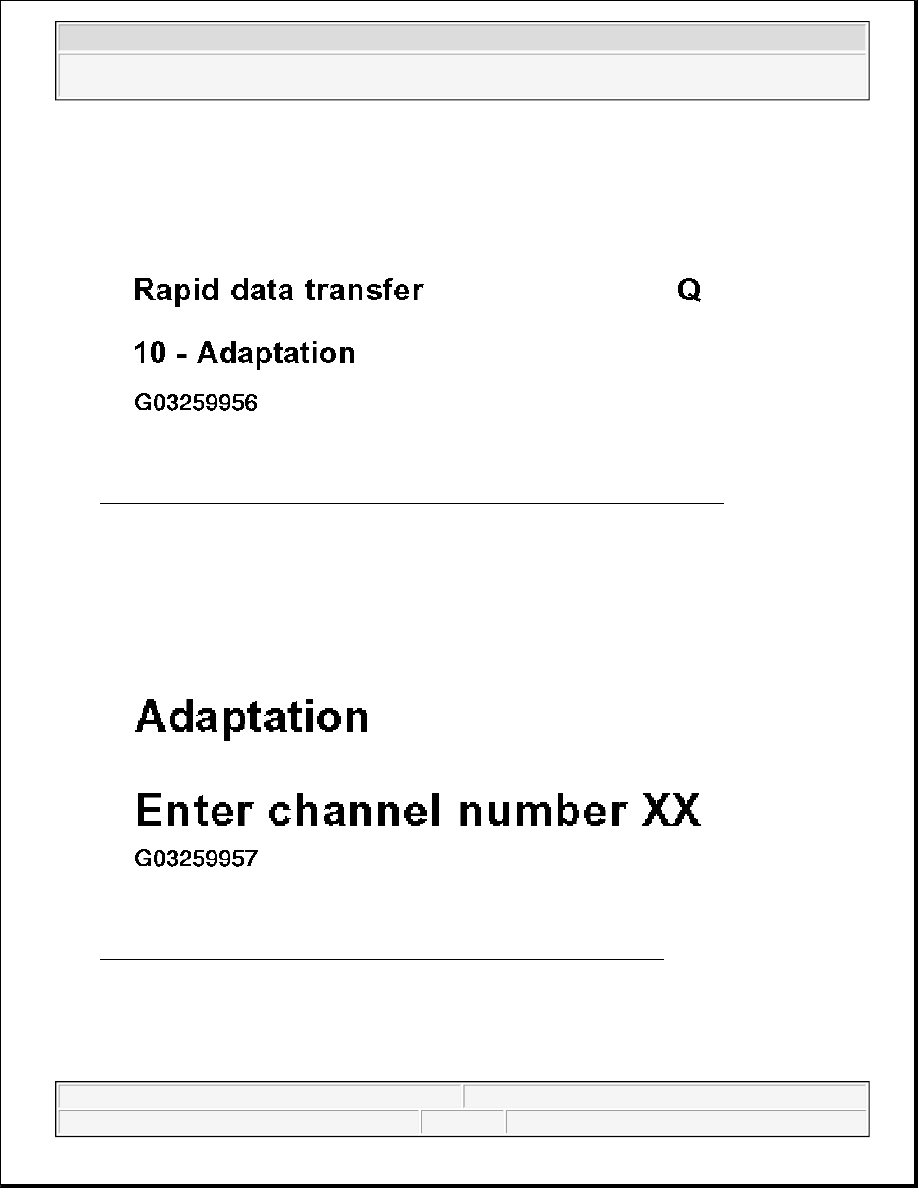

Fig. 56: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (5 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display

z

Press -Q- button to confirm input.

Fig. 57: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (6 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons -0- and -9- to select channel 09.

Fig. 58: VAG 1551 Scan Tool Display - Adaptation, Up To 06.99 (7 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
