Volkswagen New Beetle. Manual - part 346





Indicated on display

z

Switch ignition off.

z

Disconnect Data Link Connector (DLC).

Fig. 41: VAG 1551 Scan Tool Display - End Output, Up To 06.99 (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INSTRUMENT CLUSTER, CODING (FUNCTION 07)

Use this function to code the control module with indicator unit in instrument cluster -J285- with the following
information:

z

Available equipment

z

Market version

z

Number of cylinders

z

Code for distance impulse number ("K"-number)

{

Press buttons -0- and -7- to select function 07 "Code Control Module".

{

Press -Q- button to confirm input.

Indicated on display

z

Confirm vehicle applicable market, model and equipment particulars, determine and enter code number
from code table. See INSTRUMENT CLUSTER CODE TABLE (UP TO 06.99) . .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 42: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 06.99 (1 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Example:

03 Code for available equipment

2 USA

4 4-cylinder

2 Code for distance impulse number ("K" number)

INSTRUMENT CLUSTER CODE

Indicated on display (example only)

z

Press -Q- button to confirm input.

Code

Place In Code

Explanation

XX

1st & 2nd Digits

Available equipment

(1)

01

1st & 2nd Digits

Brake pad wear indicator, active

02

1st & 2nd Digits

Seat belt warning, active

X

3rd Digit

Market version

2

3rd Digit

USA (US)

3

3rd Digit

Canada (CDN)

X

4th Digit

Number of cylinders (4 = 4-Cylinder)

X

5th Digit

Code number for travel impulse (K number). Example:2 - 3538

(1)

If more than one type of optional equipment is to be entered, then the code numbers must be added
together. Example, Brake pad wear indicator and seat belt warning active: Available equipment
coding 01 + 02 = 03.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

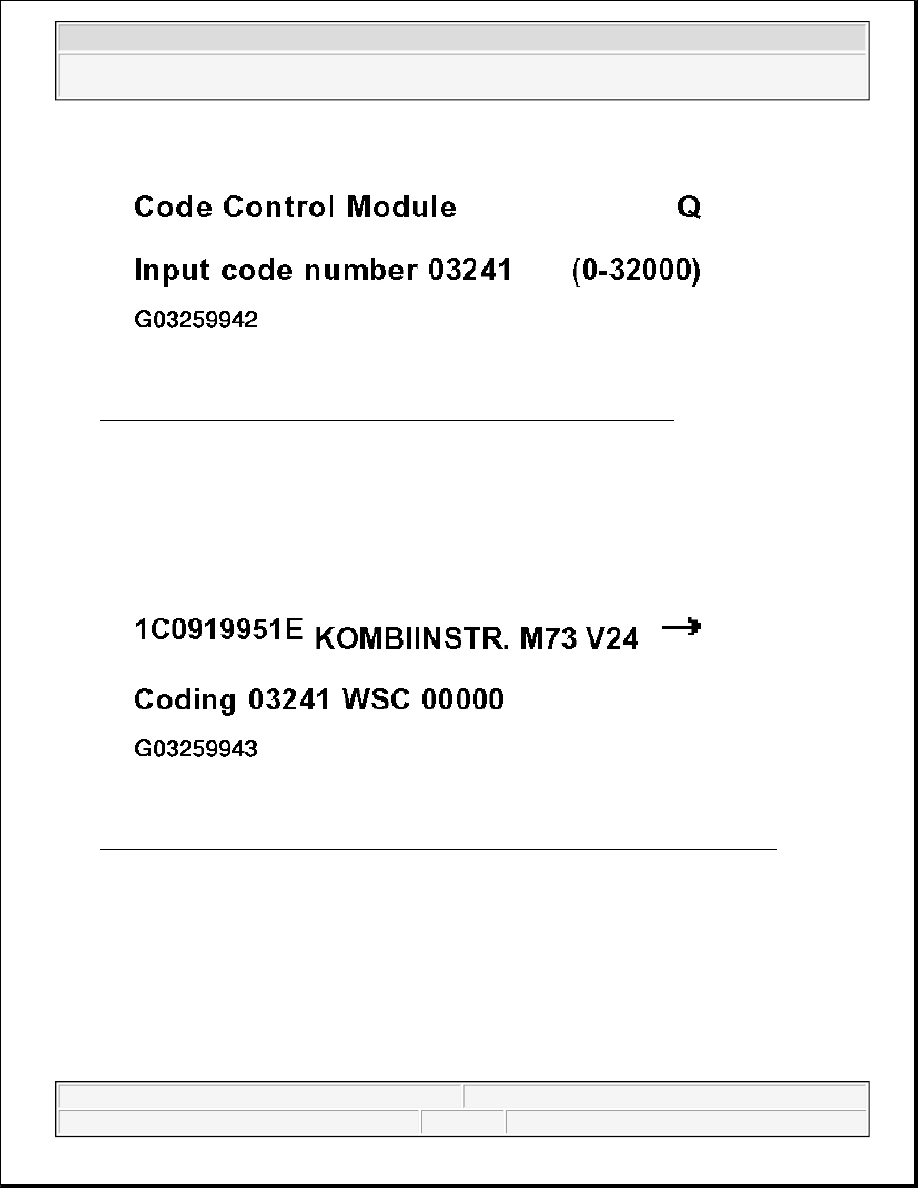

Fig. 43: VAG 1551 Scan Tool Display - Instrument Cluster Coding (2 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (example only)

z

Press --> button.

Fig. 44: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 06.99 (3 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

End output:

z

Press buttons -0- and -6- to select "End Output" function 06.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 45: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 06.99 (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

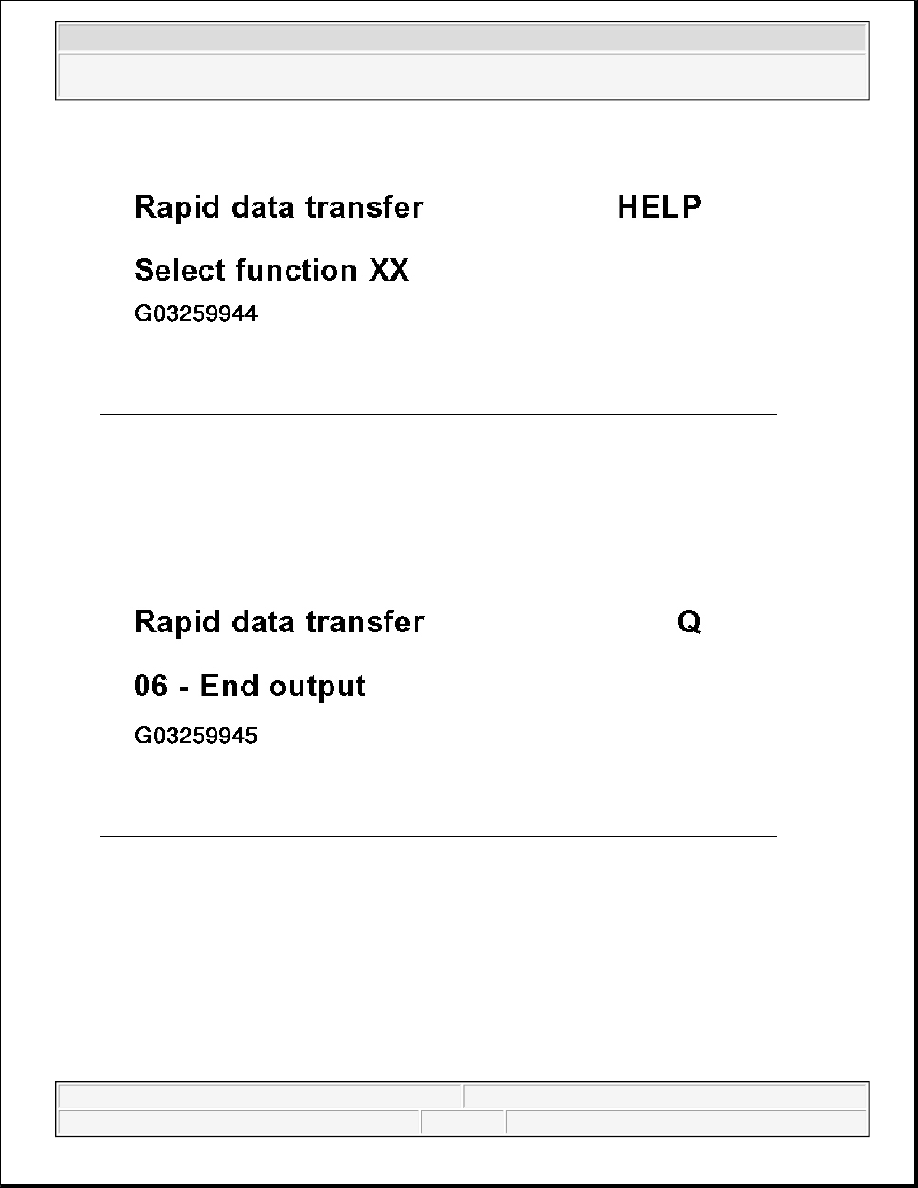

Fig. 46: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 06.99 (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

The scan tool returns to the start of the program sequence.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
