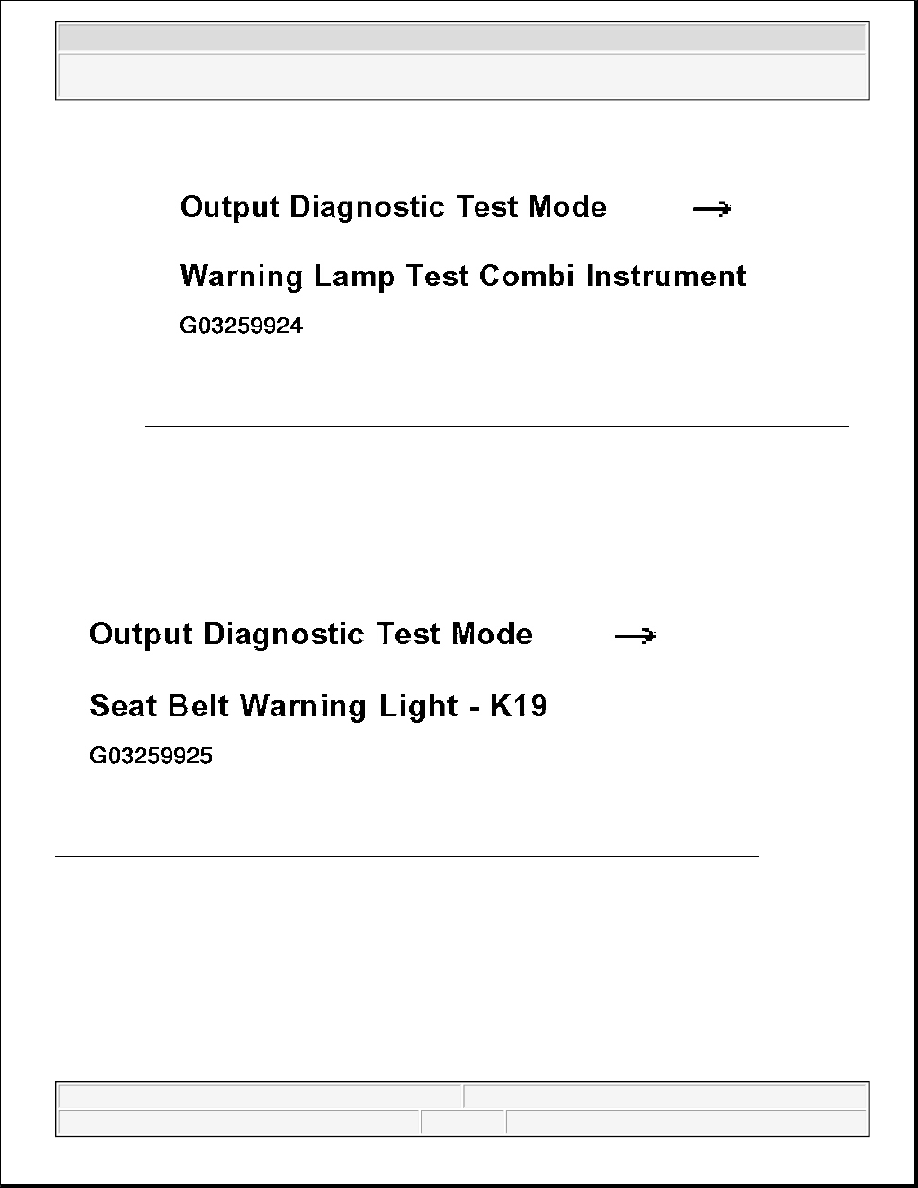

Fig. 25: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (4 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Seat belt warning light -K19- lights

Fig. 26: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (5 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Oil pressure warning buzzer is activated intermittently

z

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

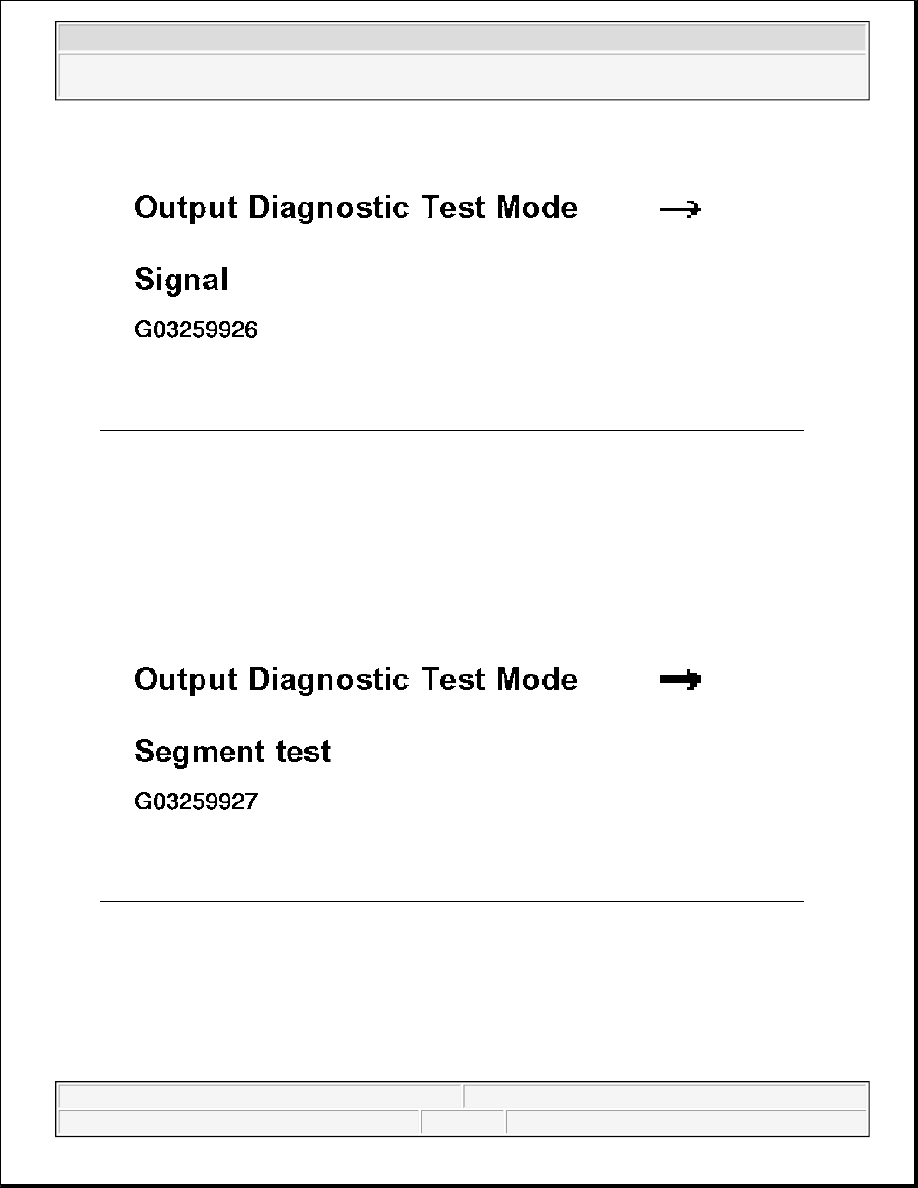

Fig. 27: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (6 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

All liquid crystal segments in speedometer display are activated and become visible.

z

Press --> button.

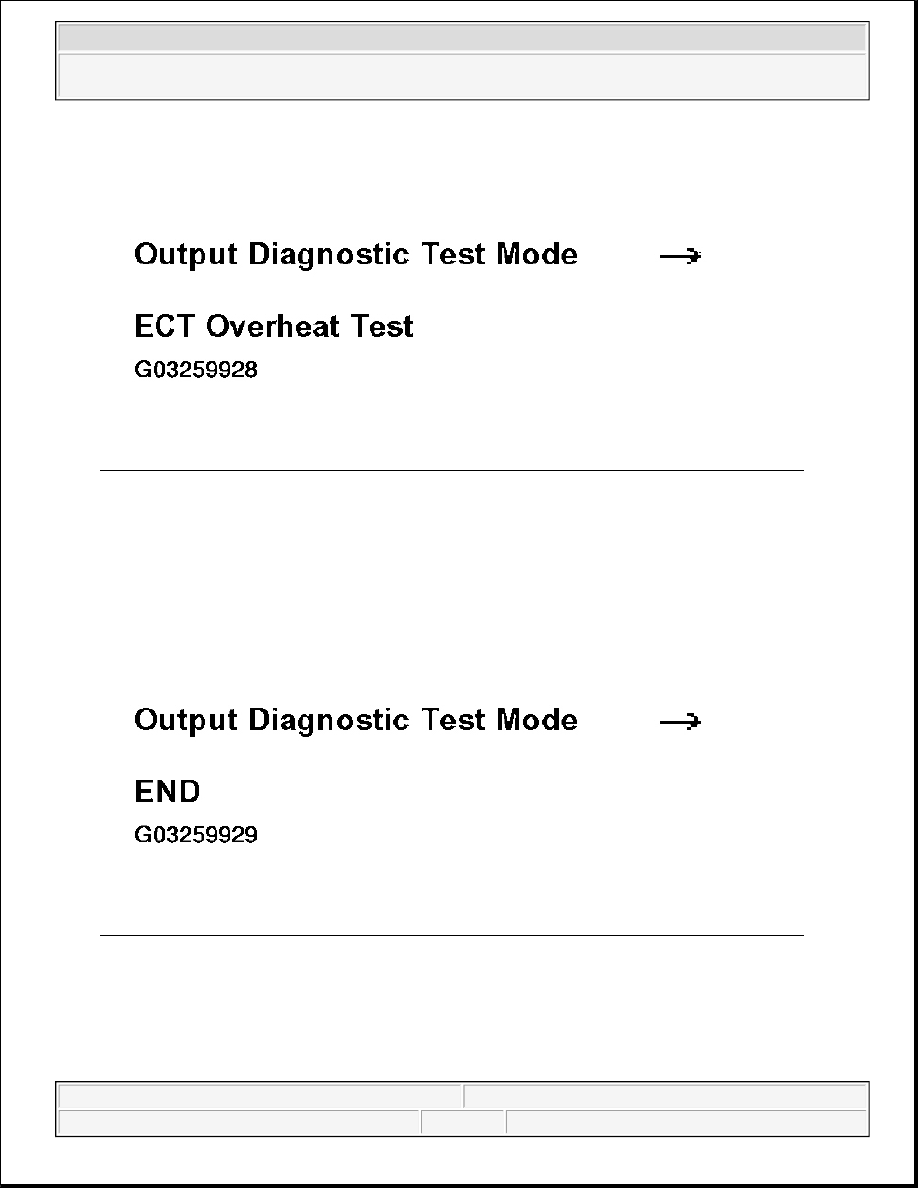

Fig. 28: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (7 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Coolant temperature/engine coolant level indicator warning light is activated.

Safety function (high coolant temperature cut-out for the A/C clutch) is activated approx. 5 seconds later.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Press --> button.

Fig. 29: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (8 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display for instrument clusters with manufacturer code M73:

z

Press --> button.

All actual values are displayed again.

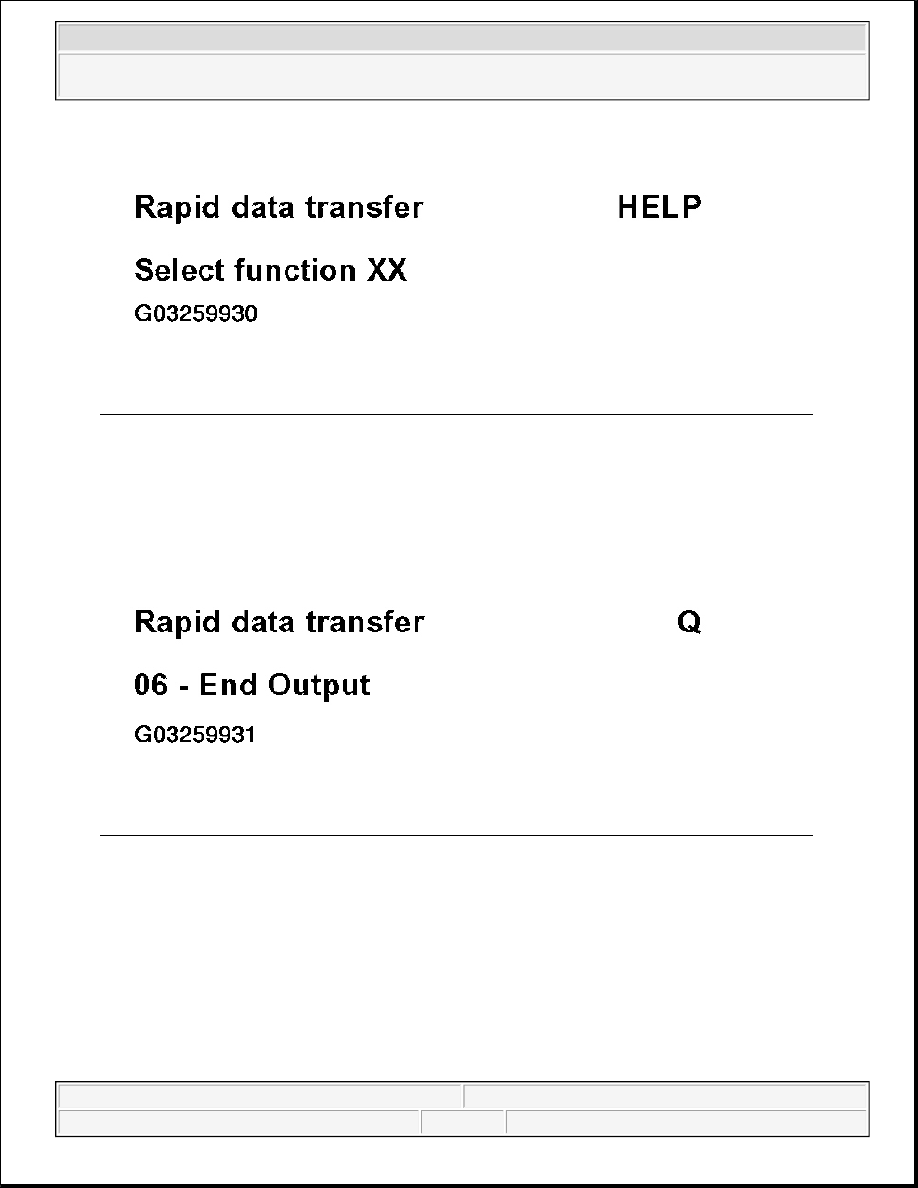

Fig. 30: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (9 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons -0- and -6- to select function "End Output" function 06.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 31: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (10 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 32: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (11 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

The scan tool returns to the start of the program sequence.
