Volkswagen New Beetle. Manual - part 345





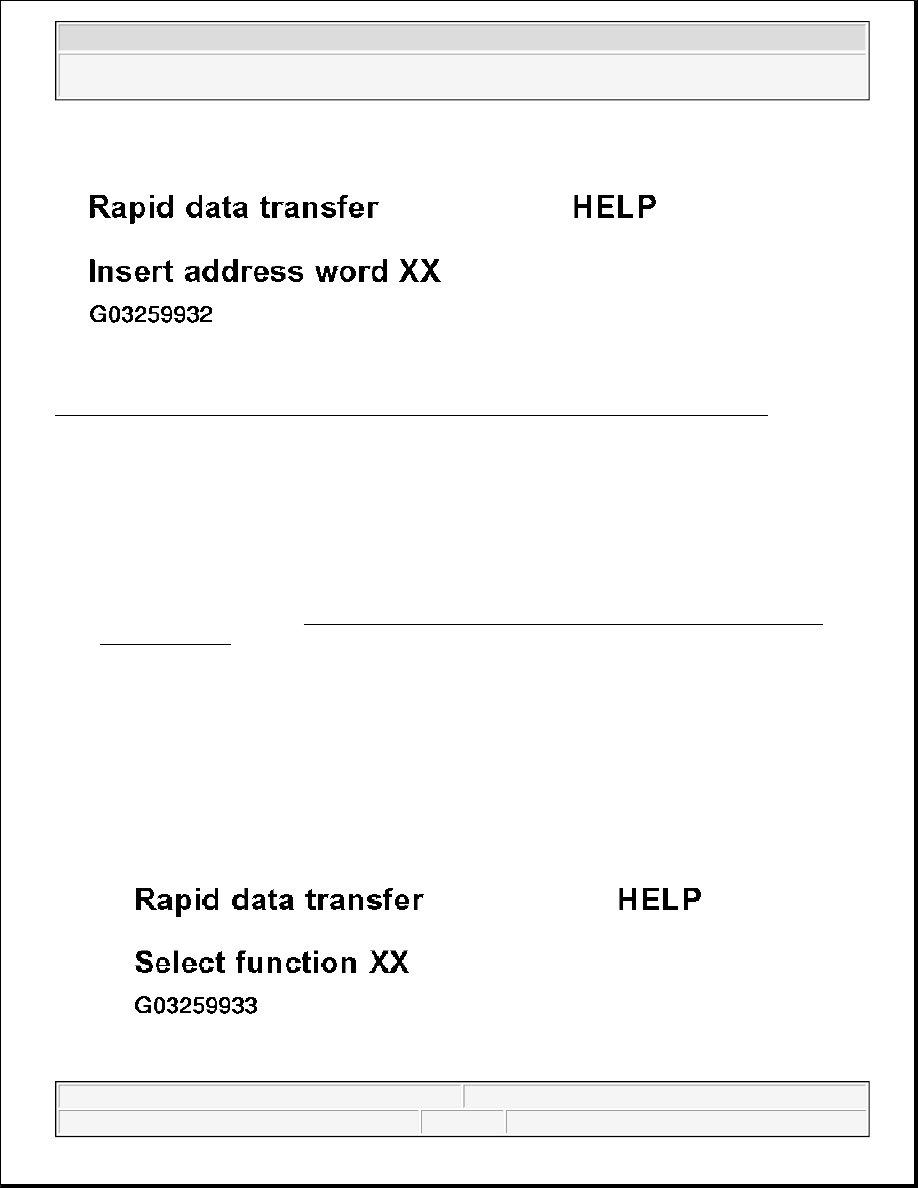

Fig. 33: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (12 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING (FUNCTION 05)

Requirement

z

DTC memory checked, See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING
(FUNCTION 02)
 .

z

All malfunctions repaired

After DTC memory has been successfully checked.

Indicated on display

z

Press buttons -0- and -5- to select "Erase DTC Memory" function 05.

NOTE:

After erasing DTC memory its contents will automatically be indicated. If DTC
memory cannot be erased, check DTC memory again and repair malfunctions.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 34: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, Up To 06.99 (1
Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

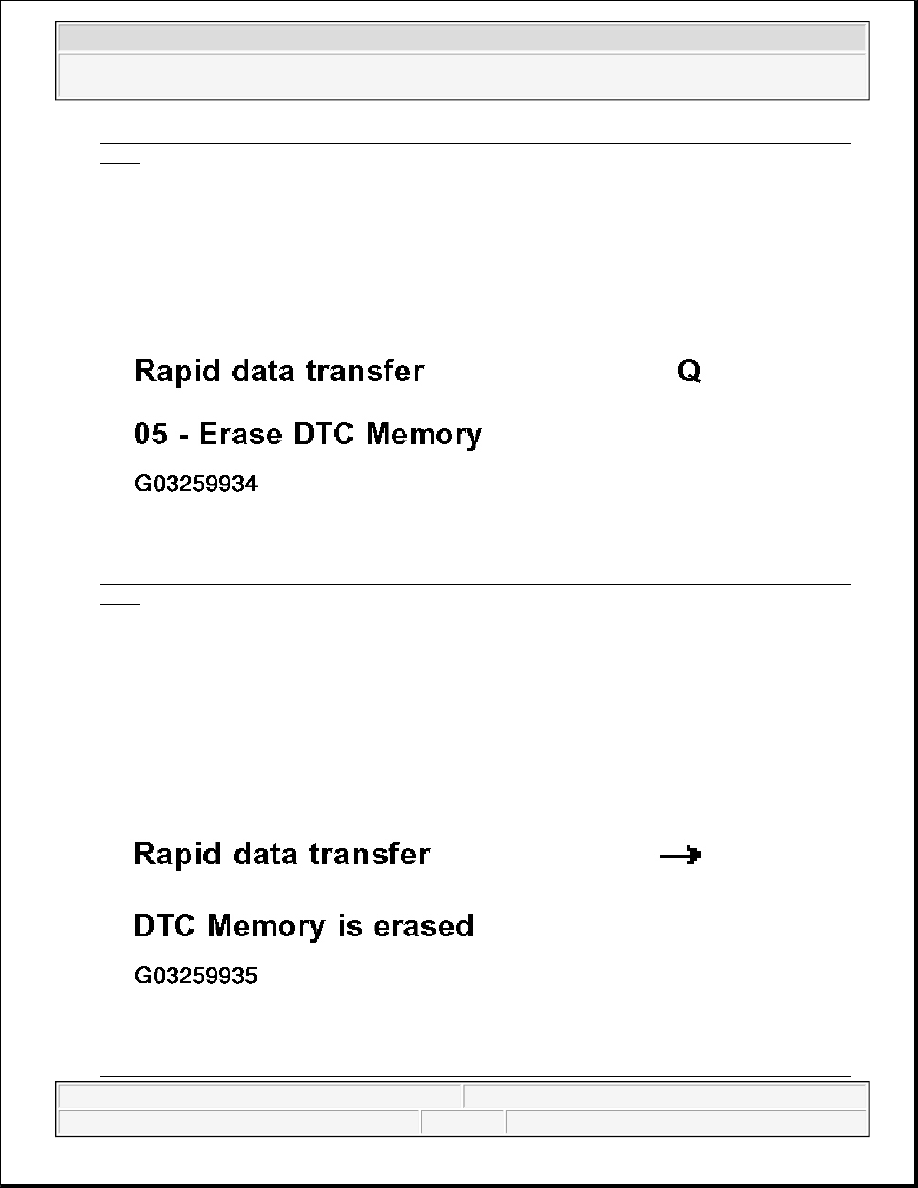

Fig. 35: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, Up To 06.99 (2
Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

DTC memory is now erased.

z

Press --> button.

Fig. 36: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, Up To 06.99 (3



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display Notes:

NOTE:

z

If "DTC Memory is not interrogated" appears on the display, the test
sequence has not been performed correctly.

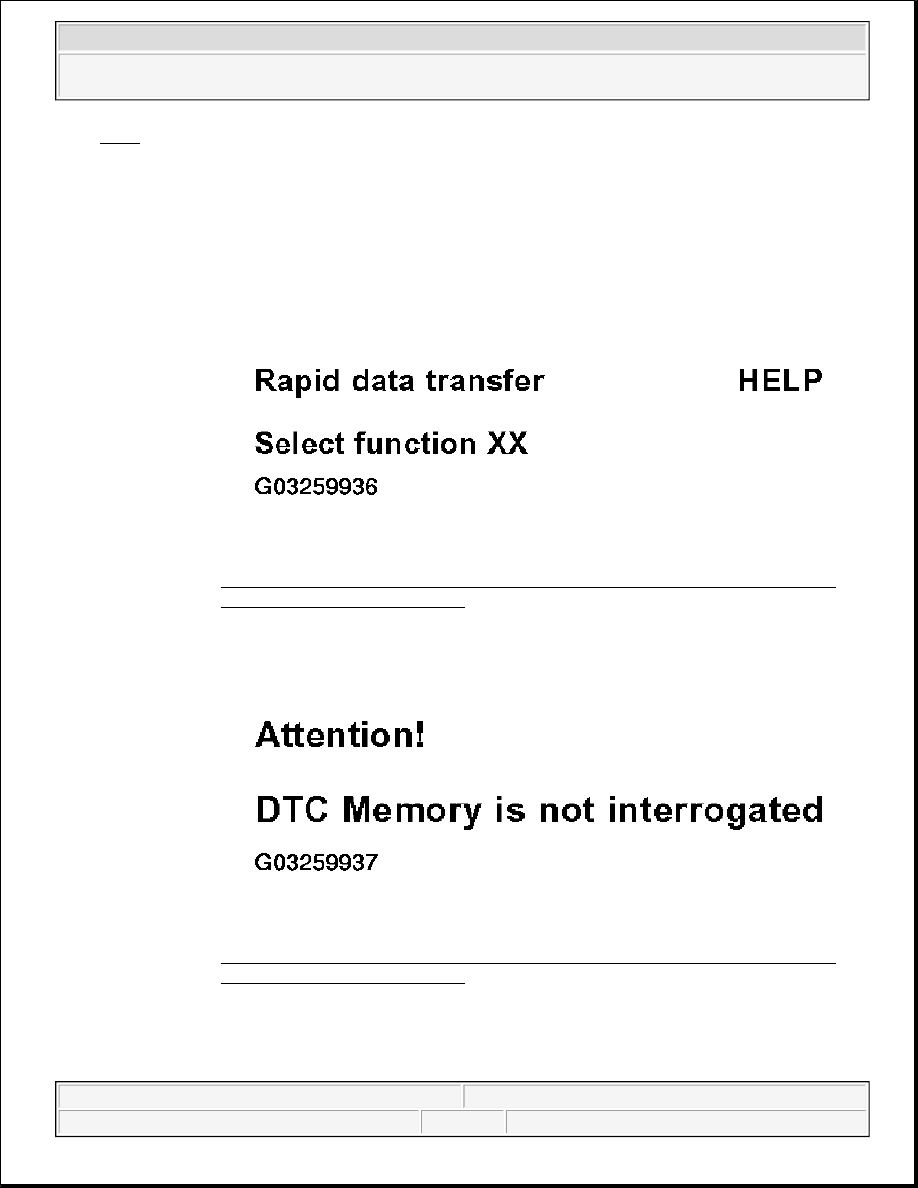

Fig. 37: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing, Up To 06.99 (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Fig. 38: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing, Up To 06.99 (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

If this appears on the display, the test sequence has not been performed
correctly.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



END OUTPUT (FUNCTION 06)

z

Press buttons -0- and -6- to select function "End Output" function 06.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 40: VAG 1551 Scan Tool Display - End Output, Up To 06.99 (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Follow the test sequence exactly, i.e. first check DTC memory, repair
malfunctions if necessary, then erase DTC memory.

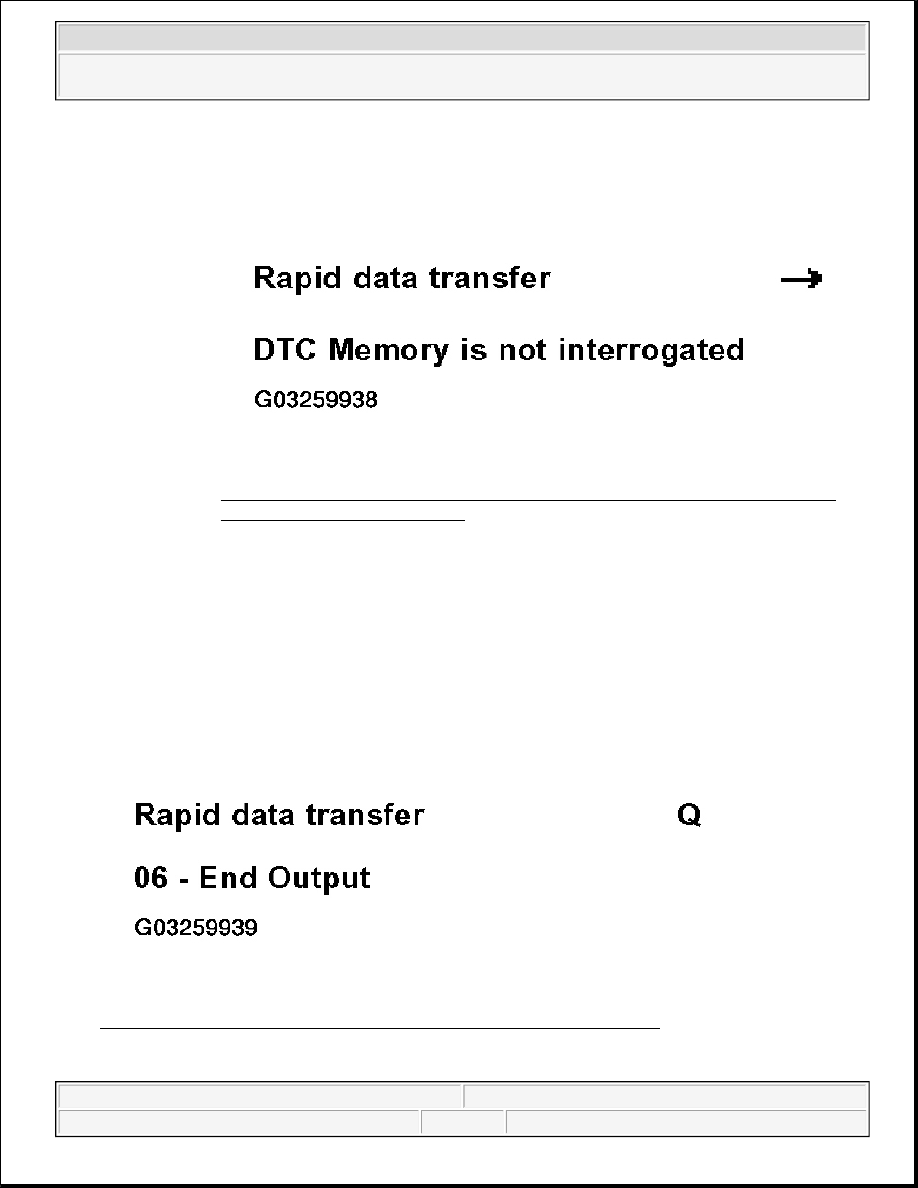

Fig. 39: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing, Up To 06.99 (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
