Volkswagen New Beetle. Manual - part 347





Fig. 47: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 06.99 (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

READ MEASURING VALUE BLOCK (FUNCTION 08)

Use this function to observe various instrument cluster inputs.

z

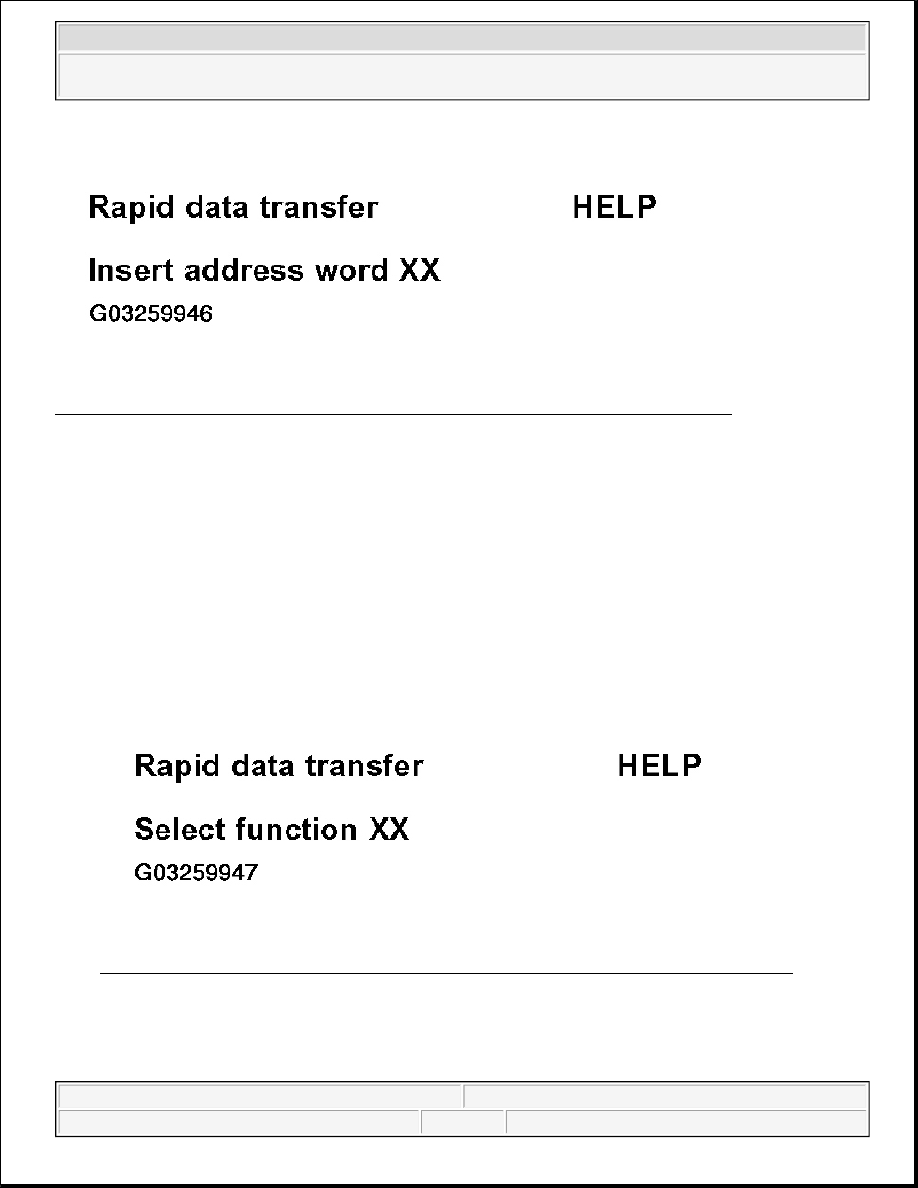

Connect VAG 1551 Scan Tool (ST), select operating mode 1 "Rapid data transfer", switch on ignition
and input address word 17 "Instrument cluster".

Indicated on display

z

Press buttons -0- and -8- to select function 08 "Read Measuring Value Block".

Fig. 48: VAG 1551 Scan Tool Display - Read Measuring Value Block, Up To 06.99 (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



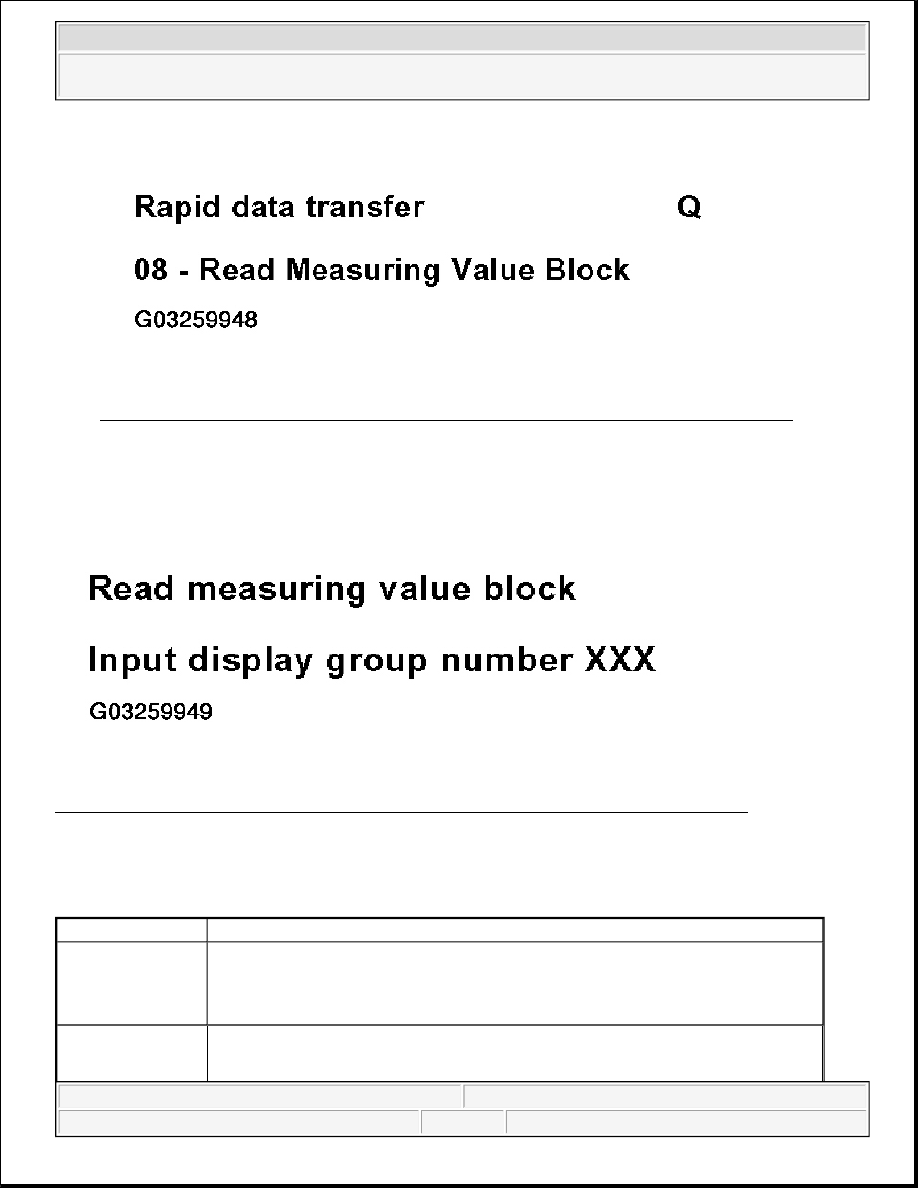

Fig. 49: VAG 1551 Scan Tool Display - Read Measuring Value Block, Up To 06.99 (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Fig. 50: VAG 1551 Scan Tool Display - Read Measuring Value Block, Up To 06.99 (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DISPLAY GROUPS, INTERPRETING

DISPLAY GROUPS (UP TO 06.99)

Display group

Indicated on display

001

1 Road speed (Km/h)

2 Engine speed (RPM)

3 Oil pressure switch 2 min.

4 Time (not for VDO)

002

1 Trip recorder (Km)

2 Fuel in liters



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Select relevant display group number, and press -Q- button to confirm input.

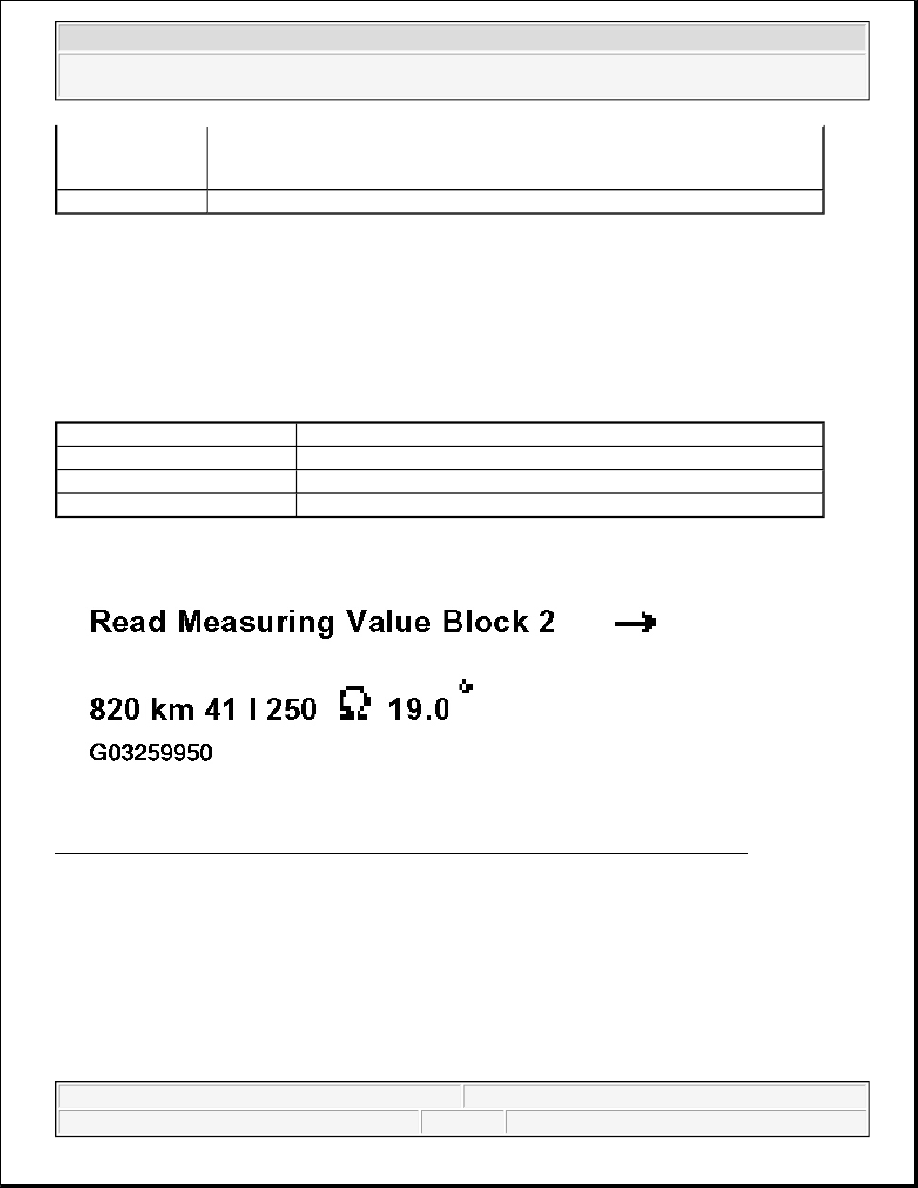

Example of measuring value block for Magneti Marelli instrument cluster -M73-:

z

Press buttons -0-, -0- and -2- to input display group no. 002.

Indicated on display

INPUT DISPLAY VALUES (UP TO 06.99)

Fig. 51: VAG 1551 Scan Tool Display - Read Measuring Value Block, Up To 06.99 (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

3 Manufacturer code M73: ohm value = for fuel level sensor -G-

Manufacturer code VDO: ambient temperature in °C

4 Manufacturer code M73: ambient = temperature in °C

003

1 Coolant temperature in °C

Displayed value

Designation

820 km

1 = Distance traveled

41 ltr.

2 = Fuel gauge

250 ohm

3 = ohm value of fuel level sensor -G-

NOTE:

z

The actual sensor values are shown in the display field. The values in the
instrument cluster are modified and may be different.

z

The coolant temperature gauge will indicate 90° C (194°F), if the actual
coolant temperature varies between approx. 75°C (167°F) and 107°C (225°
F).

z

For vehicles with VDO instrument cluster, if the fuel level sensor has an
open or short circuit, display field 2 displays 0L and display field 3
remains empty.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



ADAPTATION (FUNCTION 10)

Use this function to initiate and store the following changes:

z

Adaption of odometer reading when replacing/exchanging instrument cluster

z

Adaption of fuel gauge reading

Individual functions can be called up using the appropriate adaptation channel number from adaptation table.

Adaptation table

ADAPTATION FUNCTIONS (UP TO 06.99)

ODOMETER READING UP TO 06.98 MODELS, ADAPTATION

z

Odometer reading adaptation for vehicles from 06.98, See ODOMETER, ADAPTATION

z

Odometer reading adaptation using Vehicle Diagnostic, Testing and Information System VAS 5051 (all
model years), See Additional Information, Odometer adaptation with VAS 5051.

z

For vehicles with Magneti-Marelli instrument cluster -M73-, display field 2
displays 2L for short circuit and 67L for open circuit. Display field 3
displays 8 ohm for short circuit and > 350 ohm for an open circuit.

z

Other display groups are possible, but are not required for
troubleshooting.

Adaptation channel

Adaptation functions

09

Odometer Up To 06.98, adaptation

See ODOMETER READING UP TO 06.98 MODELS, ADAPTATION

Odometer 06.98 & Up, adaptation

See ODOMETER, ADAPTATION

30

Fuel gauge, adaptation

See FUEL GAUGE, CHECKING (ADAPTATION)

NOTE:

After changing an adaptation value or ending an adaptation channel the
function "10 - adaptation" must be performed to select another adaptation
channel!

NOTE:

z

Total distance travelled by the vehicle can be read from the malfunctioning
instrument cluster or determined by vehicle service history.

z

Total distance travelled display of new instrument cluster must not be
more than 100 km (63 mi) before adaptation.

z

Total distance travelled to be transferred to the new instrument cluster
must exceed 100 km (63 mi).

z

Adapting total distance travelled is only possible once and only in a



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
