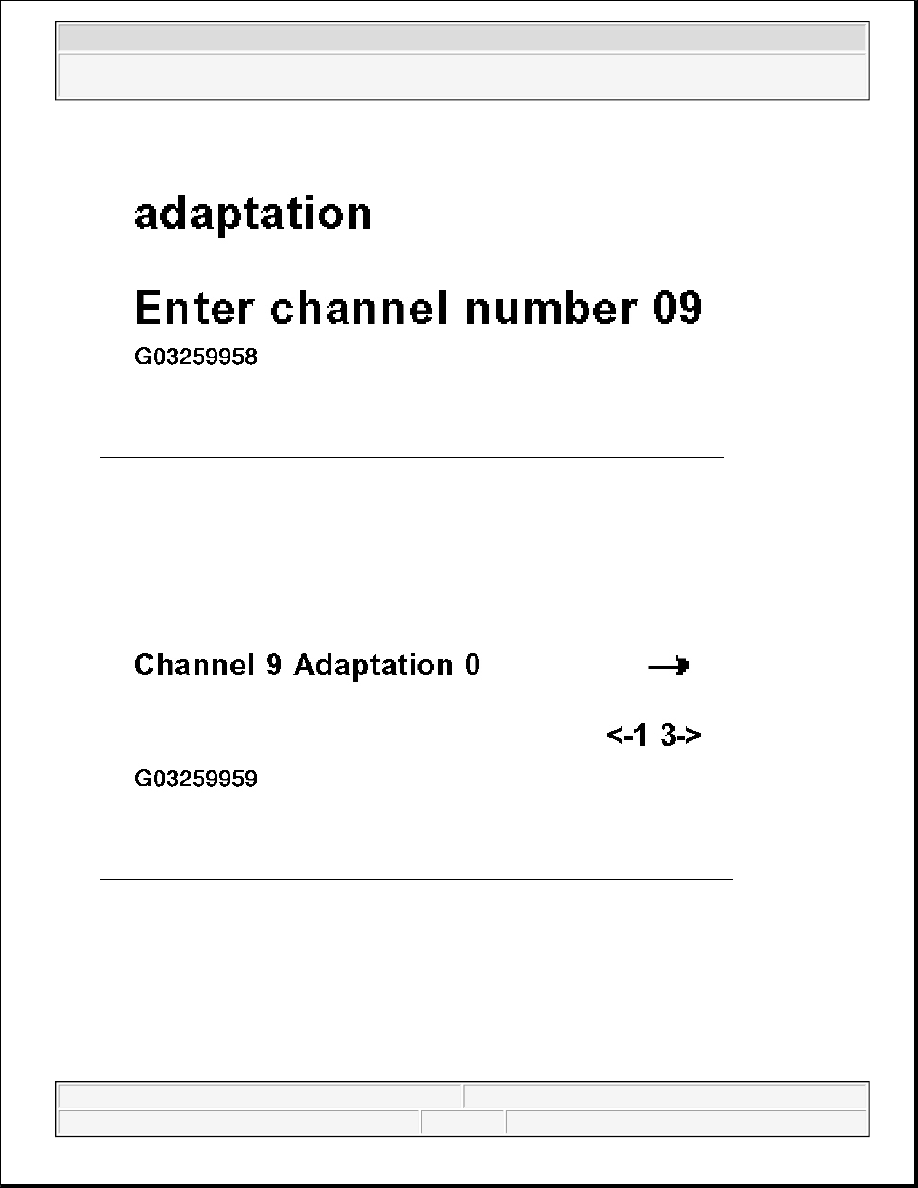

Fig. 59: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (8 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Move forward in program by pressing --> button.

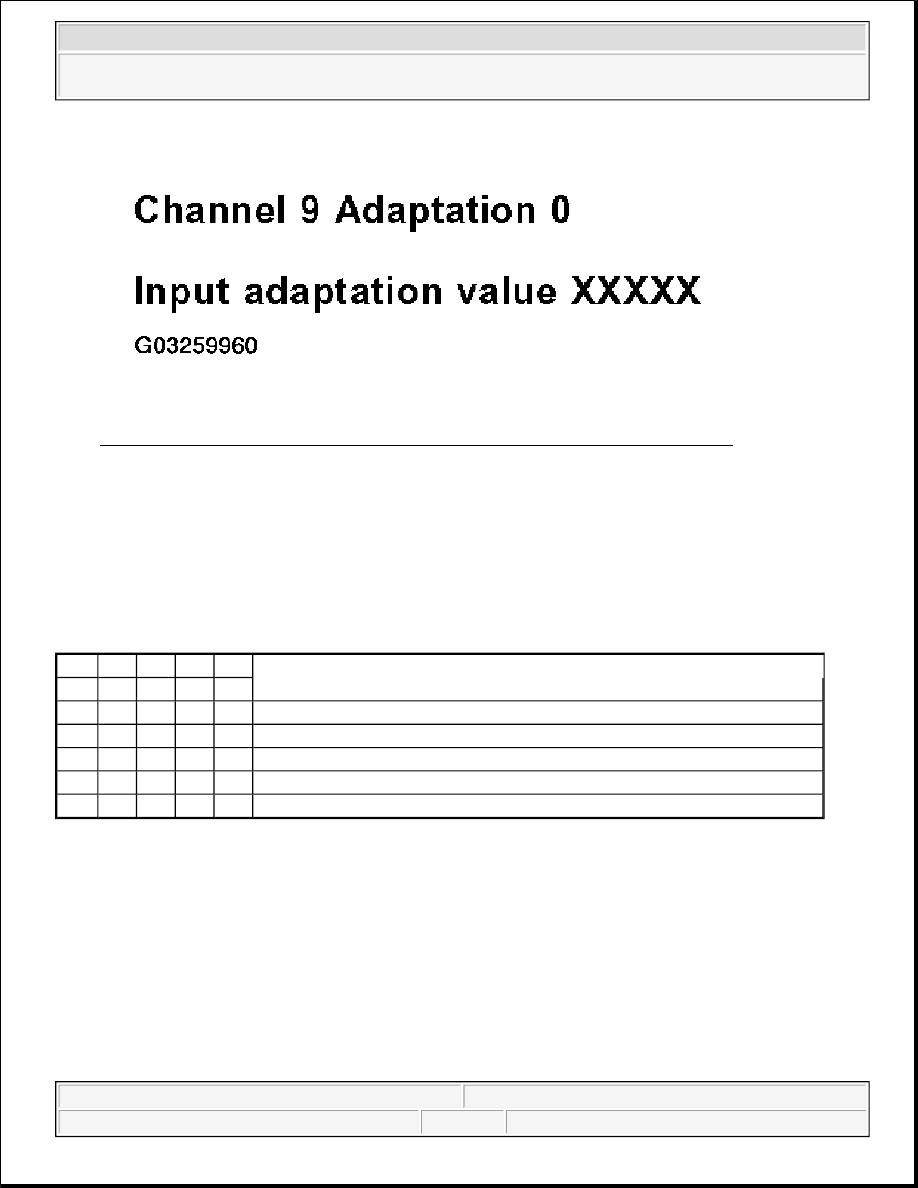

Fig. 60: VAG 1551 Scan Tool Display - Adaptation, Up To 006.98 Models (9 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Input adaptation value (odometer reading) using VAG 1551/1552 button pad.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

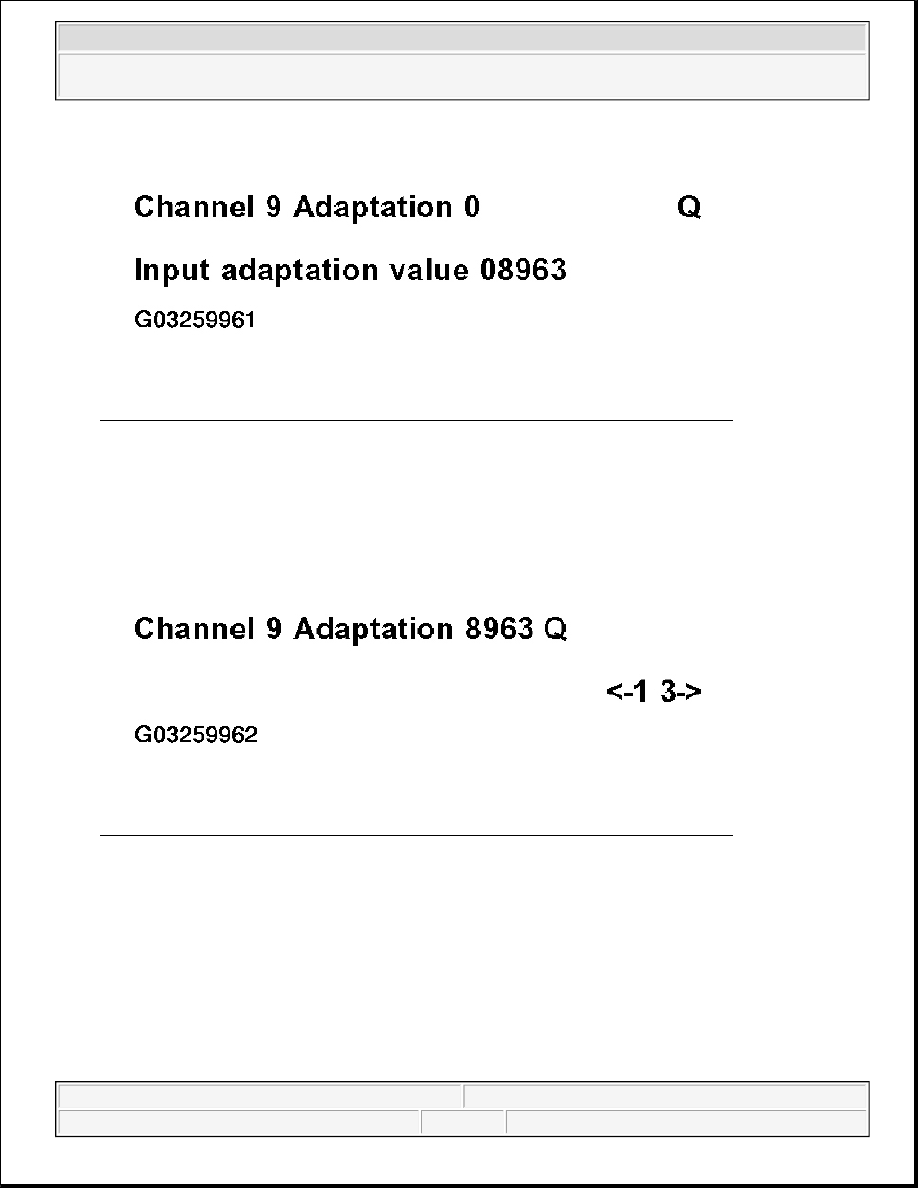

Fig. 61: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (10 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The last position of the odometer reading must be rounded off to the nearest 10.

For US models with Magneti Marelli (M73) instrument clusters, enter odometer reading in miles.

An odometer reading of 89627 miles (US) or 89627 kilometers (Canada) produces an adaptation value of
08963:

EXAMPLE OF ODOMETER ADAPTION VALUE (UP TO 06.98 MODELS)

z

Input adaptation value using VAG 1551/1552 button pad.

Indicated on display

z

Press -Q- button to confirm input.

0

8

9

6

3

X









Hundred thousands: 100000 -655350



X







Ten thousands:10000 - 90000





X





Thousands: 1000 - 9000







X



Hundreds: 100 - 900









X

Tens: 10-90











Ones: round up to next ten



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



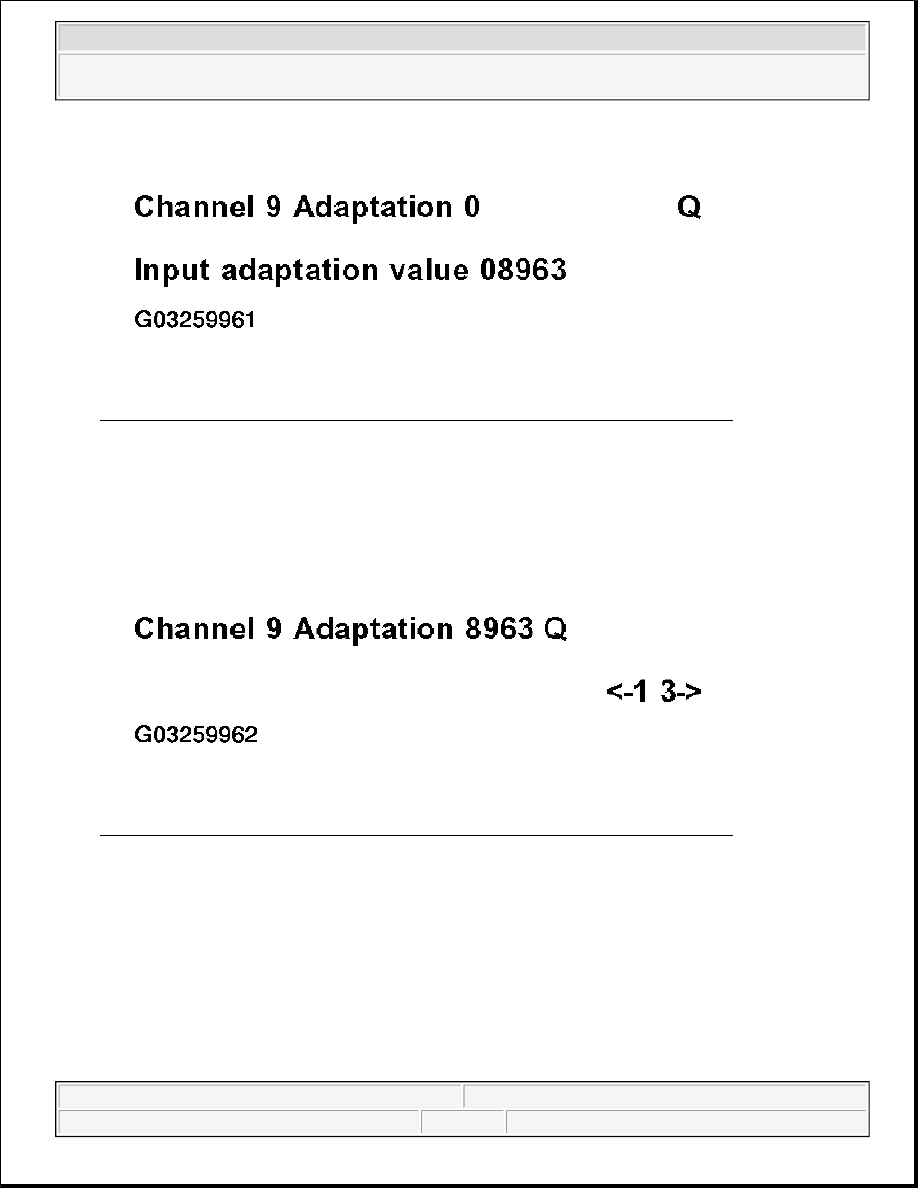

Fig. 62: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (11 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

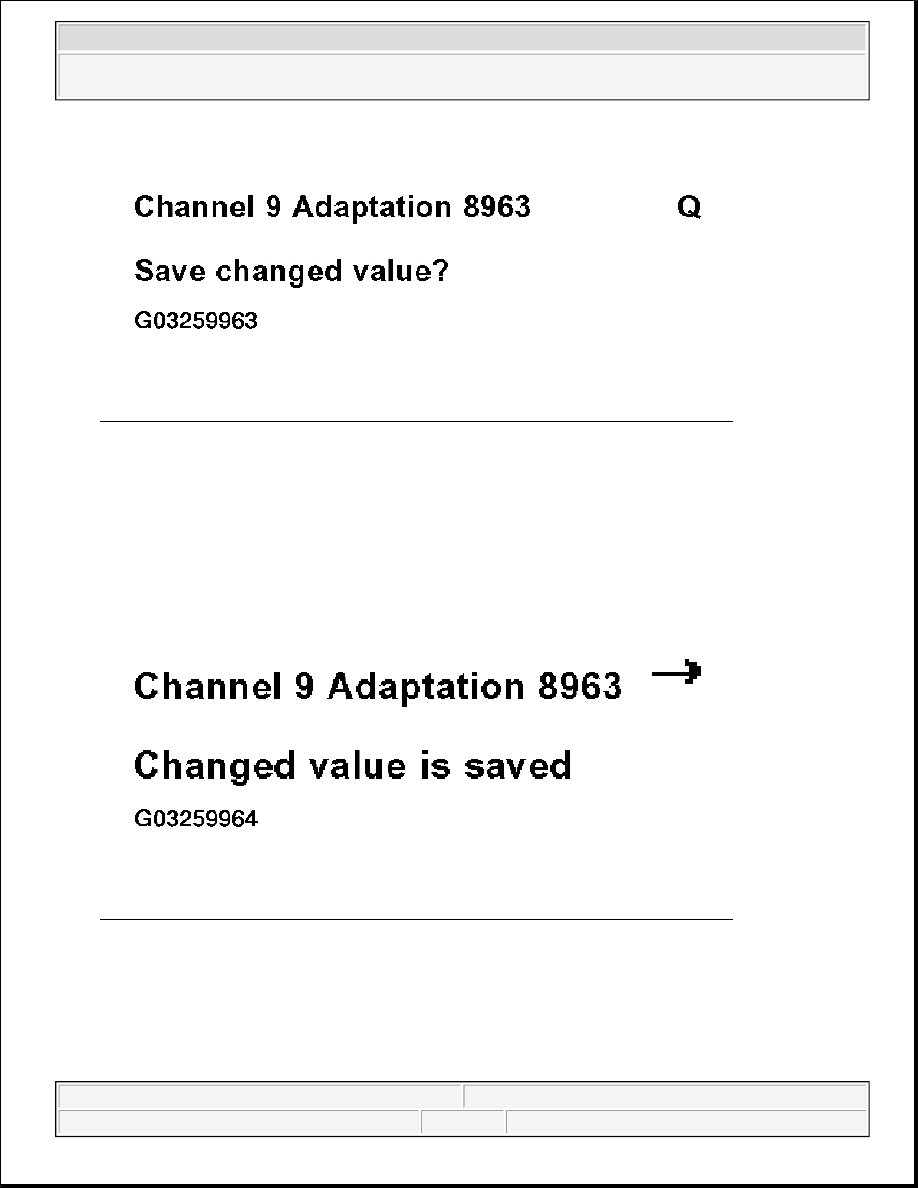

Fig. 63: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (12 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

If adaptation value is not correct, e.g. a false entry:

z

Press -C- button to input correct value .

z

Press -Q- button to confirm input .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 64: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (13 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Odometer display shows new distance .

Indicated on display

z

Press --> button to complete adaptation sequence .

Fig. 65: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (14 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons -0- and -6- to select function 06 "End Output".
