Volkswagen New Beetle. Manual - part 289

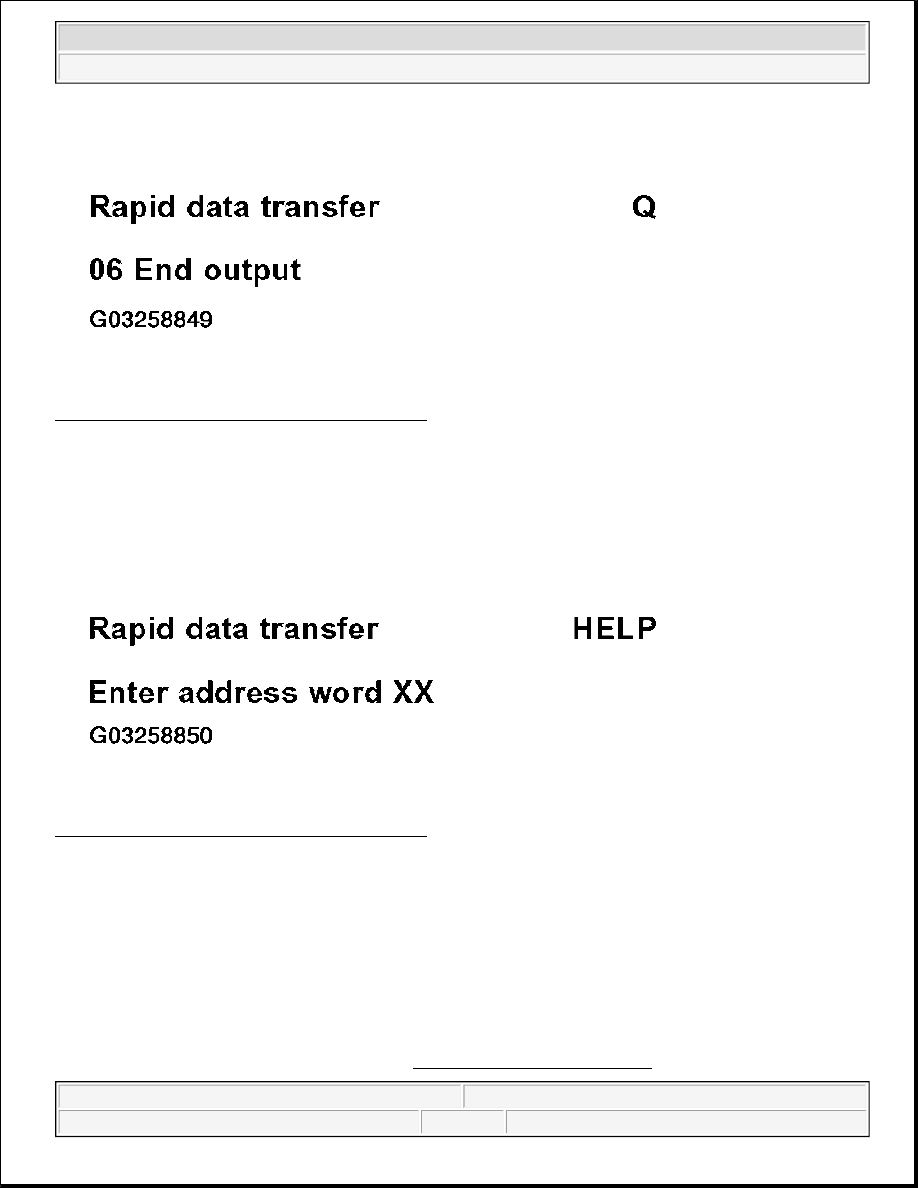

Fig. 49: Scan Tool Display - Function 02 (6 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 50: Scan Tool Display - Function 02 (7 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition and disconnect diagnostic connection.

DTC MEMORY, ERASING (FUNCTION 05)

z

Connecting V.A.G 1551 or VAS 5051, see SCAN TOOL, CONNECTING . Initiating On Board

NOTE:

The vehicle system tester V.A.G 1552 can be used instead of the scan tool
V.A.G 1551 or the Vehicle Diagnosis, Testing and Information System VAS 5051,
however a print-out is not possible.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Diagnosis (OBD), see ON BOARD DIAGNOSIS (OBD) FOR THE COMFORT SYSTEM
(VEHICLES WITH POWER WINDOWS), INITIATING
 .

Requirements:

z

Malfunction is corrected

z

Functional check has been carried out

z

DTC memory interrogated again

DTC memory, erasing (Function 05)

Indicated on display:

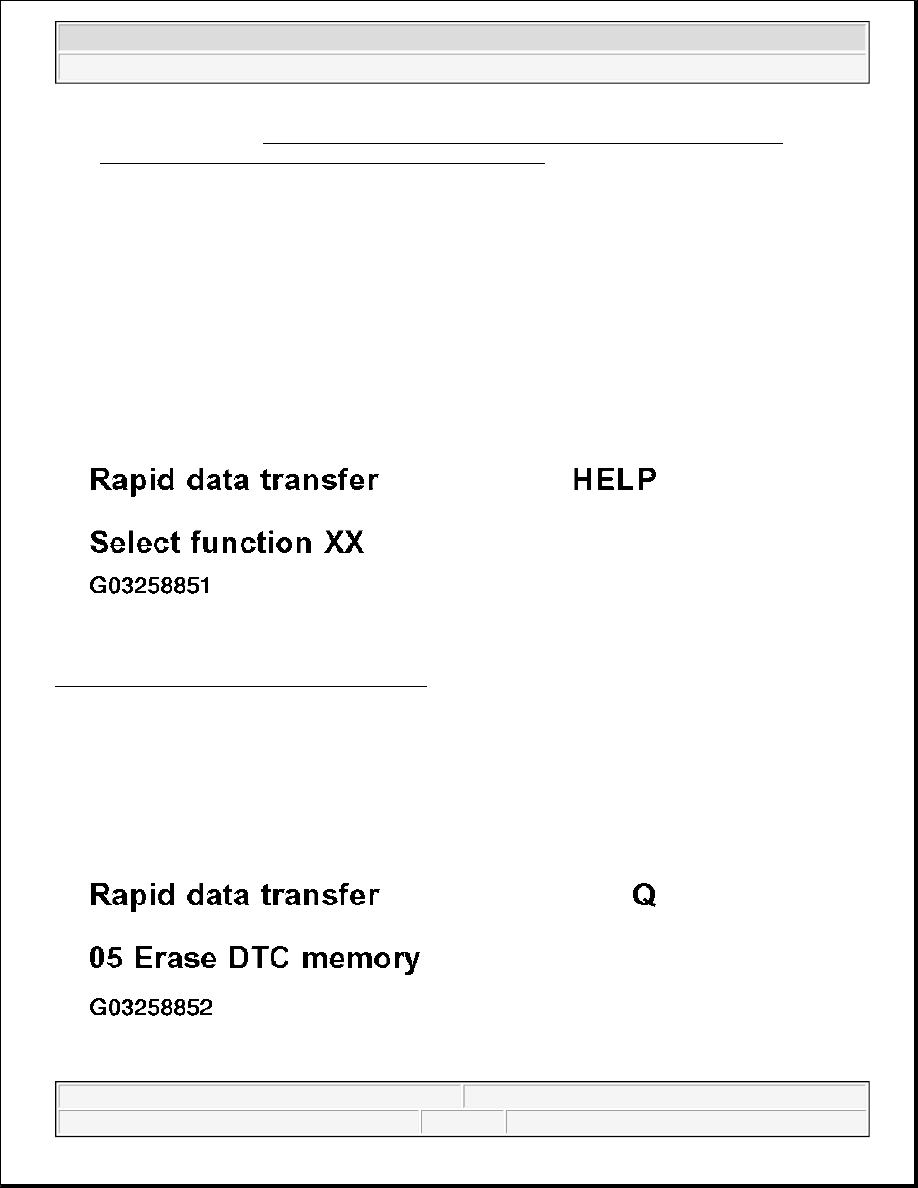

Fig. 51: Scan Tool Display - Function 05 (1 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -5- (the function "Erase DTC memory" is entered with 05).

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 52: Scan Tool Display - Function 05 (2 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Confirm entry with -Q- button.

Indicated on display:

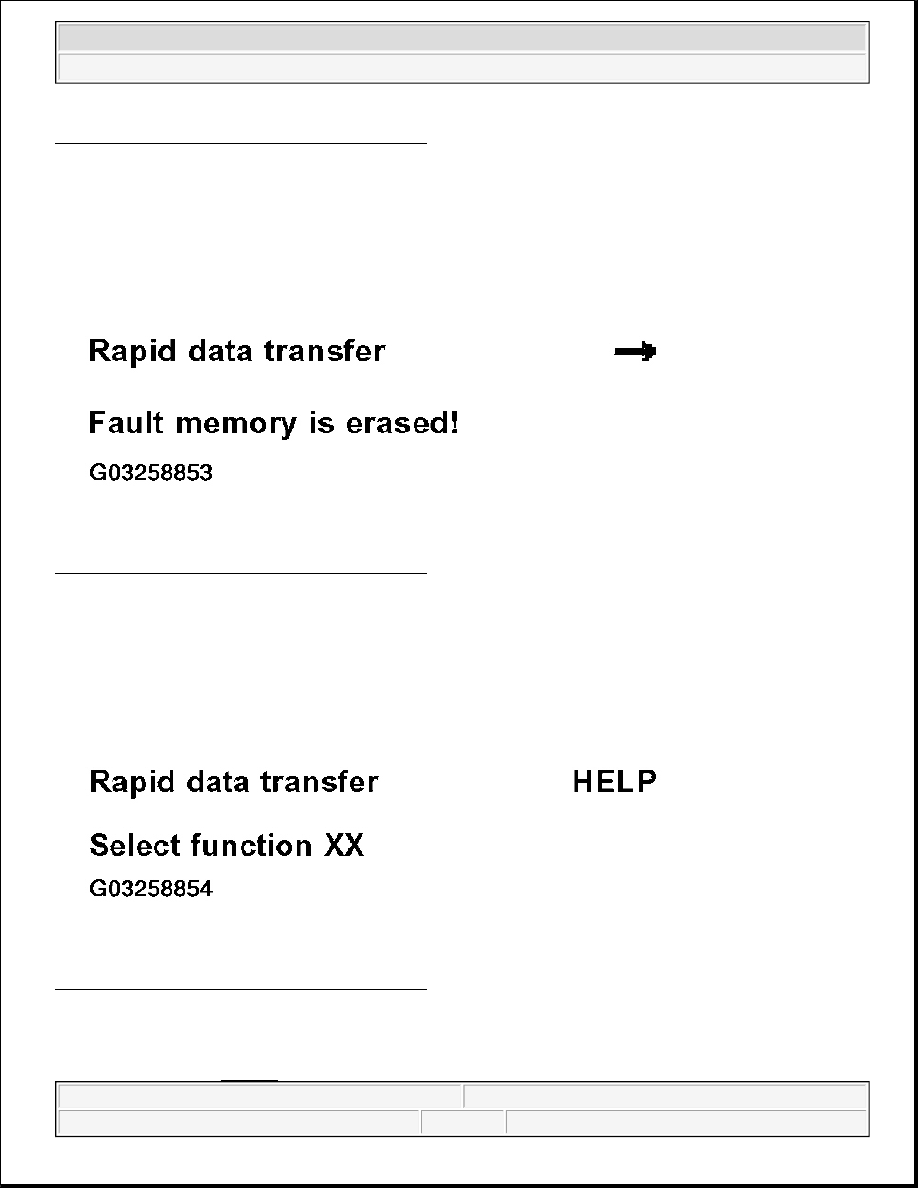

Fig. 53: Scan Tool Display - Function 05 (3 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display:

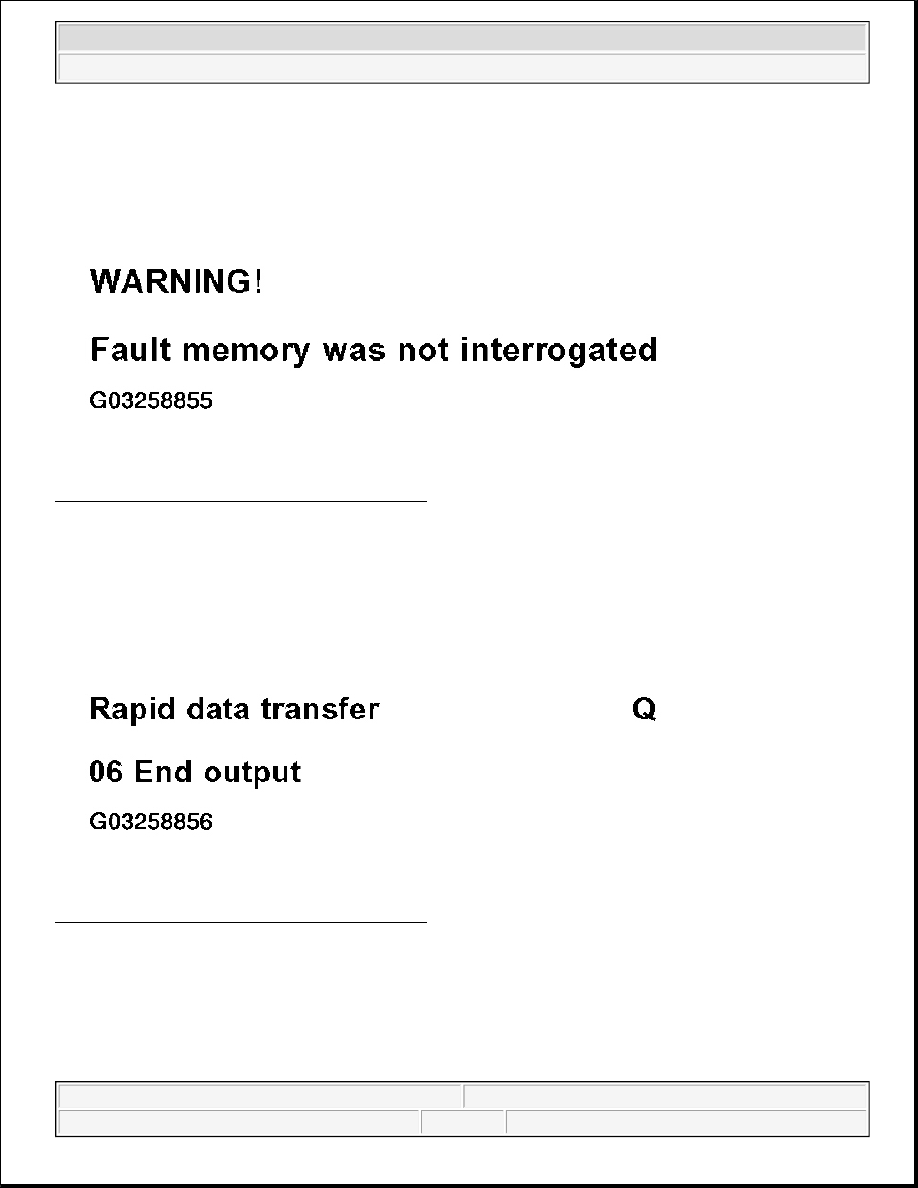

Fig. 54: Scan Tool Display - Function 05 (4 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

z

If this appears in the display, the test sequence has malfunctioned. See
Fig. 55 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 55: Scan Tool Display - Function 05 (5 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -6- to end the output.

Indicated on display:

Fig. 56: Scan Tool Display - Function 05 (6 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

z

Adhere exactly to test sequence: first of all Interrogate DTC memory, then
erase memory.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
