Volkswagen New Beetle. Manual - part 288





Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -6- to end the output.

Indicated on display:

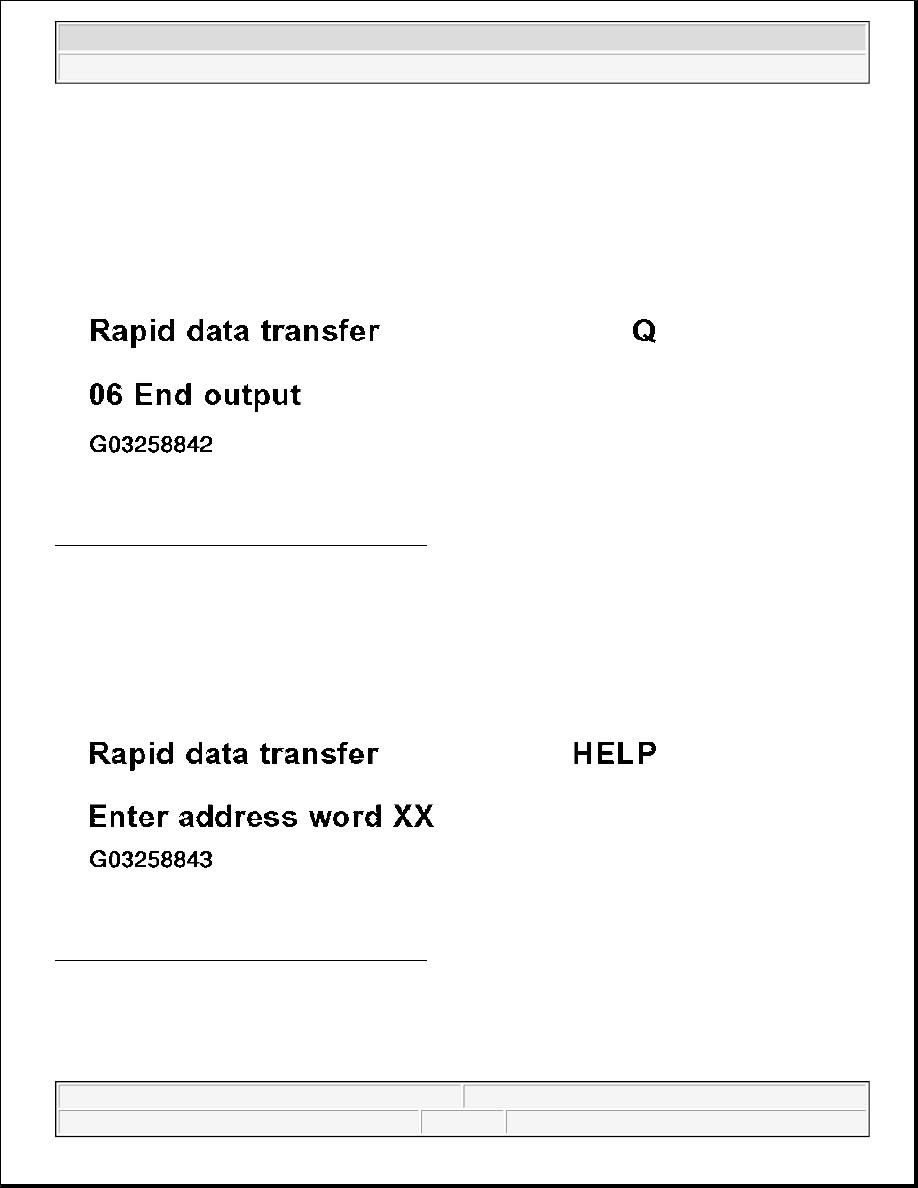

Fig. 42: Scan Tool Display - Function 07 (8 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 43: Scan Tool Display - Function 07 (9 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition and disconnect diagnostic connection

DTC MEMORY, CHECKING (FUNCTION 02)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



z

Connecting V.A.G 1551 or VAS 5051, see SCAN TOOL, CONNECTING . Initiating On Board
Diagnosis (OBD), see ON BOARD DIAGNOSIS (OBD) FOR THE COMFORT SYSTEM
(VEHICLES WITH POWER WINDOWS), INITIATING
 .

z

Switch on printer with Print button (warning lam in button lights up) if using V.A.G 1551 or print via the
print menu when using VAS 5051, if necessary.

Indicated on display:

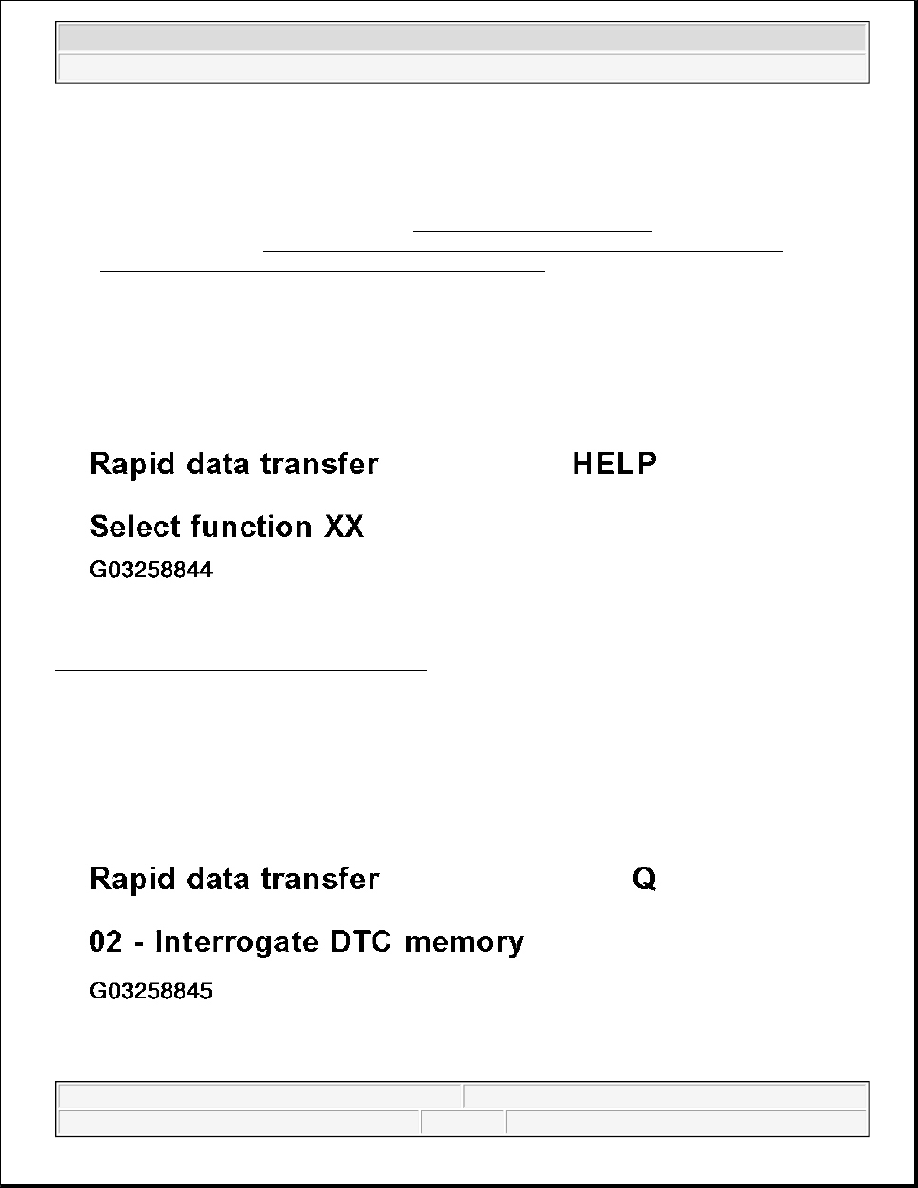

Fig. 44: Scan Tool Display - Function 02 (1 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -2-. (Function "Interrogate DTC memory" is selected with 02).

Indicated on display:

NOTE:

The vehicle system tester V.A.G 1552 can be used instead of the scan tool
V.A.G 1551 or the Vehicle Diagnosis, Testing and Information System VAS 5051,
however a print-out is not possible.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 45: Scan Tool Display - Function 02 (2 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press Print button.

z

Confirm entry with -Q- button.

The number of stored malfunctions (Diagnostic Trouble Codes (DTC)) appears in the display.

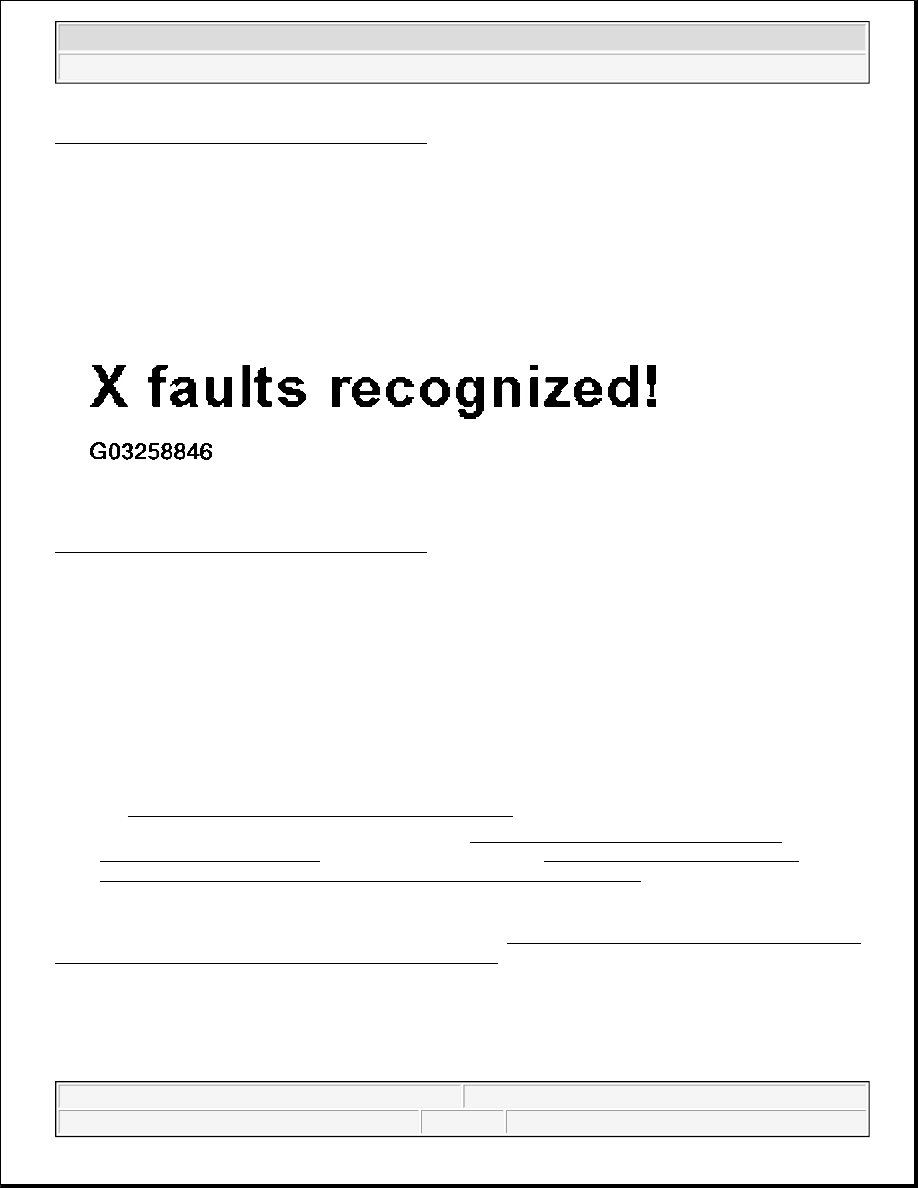

Fig. 46: Scan Tool Display - Function 02 (3 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The stored malfunctions will be displayed and printed out one after the other.

z

The malfunctions printed out can be diagnosed with aid of Diagnostic Trouble Code (DTC) table, from,
see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

z

For the function "Read measured value block", see MEASURED VALUE (DATA) BLOCK,
READING (FUNCTION 08)
 . Display group overview, see DISPLAY GROUP OVERVIEW
COMFORT SYSTEM 2ND GENERATION VEHICLES UP TO 05.01
 for additional aids.

The measured value block is divided into 16 display group numbers. The assignment of the individual display
zones can be taken from the display group overview from, see DISPLAY GROUP OVERVIEW COMFORT
SYSTEM 2ND GENERATION VEHICLES UP TO 05.01
 .

If "No fault recognized" is displayed the program will return to the initial position after pressing the --> button.

NOTE:

If a malfunction is recognized:

1. Repair malfunction

2. Erase DTC memory (function 05)

3. Check DTC memory again (function 02).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

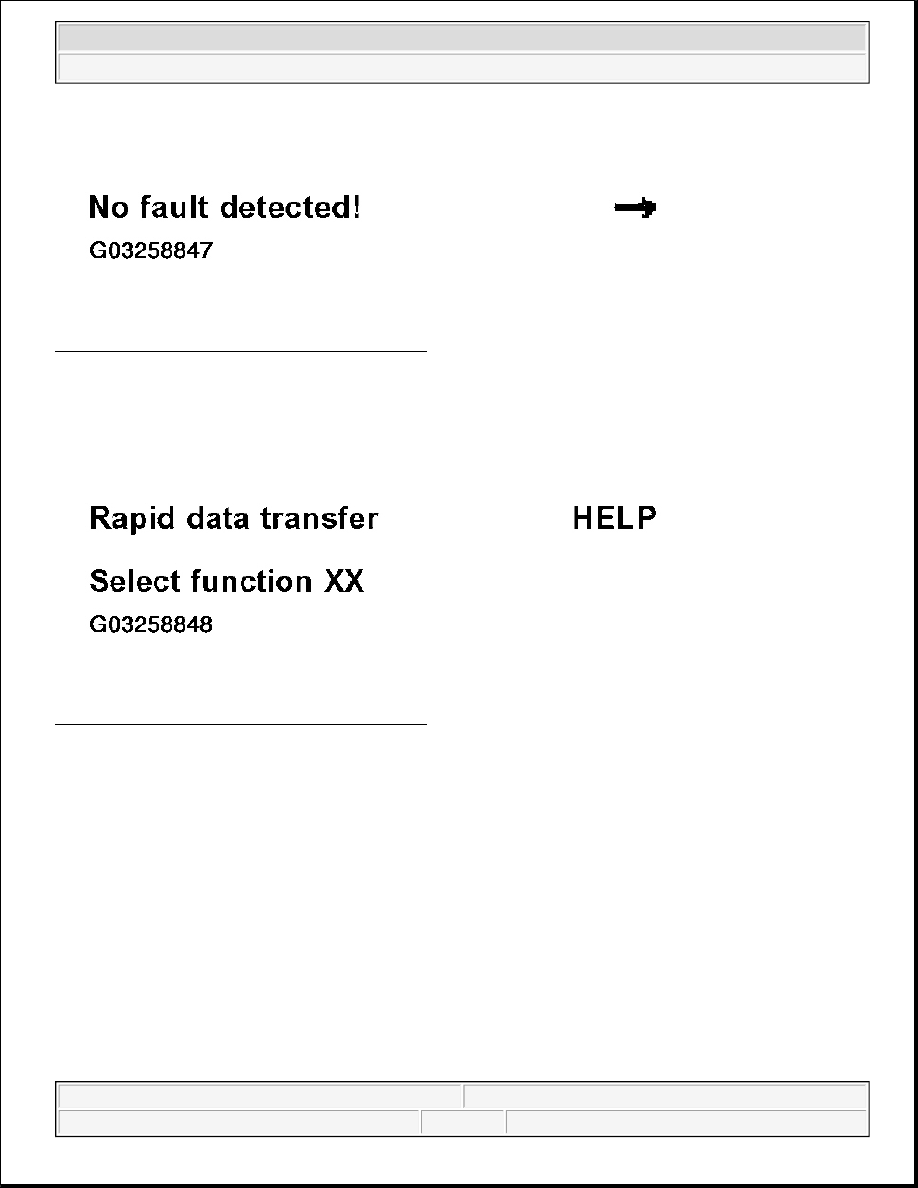

Fig. 47: Scan Tool Display - Function 02 (4 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Fig. 48: Scan Tool Display - Function 02 (5 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If something else is displayed:

See Scan tool operating instructions

z

Press keys -0- and -6- to end the output.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
