Fig. 27: Scan Tool Display - Function 01 (6 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

and the following is indicated on display:

Fig. 28: Scan Tool Display - Function 01 (7 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

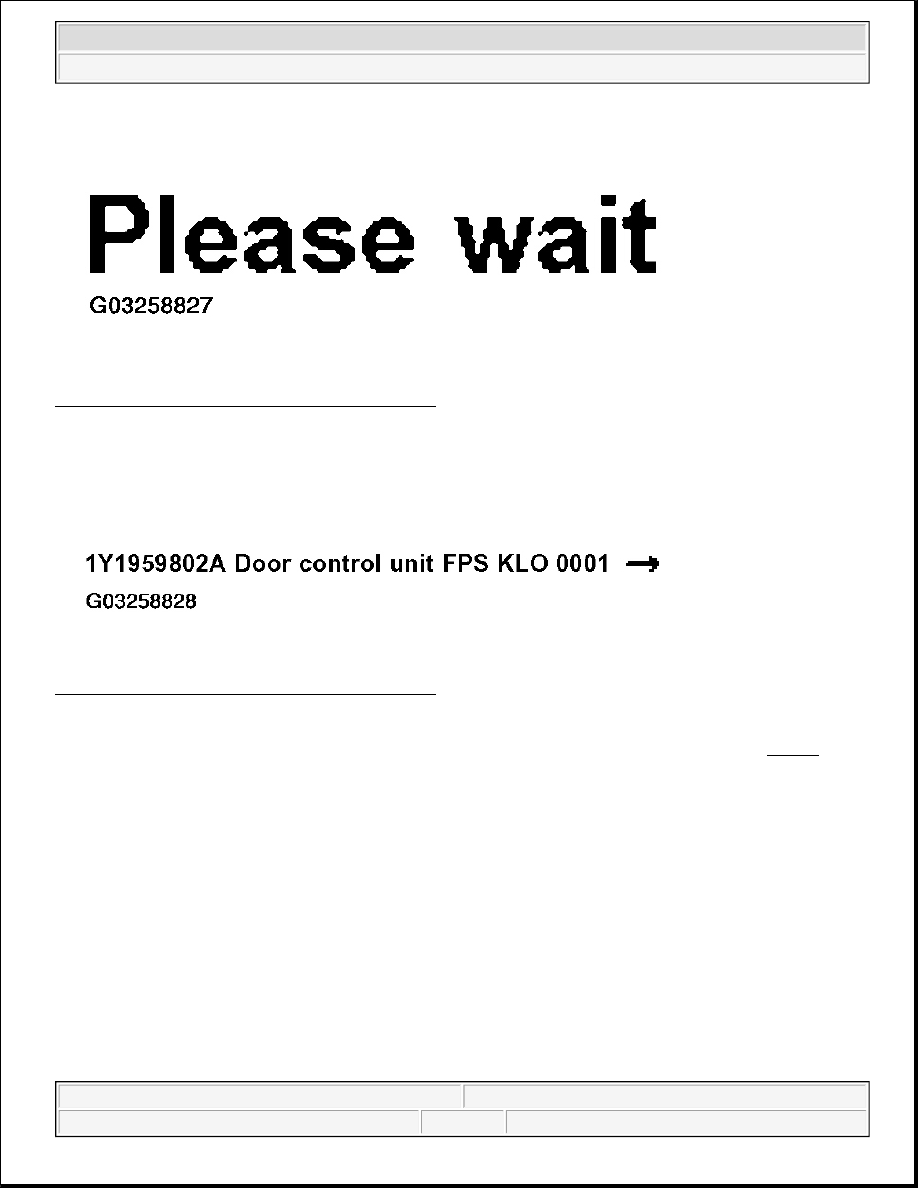

The control unit identification for the front passengers door control unit is displayed, for example (Fig. 28 ).

z

Press --> button.

Will appear briefly in display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 29: Scan Tool Display - Function 01 (8 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

and the following is indicated on display:

Fig. 30: Scan Tool Display - Function 01 (9 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The control unit identification for the rear left door control unit (in side part) is displayed, e.g.:

z

Press --> button.

Will appear briefly in display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 31: Scan Tool Display - Function 01 (10 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

and the following is indicated on display:

Fig. 32: Scan Tool Display - Function 01 (11 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The control unit identification for the rear right door control unit (in side part) is displayed, for example (Fig.
32
 ).

z

Press --> button

z

Press buttons -0- and -6- to end the output.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

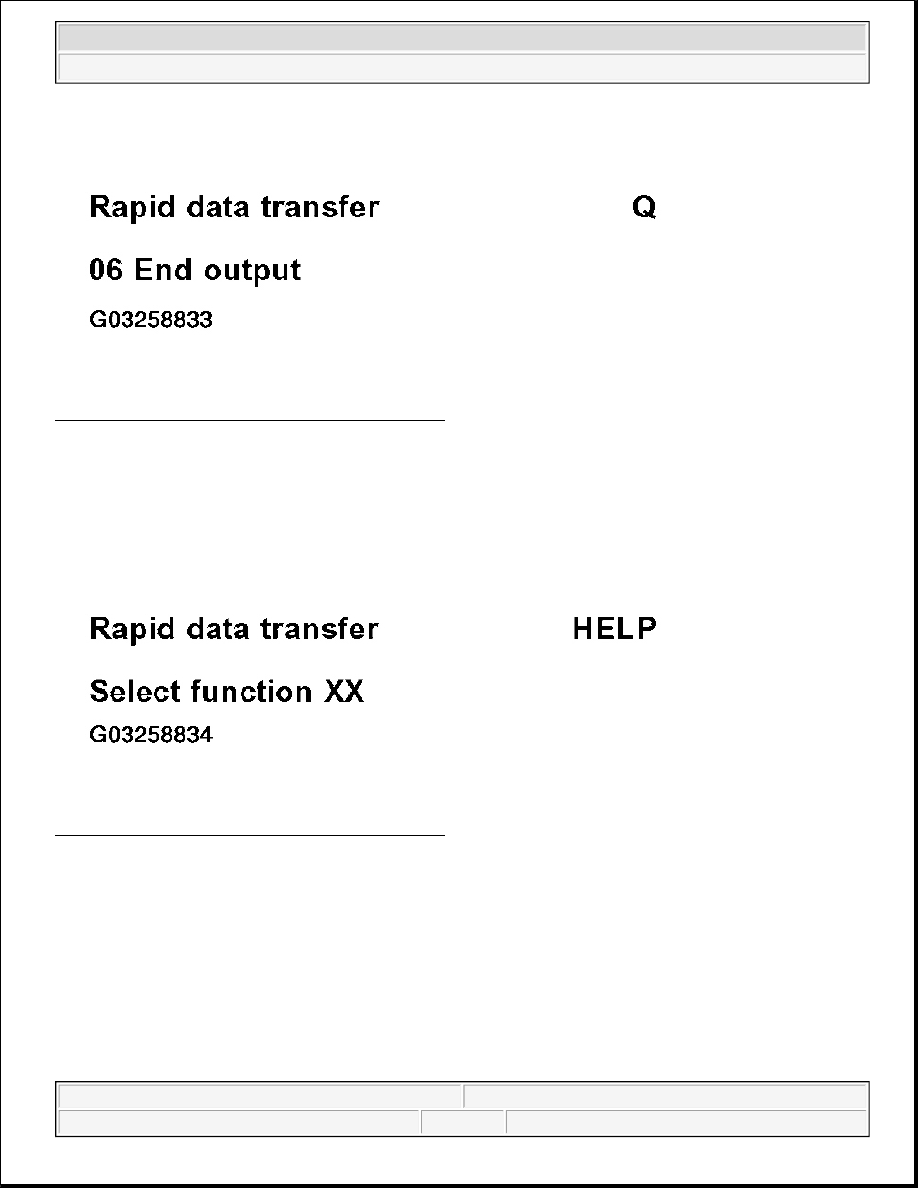

Fig. 33: Scan Tool Display - Function 01 (12 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:

Fig. 34: Scan Tool Display - Function 01 (13 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition and disconnect diagnostic connection.

COMFORT SYSTEM (VEHICLES WITH POWER WINDOWS) CONTROL UNIT, CODING
(FUNCTION 07)

NOTE:

z

When supplied the control unit is pre-coded according to the vehicle
equipment.

z

The coding is performed with the scan tool V.A.G 1551 or with the Vehicle
diagnostic, testing and information system VAS 5051.
