Volkswagen New Beetle. Manual - part 284





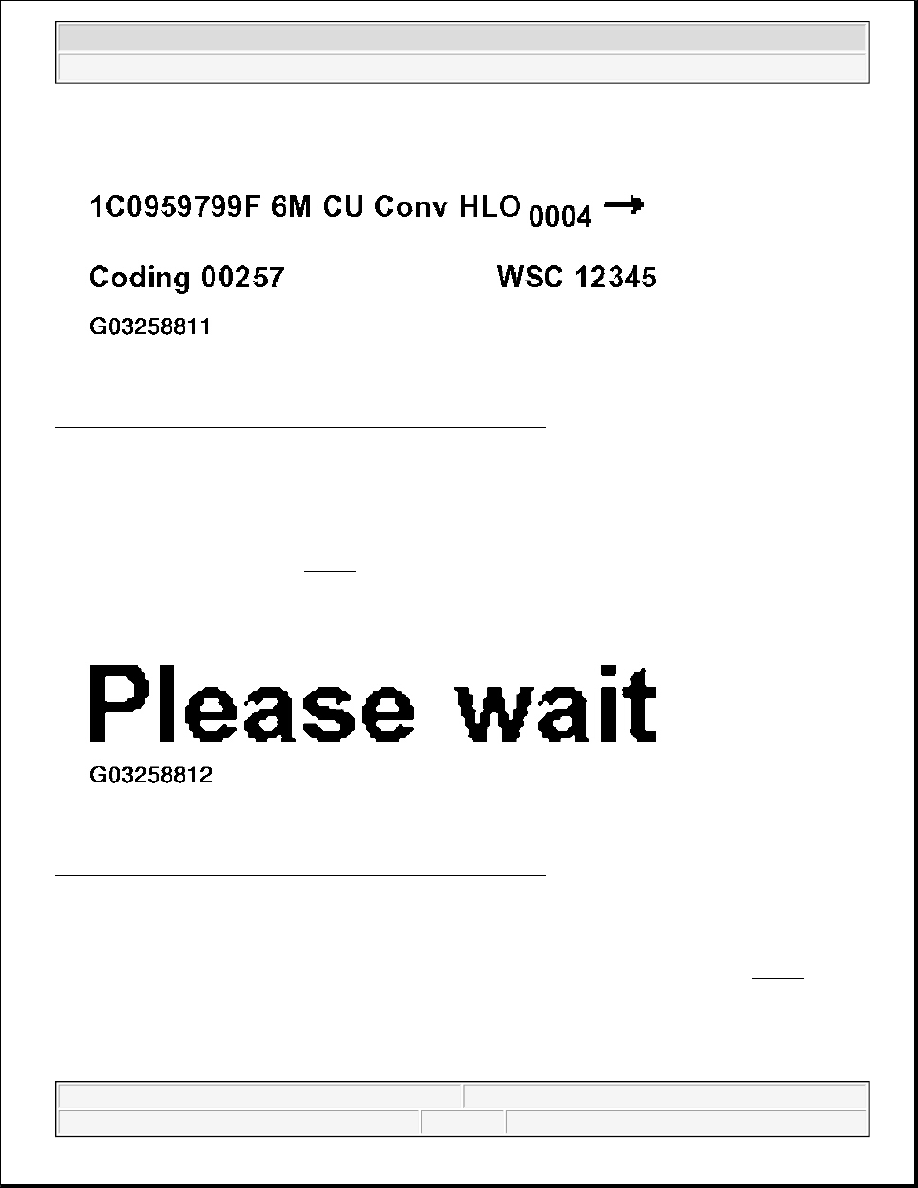

Fig. 11: Scan Tool Display - OBD For Comfort System (5 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

At this point the program can be advanced with -C- button to the option "Rapid data transfer, see function".

z

Press --> button.

Will appear briefly in display: see Fig. 12 .

Fig. 12: Scan Tool Display - OBD For Comfort System (6 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

and the following is indicated on display:

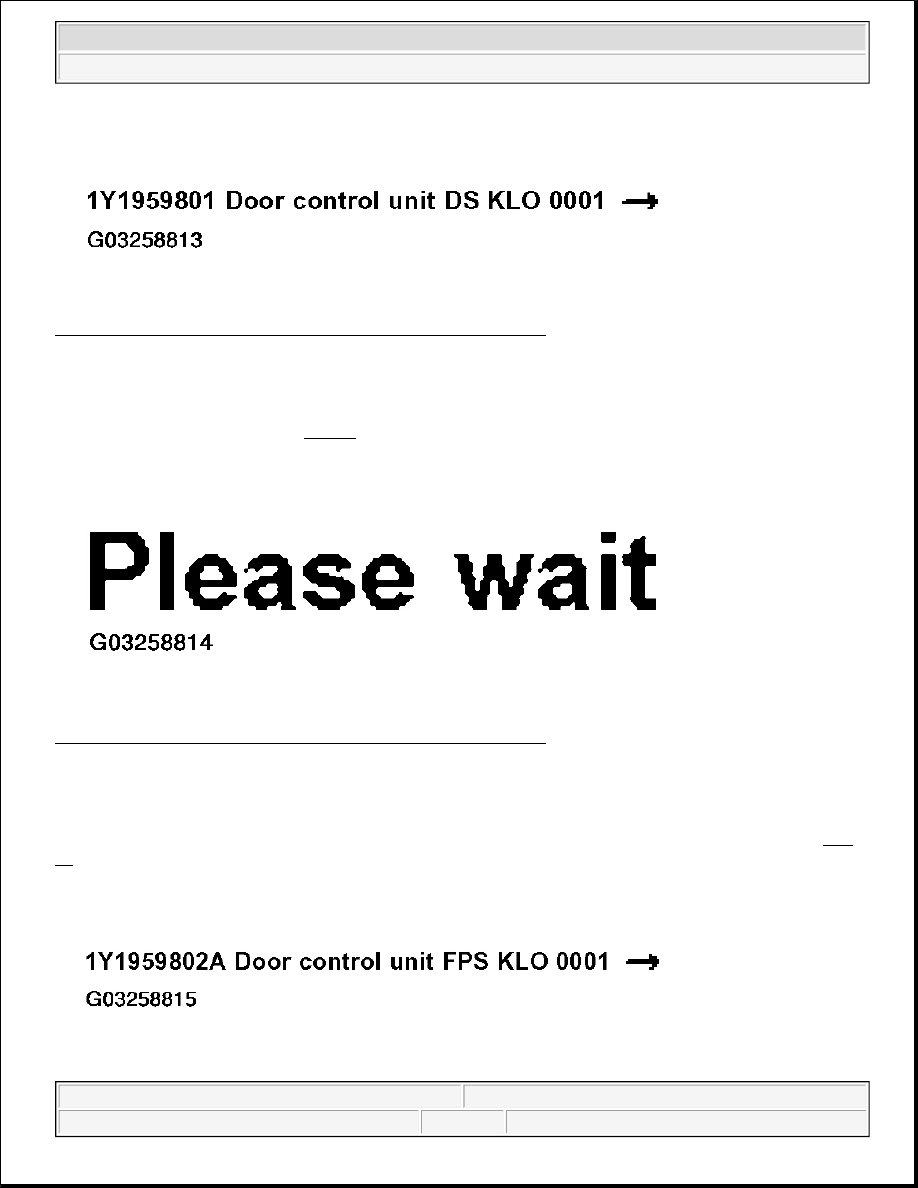

The control module identification for the drivers door control unit is displayed, for example: see Fig. 13 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 13: Scan Tool Display - OBD For Comfort System (7 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button

Will appear briefly in display: see Fig. 14 .

Fig. 14: Scan Tool Display - OBD For Comfort System (8 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

and the following is indicated on display:

The control unit identification for the front passengers door control module is displayed. For example, see Fig.
15
 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 15: Scan Tool Display - OBD For Comfort System (9 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button

Will appear briefly in display: see Fig. 16 .

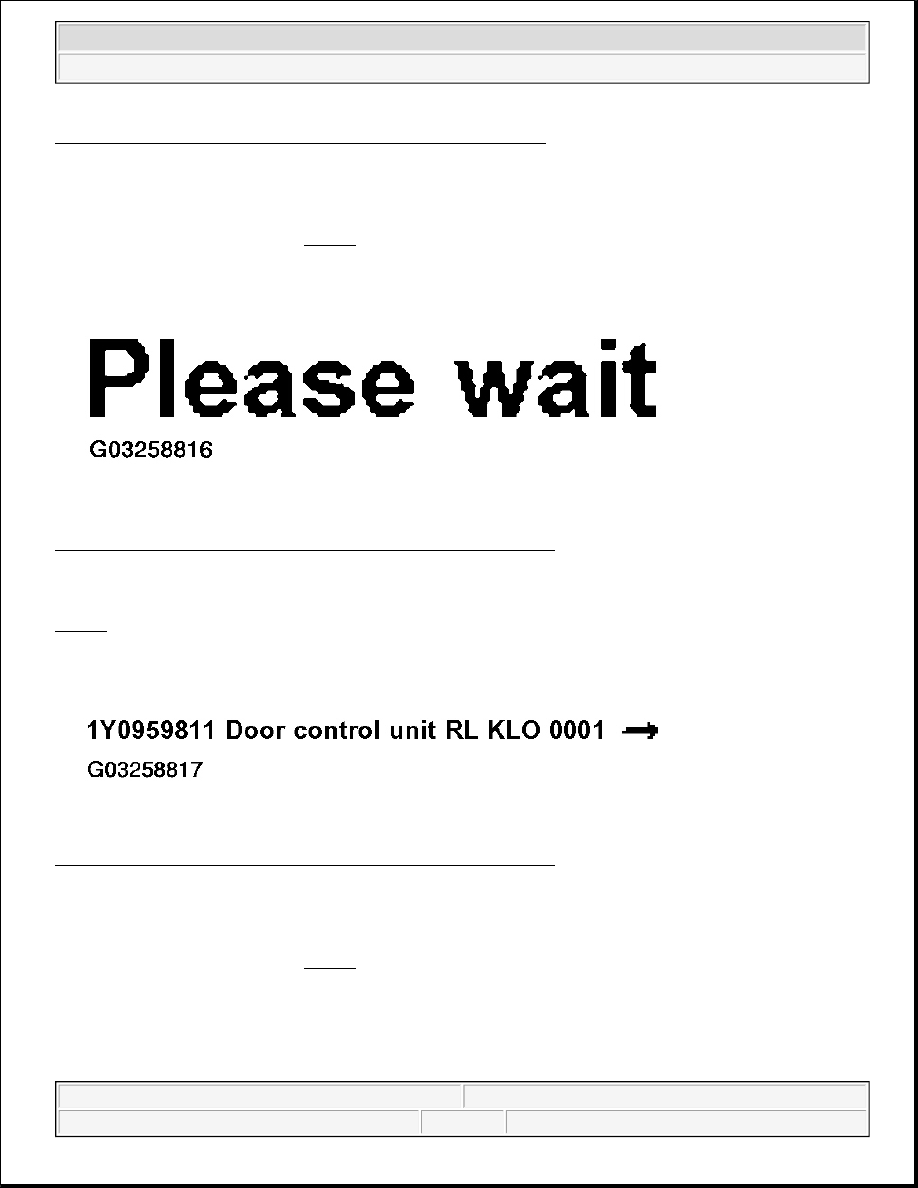

Fig. 16: Scan Tool Display - OBD For Comfort System (10 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The control unit identification for the left rear door control module (in side part) is displayed, for example (see
Fig. 17 ).

Fig. 17: Scan Tool Display - OBD For Comfort System (11 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> key

Will appear briefly in display: see Fig. 18 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

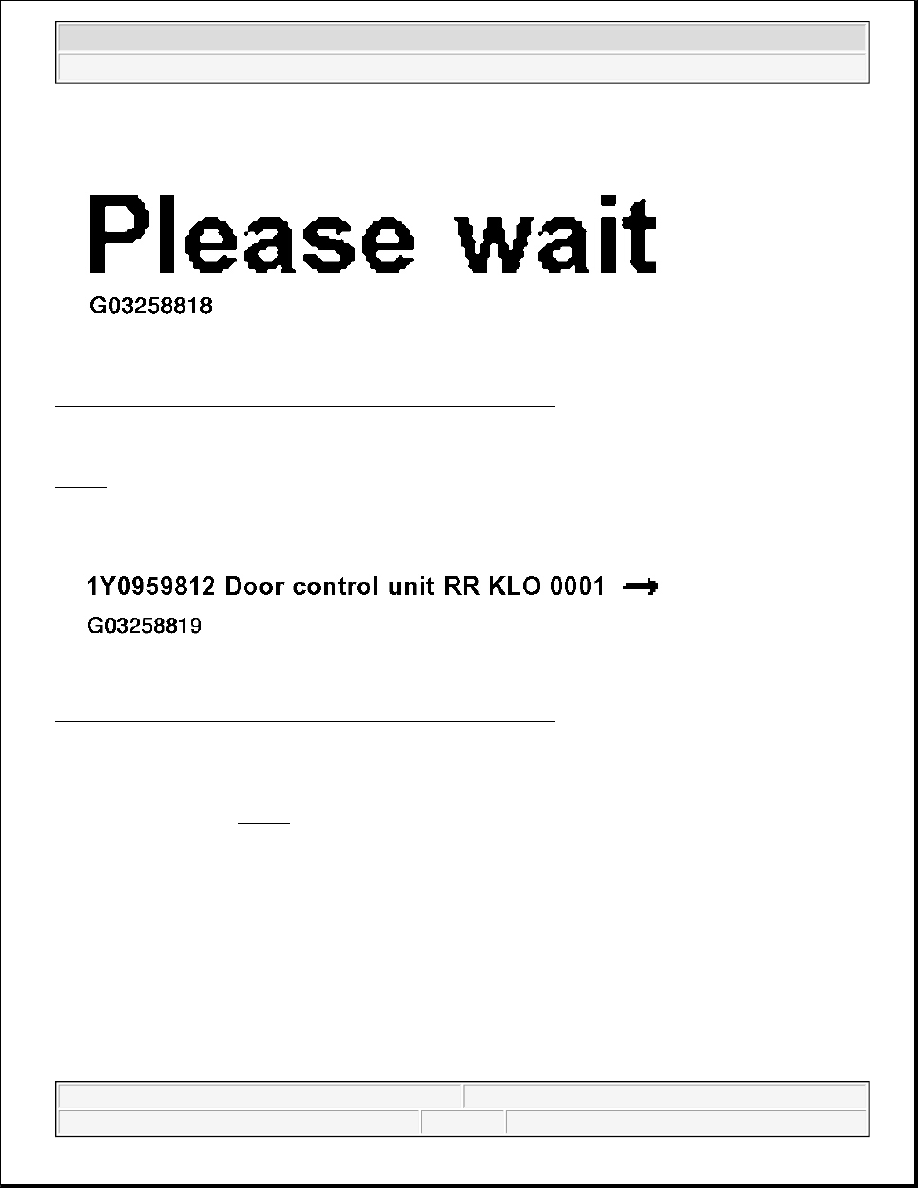

Fig. 18: Scan Tool Display - OBD For Comfort System (12 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The control unit identification for the right rear door control module (in side part) is displayed, for example (see
Fig. 19 ).

Fig. 19: Scan Tool Display - OBD For Comfort System (13 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button

Indicated on display: see Fig. 20 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
