z

Display will show the actual software version installed (will be shown briefly in display)

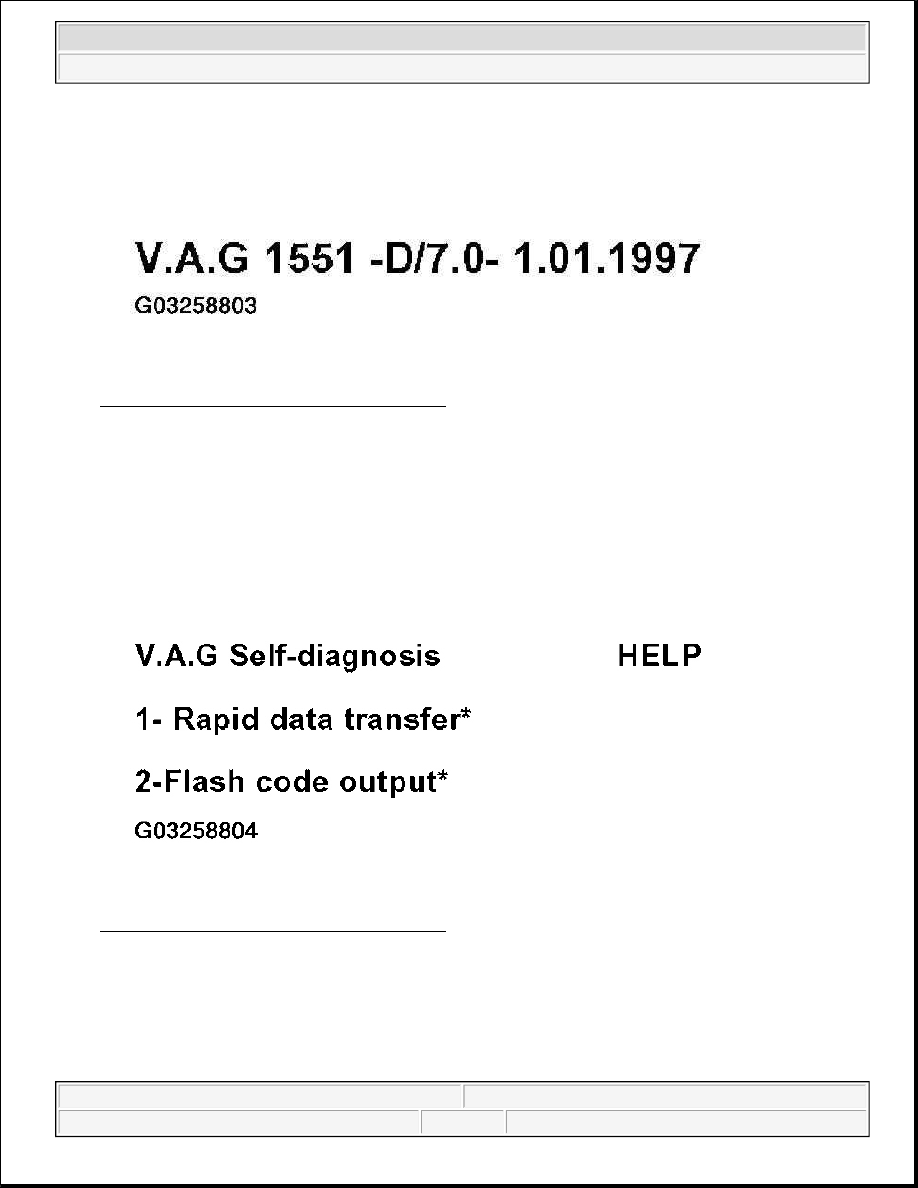

Fig. 3: Identifying Scan Tool Display (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

* Appears alternately

z

Press button -1- for "Rapid data transfer" mode and the following is indicated on display:

Fig. 4: Identifying Scan Tool Display (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

NOTE:

z

If the display remains blank, check V.A.G 1551 voltage supply according to
wiring diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



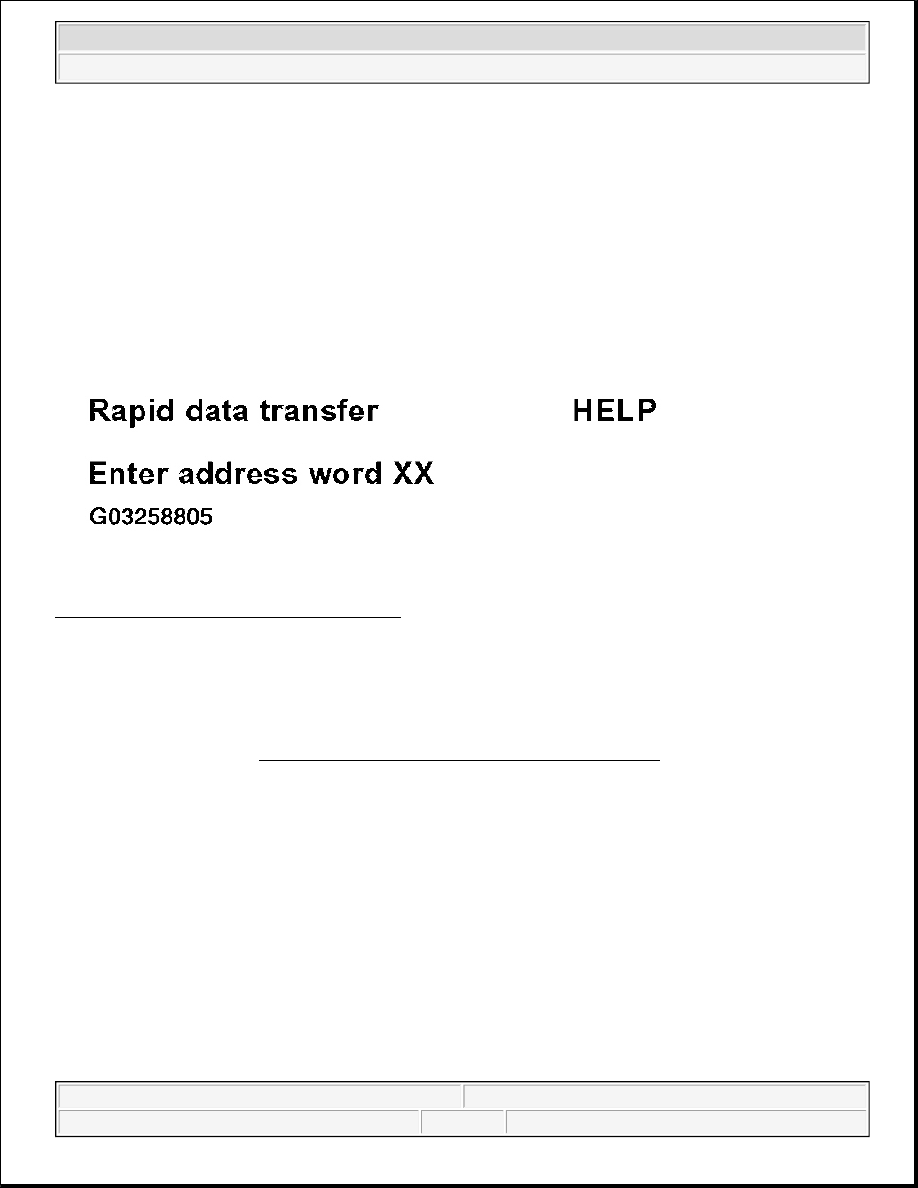

Fig. 5: Identifying Scan Tool Display (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

With the address word 00 the automatic test sequence is carried out, i.e. the DTC memories of all systems in the
vehicle capable of self-diagnosis are checked via the rapid data transfer.

The rear spoiler system with the address word 54 is not part of this automatic test sequence. It must be checked
separately, if necessary, see REAR SPOILER, ON BOARD DIAGNOSIS (OBD) .

COMFORT SYSTEM (VEHICLES WITH POWER WINDOWS), ON BOARD
DIAGNOSIS (OBD)

FUNCTIONAL DESCRIPTION

The vehicle has as far as the On Board Diagnosis (OBD) is concerned has a Comfort System (vehicles with
power windows) (not central locking system) when the vehicle is equipped with electric windows, with door
control units, and central locking.

The central locking system works using the electric motor principle.

The locking units (door locks) located in the doors are equipped with electric motors.

After receiving a "lock" command from an external source (door lock, radio wave remote control) the doors are

See Electrical Wiring Diagrams, Troubleshooting and Component
Locations

z

Additional operating information can be printed out depending on the
program by pressing the HELP button of V.A.G 1551.

z

The --> button serves to advance the program sequence.

z

The PRINT button is used for switching on the printer (warning lamp in
button lights up).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



locked, the anti-theft system is activated and the windows and sliding/tilting sunroof are closed. The feedback
message for the relevant control unit is via the contact switch in the lock unit.

The electrical Comfort System (vehicles with power windows) can operate all the known convenience functions
i.e. control of interior lights, anti-theft alarm with interior monitoring, electric windows and mirrors as well as
radio wave remote control provided the vehicle is equipped with these functions.

If an airbag is triggered this automatically sends a signal to the Comfort System (vehicles with power windows)
which unlocks the doors and switches on the interior lights.

The Central control module for comfort system -J393- is located under the instrument panel and is secured to
the steering column by a bracket. It is equipped with a fault memory. The On Board Diagnosis (OBD)
connection is located beneath the cover under the steering wheel.

The control unit recognizes faults and malfunctions in the central locking Comfort System (vehicles with power
windows) (Comfort System (vehicles with power windows) includes central locking, anti-theft alarm, electric
windows, radio wave remote control, mirror) and stores them in a non-volatile memory.

To commence fault finding, initiate On Board Diagnosis (OBD) and retrieve the stored information with the
Vehicle Diagnosis, Testing and Information System VAS 5051 or the scan tool V.A.G 1551/1552).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

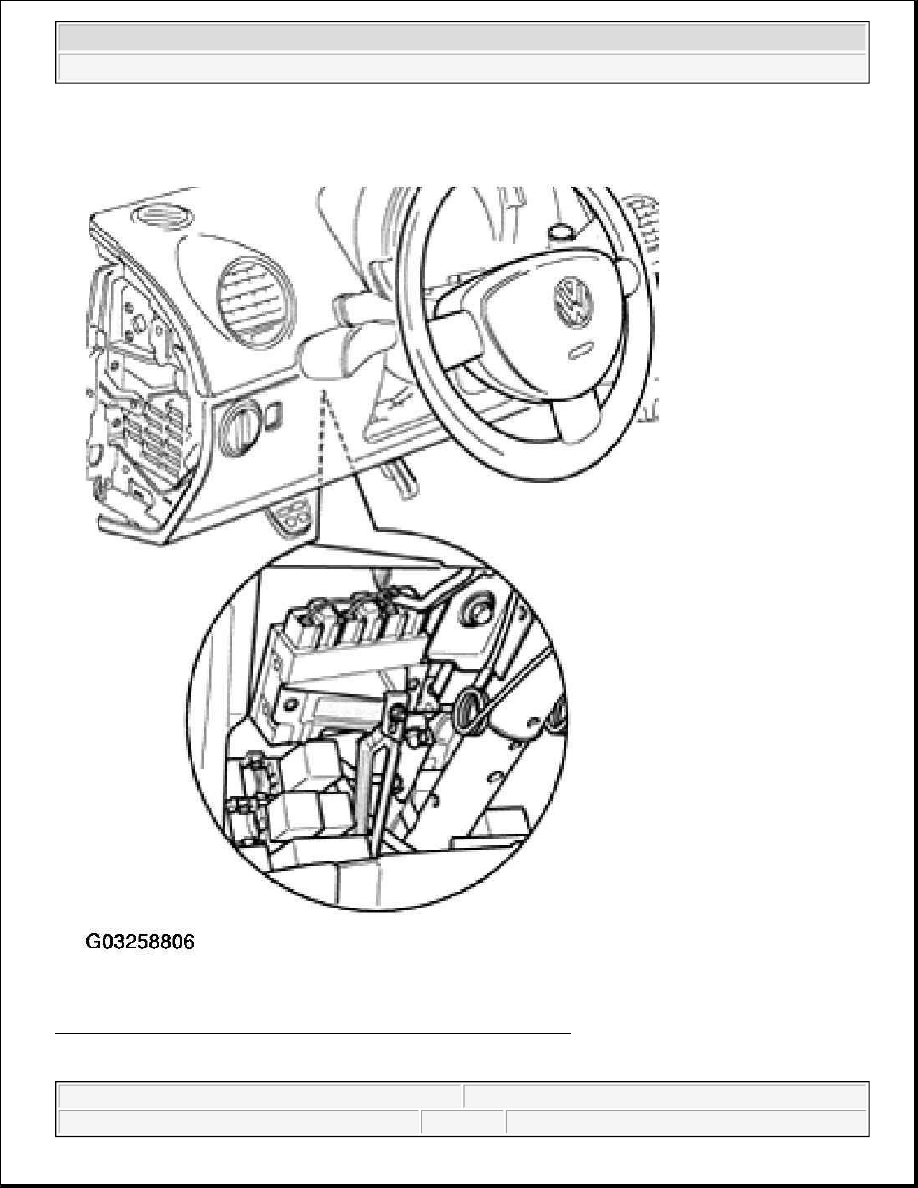

Fig. 6: Locating Central Control Module For Comfort System J393
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
