Volkswagen New Beetle. Manual - part 285





Fig. 20: Scan Tool Display - OBD For Comfort System (14 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

LIST OF SELECTABLE FUNCTIONS

01 - Checking control unit version, see CONTROL UNIT VERSION, CHECKING (FUNCTION 01)

02 - Check DTC memory, see DTC MEMORY, CHECKING (FUNCTION 02)

03 - Output Diagnostic Test Mode (DTM), see OUTPUT DIAGNOSTIC TEST MODE (DTM)
(FUNCTION 03)


05 - Erasing fault memory, see DTC MEMORY, ERASING (FUNCTION 05)

06 - Ending output, see END OUTPUT (FUNCTION 06)

07 - Code control unit, see COMFORT SYSTEM (VEHICLES WITH POWER WINDOWS) CONTROL
UNIT, CODING (FUNCTION 07)


08 - Read measured value block, see MEASURED VALUE (DATA) BLOCK, READING (FUNCTION 08)

10 - Adaptation, see RADIO FREQUENCY REMOTE CONTROL, PROGRAMMING IGNITION
KEYS, MATCHING (ADAPTATION)


Indicated on display: see Fig. 21 .

NOTE:

z

A list of possible functions is printed out after pressing the HELP button.

z

Do not select further functions, which can be printed out after pressing the
HELP button.

z

After the functions have been completed the V.A.G 1551 returns to the
following start position:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



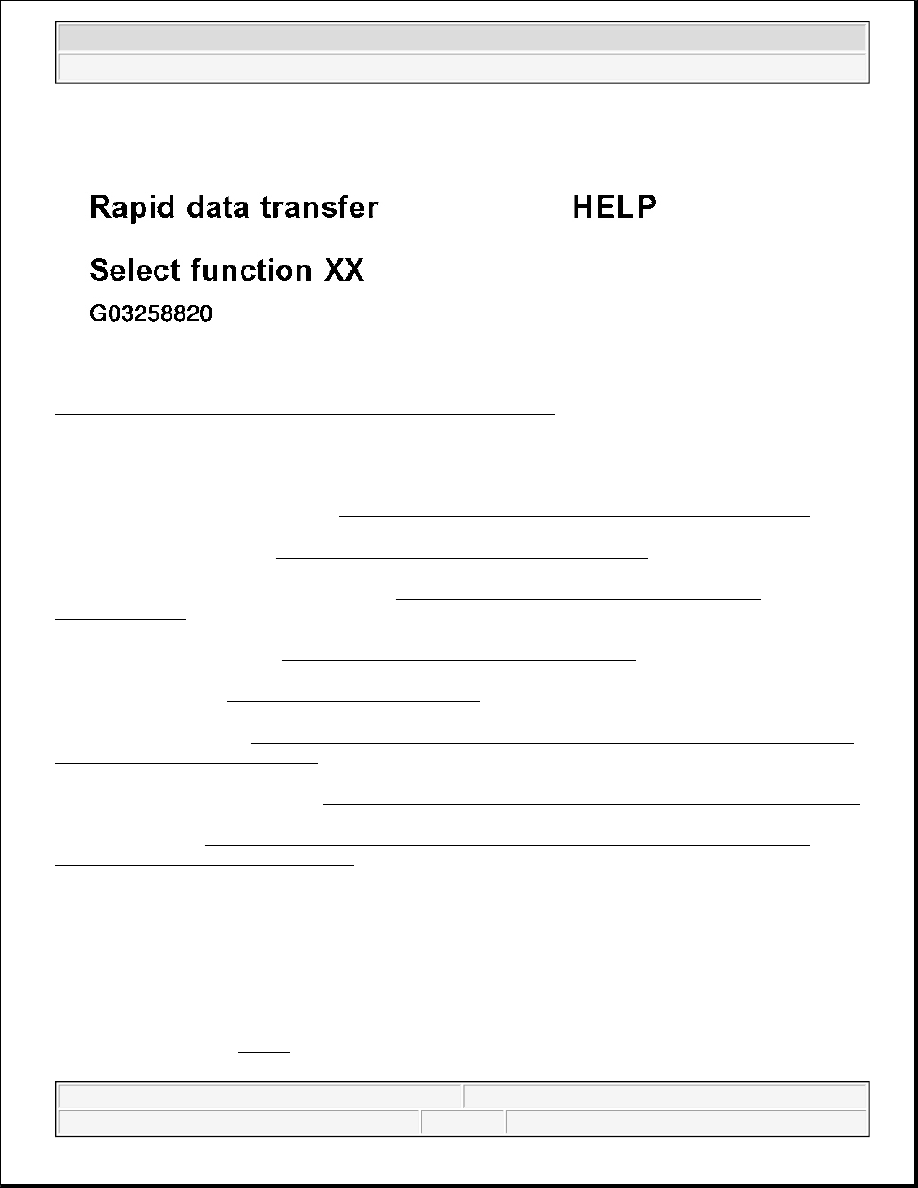

Fig. 21: Scan Tool Display
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CONTROL UNIT VERSION, CHECKING (FUNCTION 01)

z

Connecting V.A.G 1551 or VAS 5051, see SCAN TOOL, CONNECTING . Initiating On Board
Diagnosis (OBD), see ON BOARD DIAGNOSIS (OBD) FOR THE COMFORT SYSTEM
(VEHICLES WITH POWER WINDOWS), INITIATING
 .

Indicated on display: see Fig. 22 .

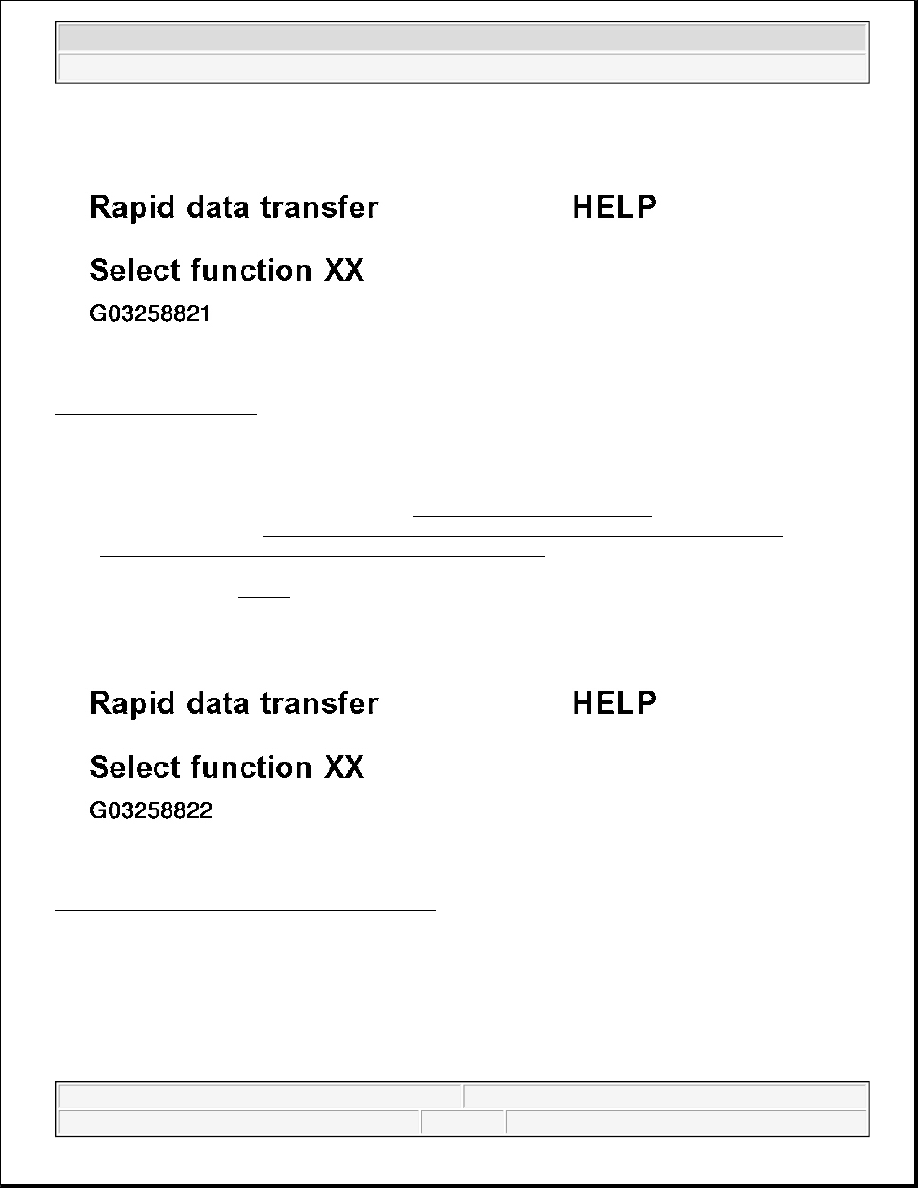

Fig. 22: Scan Tool Display - Function 01 (1 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -1-.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

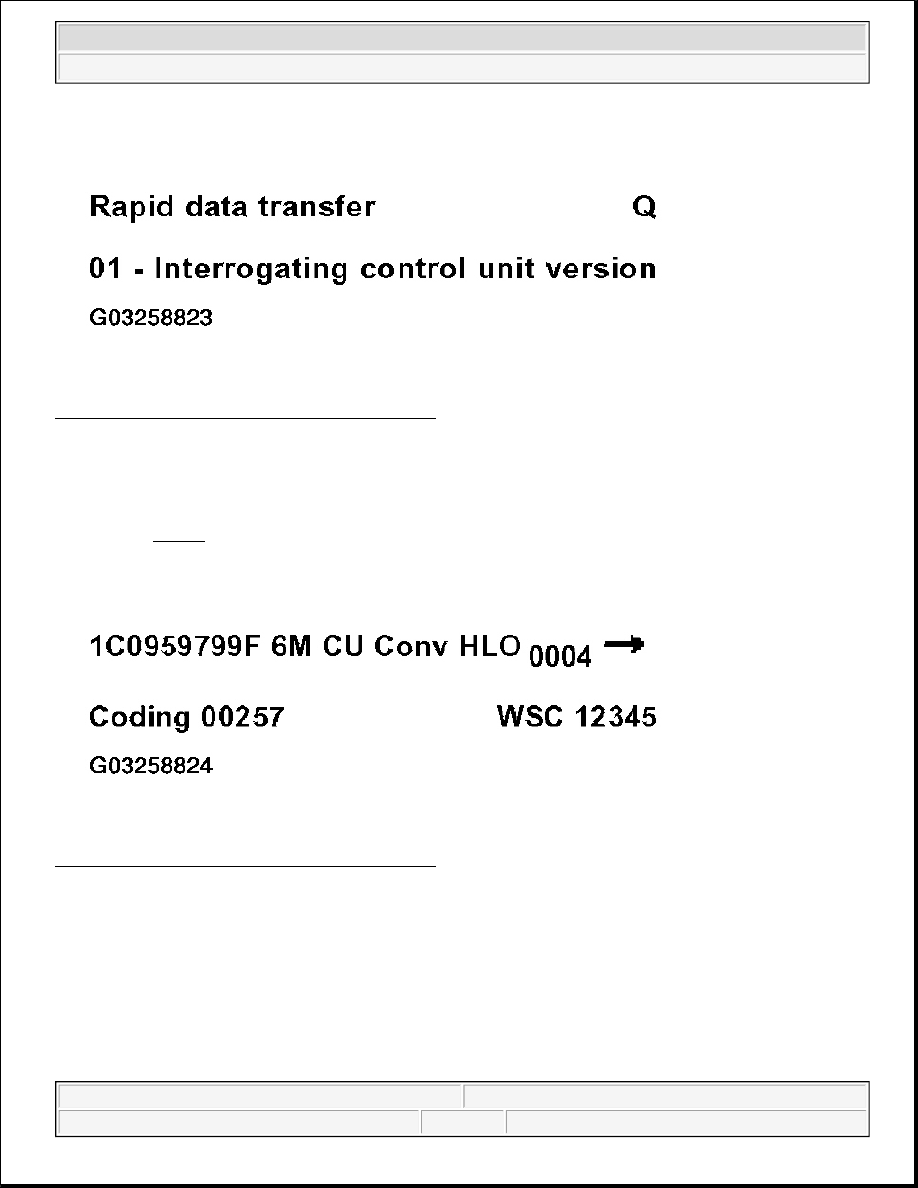

Fig. 23: Scan Tool Display - Function 01 (2 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Scan tool V.A.G 1551 displays the control unit identification for the central control unit (Central CU, for
example: see Fig. 24 ).

Fig. 24: Scan Tool Display - Function 01 (3 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Breakdown of the display:

z

1C0959799F = Part No. of the control unit (for latest control unit version see parts catalog)

z

6M CU Conv HLO = System designation

z

0004 = Software version

z

Coding 00257 = Coding variants

z

WSC 12345 = Workshop code (Will be automatically stored in the control unit when entering the



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



system.)

z

Press --> button

Will appear briefly in display:

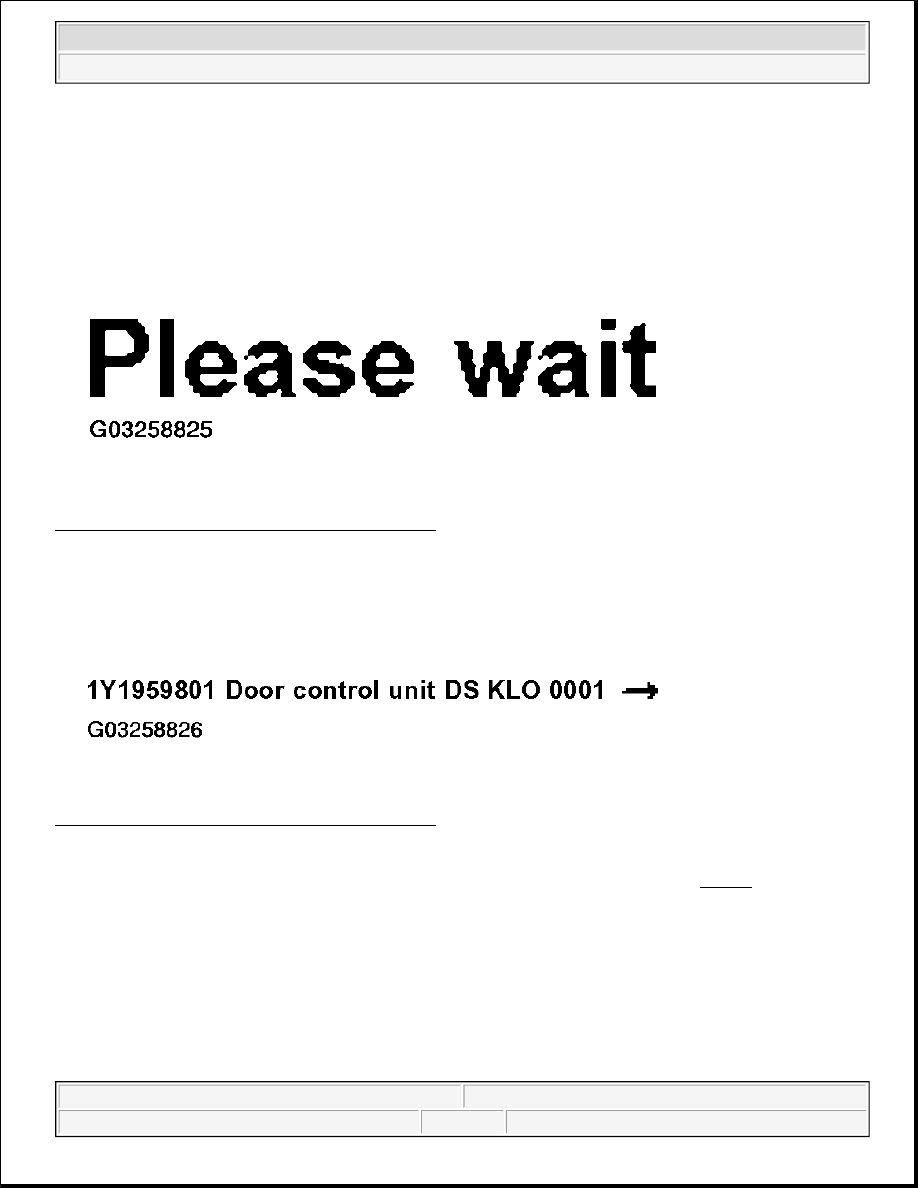

Fig. 25: Scan Tool Display - Function 01 (4 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

and the following is indicated on display:

Fig. 26: Scan Tool Display - Function 01 (5 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The control unit identification for the drivers door control unit is displayed, for example (Fig. 26 ).

z

Press --> button

Will appear briefly in display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
