Fig. 57: Scan Tool Display - Function 05 (7 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition and disconnect diagnostic connection.

END OUTPUT (FUNCTION 06)

z

Press keys -0- and -6- to end the output.

Indicated on display:

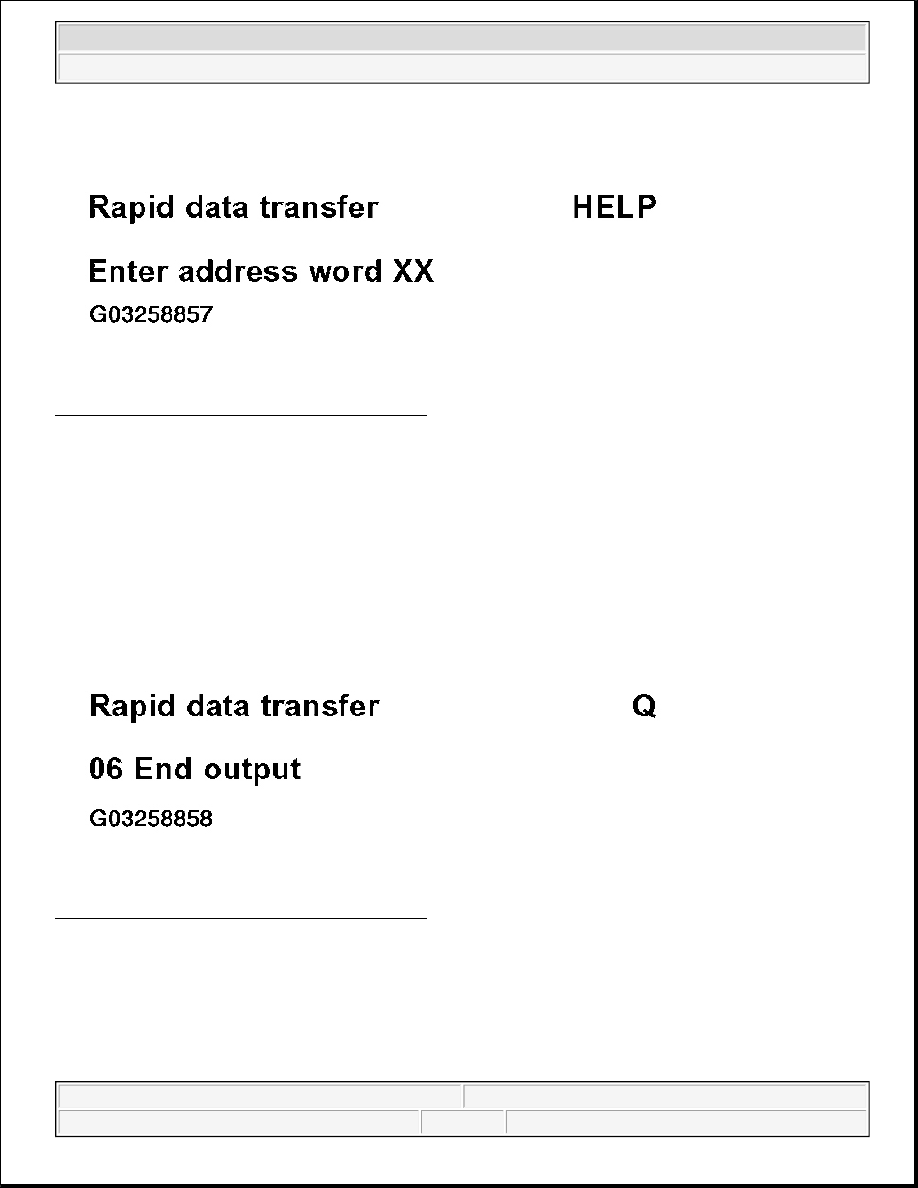

Fig. 58: Scan Tool Display - Function 06 (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

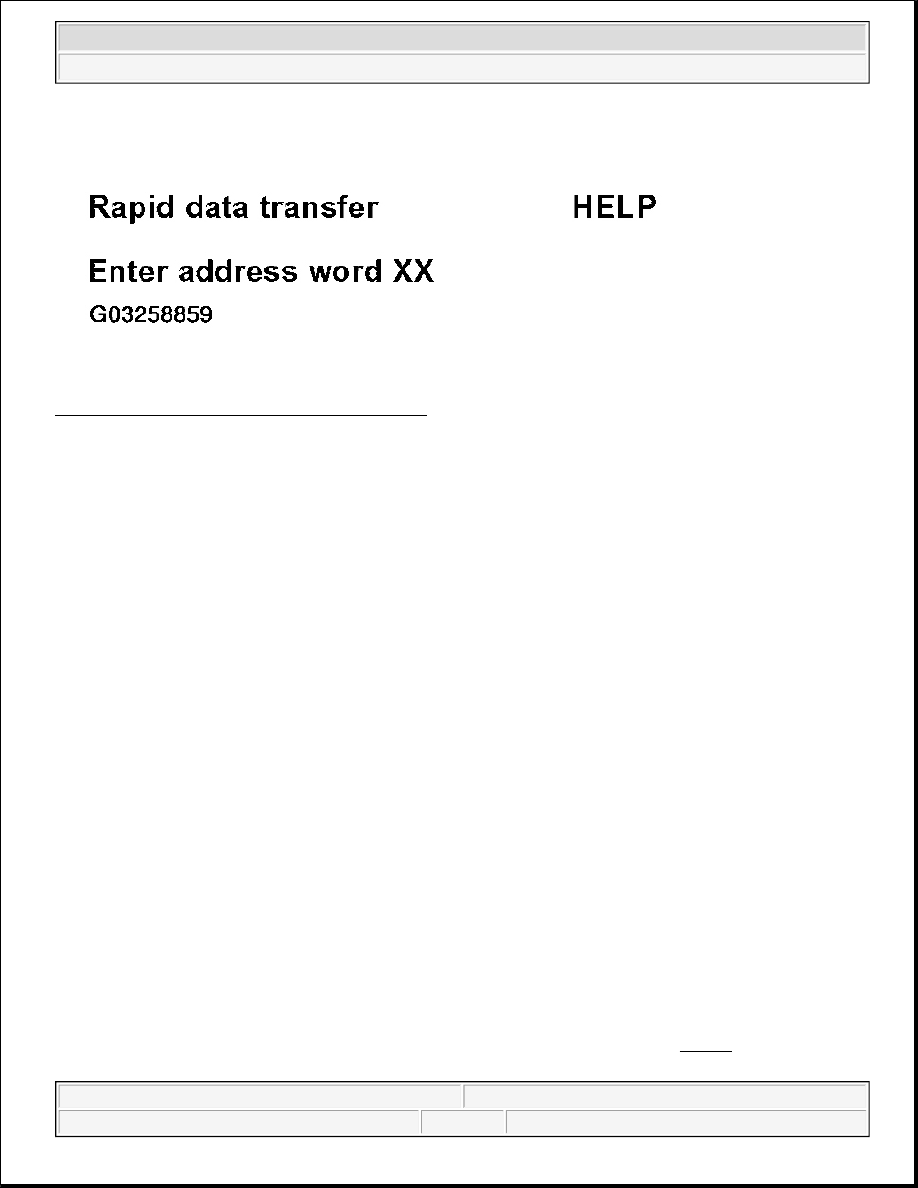

Fig. 59: Scan Tool Display - Function 06 (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition and disconnect diagnostic connection.

DIAGNOSTIC TROUBLE CODE (DTC) TABLE

Scan tool print out: The number 049 (example) in bold type is of no consequence. See Fig. 60 .

NOTE:

z

The DTCs are listed according to the 5 digit malfunction code on the left.

z

Some of the listed DTC texts are displayed only on the VAS 5051. In this
case only the malfunction code is printed out using the V.A.G 1551.

z

Possible malfunctions depend on the vehicle equipment.

z

Explanation of the malfunctions (e.g. "open circuit/short to ground"):

See Scan tool operating instructions

z

Before replacing components indicated as being faulty, check the wiring
and connectors to these components as well as the ground (GND)
connections using Electrical Wiring Diagram. This is particularly relevant
if faults are output as "occurring sporadically" (SP).

z

The malfunctions displayed can be localized using the test table.

z

The DTC -"01330; Convenience central control unit; no communication" -
can appear "sporadically". This has no influence on the function of the
Comfort System (vehicles with power windows) and is therefore of no
consequence.

z

This malfunction "no communication" can also appear with the door
control units. This has no influence on the function of the Comfort System
(vehicles with power windows) and is therefore of no consequence. Erase
DTC memory.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Fig. 60: Scan Tool Display (Number 049)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) - COMFORT SYSTEM (00000, 00003 & 00668)

DIAGNOSTIC TROUBLE CODE (DTC) - COMFORT SYSTEM (00849)

V.A.G 1551
printout

Possible cause

Corrective action

00000
No fault
recognized

If "No fault recognized" appears after performing repairs, the On Board Diagnosis
(OBD) is terminated.

00003
Control unit
faulty

(1)

z

Wiring or

connections faulty

z

Control unit faulty

z

Check wiring and connections referring to

Electrical Wiring Diagram

z

Replace control unit

00668
Board voltage
terminal 30
Signal too large
Signal too small

z

Alternator faulty

z

Wiring or

connections faulty

z

Battery discharged

or faulty

z

Check alternator: Electrical Wiring Diagrams,

Troubleshooting & Component Locations

z

Check wiring and connections referring to

Electrical Wiring Diagram

z

Charge or replace battery

(1)

For Comfort System (vehicles with power windows) 3rd generation.

V.A.G 1551 printout

Possible cause

Corrective action

00849
S-terminal on
ignition/starter switch -
D-
Undefined switch
position

(1)

z

Terminal 15 OK, but S-

terminal contact faulty

z

Wiring or connections

faulty

z

Ignition/starter switch

faulty

z

Read measured value block. See

Measured value (data) block, reading

(Function 08)

z

Check wiring and connections referring

to Electrical Wiring Diagram

z

Replace ignition/starter switch



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



DIAGNOSTIC TROUBLE CODE (DTC) - COMFORT SYSTEM (00912 & 00913)

DIAGNOSTIC TROUBLE CODE (DTC) - COMFORT SYSTEM (00914 & 00915)

(1)

Malfunction: switched off when the terminal 15 is switched on.

V.A.G 1551 printout

Possible cause

Corrective action

00912
Switch for window
regulator front left -
E40-
Implausible signal
Short to ground (GND)

(1)

z

Wiring or connections

faulty

z

Button installation not

OK, sticks when operated

z

Switch for window

regulator front left -E40-

faulty

z

Read measured value block, see

MEASURED VALUE (DATA)

BLOCK, READING (FUNCTION 08)

z

Check button

00913
Switch for window
regulator front right,
driver -E81-
Implausible signal
Short to ground (GND)

(1)

z

Wiring or connections

faulty

z

Button installation not

OK, sticks when operated

z

Switch for window

regulator front right,

driver -E81-

(2)

 faulty

z

Read measured value block, see

MEASURED VALUE (DATA)

BLOCK, READING (FUNCTION 08)

z

Check button

(1)

Is set when operated longer than 5 minutes.

(2)

Part of drivers operating unit.

V.A.G 1551 printout

Possible cause

Corrective action

00914
Switch for window
regulator rear left,
driver -E53-
Implausible signal
Short to ground (GND)

(1)

z

Wiring or connections

faulty

z

Button installation not

OK, sticks when operated

z

Switch for window

regulator rear left, driver

-E53-

(2)

 faulty

z

Read measured value block, see

MEASURED VALUE (DATA)

BLOCK, READING (FUNCTION 08)

z

Check button

00915
Switch for window
regulator rear right,
driver -E55-
Implausible signal
Short to ground (GND)

(1)

z

Wiring or connections

faulty

z

Button installation not

OK, sticks when operated

z

Window regulator switch

RR -E55-

(2)

 faulty

z

Read measured value block, see

MEASURED VALUE (DATA)

BLOCK, READING (FUNCTION 08)

z

Check button

(1)

Is set when operated longer than 5 minutes.

(2)

Part of drivers operating unit.
