Volkswagen New Beetle. Manual - part 2562





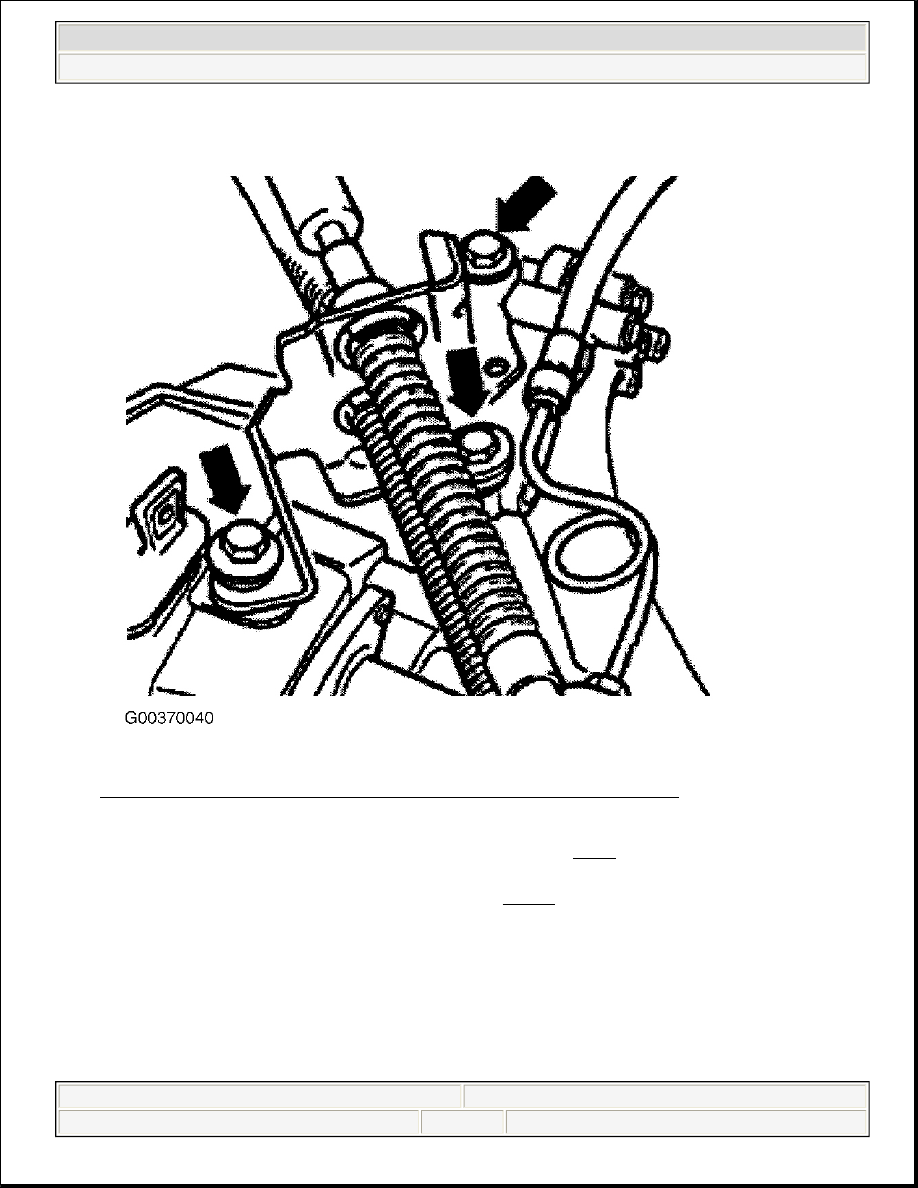

Fig. 45: Removing Cable Support Bracket (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Destroy clip (arrow), and pull gear shift knob off with cover. See Fig. 5 . Remove rubber cover, if

equipped.

6. Remove gear lever housing securing nuts (arrows). See Fig. 46



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 54

© 2004 Mitchell Repair Information Company, LLC.

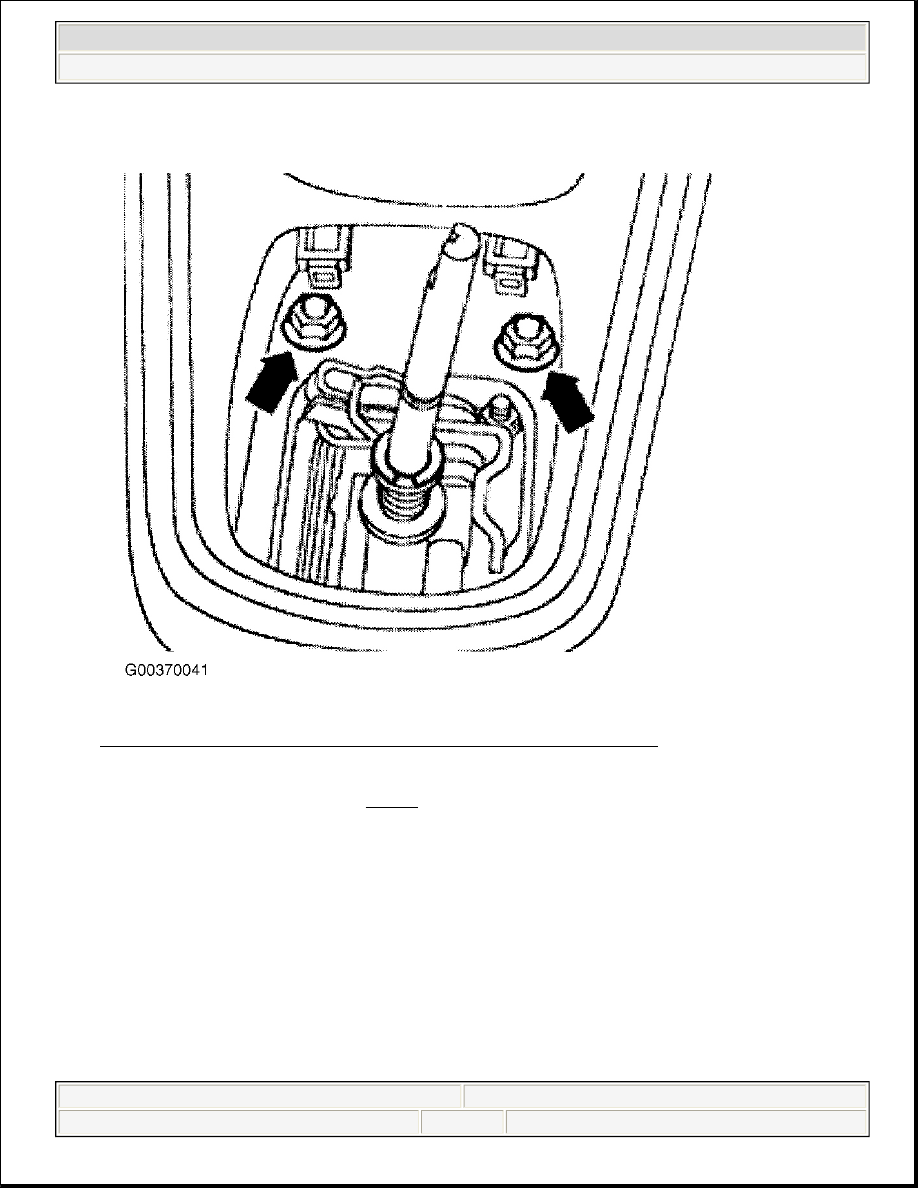

Fig. 46: Removing Gear Lever Housing (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. Separate front exhaust pipe (A). See Fig. 47 . Remove cross support (B) below exhaust system. Loosen

heat shield (C), in forward area. Remove heat shield (D). Unbolt selector housing from body. Swing gear
lever housing down, and remove with selector cables.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 55

© 2004 Mitchell Repair Information Company, LLC.

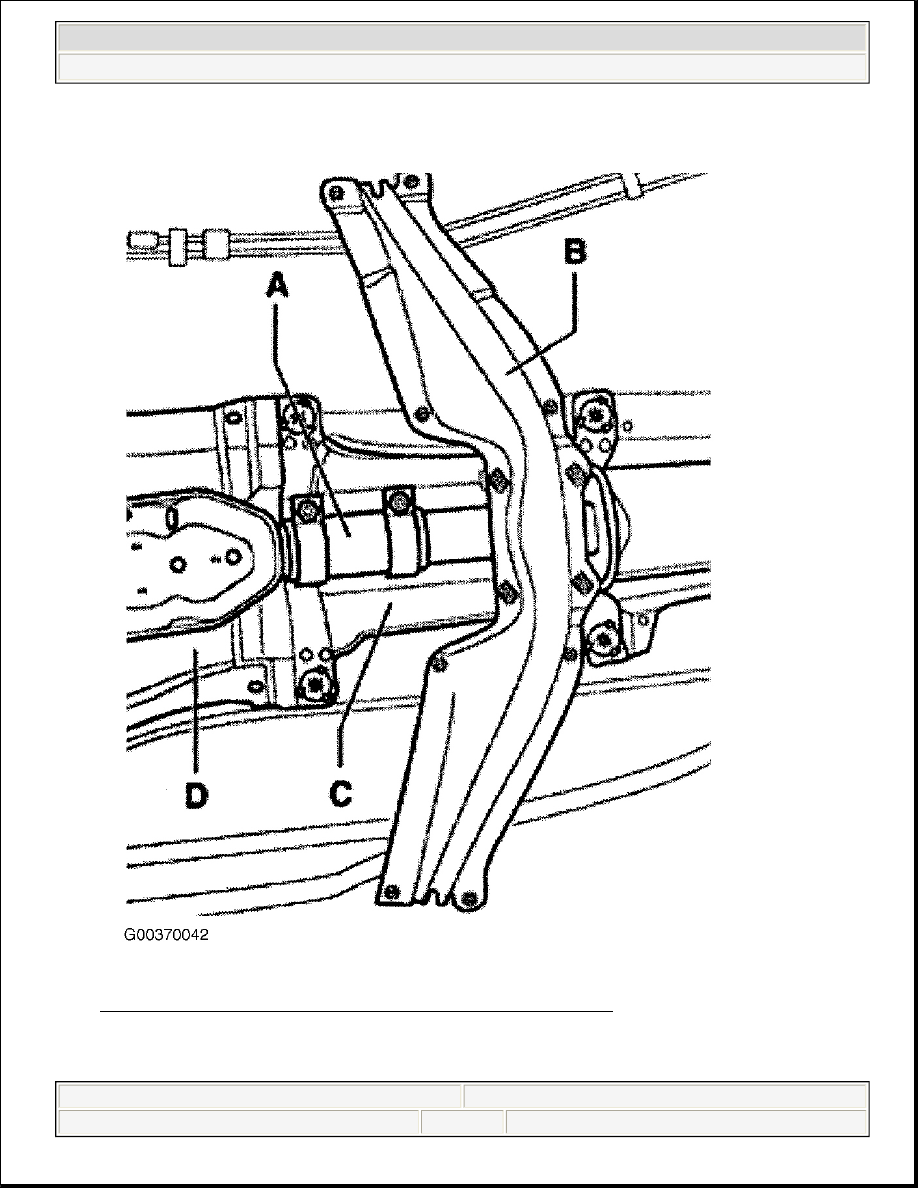

Fig. 47: Removing Cross Support (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

8. To install, reverse removal procedure. Align gear lever housing parallel to body. Distance to body must



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 56

© 2004 Mitchell Repair Information Company, LLC.

be same on both sides. Adjust selector mechanism. See SELECTOR MECHANISM under
ADJUSTMENTS. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS .

Removal & Installation (Vehicles Built From June 1999)

1. Obtain radio code. Turn ignition switch to OFF position. Disconnect negative battery cable. See

BATTERY DISCONNECT PRECAUTIONS .

2. Remove intake hose (1) and connector (2) from mass air flow sensor. See Fig. 6 . Using an open jaw

spanner, pry gate selector cable (A) and gear selector cable (B) off transmission. See Fig. 48 .

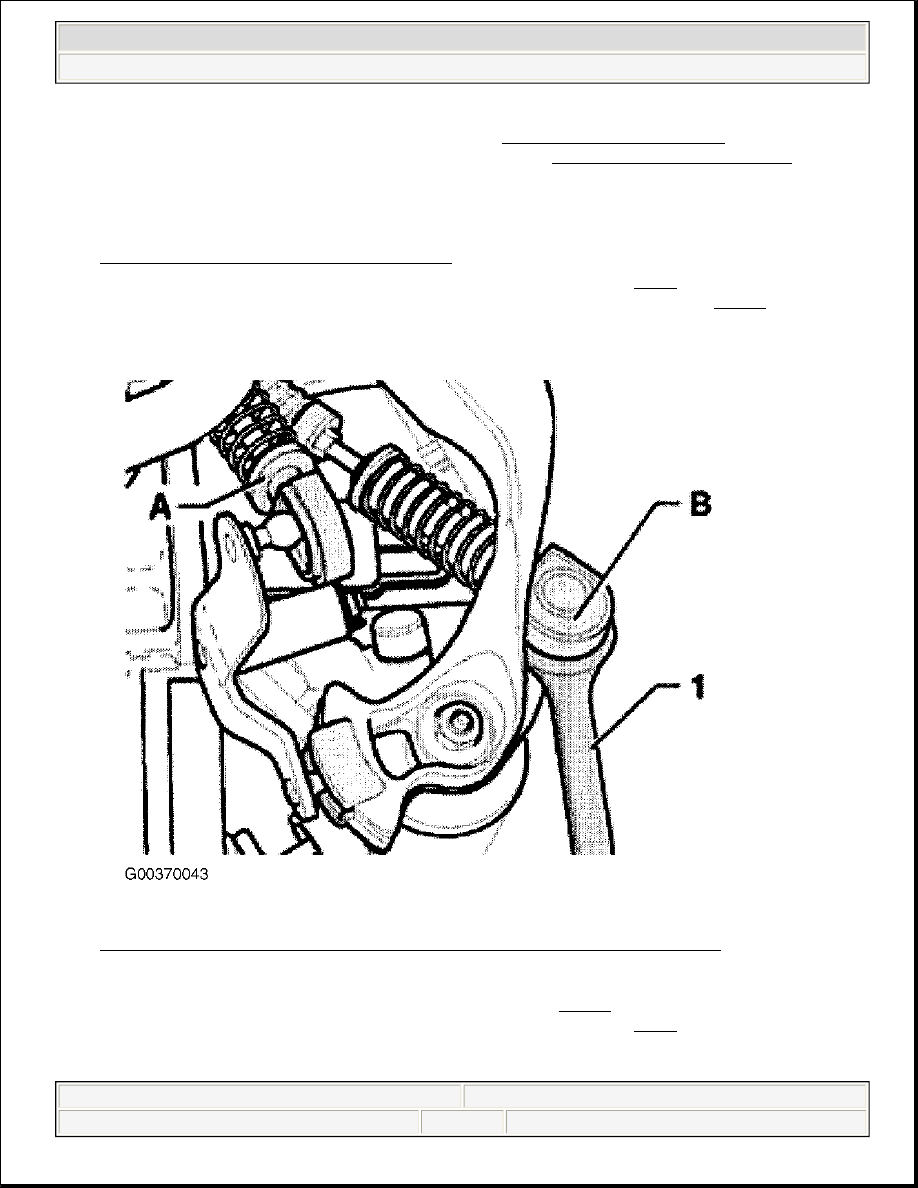

Fig. 48: Removing Gate & Gear Selector Cables (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Remove cable support bracket from transmission (arrows). See Fig. 49 . If necessary, unclip hose at cable

support bracket first. Carefully pry cover off center console (arrows). See Fig. 4 . Pull cover to rear off
center console.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:09 AM

Page 57

© 2004 Mitchell Repair Information Company, LLC.
