SELECTOR LEVER KNOB & BOOT

Removal & Installation (Vehicles Built From June 1999)

Use illustration as an aid for procedure. See Fig. 42 . Note the following points when servicing.

Selector lever knob screws on and off together with the boot. To separate and assemble cover to and from gear
shift knob, turn boot inside out. Using a screwdriver, carefully pry clamping sleeve (arrow). See Fig. 43 . Pull
gear shift knob out.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 50

© 2004 Mitchell Repair Information Company, LLC.

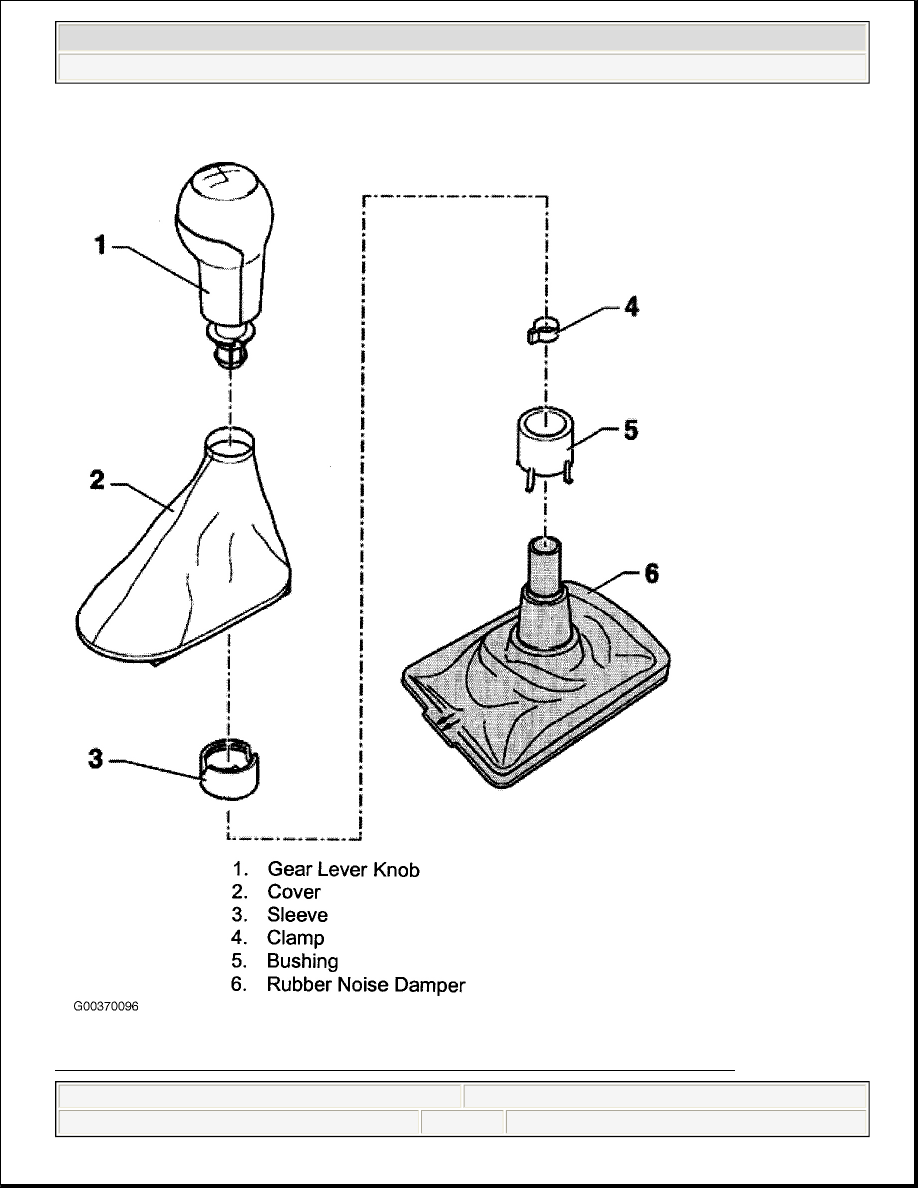

Fig. 42: Exploded View Of Selector Lever Knob & Boot (Vehicles Built From June 1999)



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 51

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

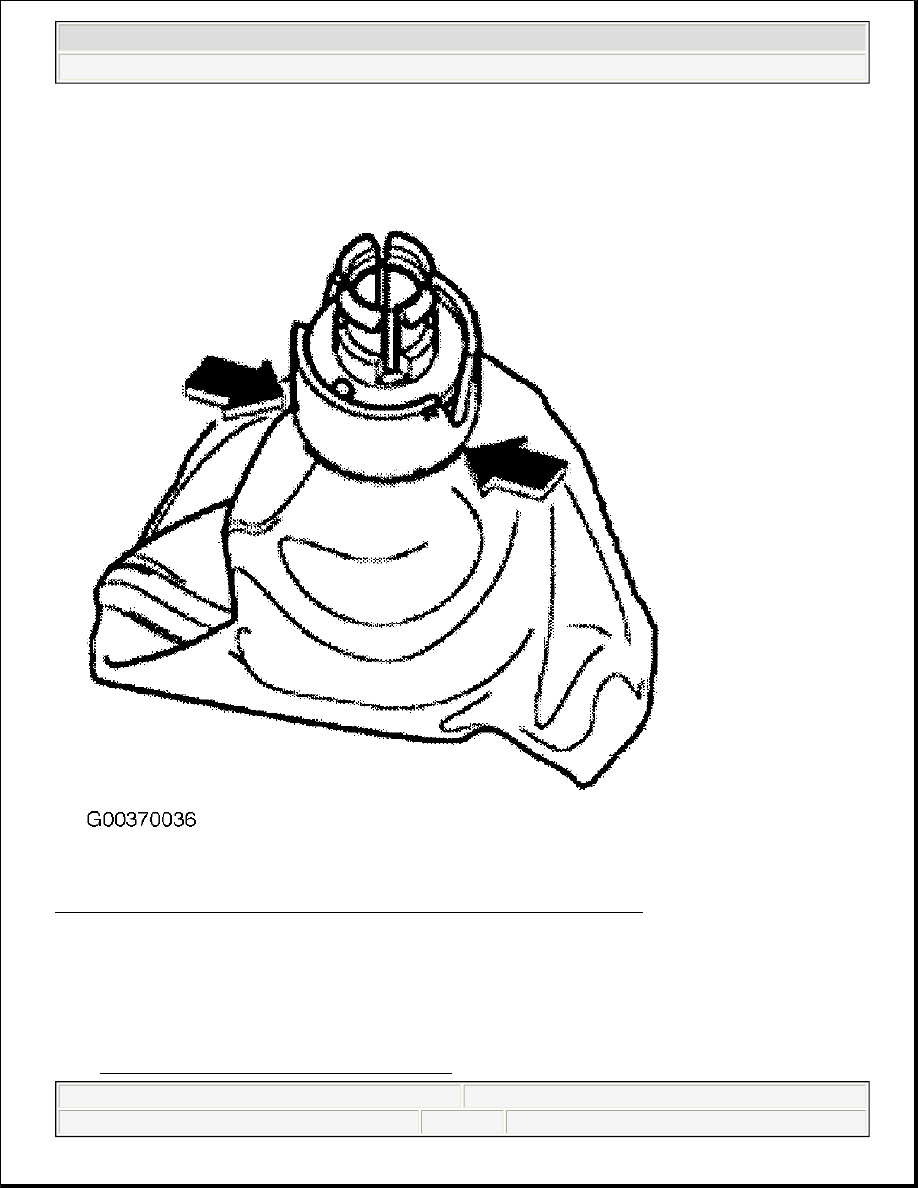

Fig. 43: Separating Cover From Gear Shift Knob (Vehicles From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR MECHANISM

Removal & Installation (Vehicles Built Up To May 1999)

1. Obtain radio code. Turn ignition switch to OFF position. Disconnect negative battery cable. See

BATTERY DISCONNECT PRECAUTIONS



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 52

© 2004 Mitchell Repair Information Company, LLC.

2. Remove intake hose (1) and connector (2) from mass air flow sensor. See Fig. 6 .

3. Remove bolts (3, 4 and 5). Remove complete air cleaner assembly. Remove balance weight (A) and gear

selector cable (B) from gear selector lever. See Fig. 44 . Take off gear selector cable with washer and
square nut (self-locking). Lift lug in direction of arrow, and pull gate selector cable off actuating
arm/relay lever (C).

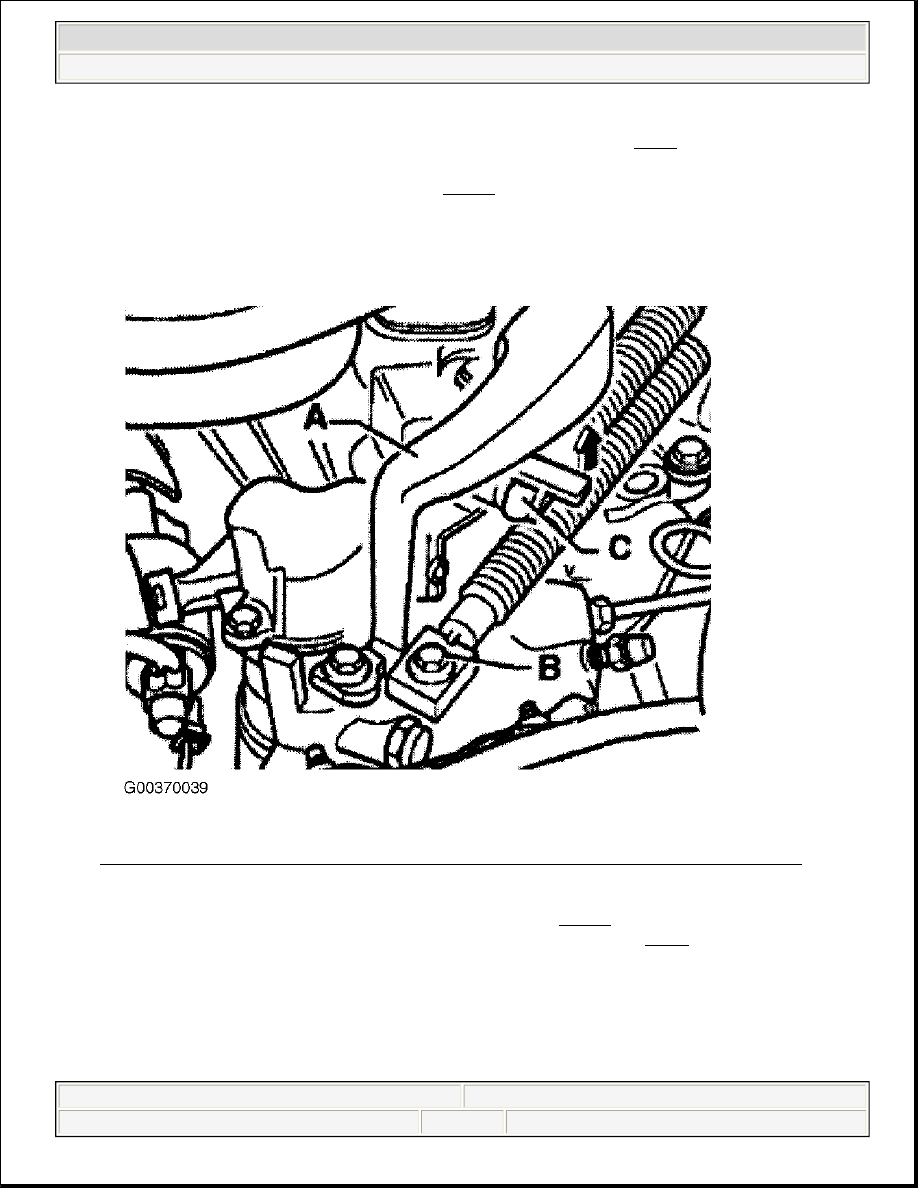

Fig. 44: Removing Balance Weight & Gear Selector Cable (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Remove cable support bracket from transmission (arrows). See Fig. 45 . If necessary, unclip hose at cable

support bracket first. Carefully lever cover off center console (arrows). See Fig. 4 . Pull cover to rear off
center console.
