NOTE:

Removal and installation information is not available from manufacturer. Use
illustration as an aid for procedure. See Fig. 40 . Note the following points when
servicing.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 46

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 47

© 2004 Mitchell Repair Information Company, LLC.

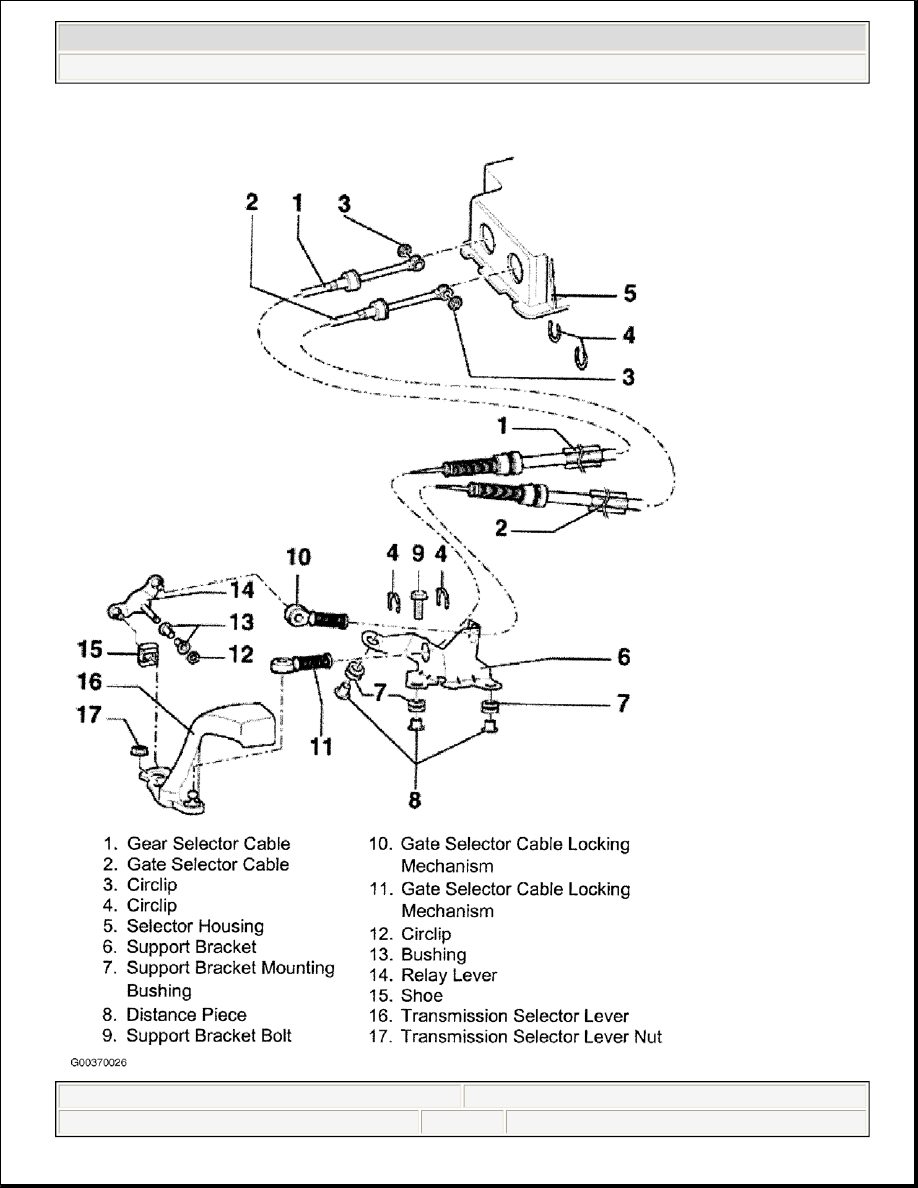

Fig. 40: Exploded View Of Selector Cables (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lubricate all mountings and sliding surfaces with Polyurea grease (G 052 142 A2).

Relay lever (2) locates in guide rail of gear selector lever (1) through shoe (arrow). See Fig. 41



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 48

© 2004 Mitchell Repair Information Company, LLC.

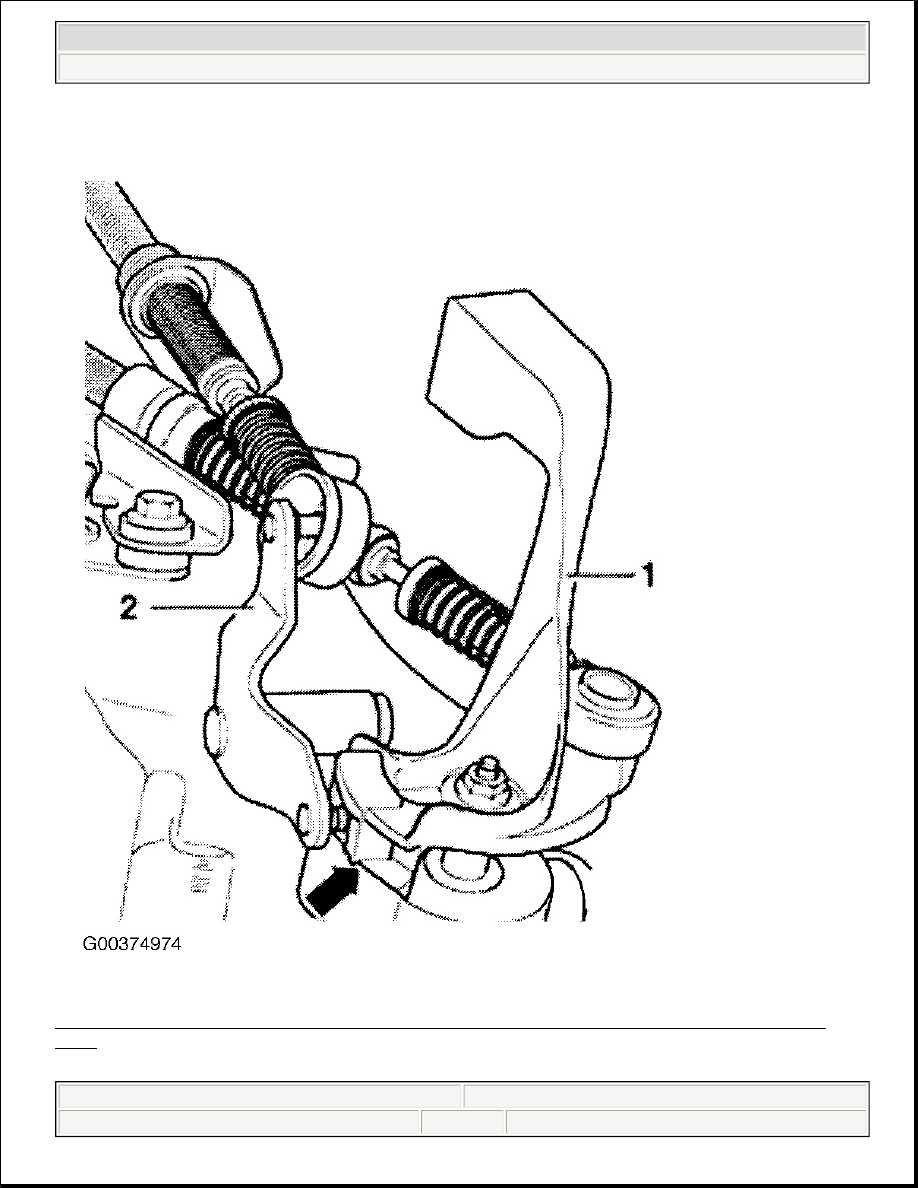

Fig. 41: Installation Position Of Transmission Selector Lever/Relay Lever (Vehicles Built From June
1999)

Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 49

© 2004 Mitchell Repair Information Company, LLC.
