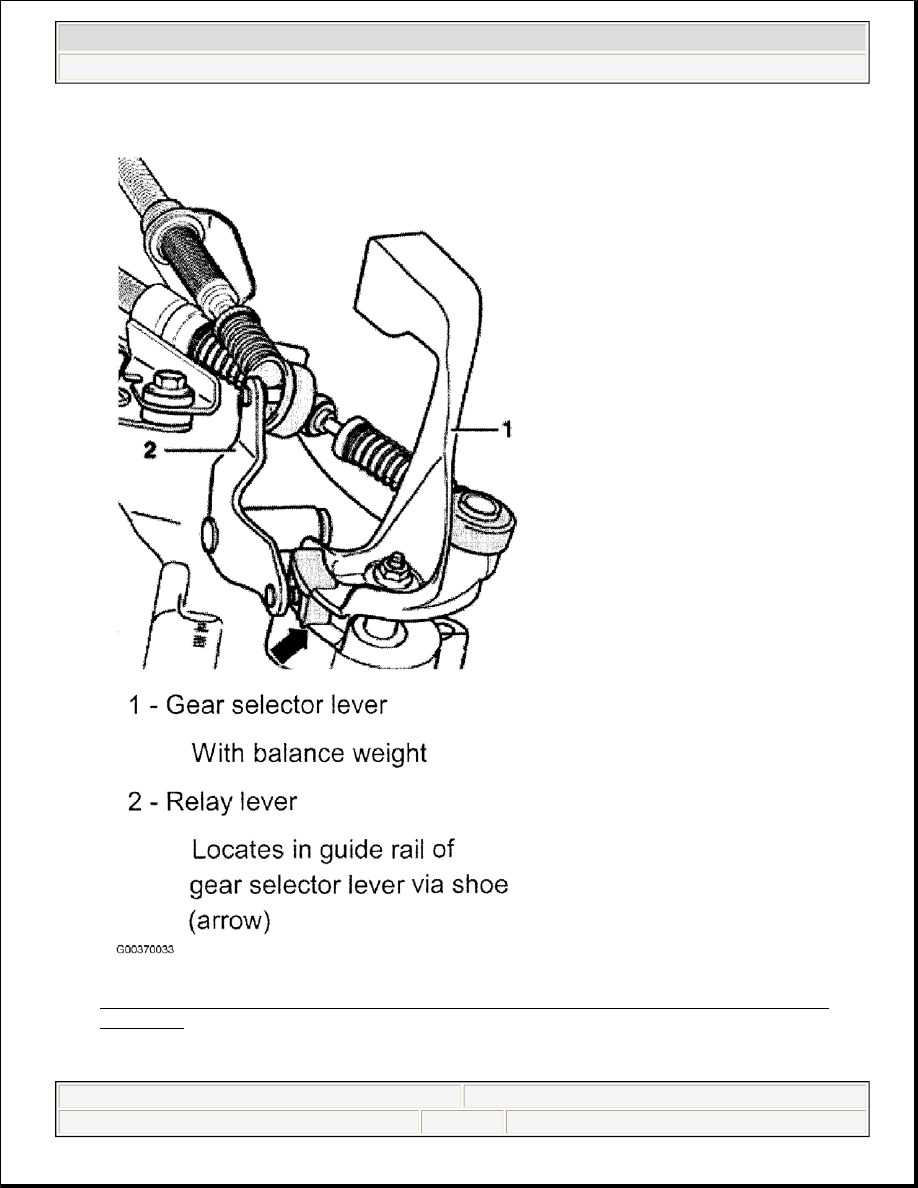

Fig. 35: Installation Position Of Transmission Selector Lever/Relay Lever (Vehicles Built From
June 1999)

Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 38

© 2004 Mitchell Repair Information Company, LLC.

GEAR LEVER HOUSING

Removal & Installation (Vehicles Built Up To May 1999)

NOTE:

Removal information not available from manufacturer. Use illustration as an aid
for procedure. See Fig. 36 .



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 39

© 2004 Mitchell Repair Information Company, LLC.

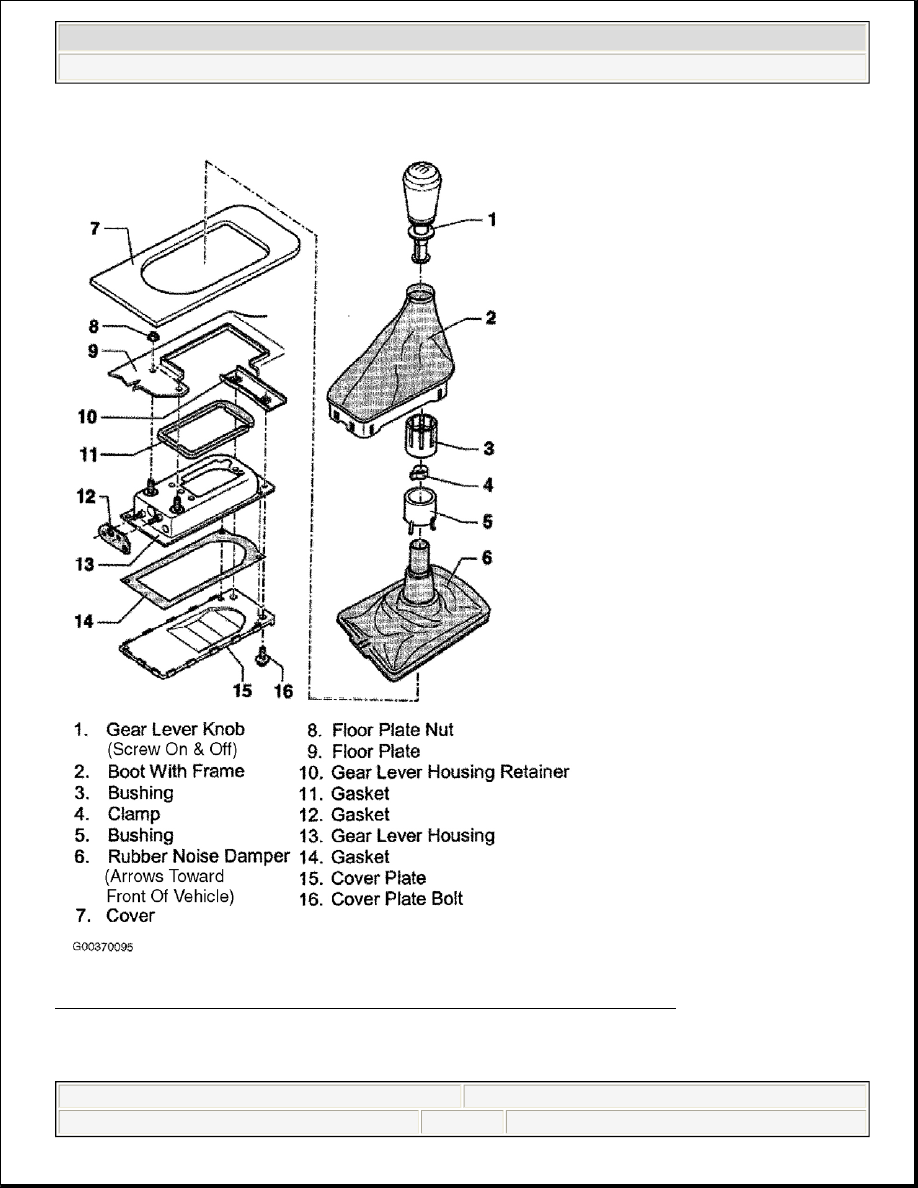

Fig. 36: Exploded View Of Gear Lever Housing (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Gear shift knob can screw on and off together with boot. When separating and assembling cover to and from



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 40

© 2004 Mitchell Repair Information Company, LLC.

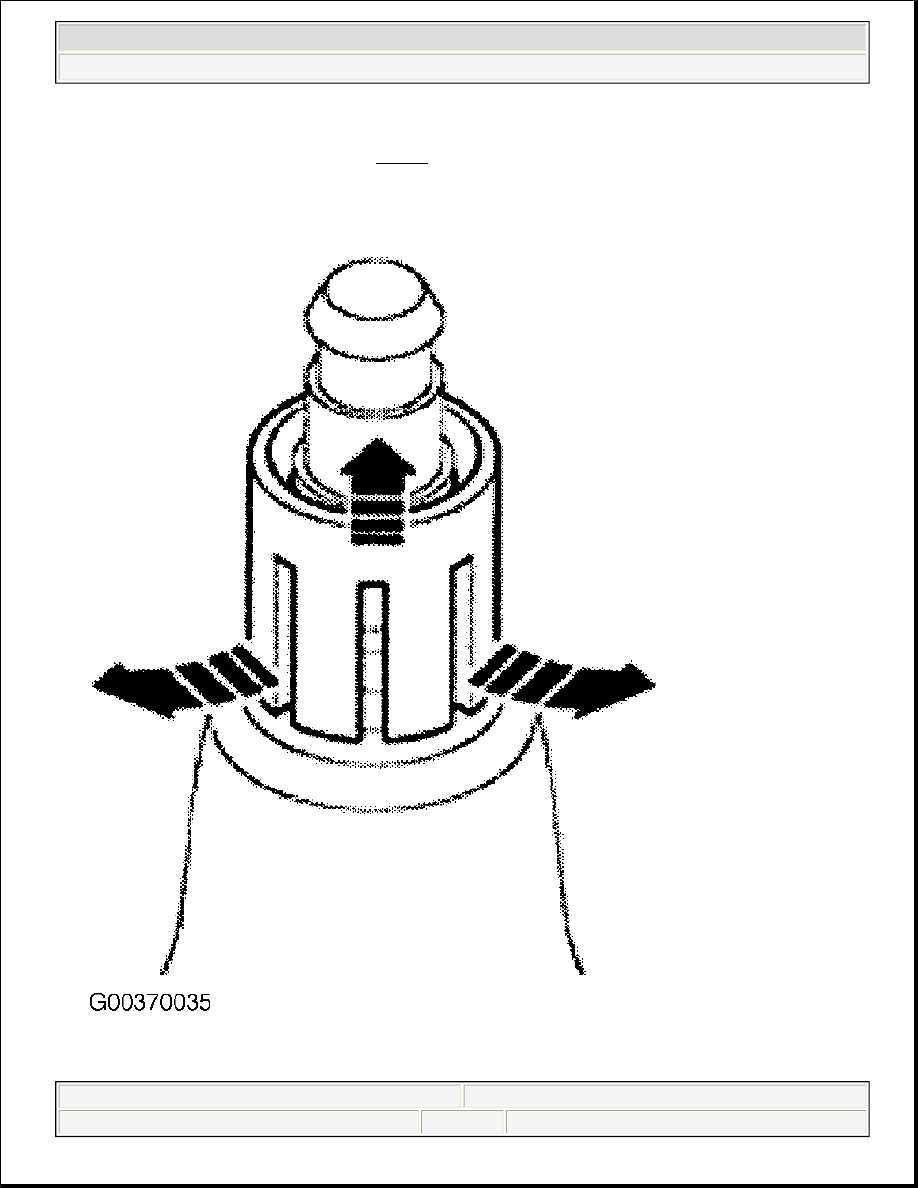

gear shift knob, turn boot inside out. Carefully pry segment with a screwdriver in direction of arrow, and
simultaneously pull gear shift knob out. See Fig. 37 .
