Removal and installation procedure not available from manufacturer. Use illustration as an aid. See Fig. 28 .
Lightly coat lug with MoS2 grease.

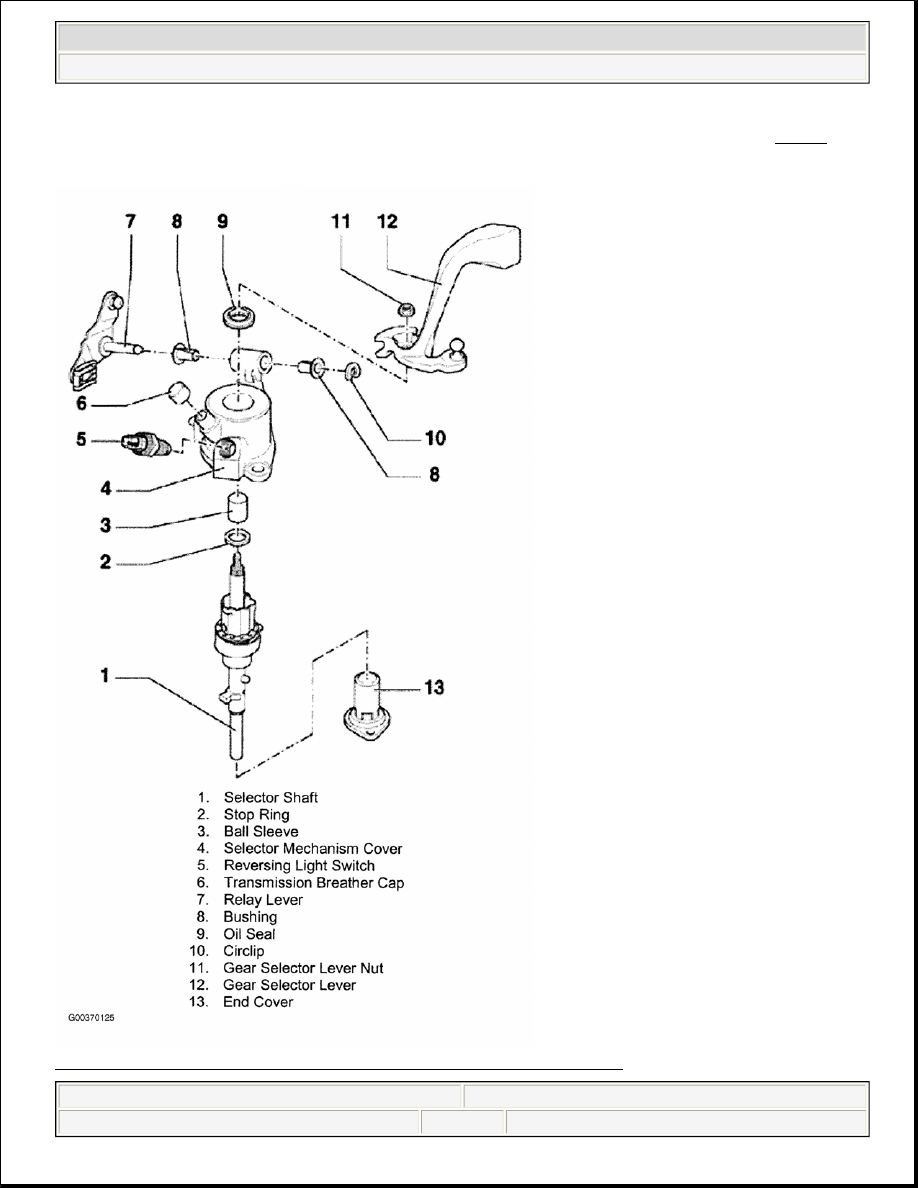

Fig. 28: Locating Reversing Light Switch (Vehicles Built From June 1999)



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 30

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

GEAR LEVER

Removal & Installation (Vehicles Built Up To May 1999)

NOTE:

Removal and installation procedures are not available from manufacturer. Use
illustration as an aid for procedure. See Fig. 29 . Note the following points when
servicing.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 31

© 2004 Mitchell Repair Information Company, LLC.

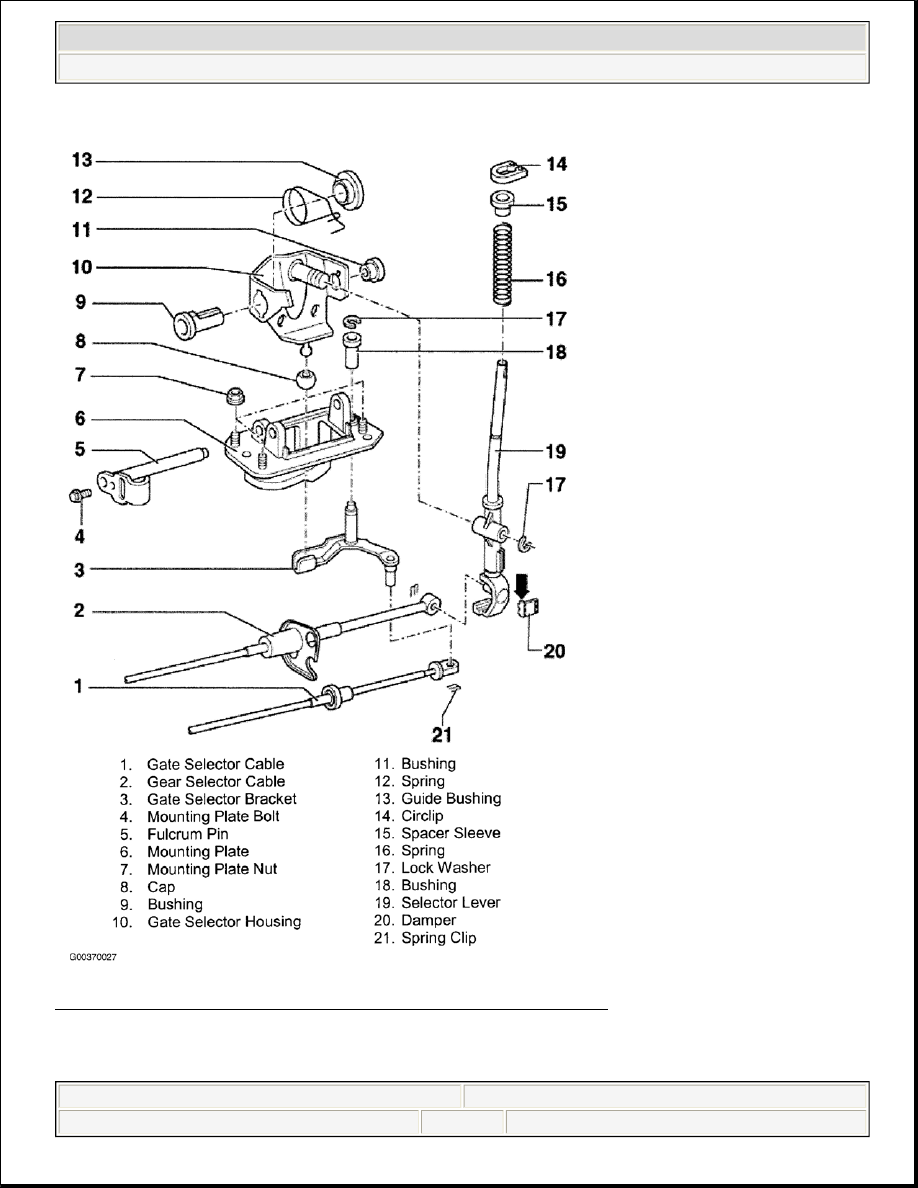

Fig. 29: Exploded View Of Gear Lever (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

1. Lubricate all mountings and sliding surfaces with Polyurea grease (G 052 142 A2). To remove lock plate



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 32

© 2004 Mitchell Repair Information Company, LLC.

for gate selector bracket, lift tab in direction of arrow. See Fig. 30 .

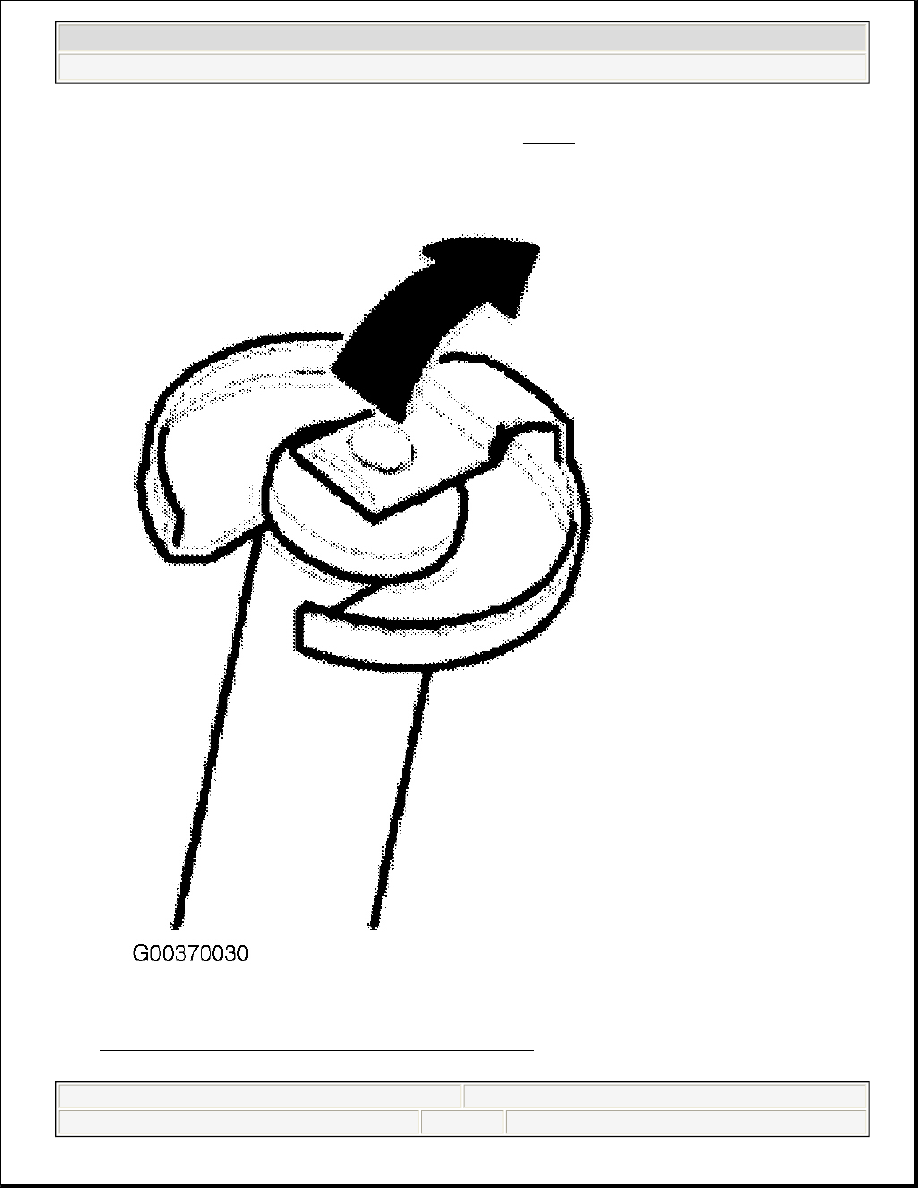

Fig. 30: Removing Lock Plate For Gate Selector Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 33

© 2004 Mitchell Repair Information Company, LLC.
