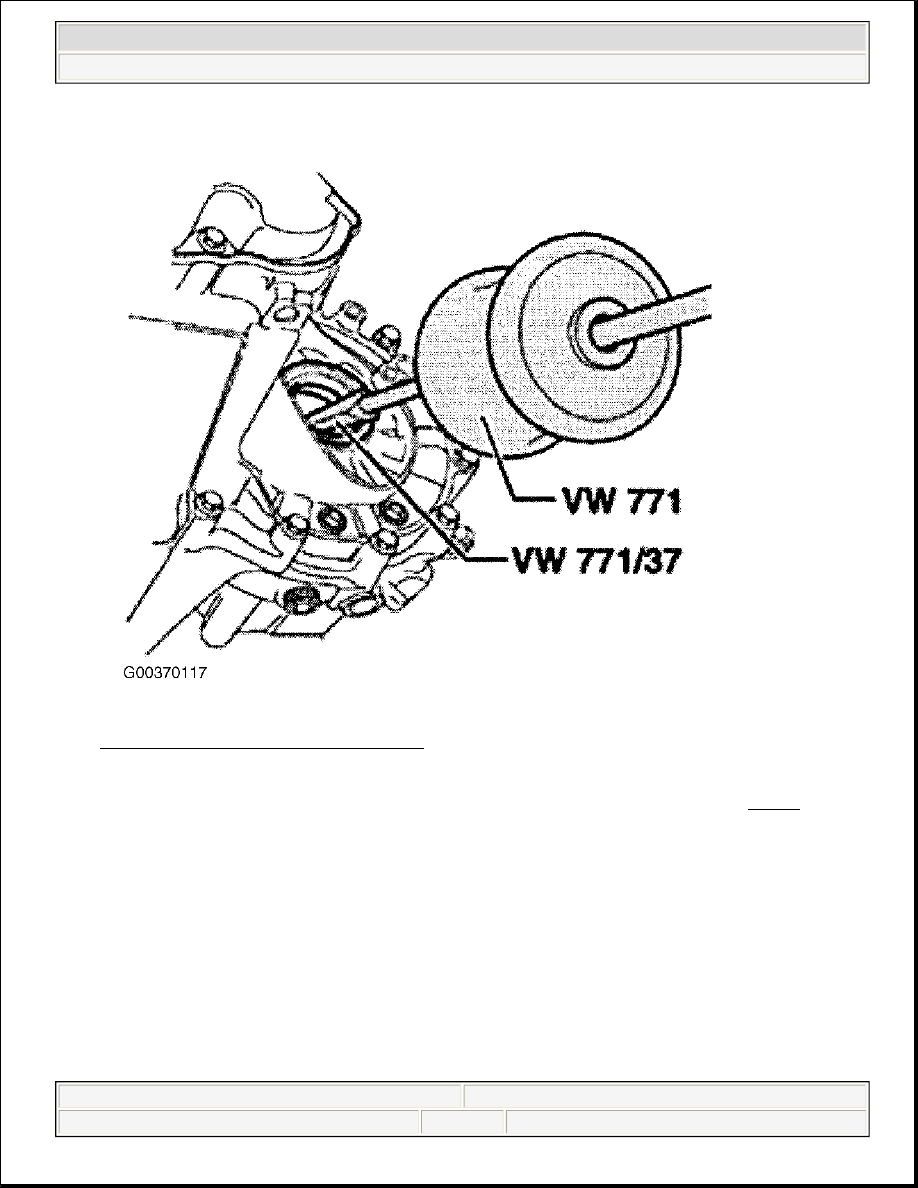

Fig. 20: Pulling Oil Seal (Left Flange Seal)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. To install, drive NEW seal into sleeve onto stop, when doing this DO NOT cant seal. See Fig. 21 . Fill

space between sealing lip and dust lip with sealing grease (G052 128 A1). Insert flange shaft.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 22

© 2004 Mitchell Repair Information Company, LLC.

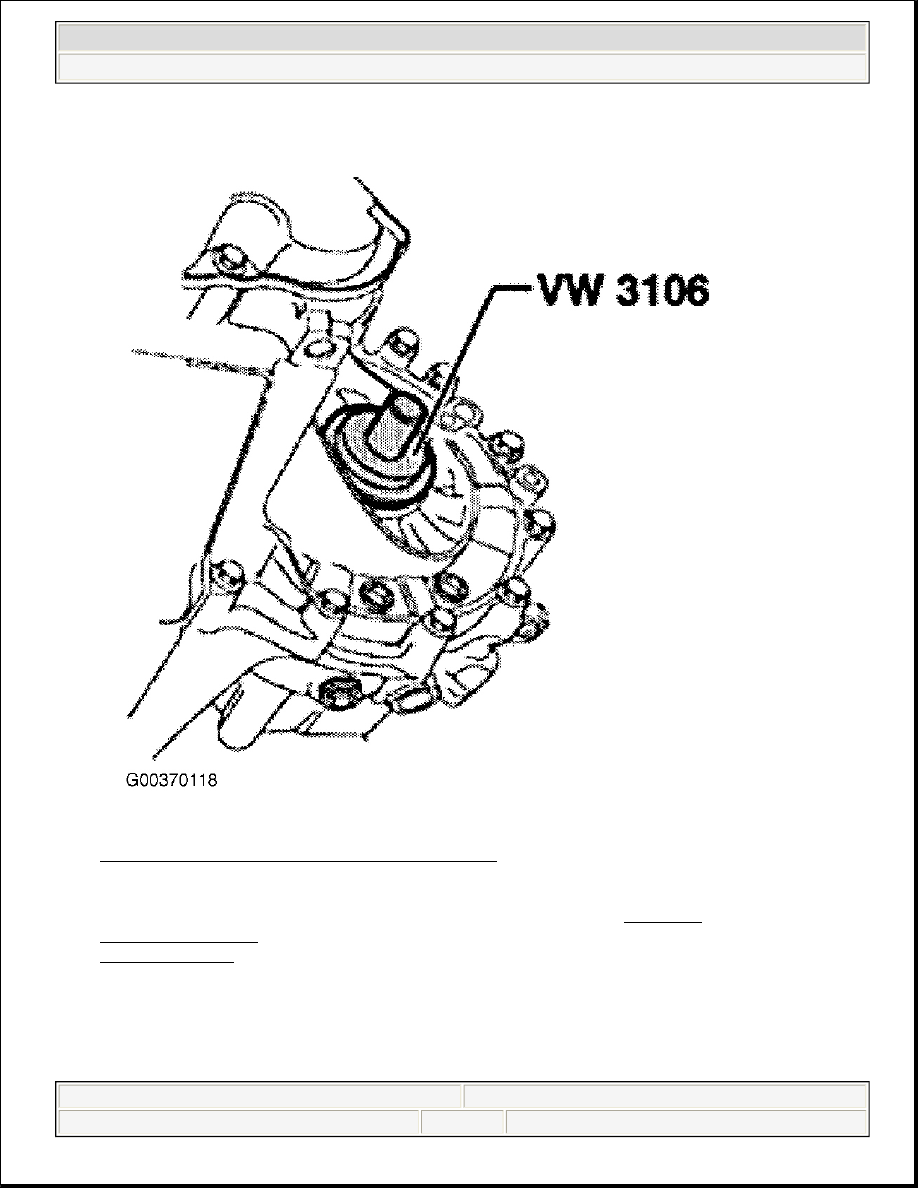

Fig. 21: Driving In NEW Oil Seal (Left Flange Seal)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Install flange shaft with cone head bolt, and tighten to specification. See TORQUE

SPECIFICATIONS . Install drive axle shafts to transmission flange. Top off transmission oil. See
LUBRICATION . Install sound insulation trays.

Removal & Installation (Right Flange Seal)

1. Raise and support vehicle. Remove center and right noise insulation trays, under engine/transmission, if

equipped. Turn steering to right onto full lock stop.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 23

© 2004 Mitchell Repair Information Company, LLC.

2. Remove drive axle shaft protective cover from engine, if equipped. Disconnect drive axle shaft (1), from

transmission flange shaft. See Fig. 22 . Place container under transmission and engine.

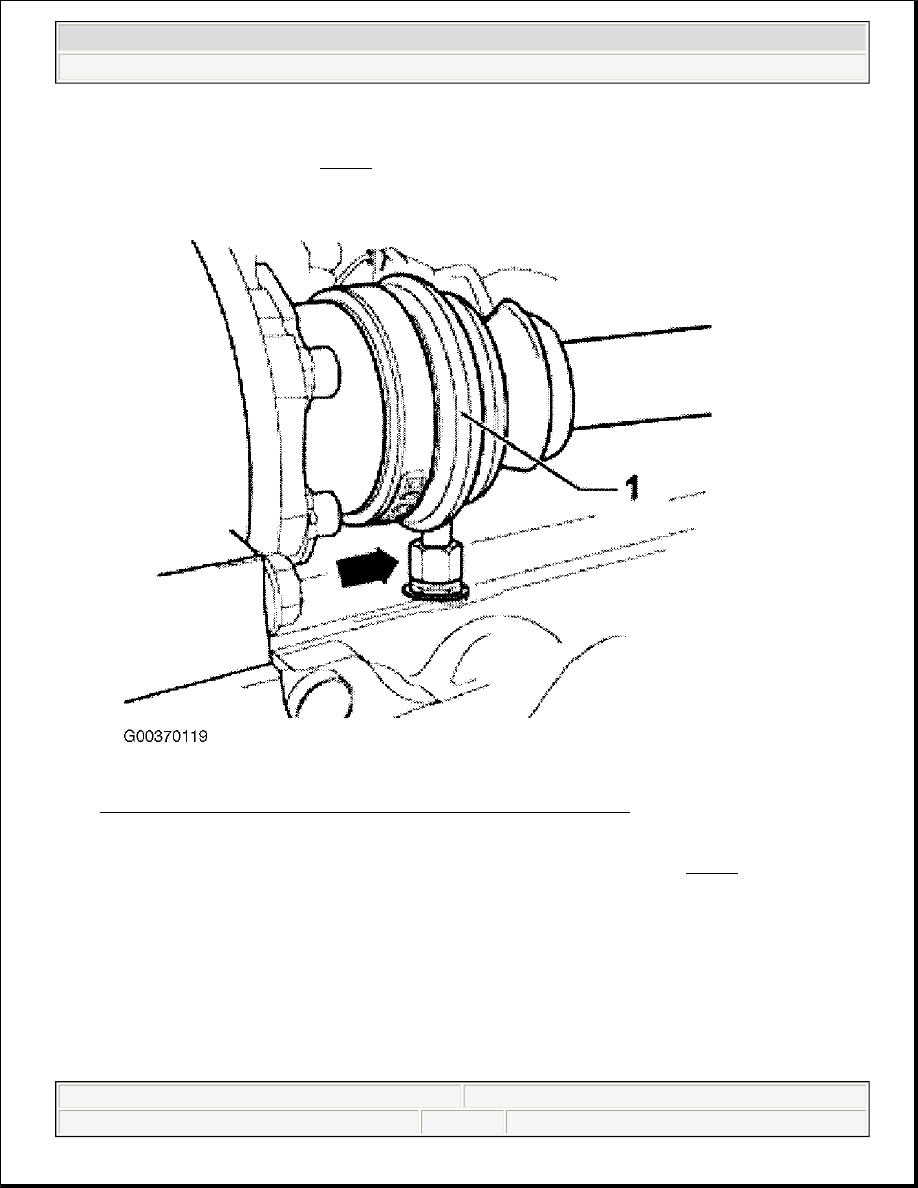

Fig. 22: Removing Drive Axle Shaft From Flange (Right Flange Seal)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Disconnect oil return line for turbocharger from engine, if equipped (arrow). See Fig. 22 . Remove flange

shaft securing bolts by screwing two bolts into flange, and counterhold flange shaft using a lever.

4.

CAUTION: DO NOT damage sleeve, otherwise leaks will occur.

NOTE:

There are two different ways to pull seal from flange. Removing seal and
sleeve as two pieces, is covered in this step. To remove seal and sleeve as
one piece, go to next step.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 24

© 2004 Mitchell Repair Information Company, LLC.

Remove flange shaft with spring. Using a screwdriver (A), pry seal and support screwdriver on assembly
tool (3253/2). See Fig. 23 . Replace sleeve, if damaged. See SLEEVE

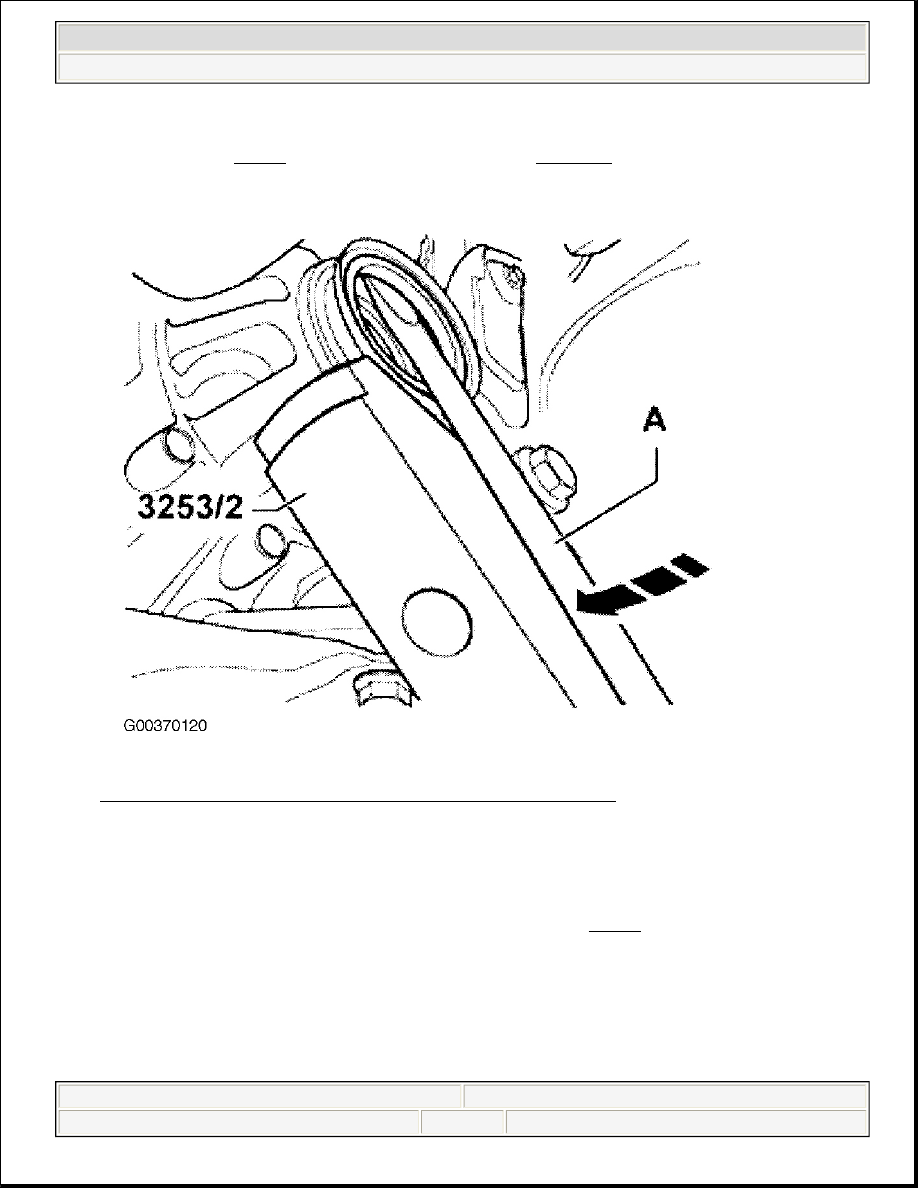

Fig. 23: Removing Seal & Sleeve As Two Pieces (Right Flange Seal)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5.

Install puller hook (VW 771/37), directly behind pad in sleeve. See Fig. 24 . Use force to press puller
hook (VW 771/37) in sleeve during driving out sequence.

NOTE:

Inner diameter of sleeve has a pad.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 25

© 2004 Mitchell Repair Information Company, LLC.
