Volkswagen New Beetle. Manual - part 2553





Fig. 17: Turning Locking Mechanism (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Turn right-angled piece (A) back to original position (direction of arrow). See Fig. 18 . Selector shaft

must now be able to be moved in direction of arrow. See Fig. 19



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.

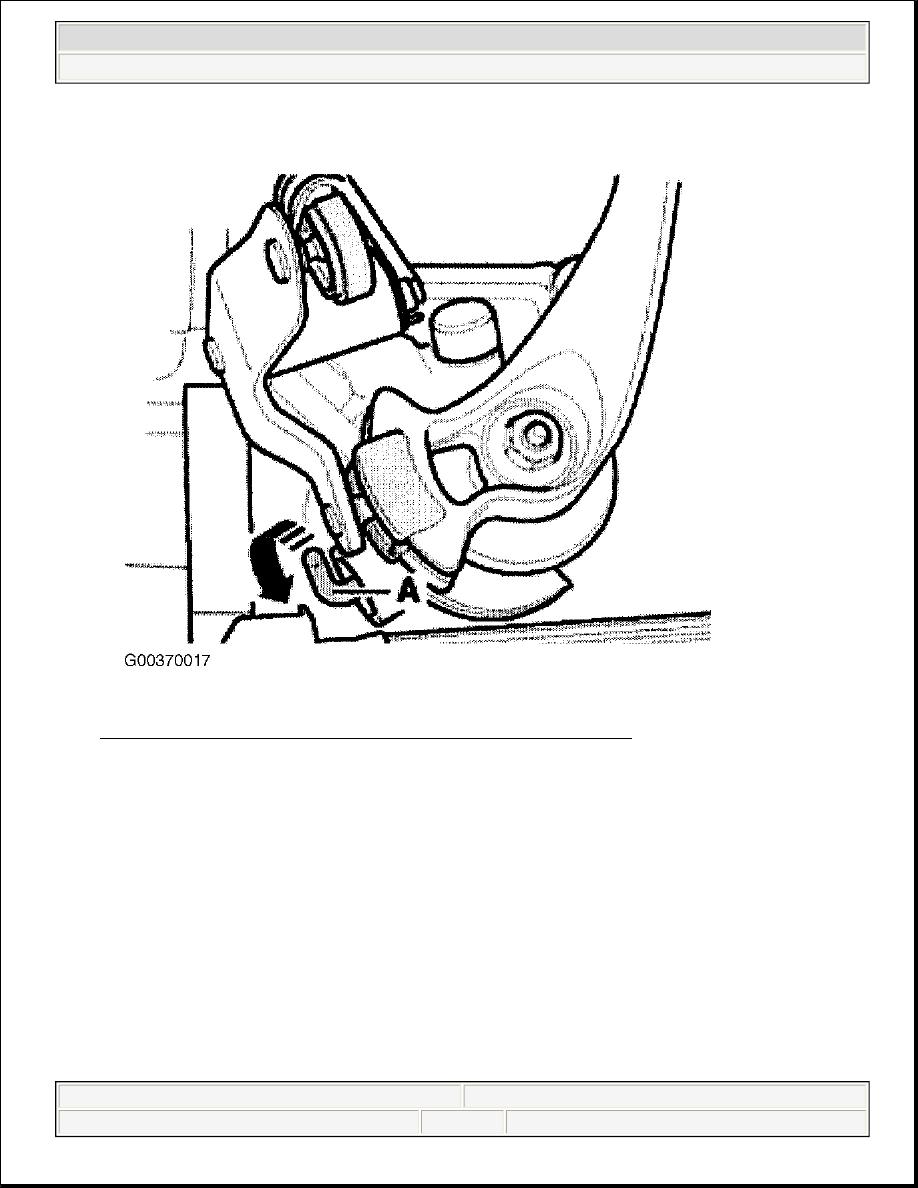

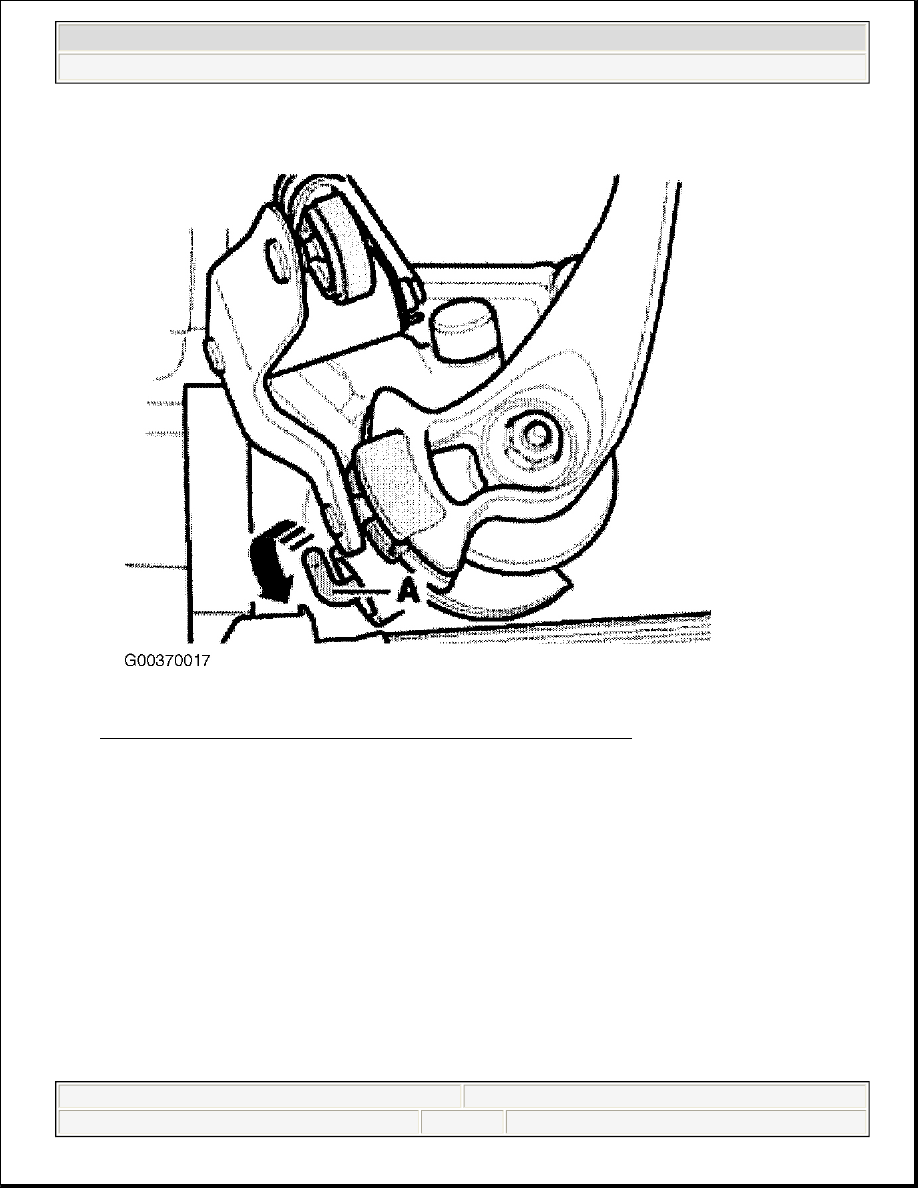

Fig. 18: Turning Right-Angled Piece (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 19

© 2004 Mitchell Repair Information Company, LLC.

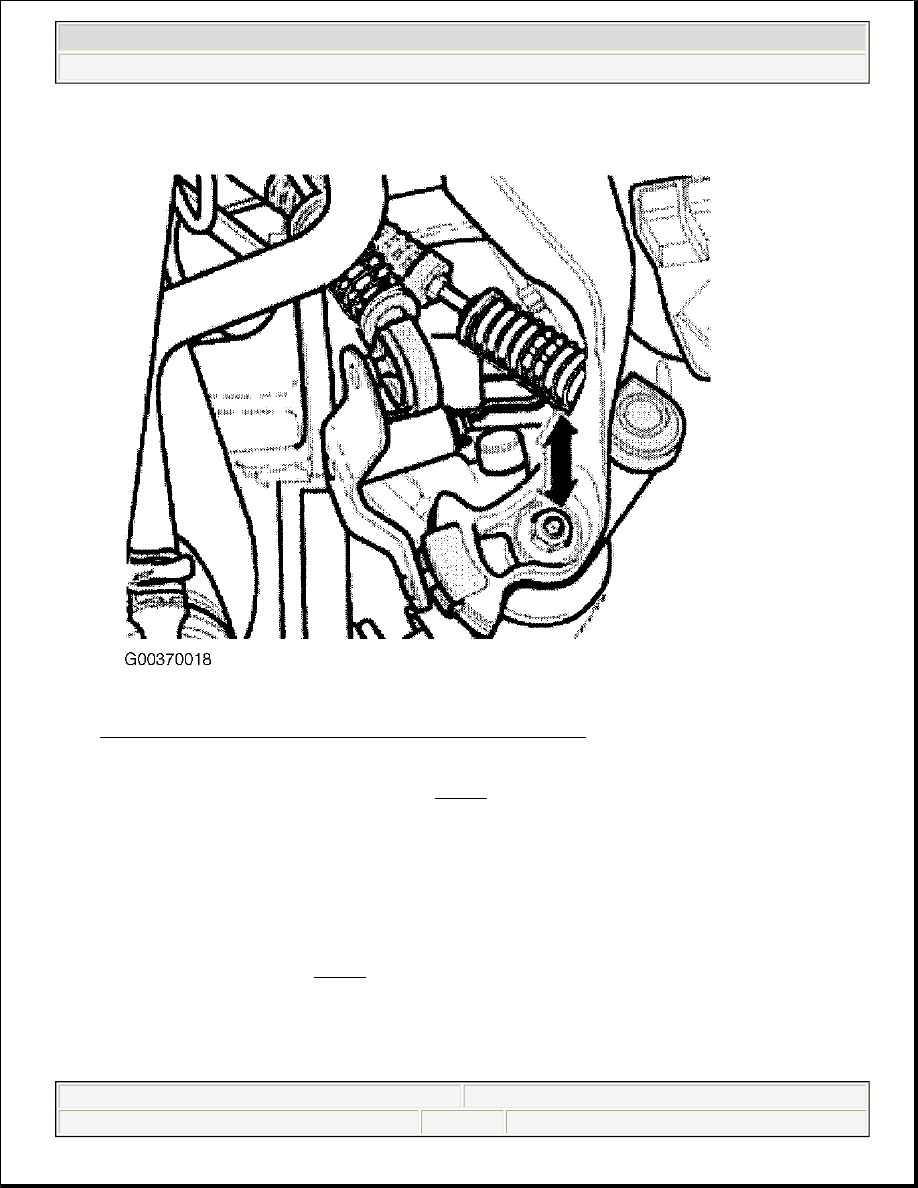

Fig. 19: Moving Selector Shaft (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Pull pin (T10027) out of holes (A and B). See Fig. 16 . Clip boot into frame.

7.

Operate clutch. Select all gears several times. Pay particular attention to operation of reverse gear lock.
Should a gear fail to engage smoothly after repeated selection, selector shaft play (lift) should be checked.

8. Engage 1st gear. Press gear lever to left, onto stop and release. With aid from a second technician,

observe selector shaft in gear box. When moving gear lever, selector shaft must move approximately 1
mm (direction of arrow). See Fig. 19 . If selector shaft does not move, repeat adjustment.

REMOVAL & INSTALLATION

NOTE:

Gear shift lever must rest in 3rd/4th gear gate with transmission in Neutral.

WARNING:

Vehicle is equipped with Supplemental Inflatable Restraint (SIR) system.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

AXLE SEALS

Removal & Installation (Left Flange Seal)

1. Raise and support vehicle. Remove center and left noise insulation trays, under engine/transmission, if

equipped.

2. Remove left drive axle shaft. See AXLE SHAFTS article.

3. Remove flange shaft securing bolts, by installing two bolts into flange and counterhold flange shaft using

a lever.

4.

Place container under vehicle. Remove flange shaft with spring. Using puller (VW 771 and VW 771/37),
pull out seal for flange shaft. See Fig. 20 . Replace sleeve, if damaged. See SLEEVE

When servicing vehicle, use care to avoid accidental air bag deployment.
SIR system-related components are located in various locations
throughout interior and exterior of vehicle, depending on application. Do
not use electrical test equipment on or near these circuits. If necessary,
deactivate SIR system before servicing components. See appropriate AIR
BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.

NOTE:

This procedure is performed with transmission installed.

CAUTION: DO NOT damage sleeve, otherwise leaks will occur.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.
