Volkswagen New Beetle. Manual - part 2551





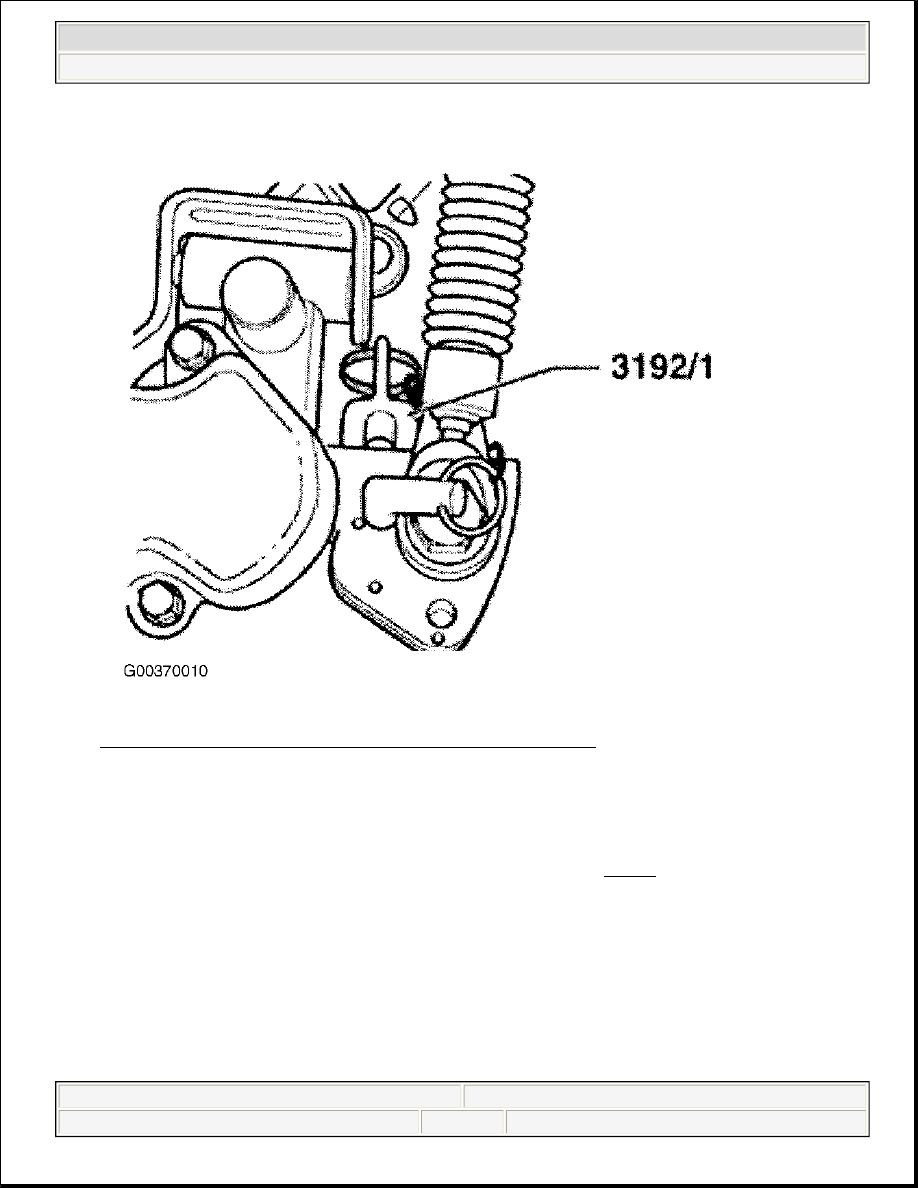

Fig. 9: Adjusting Right-Hand Detent (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:06 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

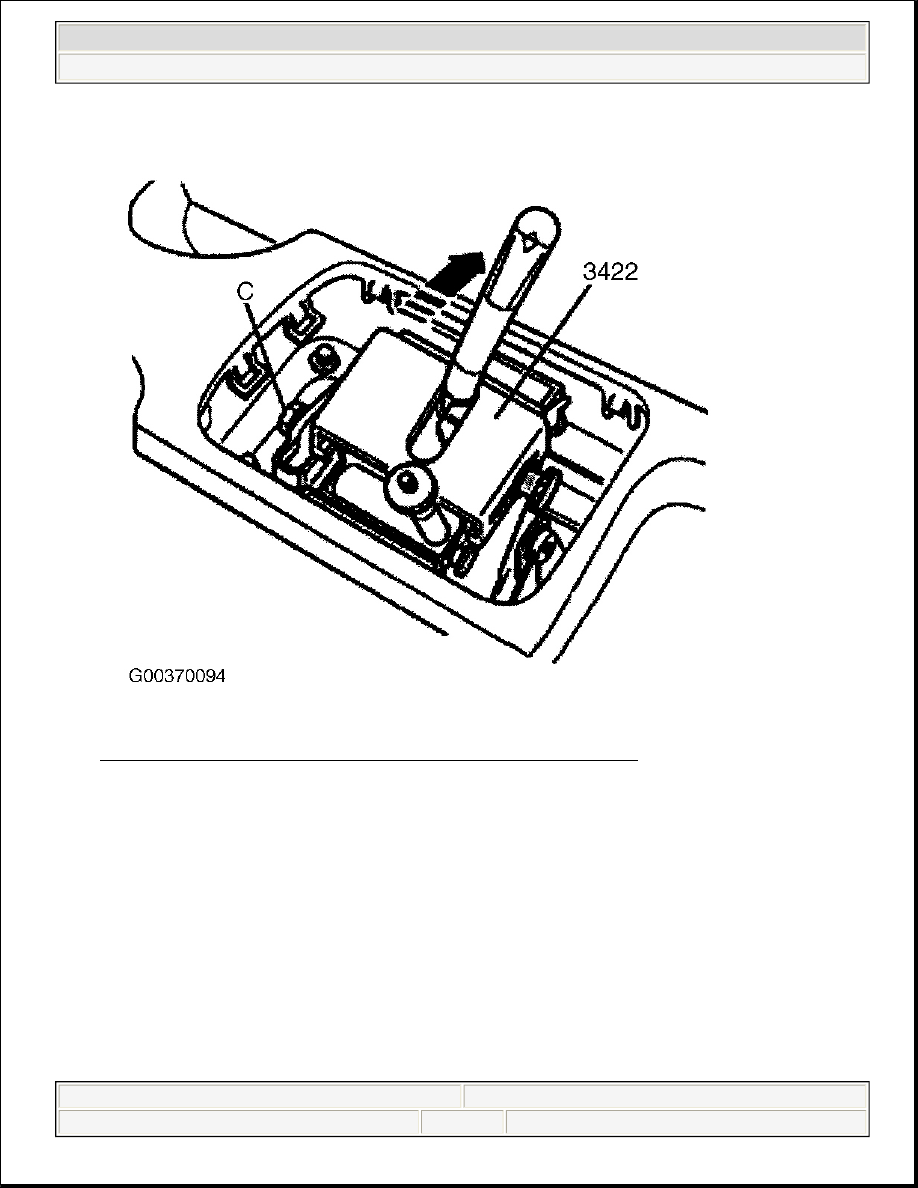

Fig. 10: Inserting Wedge & Pin (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6.

Slide wedge between gear selector lever and selector cover plate. See Fig. 10 . Ensure there is no play. In
this position, secure gear selector cable and actuating arm/gate selector cable. Check position of wedge.
Remove gear lever jig (3422). Install balance weight, gear shift knob and boot.

7.

Operate clutch. Select all gears several times. Pay particular attention to operation of reverse gear lock.
Should a gear fail to engage smoothly after repeated selection, selector shaft play (lift) should be checked.

8. Engage 1st gear. Press gear lever to left, onto stop and release. With aid from a second technician,

observe selector shaft in gear box. When moving gear lever, selector shaft must move approximately 1

NOTE:

Wedge must not lift gear lever.

NOTE:

Gear shift lever must rest in 3rd/4th gear gate with transmission in Neutral.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:06 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.

mm (direction of arrow). See Fig. 11 .

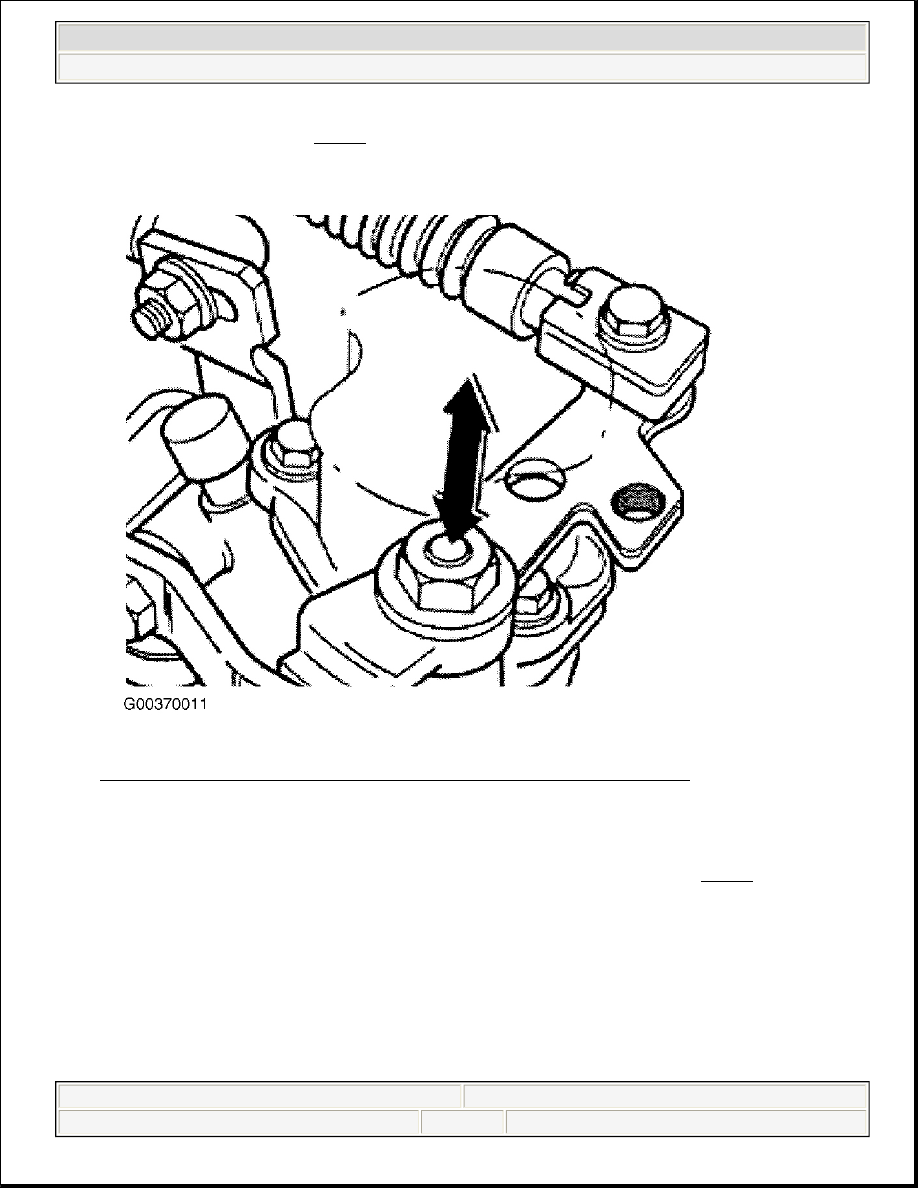

Fig. 11: Checking Selector Shaft Movement (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

9. If not, disengage 1st gear and again loosen nut (A) for actuating arm/gate selector cable mounting. (gate

selector cable has a certain amount of play at mounting, due to transfer elements). Take up gate selector
cable play, by lightly pressing mounting toward bulkhead (direction of arrow). See Fig. 12 . Tighten nut
(A), in this position.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

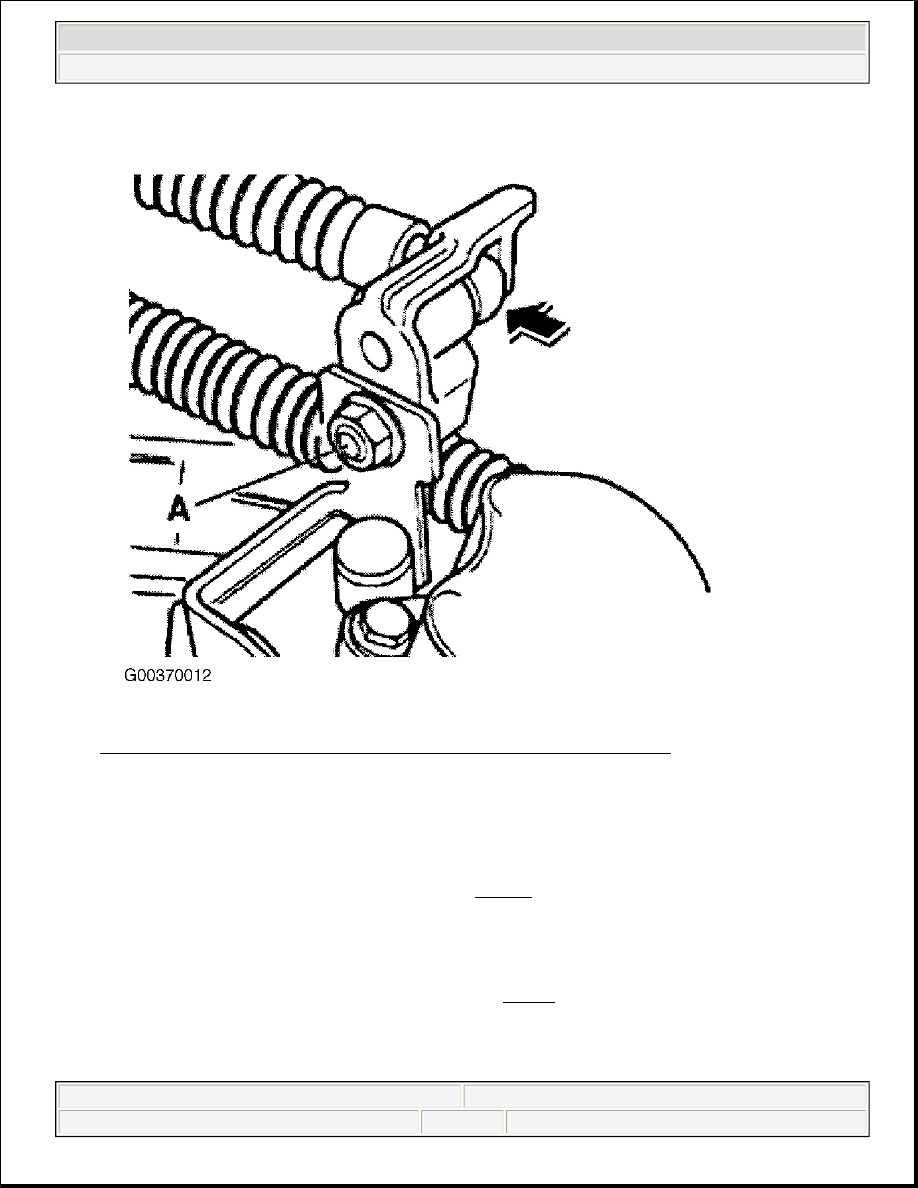

Fig. 12: Readjusting Gear Selector Cable (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Selector Mechanism (Vehicles Built From June 1999)

1. Secure locking mechanism on gear selector cable, and gate selector cable, by pulling forward until stop

(arrow 1) and then turning to left to lock (arrow 2). See Fig. 14

NOTE:

To ensure correct gear selector adjustment, moving parts of selector
mechanism and transmission elements must be in proper condition. Selector
mechanism must move freely. See Fig. 13 . Transmission, clutch and clutch
mechanism must also be in proper condition. Transmission is in Neutral
position.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:07 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.
