Fig. 37: Separating Cover From Gear Shift Knob (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR CABLES

Removal & Installation (Vehicles Built Up To May 1999)

NOTE:

Removal and installation information is not available from manufacturer. Use
illustration as an aid for procedure. See Fig. 38 . Note the following points when
servicing.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 42

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 43

© 2004 Mitchell Repair Information Company, LLC.

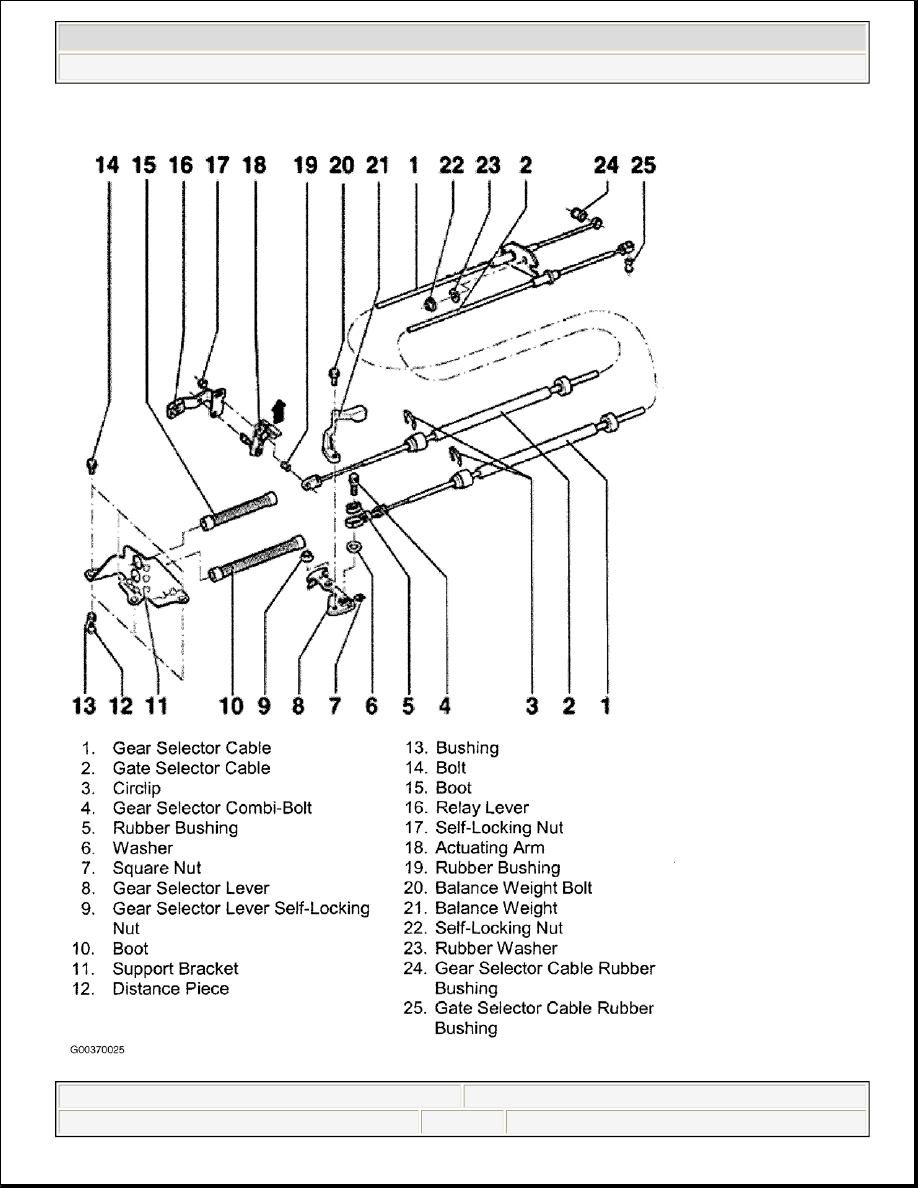

Fig. 38: Exploded View Of Selector Cables (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lubricate all mountings and sliding surfaces with Polyurea grease (G 052 142 A2). Relay lever (2) locates in
guide rail of gear shift lever (arrow A). See Fig. 39 . Lubricate with MoS2 grease. Actuating arm (3) flats
(arrow B) of axis face mounting, relay lever only fits in one position. Balance weight (4) bolts on to gear
selector lever.



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:09:08 AM

Page 44

© 2004 Mitchell Repair Information Company, LLC.

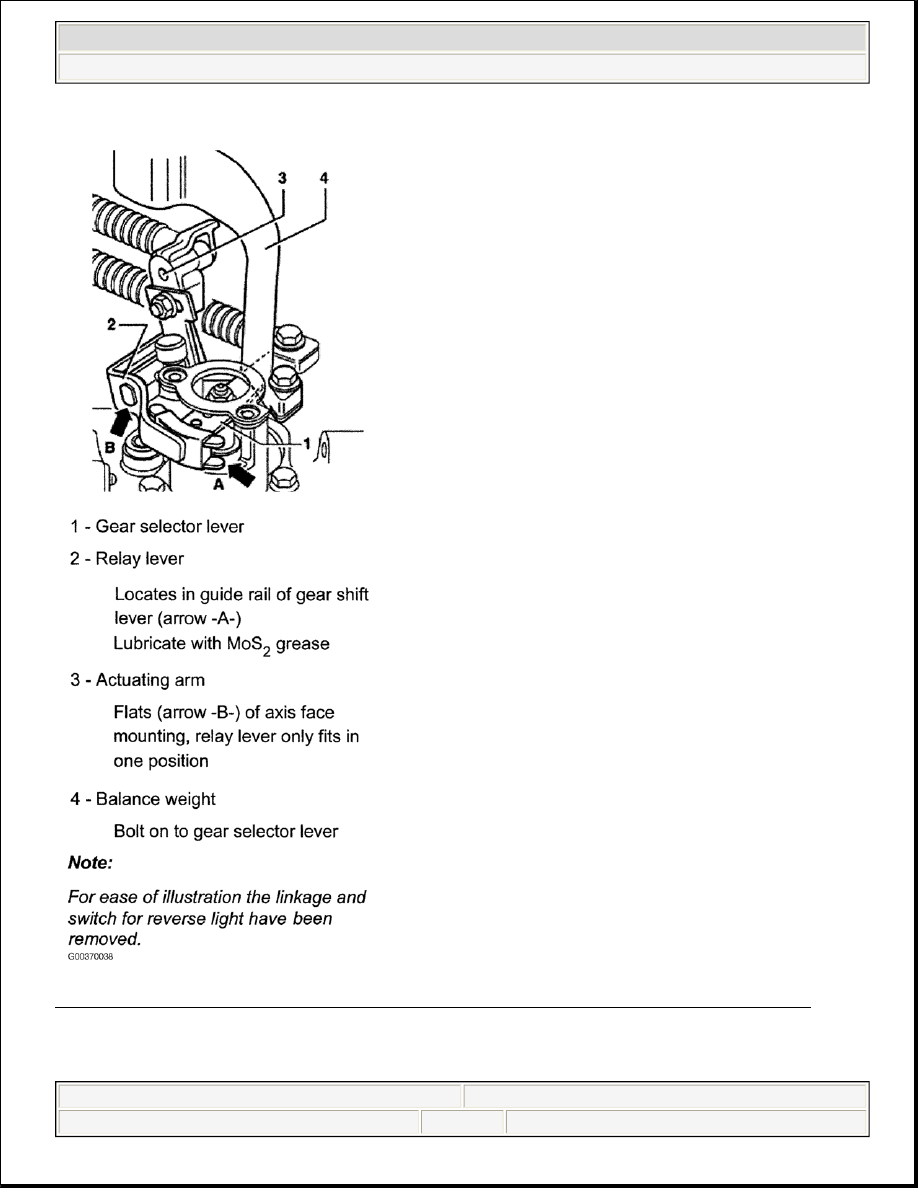

Fig. 39: Installation Position Of Gear Selector Lever/Relay Lever (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation (Vehicles Built From June 1999)
