Volkswagen New Beetle. Manual - part 2542





Fig. 162: Disconnecting Oil Return Line For Turbocharger From Engine
Courtesy of VOLKSWAGEN OF AMERICA, INC.

See FRONT AXLE SHAFT

z

Screw drive shaft protective cover if installed

z

Screw protective cover for drive shaft if installed.

z

Top off transmission oil. See CHECKING FLUID LEVEL



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Install sound insulation tray.

Tightening torques:

z

Flange shaft to transmission (conical head bolt). See REMOVING , item 18.

z

Protective cover for drive shaft to engine

DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING

Special tools and equipment

z

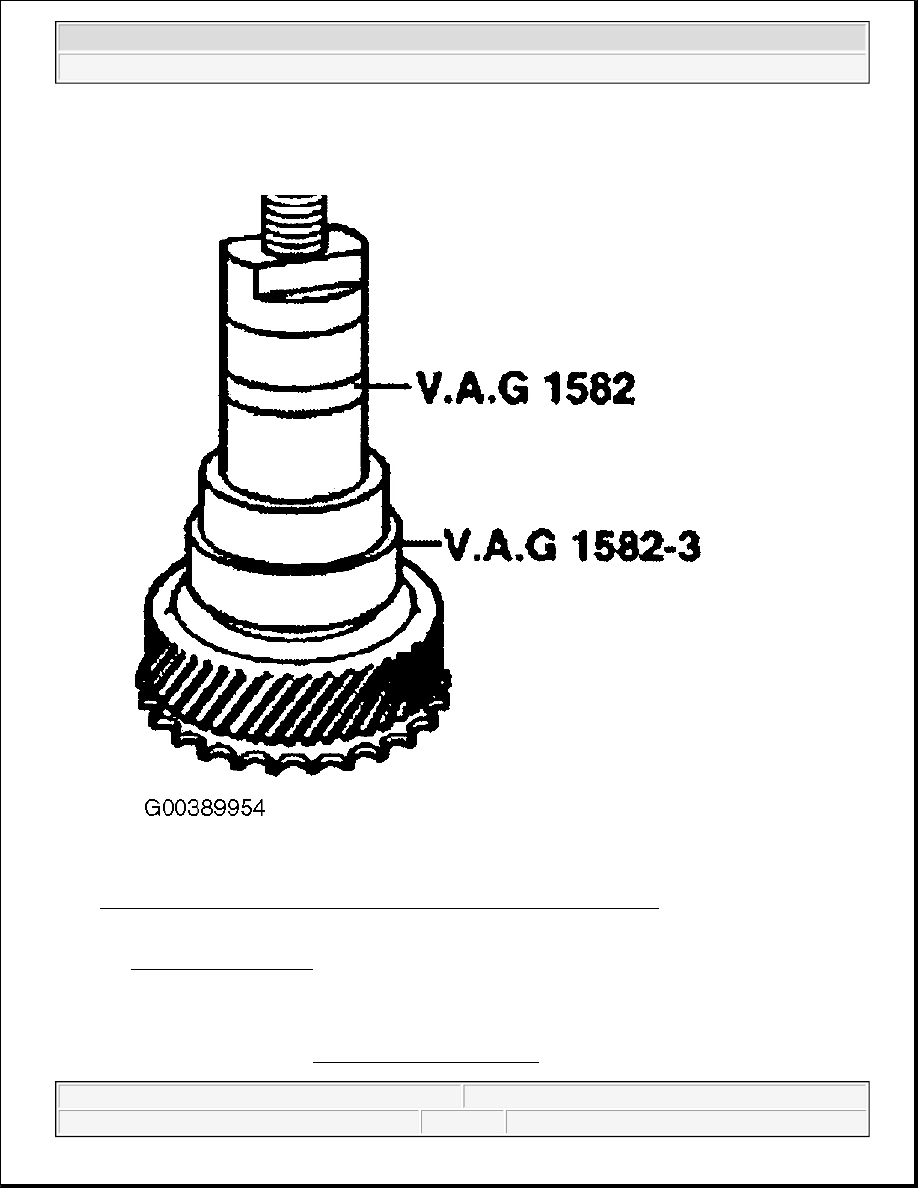

V.A.G 1582 Puller

z

V.A.G 1582/3 Grip

z

VW 412 Press tool

z

40-105 Thrust plate

z

VW 401 Press plate

z

VW 402 Press plate



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 163: Identifying Special Tools And Equipment (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VW 408 A Press tool

z

VW 473 Thrust piece

z

30-205 Thrust plate

z

3144 Sleeve

z

2007 Thrust pad



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 164: Identifying Special Tools And Equipment (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

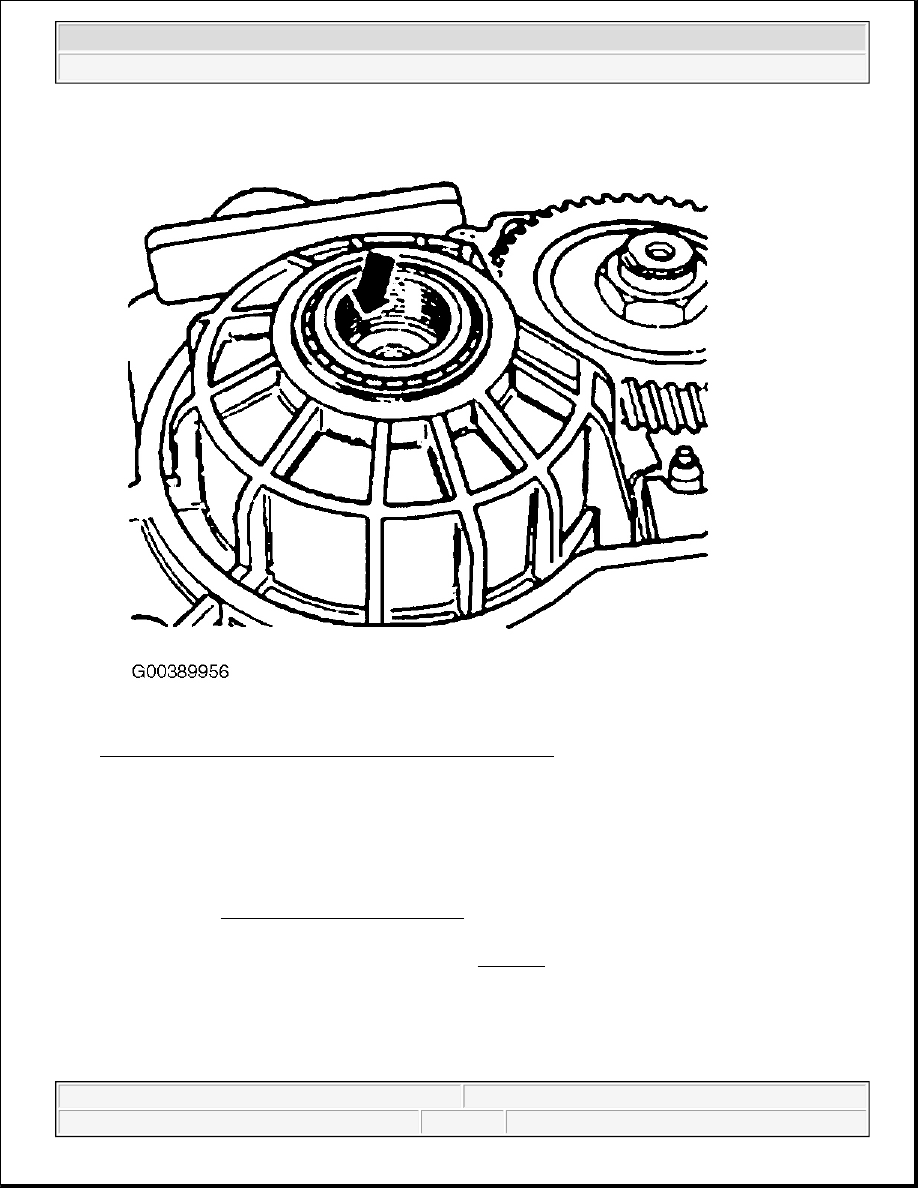

1. Transmission housing

2. Bolt

3. Differential cage

NOTE:

z

Heat tapered roller bearing inner race to 100° C before installing.

z

Always replace both tapered roller bearings together as a set.

z

Adjust differential if tapered roller bearings, differential housing,
transmission housing or clutch housing are being replaced. See
DIFFERENTIAL, ADJUSTING .

NOTE:

The following list refers to items in Fig. 165 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
