Volkswagen New Beetle. Manual - part 2541





Fig. 160: Installing Right Seal And Sleeve Into Flange Shaft (Seal And Sleeve Are Driven Out In
Two Pieces)

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

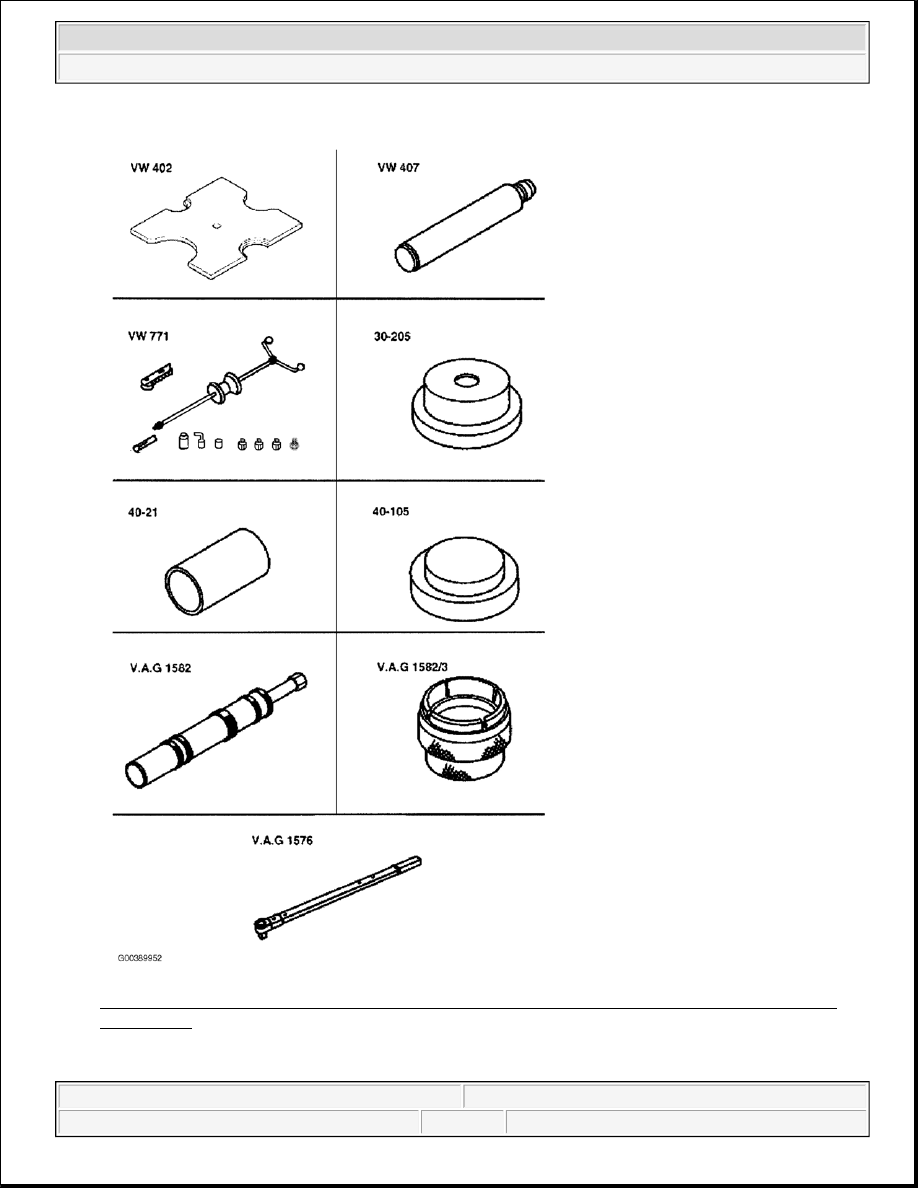

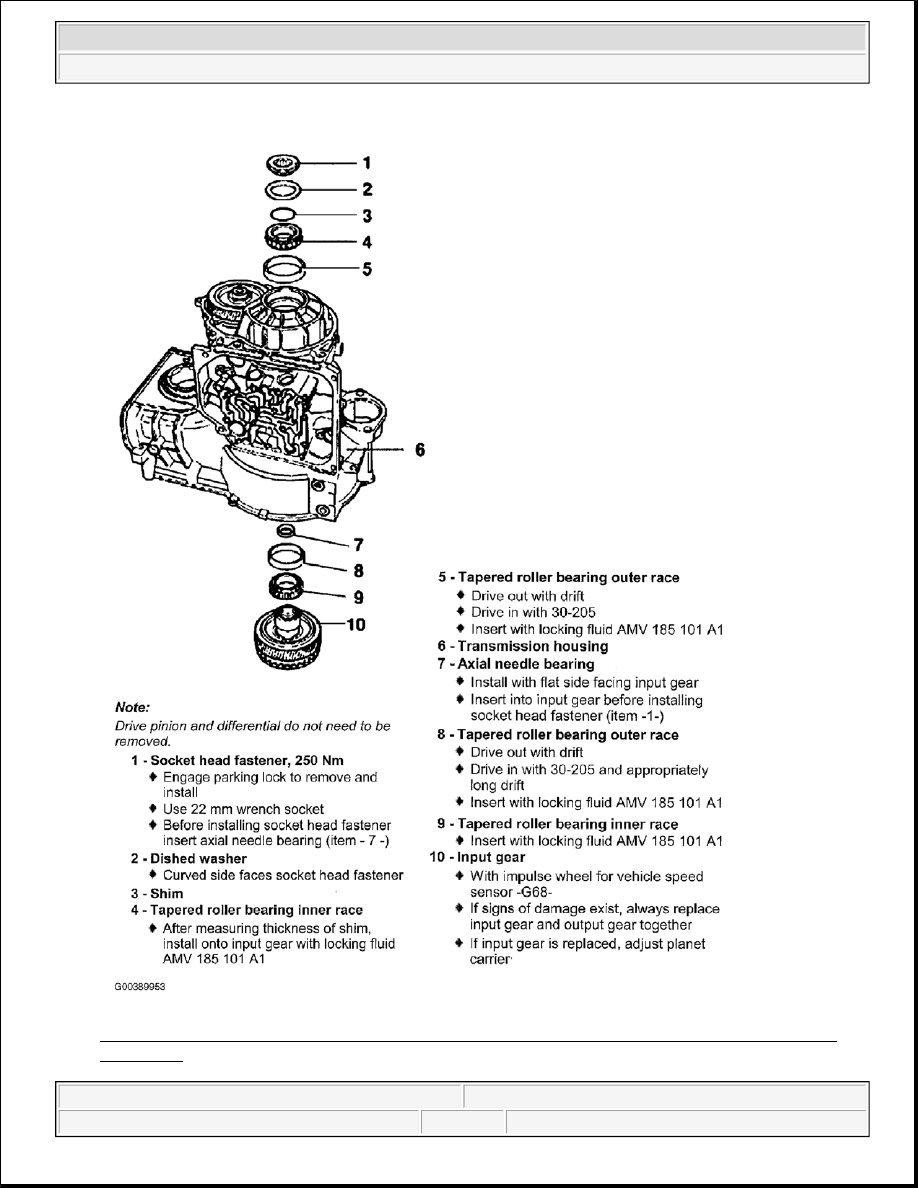

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Fill space between sealing lip and dust lip with sealing grease G052 128 A1.

z

Insert flange shaft.

Seal and sleeve are driven out in one piece:

z

Clean the sitting place of seal in transmission.

z

Pull seal and sleeve together.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 161: Installing Right Seal And Sleeve Into Flange Shaft (Seal And Sleeve Are Driven Out In
One Piece)

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



A. Turn the spindle from the assembly device 3066 in the threaded piece from the differential.

B. Nut M12

z

Pull in seal with sleeve using press piece T10148 onto stop by turning the nut -B-.

z

Fill space between sealing lip and dust lip with sealing grease G052 128 A1.

z

Insert flange shaft.

Continued for all vehicles

z

Install flange shaft with cone head bolt and tighten to prescribed torque. See REMOVING , item 18.

z

Disconnect oil return line for turbocharger from engine, if installed (arrow).

See CHARGE AIR SYSTEM WITH TURBOCHARGER, TURBOCHARGER WITH
ATTACHMENTS, REMOVING AND INSTALLING

z

Connect drive shaft -1- to flange shaft.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
