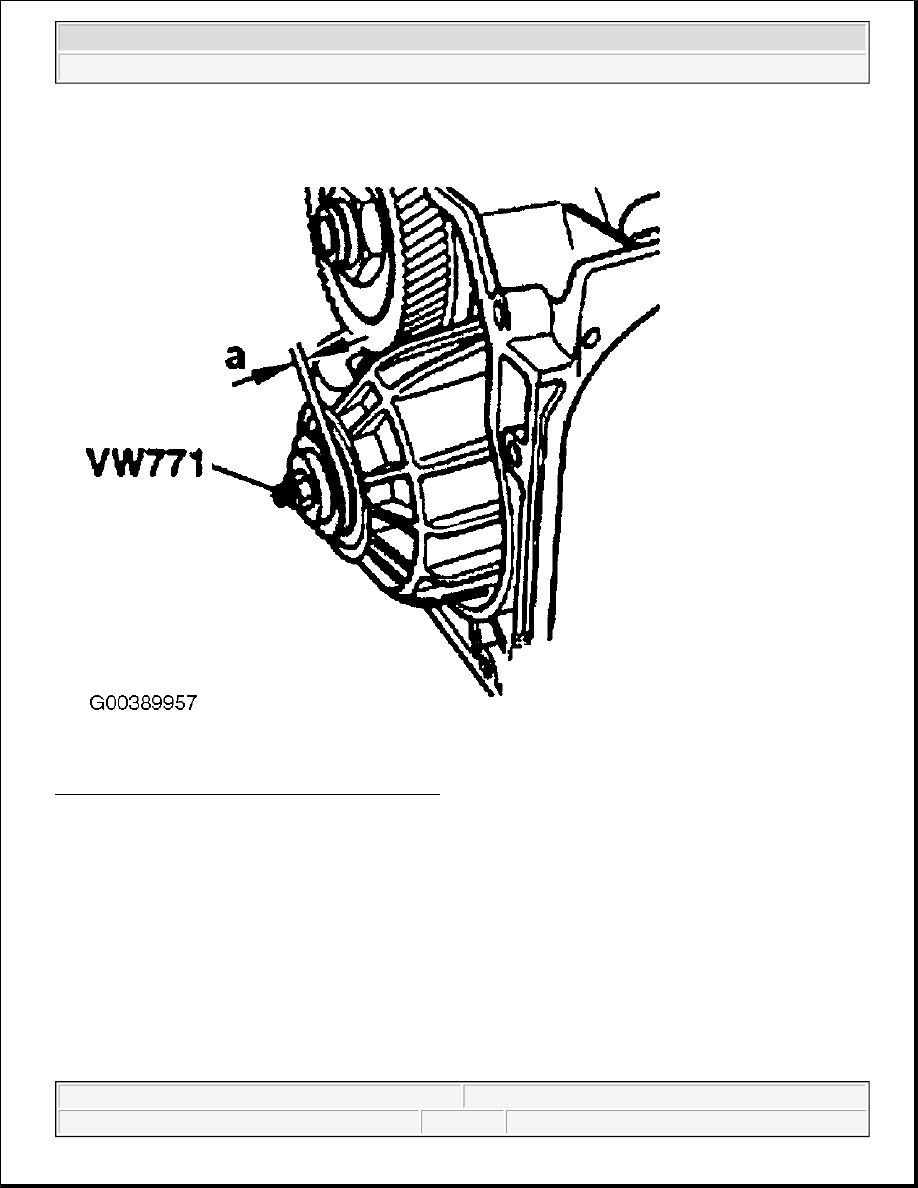

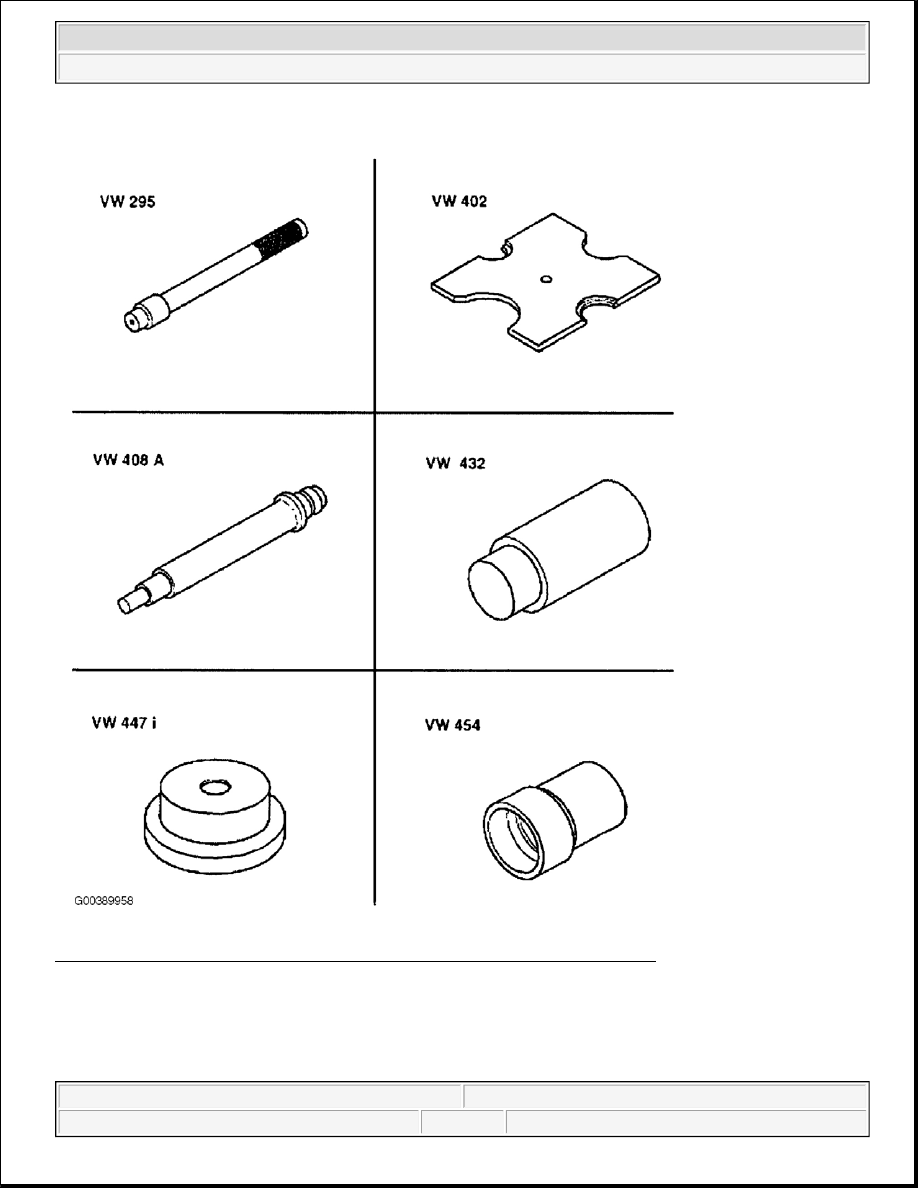

z Bolt to final drive gear 4. Final drive gear wheel z Riveted in production z Is paired with output shaft, only replace as a set z Pressing off. See Pressing off final drive gear z Installation position. See Installation position of final drive gear wheel z Heat to 100° C before installing z Install to differential housing. See Heating final drive gear wheel to approx. 100° C and z Bolted. See Bolting final drive gear and differential housing together 5. Backing plate 6. Nut, 70 N.m 7 7. Shim z For differential z Determining thickness. See DIFFERENTIAL, ADJUSTING 8. Tapered roller bearing outer race z Pulling out Pulling tapered roller bearing outer race out of transmission housing z Pressing in. See Pressing tapered roller bearing outer race into transmission housing 9. Tapered roller bearing inner race z Pulling off. See Pulling off tapered roller bearing inner race z Pressing on Pressing on tapered roller bearing inner race 10. Differential housing z With riveted final drive gear z When replacing final drive gear drill out rivet heads. See Drilling out rivet heads z Attaching final drive gear with bolts. See Bolting final drive gear and differential housing 11. Speedometer drive wheel z Install onto differential housing as far as stop before pressing on inner race 12. Tapered roller bearing inner race z Pulling off. See Pulling off tapered roller bearing inner race z Pressing on Pressing on tapered roller bearing inner race 13. Tapered roller bearing outer race z Pressing out. See Pressing tapered roller bearing outer race out of clutch housing z Pressing in. See Pressing tapered roller bearing outer race into clutch housing 14. Clutch housing 15. 15-Sleeve z Installed together with springs behind flange shafts z To accept oil seal (item 16)
2003 Volkswagen New Beetle GLS 1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle
|
