Volkswagen New Beetle. Manual - part 2429





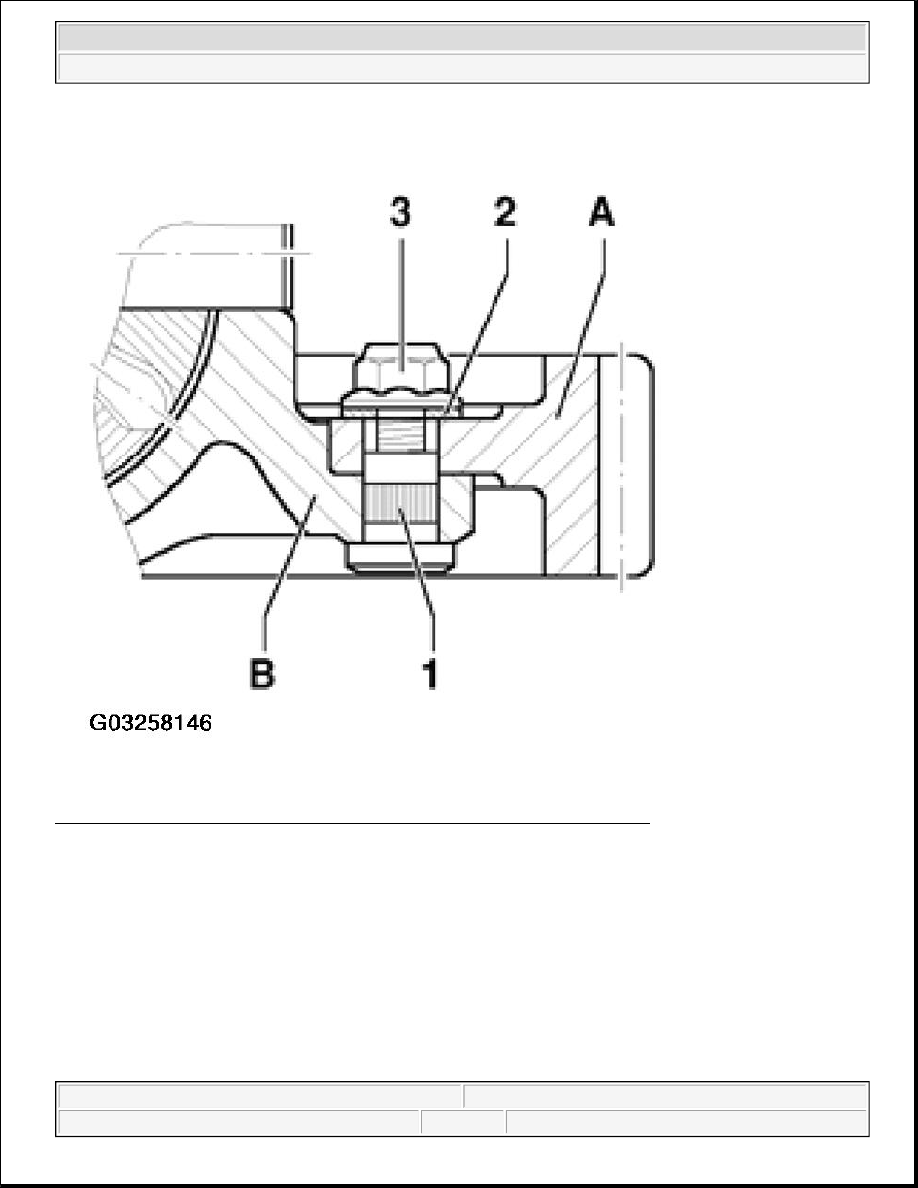

Fig. 177: Bolting Final Drive Gear -A- And Differential Housing -B- Together
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Use special bolts -1- with backing plates -2- and nuts -3- according to parts catalog.

Removing and installing differential bevel gear shaft spring pin



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



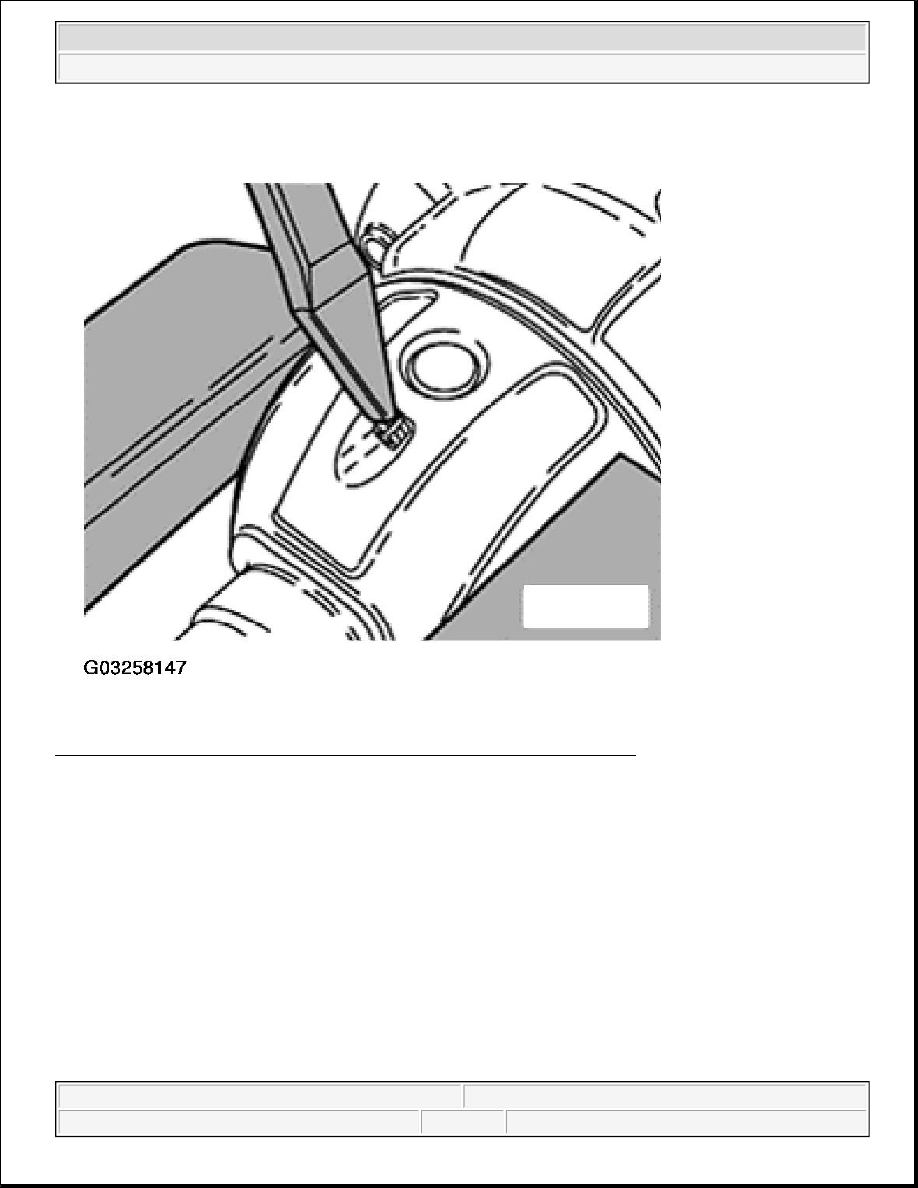

Fig. 178: Removing And Installing Differential Bevel Gear Shaft Spring Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing

z

Cover tapered roller bearing inner race to avoid possible damage and ingress of metal particles.

z

Knock out spring pin with chisel, inserting chisel into circumferential groove.

Installing

z

Knock fully into differential cage.

Installing differential bevel gears

z

Lubricate one piece thrust washer with transmission oil and install.

z

Install both large differential bevel gears and secure (e.g. with flanged shaft).



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

Insert small differential bevel gears (180° apart) and pivot into position. See Fig. 179 .

z

Push differential bevel gear shaft (arrow -A-) in until first small bevel gear.

z

Position threaded pieces (arrow -B-) in large bevel gears.

Installation position: shoulder to bevel gear

z

Drive differential bevel gear shaft into final position and secure with spring pin.

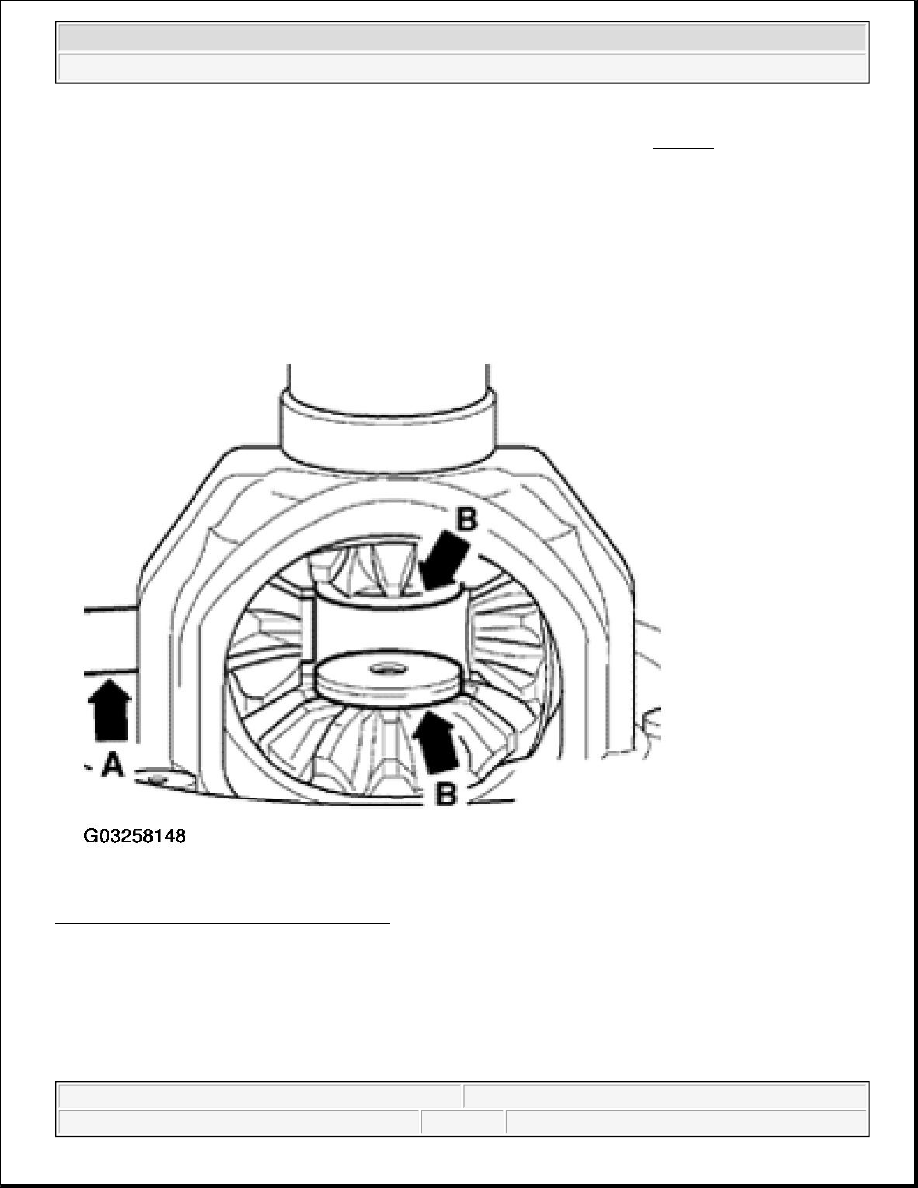

Fig. 179: Installing Differential Bevel Gears
Courtesy of VOLKSWAGEN OF AMERICA, INC.

ADJUSTMENT OVERVIEW

NOTE:

If transmission repairs have been performed, it is only necessary to adjust the
input shaft, output shaft for 1st-4th gear, output shaft 5th, 6th and reverse gear
or differential if components have been replaced which have a direct effect on



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



ADJUSTMENT OVERVIEW

DIFFERENTIAL, ADJUSTING

Special tools and equipment

z

VW 353 Transmission support

z

VW 385/17 End measuring plate

the adjustment of the transmission. Refer to ADJUSTMENT OVERVIEW table to
avoid unnecessary adjustment.



To be adjusted:



Input shaft

See Input

shaft,

adjusting

Output shaft

1st-4th gear

See Output

shaft for 1st-4th

gears, adjusting

Output shaft

5th, 6th and

reverse gear

See Output shaft

for 5th, 6th and

reverse gear,

adjusting

Differential

See

DIFFERENTIAL,

ADJUSTING

Replaced
part:

Transmission

housing part:

X

X

X

X

Clutch housing

X

X

X

X

Input shaft

X







Output shaft for

1st-4th gear



X





Output shaft

5th, 6th and

reverse gear





X



Differential

housing







X

Input shaft

tapered roller

bearing

X







Output shaft 1st-

4th gear

tapered roller

bearing



X





Output shaft 5th,

6th and reverse

gear tapered

roller bearing





X



Differential

tapered roller

bearing







X



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
