z

VW 387 Universal dial gauge bracket

z

VW 402 Thrust plate

z

VW 408 A Press tool

z

3005 Press disk

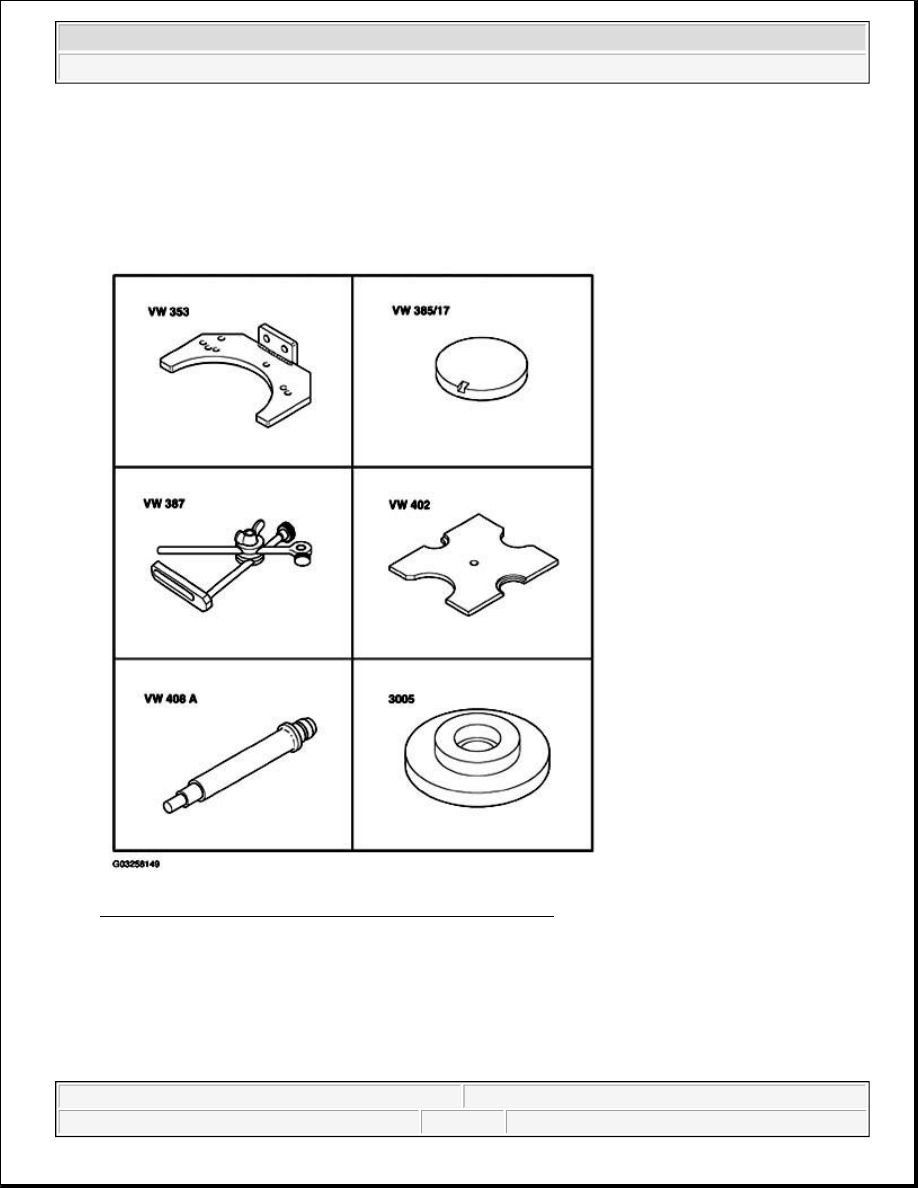

Fig. 180: Identifying Special Tools And Equipment (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

3259 Tube

z

3345 Tube

z

V.A.G 1331 Torque wrench

z

1 - Kukko 21/7 Internal puller

z

4 - Kukko 22/2 Counter support



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

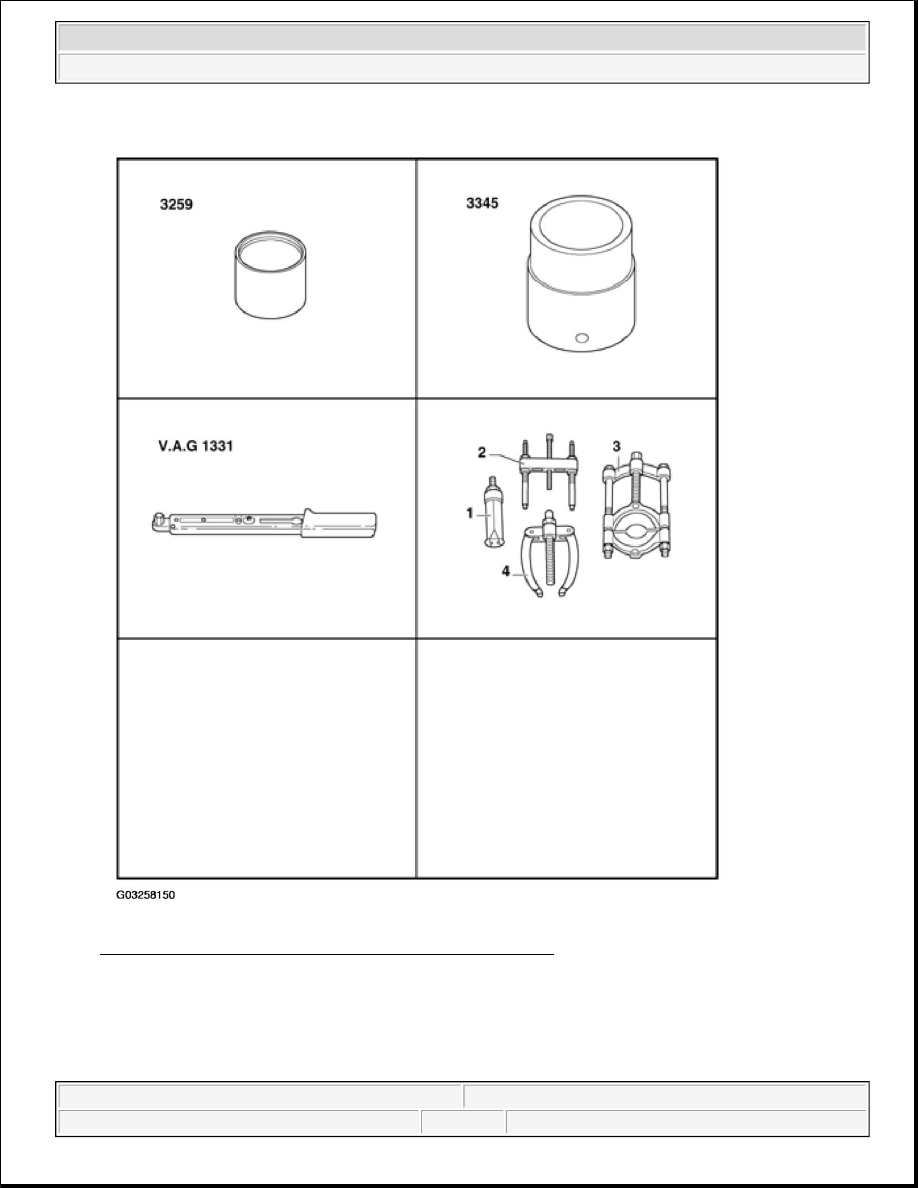

Fig. 181: Identifying Special Tools And Equipment (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The differential must be adjusted, when

z

Transmission housing

z

Clutch housing



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

Differential housing

or the

z

Differential tapered roller bearing

have been replaced.

Adjustment overview. See ADJUSTMENT OVERVIEW .

z

Press tapered roller bearing outer race with shim (thickness 0.65 mm) into clutch housing. See Removing
and installing differential bevel gear shaft spring pin
 .

z

Press tapered roller bearing outer race without shim into transmission housing.

NOTE:

Inner and outer tapered roller bearing races are a pair. Do not interchange.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

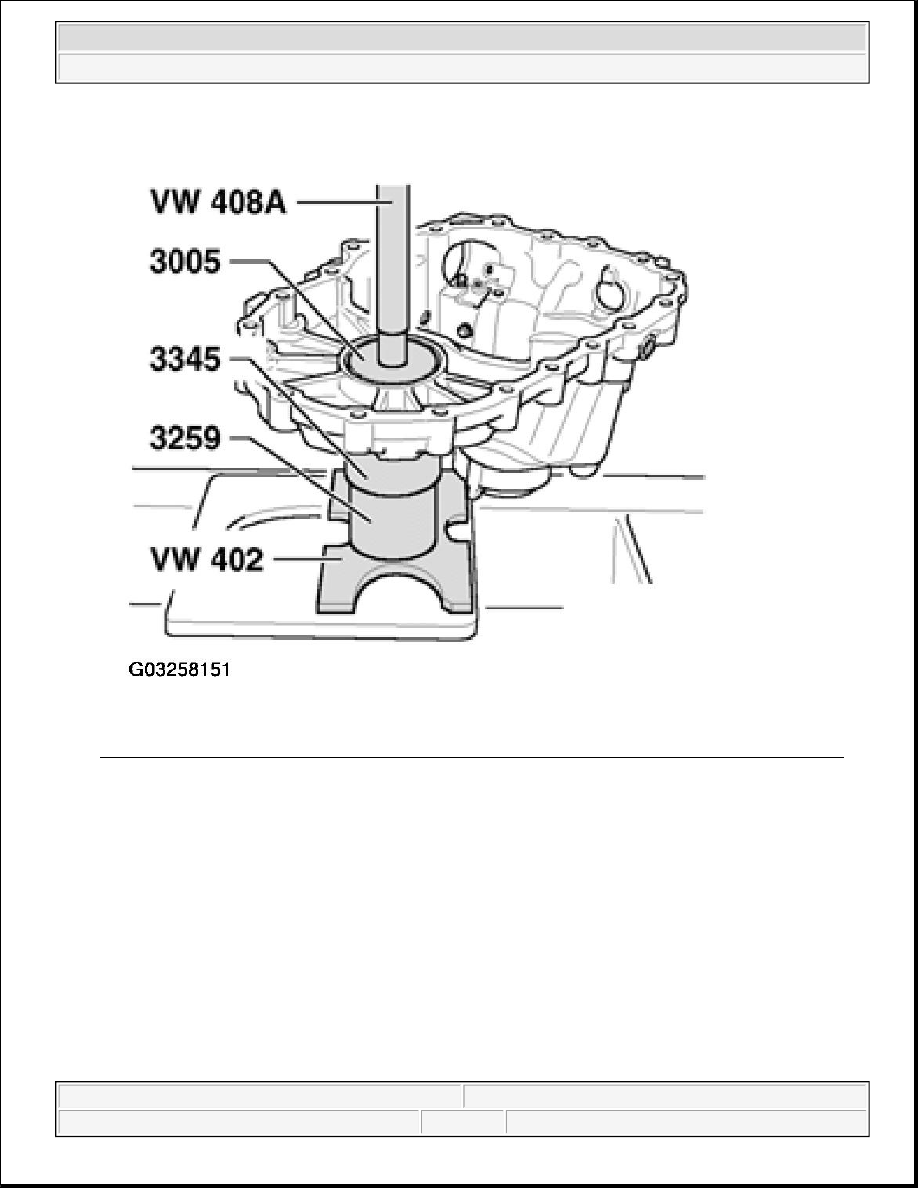

Fig. 182: Pressing Tapered Roller Bearing Outer Race Without Shim Into Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Fit differential into clutch housing

z

Fit transmission housing and tighten 5 bolts to torque setting.

z

Press differential in direction of clutch housing and when doing this turn it eight times.

z

Press differential in direction of transmission housing and when doing this turn it eight times.

z

Mount dial gauge and "0" with 1 mm preload.

A. Dial gauge extension 30 mm



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
