Volkswagen New Beetle. Manual - part 2396

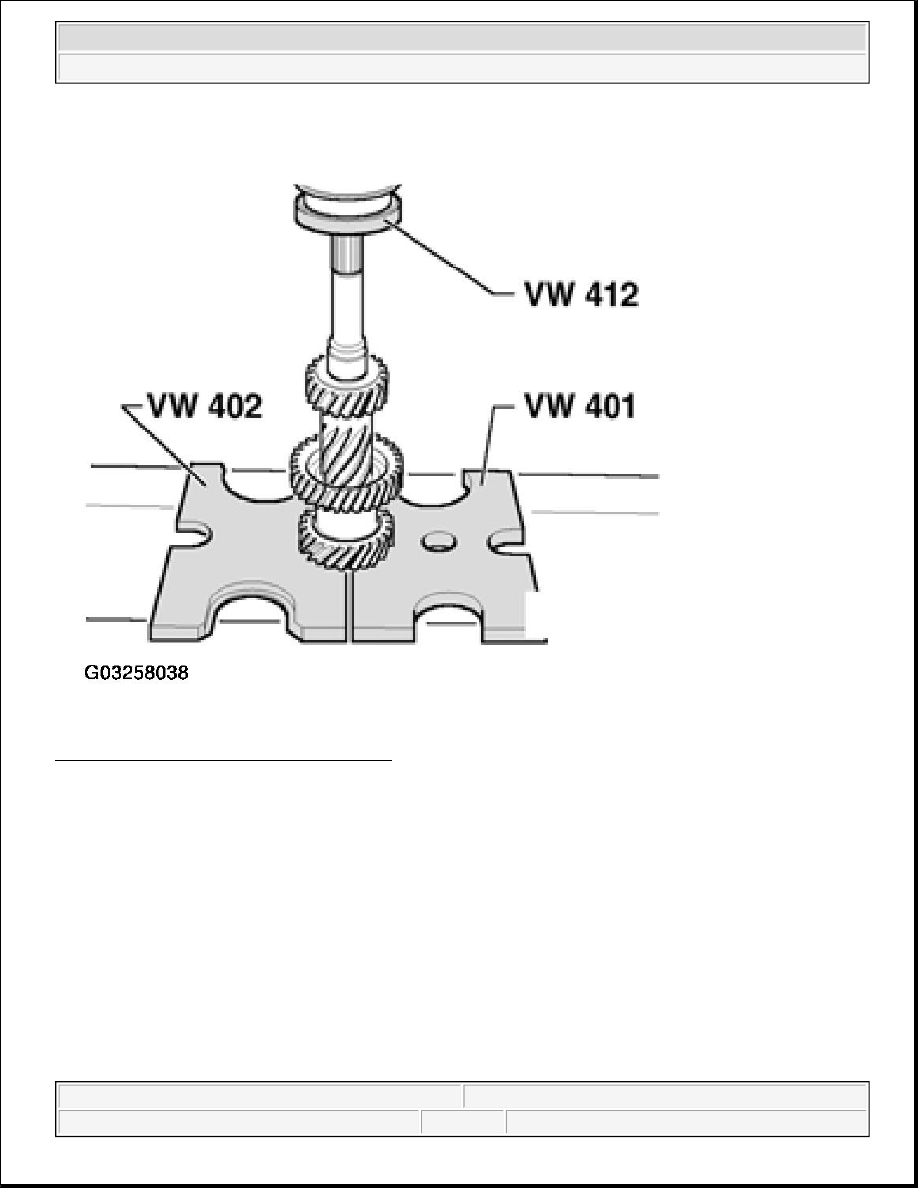

Fig. 67: Pressing Off 3rd, 4th And 6th Gear
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing off tapered roller bearing inner race



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

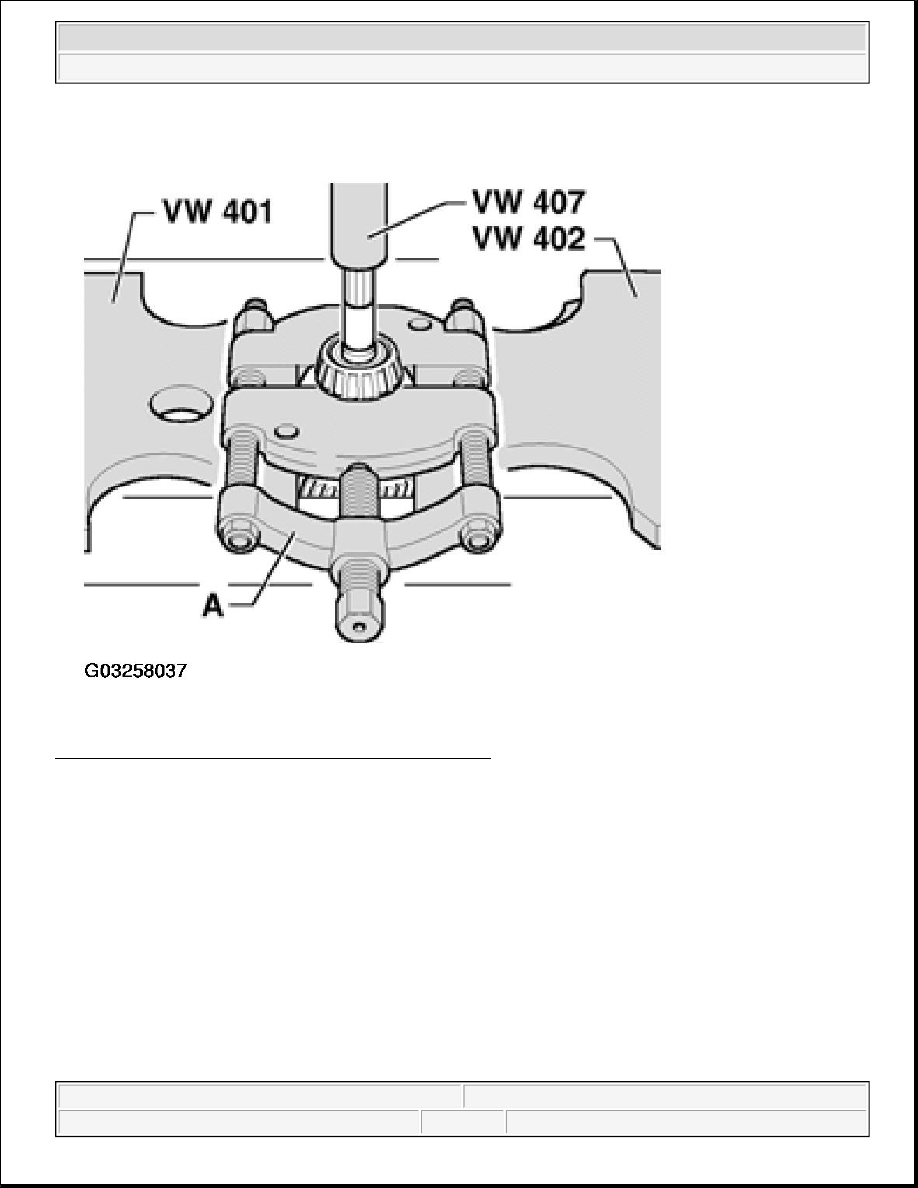

Fig. 68: Pressing Off Tapered Roller Bearing Inner Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A. Separating device 22 to 115 mm, e.g. Kukko 17/2

Pressing on 3rd, 4th and 6th gear



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

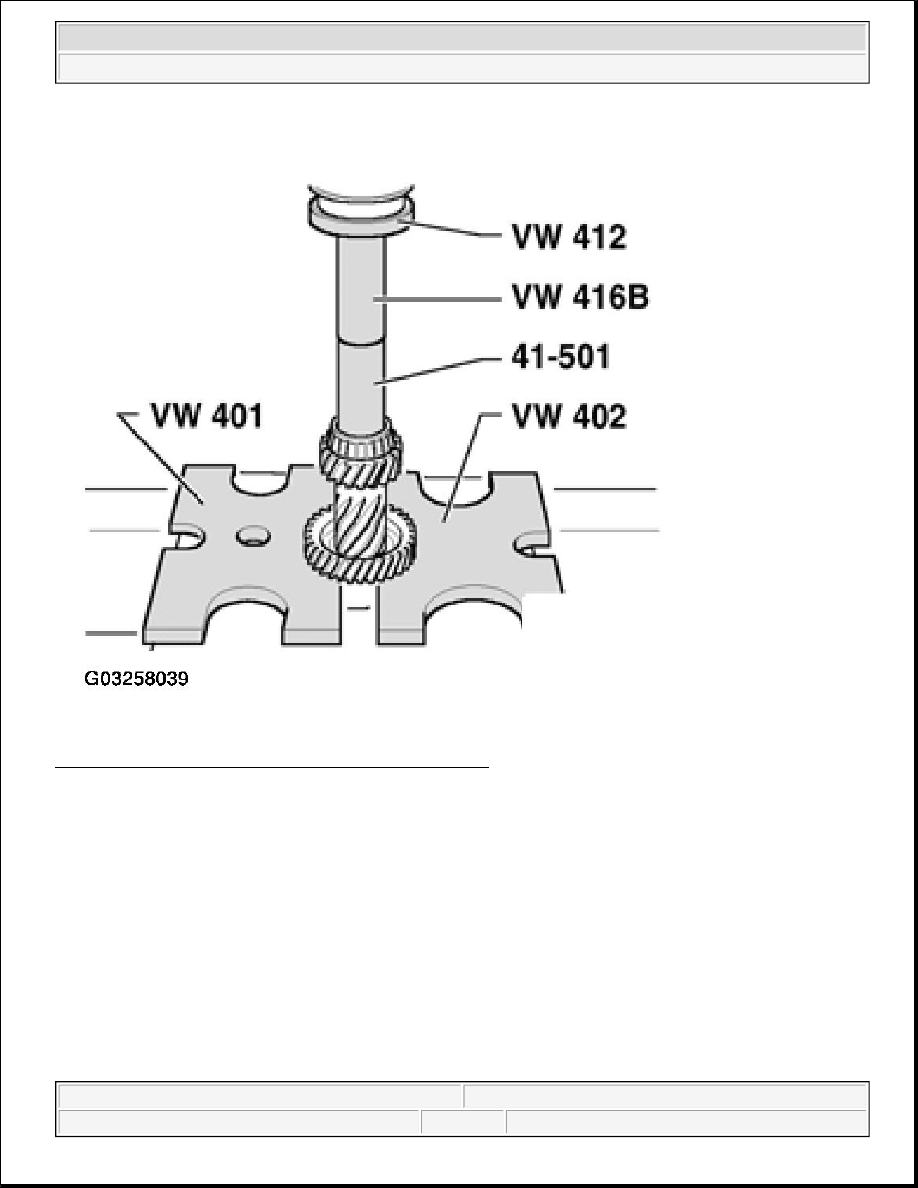

Fig. 69: Pressing On 3Rd, 4th And 6th Gear
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Heat gear wheel to about 100°C

z

Press on gear wheel quickly so that heat is not immediately transferred to input shaft.

Pressing on tapered roller bearing inner race



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



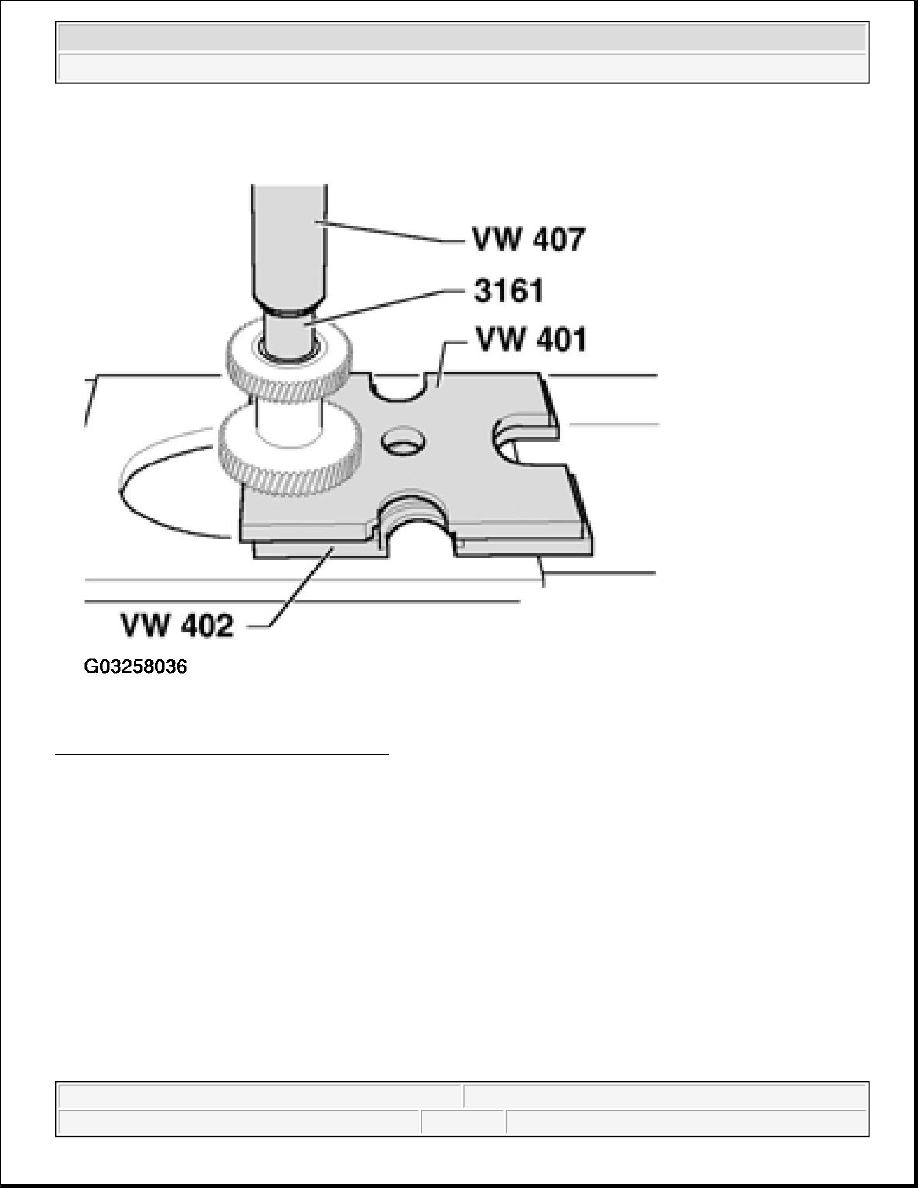

Fig. 70: Pressing On Tapered Roller Bearing Inner Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pressing on 5th gear



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
