Volkswagen New Beetle. Manual - part 2383





z

Install switch for back-up light.

z

Install flange shafts with springs, thrust washers and tapered rings.

z

Install speedometer sender.

z

Press in input shaft oil seal.

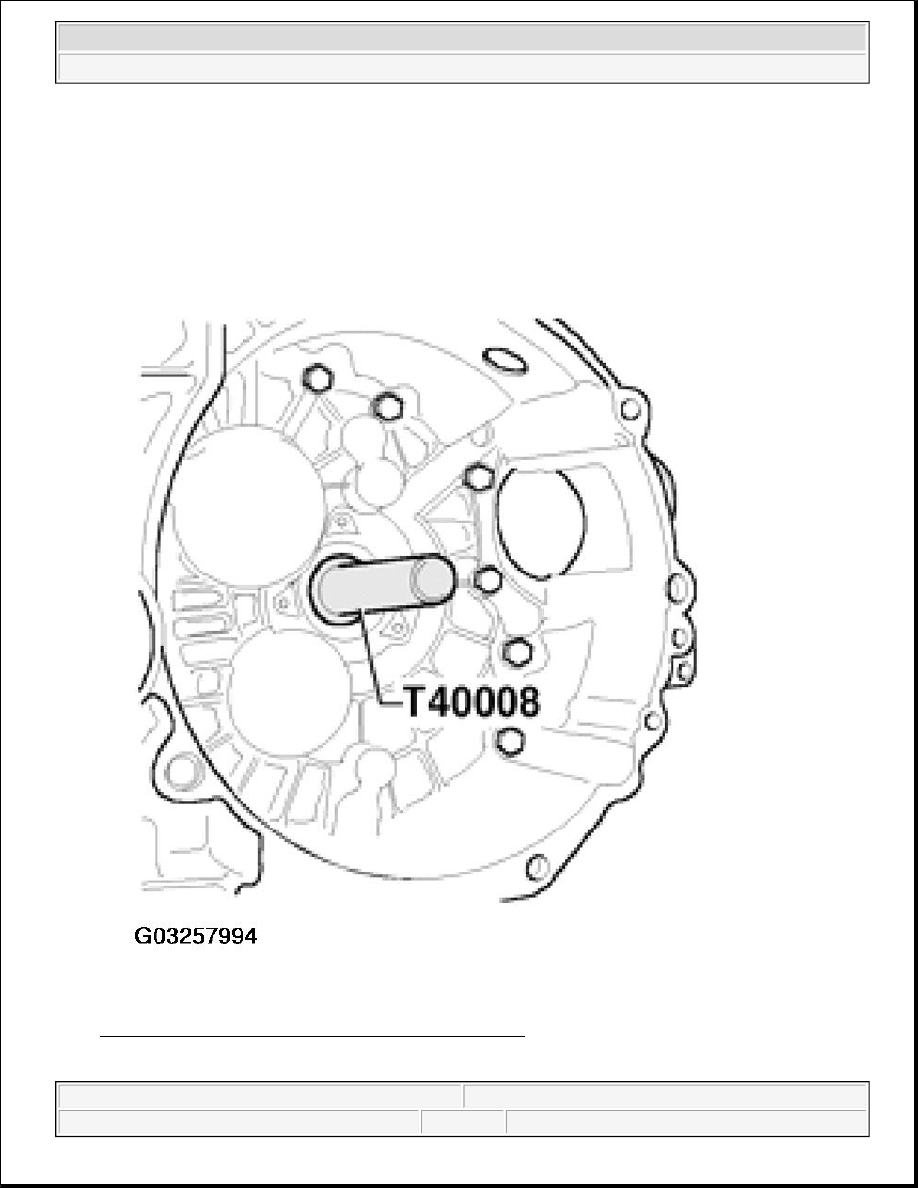

Fig. 25: Installing Slave Cylinder With Release Bearing
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



z

Install slave cylinder with release bearing.

TRANSMISSION HOUSING, SERVICING

Special tools and equipment

z

VW 309 Holding plate

z

VW 353 Transmission support

z

VW 407 Press tool

z

VW 771 Multipurpose tool

z

12-551 Centering mandrel

z

3129 Installation tool



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

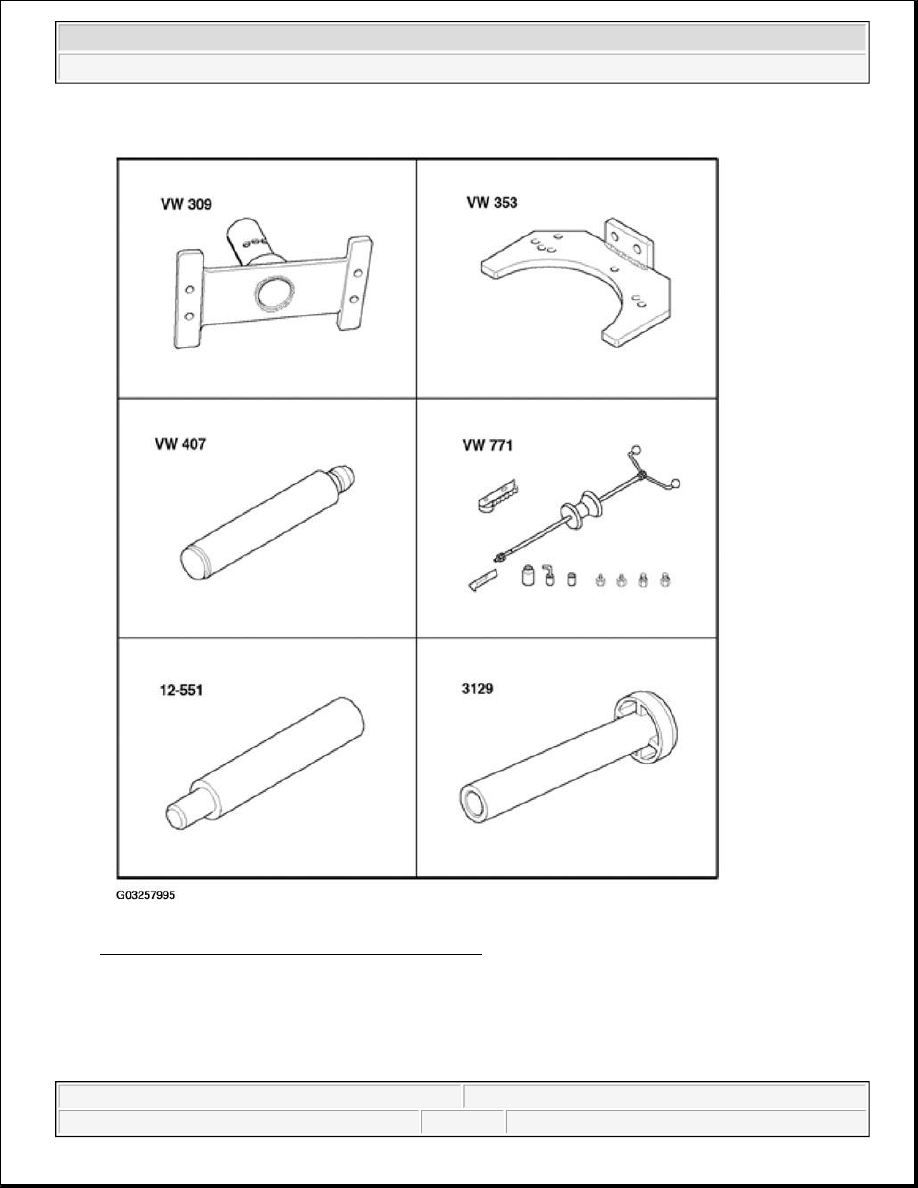

Fig. 26: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

3176 Centering mandrel



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

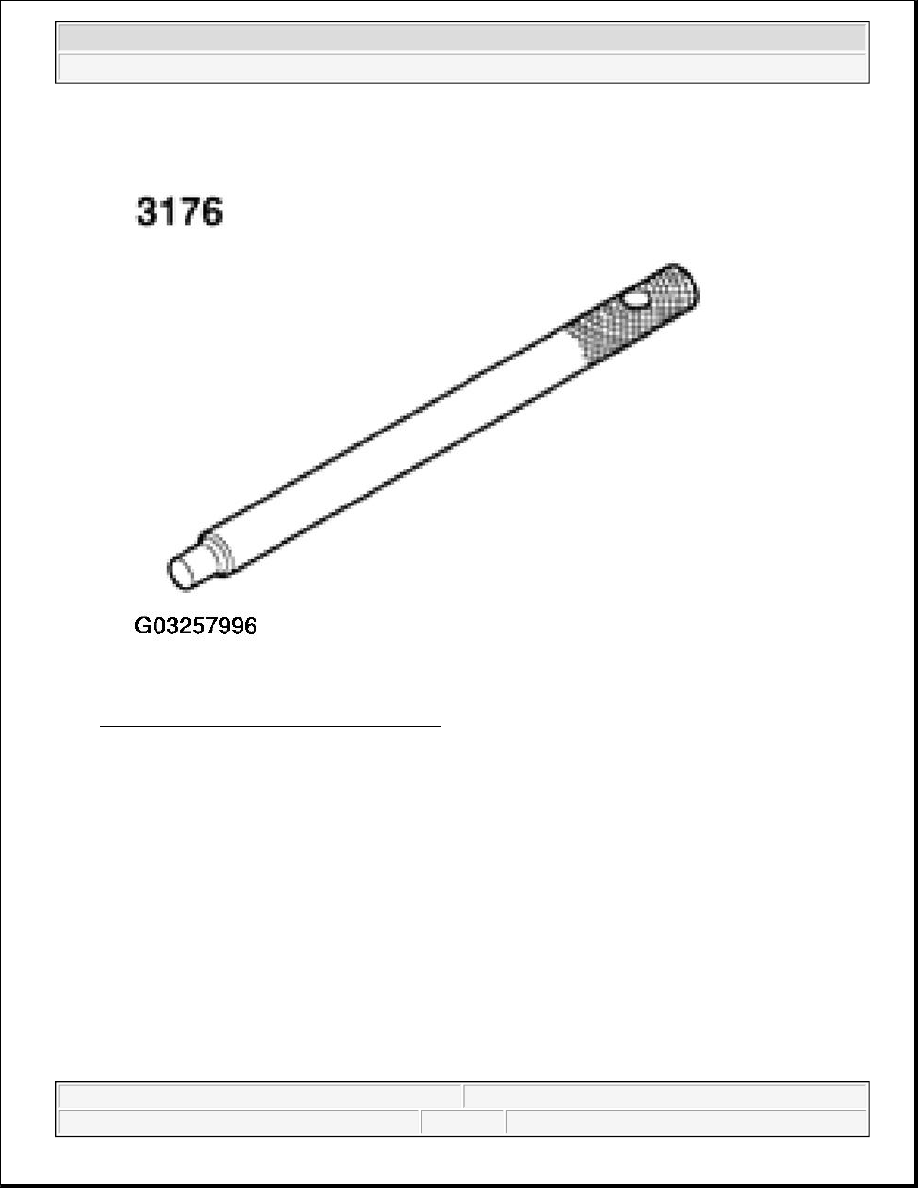

Fig. 27: Identifying 3176 Centering Mandrel
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

1 - Kukko 21/2 Internal puller

z

1 - Internal puller Kukko 21/4



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
