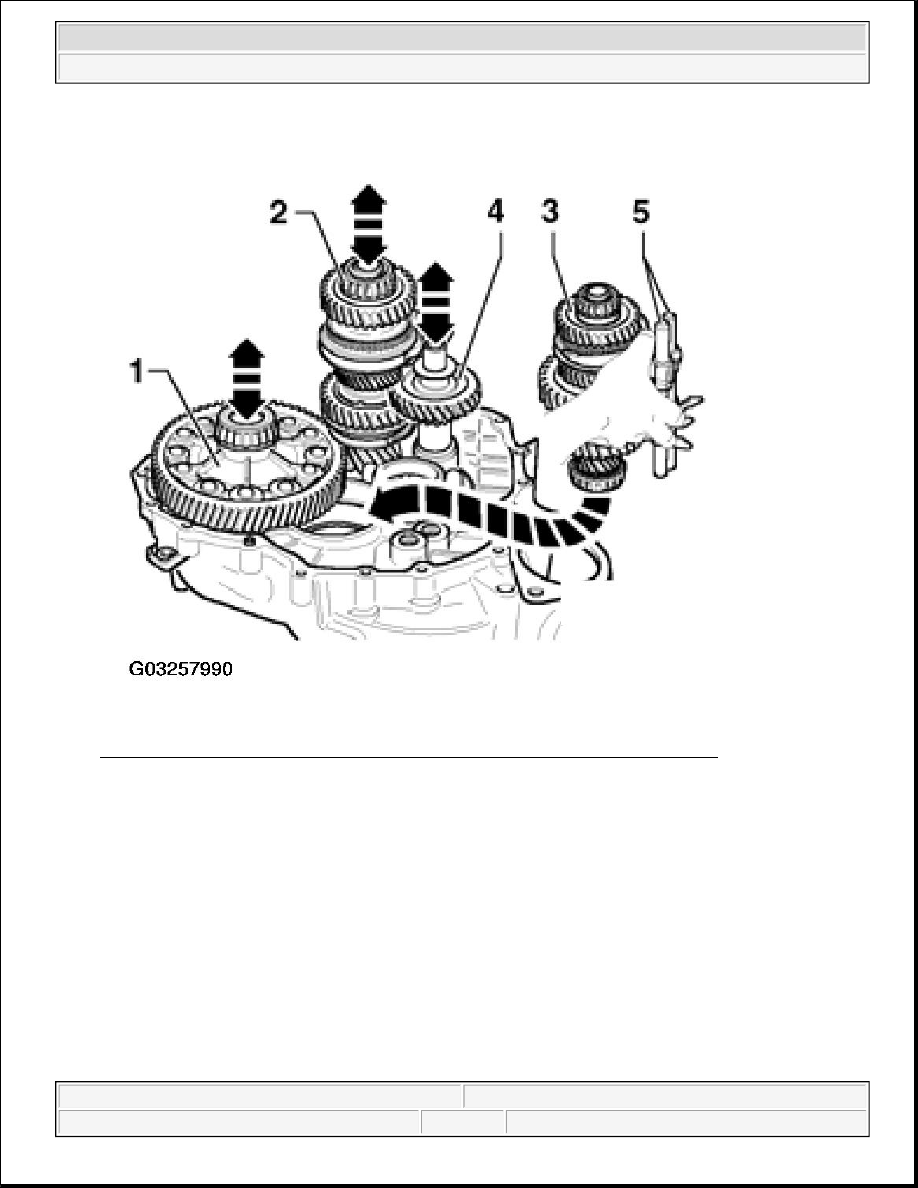

Fig. 21: Removing 1st-4th Gear Output Shaft With Selector Rods In Right Hand
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

With left hand, lift differential slightly.

z

At same time, have a second mechanic slightly lift 5th, 6th and reverse gear output shaft together with
reverse shaft -4-.

z

Insert 1st-4th gear output shaft in direction of arrow.

Toothing of output shafts and final drive gear/differential must mesh.

z

Together with second mechanic, place shafts in their bearing seats.

z

Set input shaft in clutch housing and swing in -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

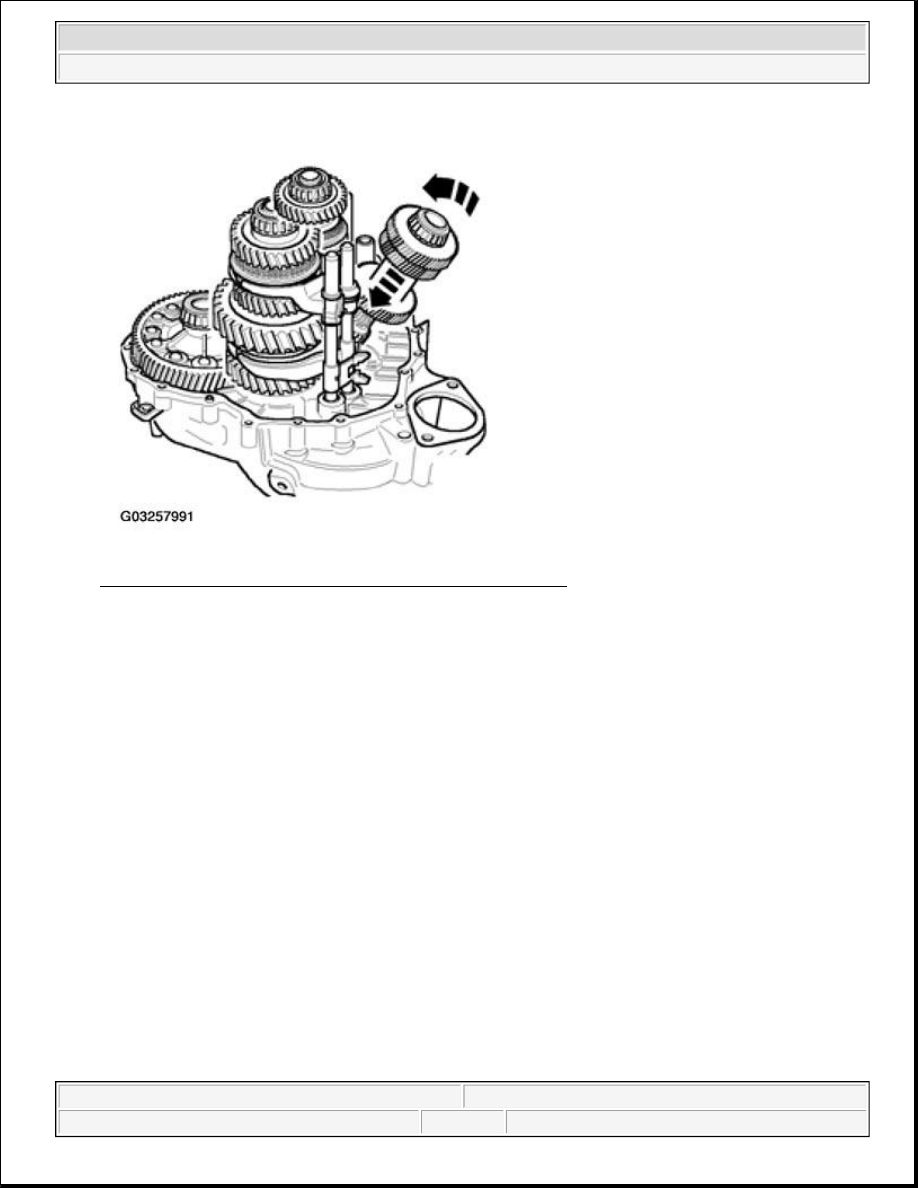

Fig. 22: Setting Input Shaft In Clutch Housing And Swing In
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Fit transmission housing.

Install selector shaft as follows:

z

Bring selector rods -A- into neutral.

z

Insert selector shaft -1-.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



Fig. 23: Inserting Selector Shaft
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Position selector shaft so that shift fingers are inserted in selector rods, see Installation position of



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



complete selector mechanism in transmission

z

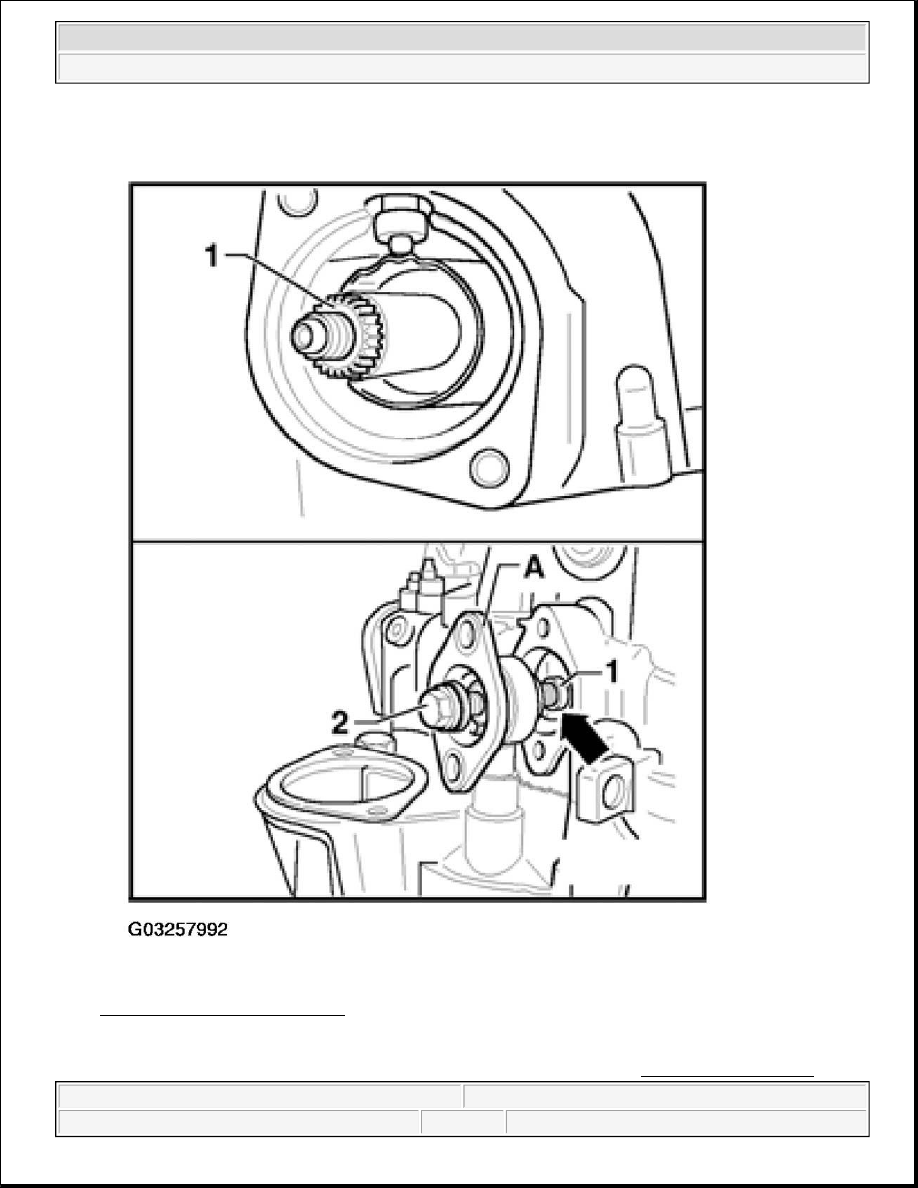

When doing this, align lower selector shaft bearing -arrow- through drilling for cover plate.

z

Bolt cover plate -A- to lower selector shaft bearing -1- with bolt -2-, M8 x 60 mm.

z

Hand tighten cover plate -A- by alternately tightening (1/2turn) bolts -arrows-.

z

Remove bolt -2- and hand tighten original bolt in its place.

z

Install selector shaft cover -B- and tighten hex bolts to torque.

z

Tighten cover plate hex bolts.

z

Insert locking bolt -3- for selector shaft gate with locking fluid D 000 600 A2.

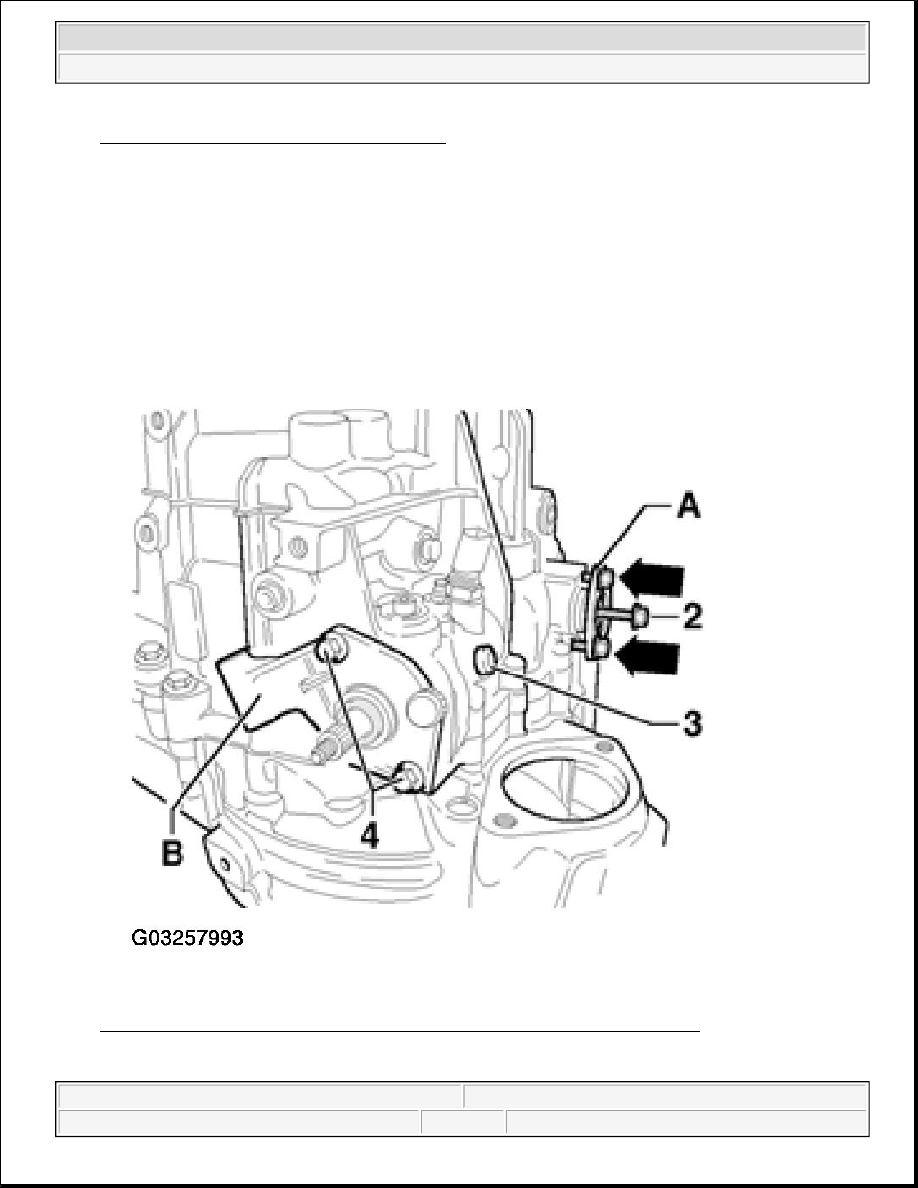

Fig. 24: Tightening Cover Plate -A- By Alternately Tightening (1/2Turn) Bolts
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
