Volkswagen New Beetle. Manual - part 2380

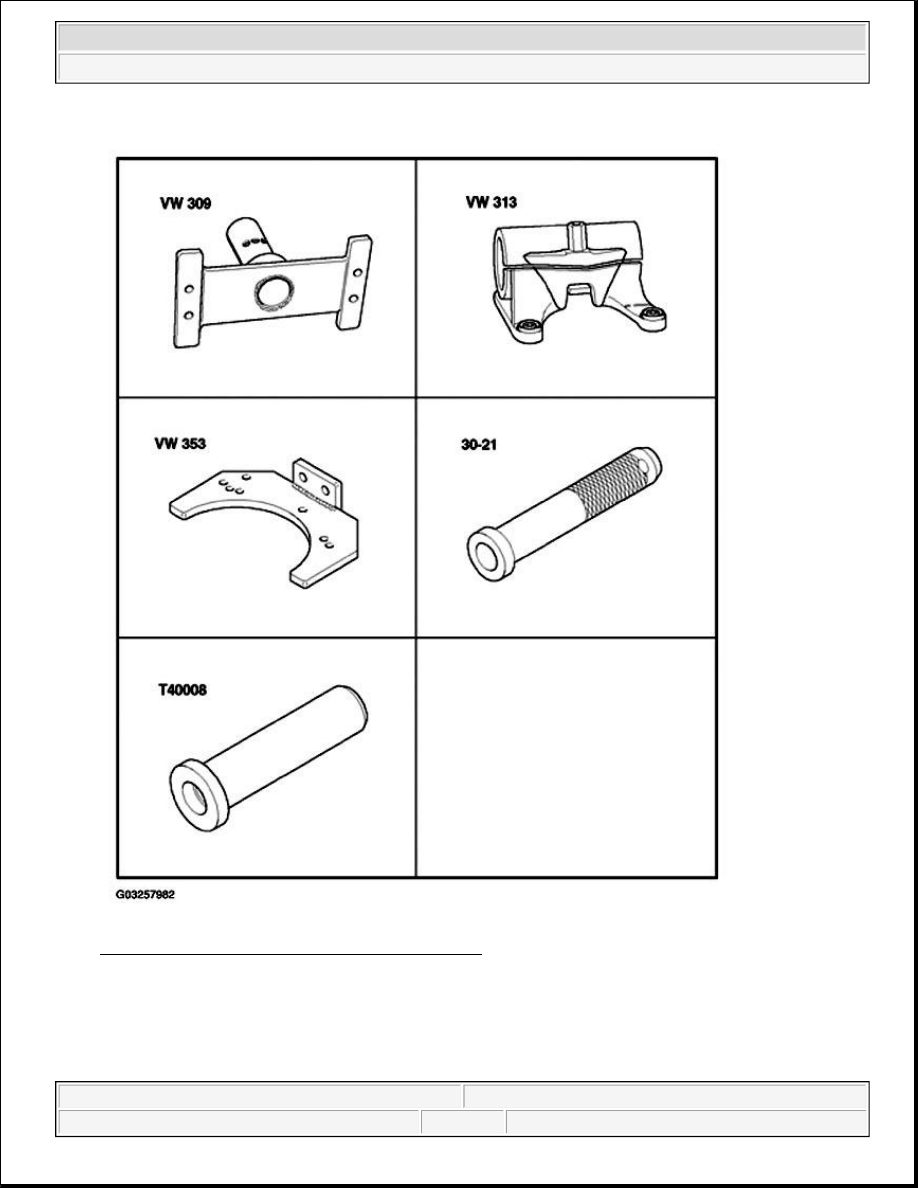

Fig. 13: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Disassembling

z

Secure transmission to assembly support with bolts -arrows-.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

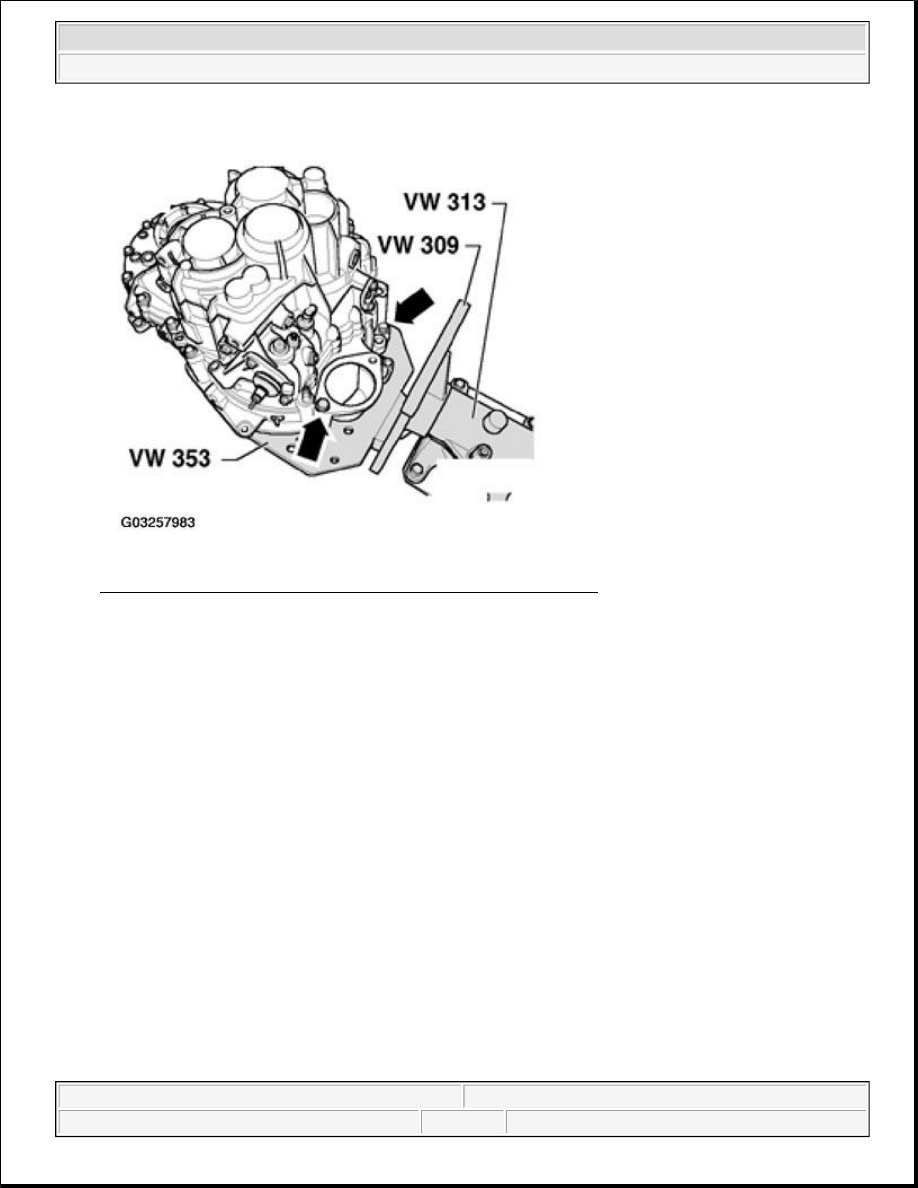

Fig. 14: Securing Transmission To Assembly Support With Bolts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Turn transmission on assembly support with oil drain plug downward.

z

Place drip tray underneath.

z

Drain transmission oil.

z

Remove slave cylinder with release bearing -arrows-.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



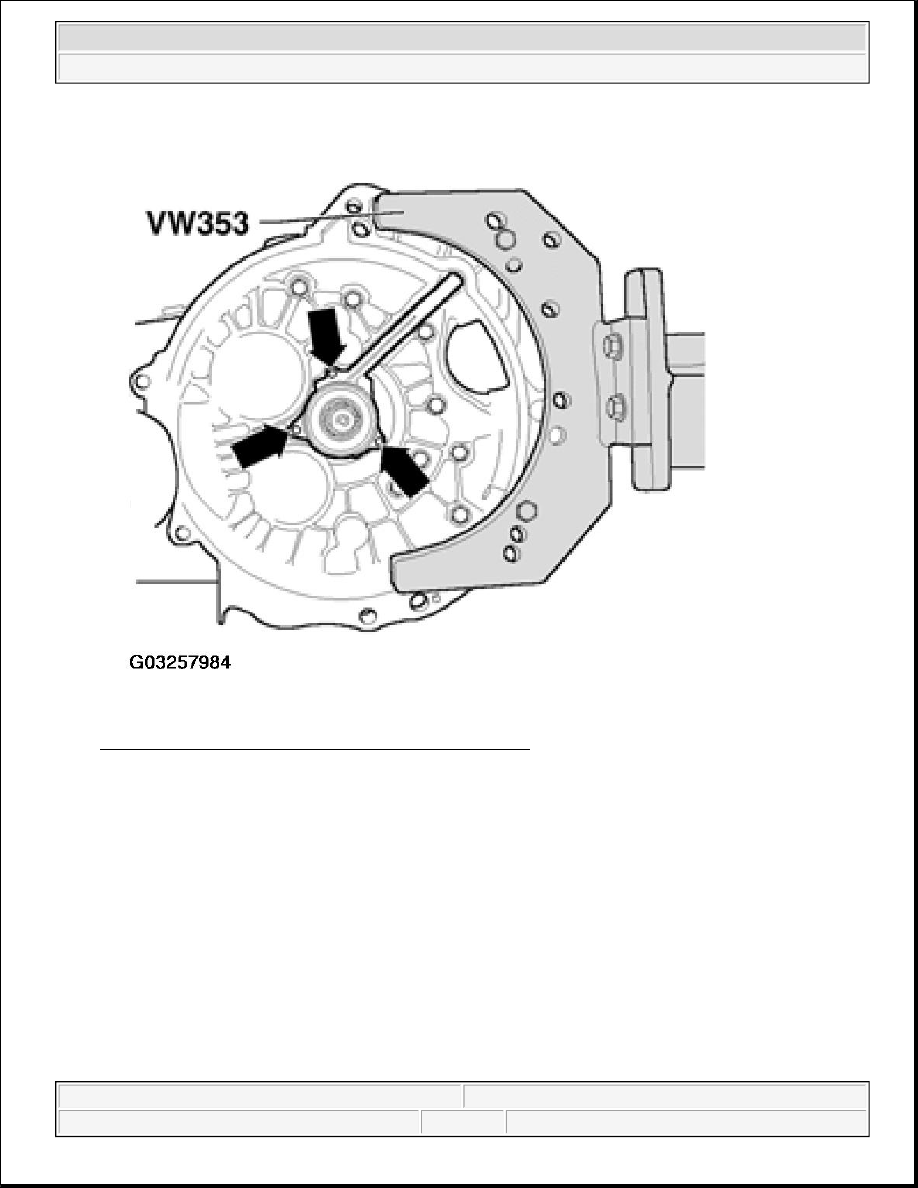

Fig. 15: Removing Slave Cylinder With Release Bearing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Put selector shaft in neutral position.

z

Remove back-up light switch -1-.

z

Remove hex bolts -2- for selector shaft cover plate -A-.

z

Carefully pull out cover plate.

z

Remove locking bolt -3- for selector shaft gate.

z

Remove bolts -4- and press selector shaft cover -B- out of transmission housing.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

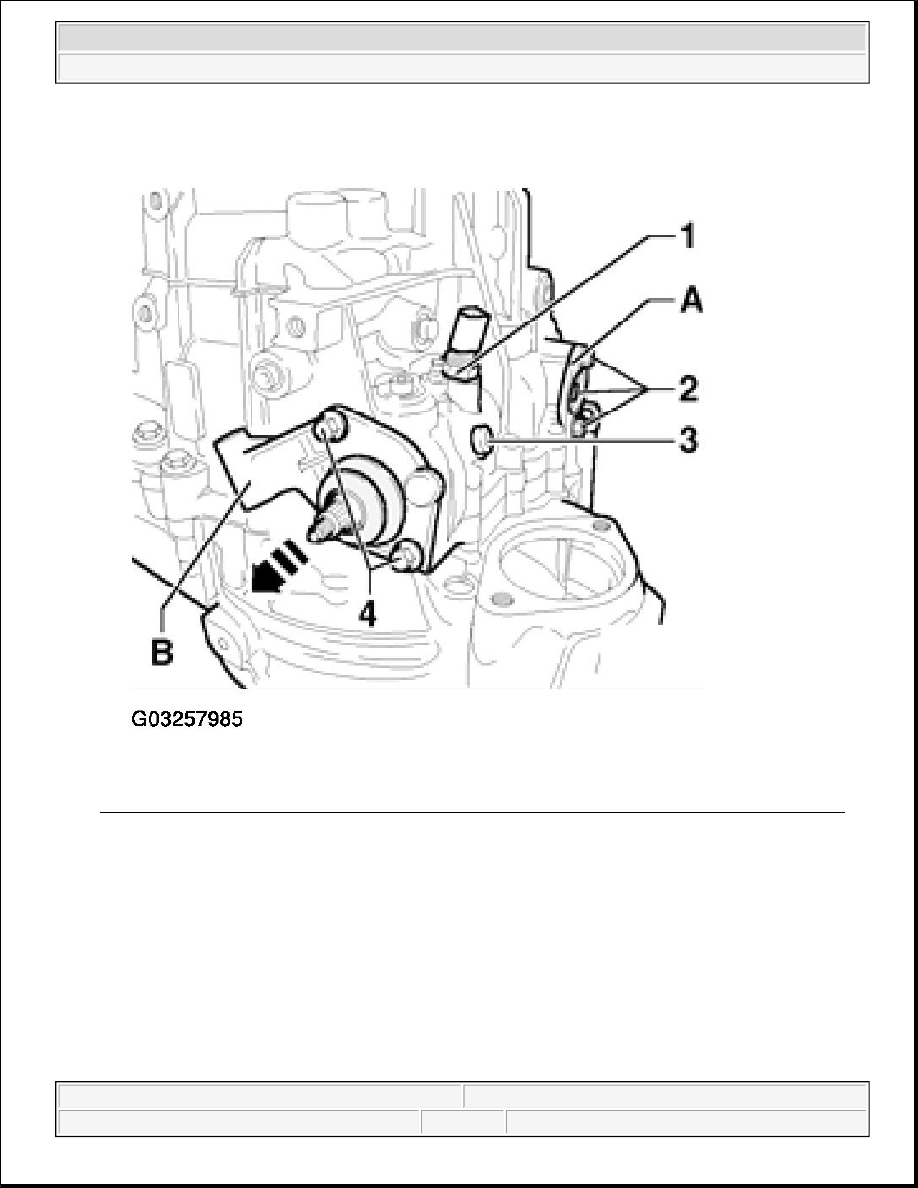

Fig. 16: Removing Bolts -4- And Pressing Selector Shaft Cover -B- Out Of Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull selector shaft out of transmission housing.

z

Remove both flange shafts.

z

Remove bolts securing transmission housing to clutch housing -A- in area of differential.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
