Volkswagen New Beetle. Manual - part 2381





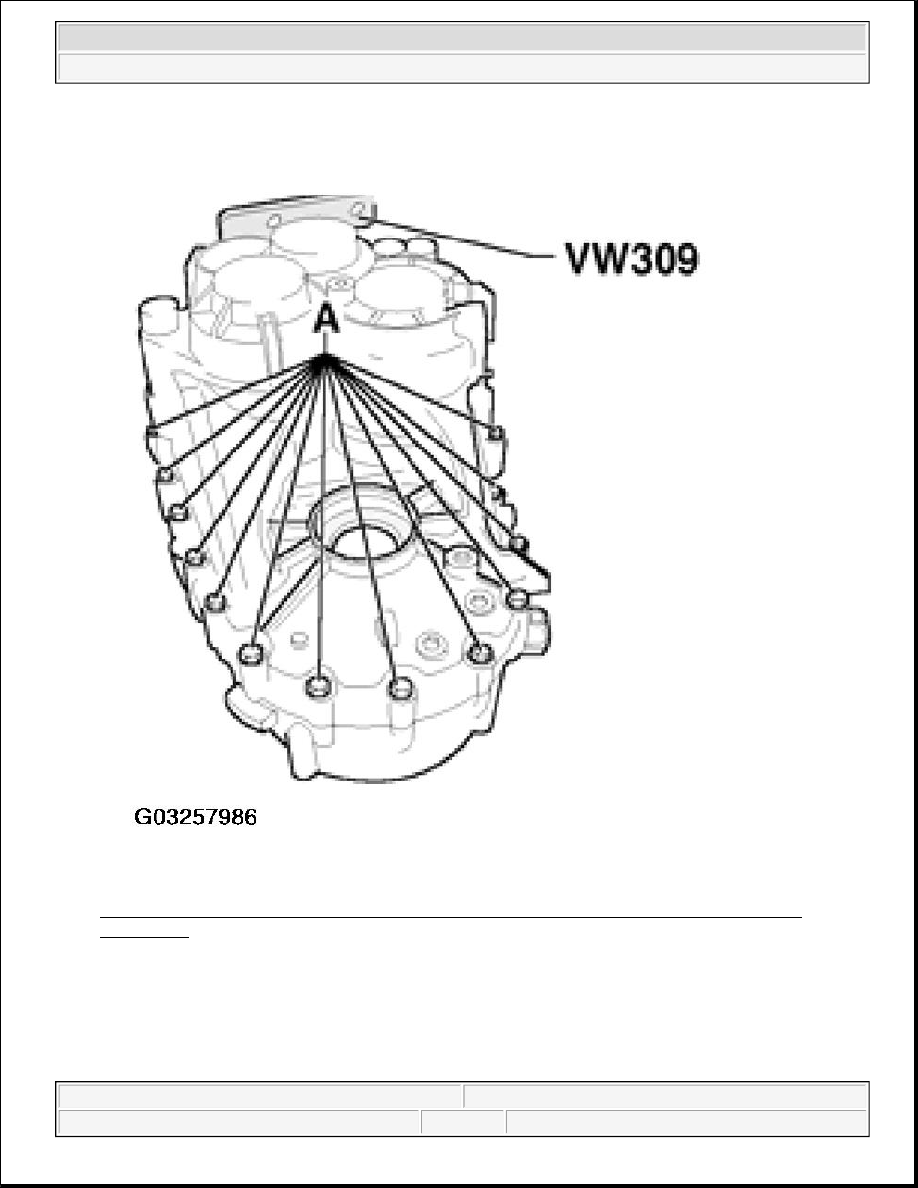

Fig. 17: Removing Bolts Securing Transmission Housing To Clutch Housing -A- In Area Of
Differential

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove bolts -B- inside clutch housing for securing clutch housing to transmission housing.

NOTE:

The hex bolt -arrow- is located outside the bolting flange. It is fitted with a
washer.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



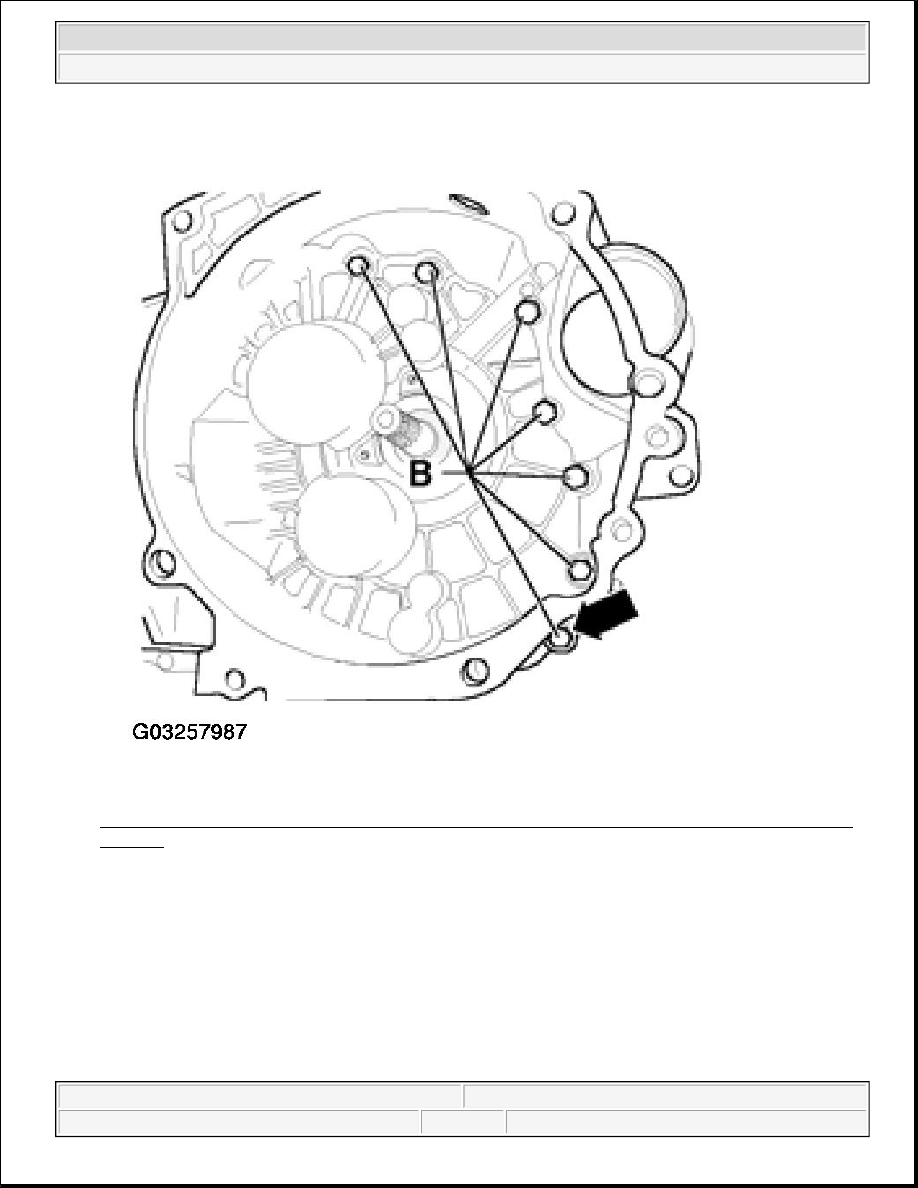

Fig. 18: Removing Bolts -B- Inside Clutch Housing For Securing Clutch Housing To Transmission
Housing

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Take off transmission housing. If necessary, carefully pry up all around and alternating between sides on
protruding flange taking care not to damage sealing surfaces.

z

Swing input shaft in direction of arrow and take off.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



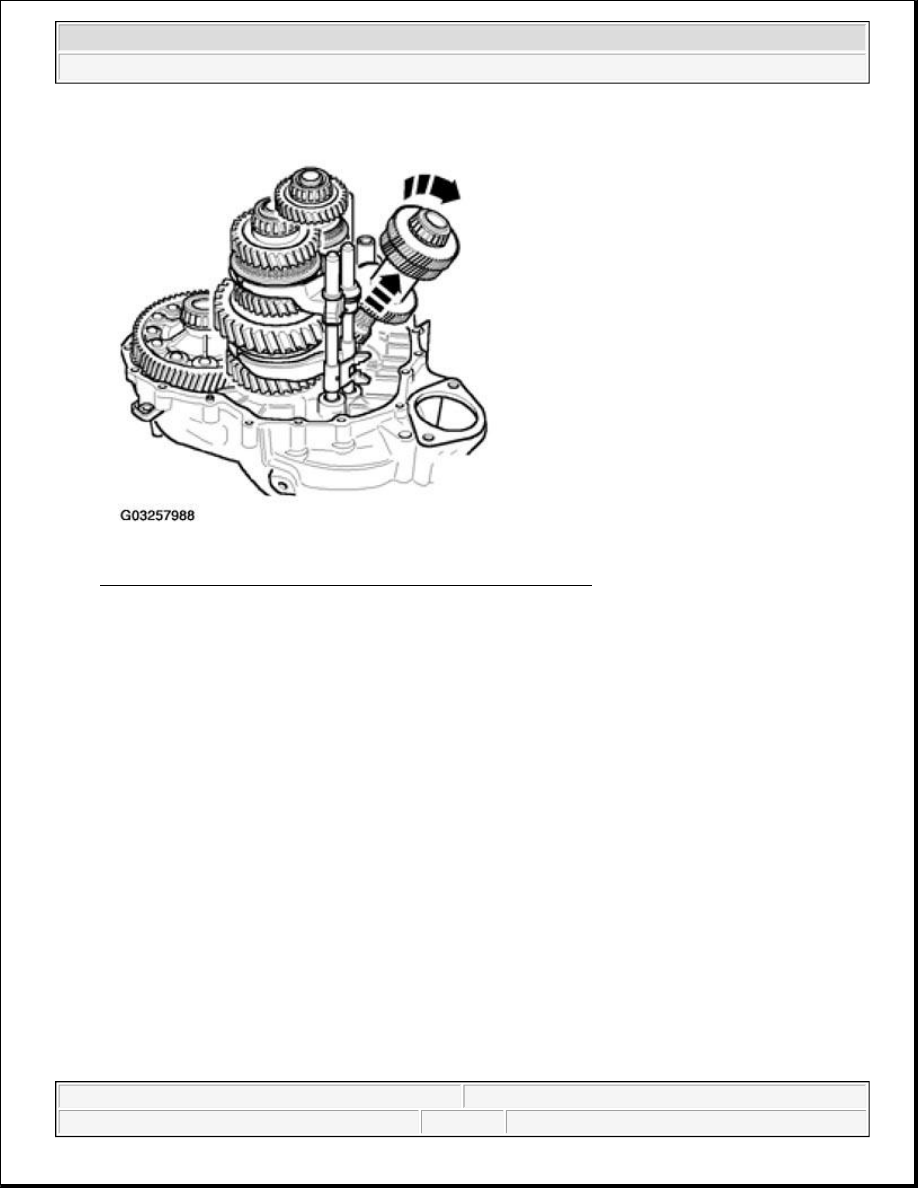

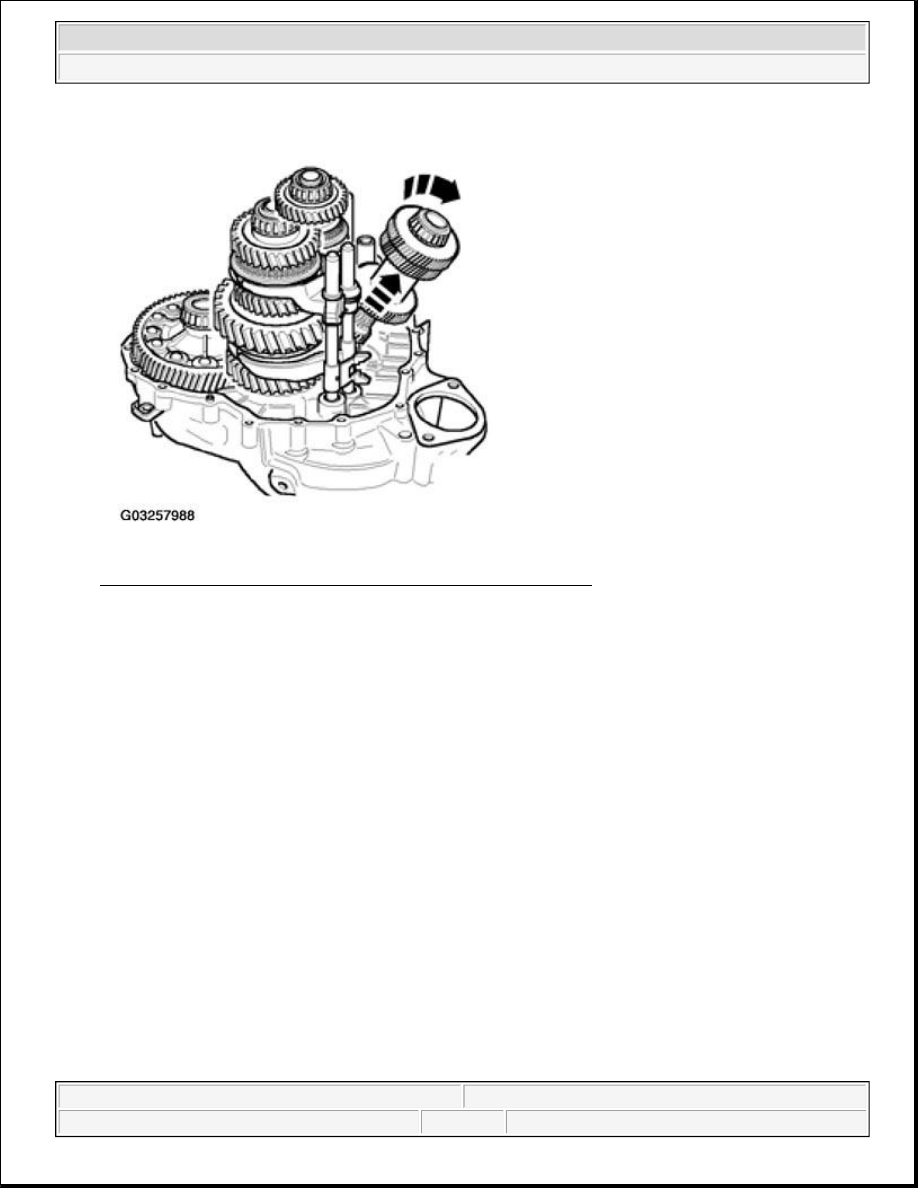

Fig. 19: Swing Input Shaft In Direction Of Arrow And Take Off
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove speedometer drive.

z

With help of a second mechanic, remove differential -1-, output shafts -2- and -3-, reverse shaft -4- and
selector rods -5- together from clutch housing.



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



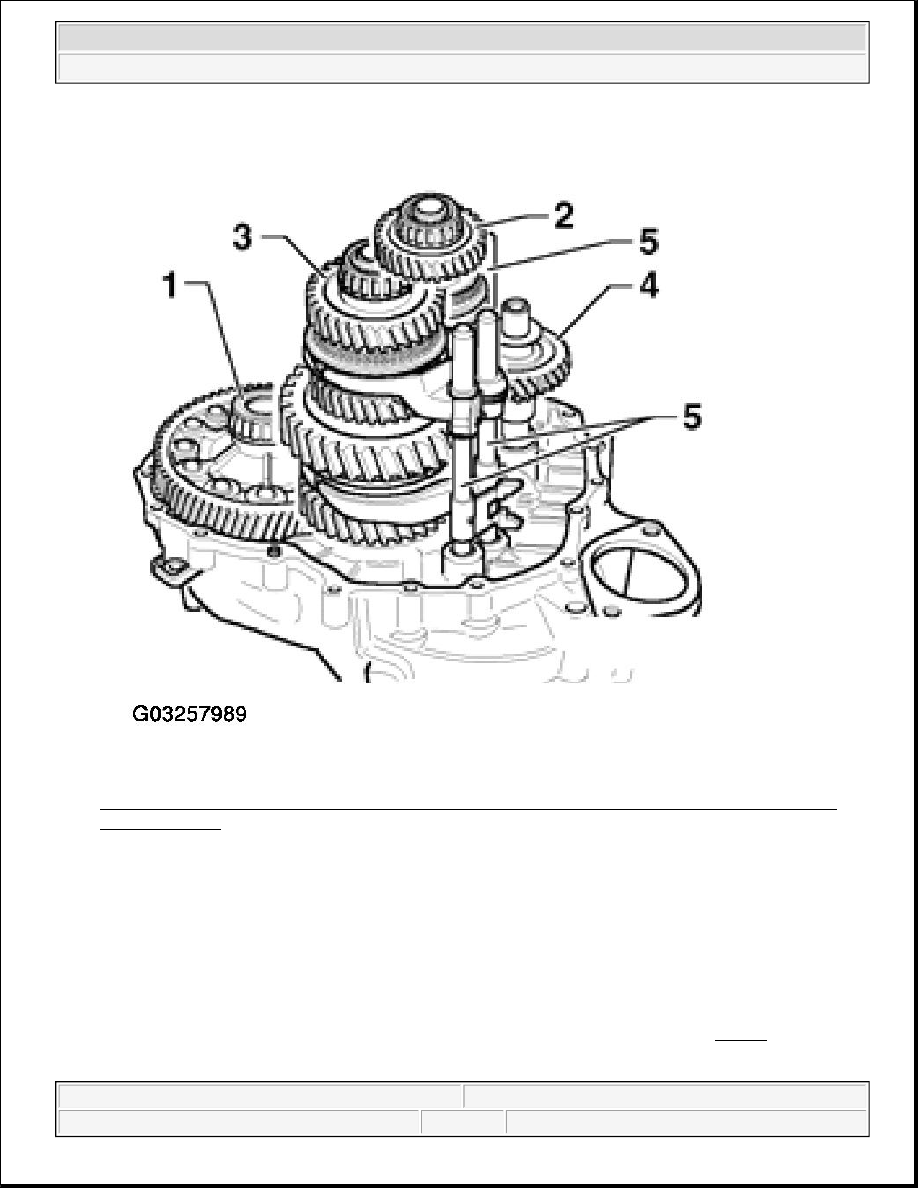

Fig. 20: Removing Differential, Output Shafts, Reverse Shaft And Selector Rods Together From
Clutch Housing

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Drive out input shaft oil seal with sleeve 30-21.

Assembling

z

Install differential -1-.

z

Install 5th, 6th and reverse gear output shaft -2- together with reverse selector fork, 5th, 6th and reverse
gear selector rod -3- and reverse shaft -4-.

z

Take 1st-4th gear output shaft -3- with selector rods -5- in right hand as illustrated in Fig. 21



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
