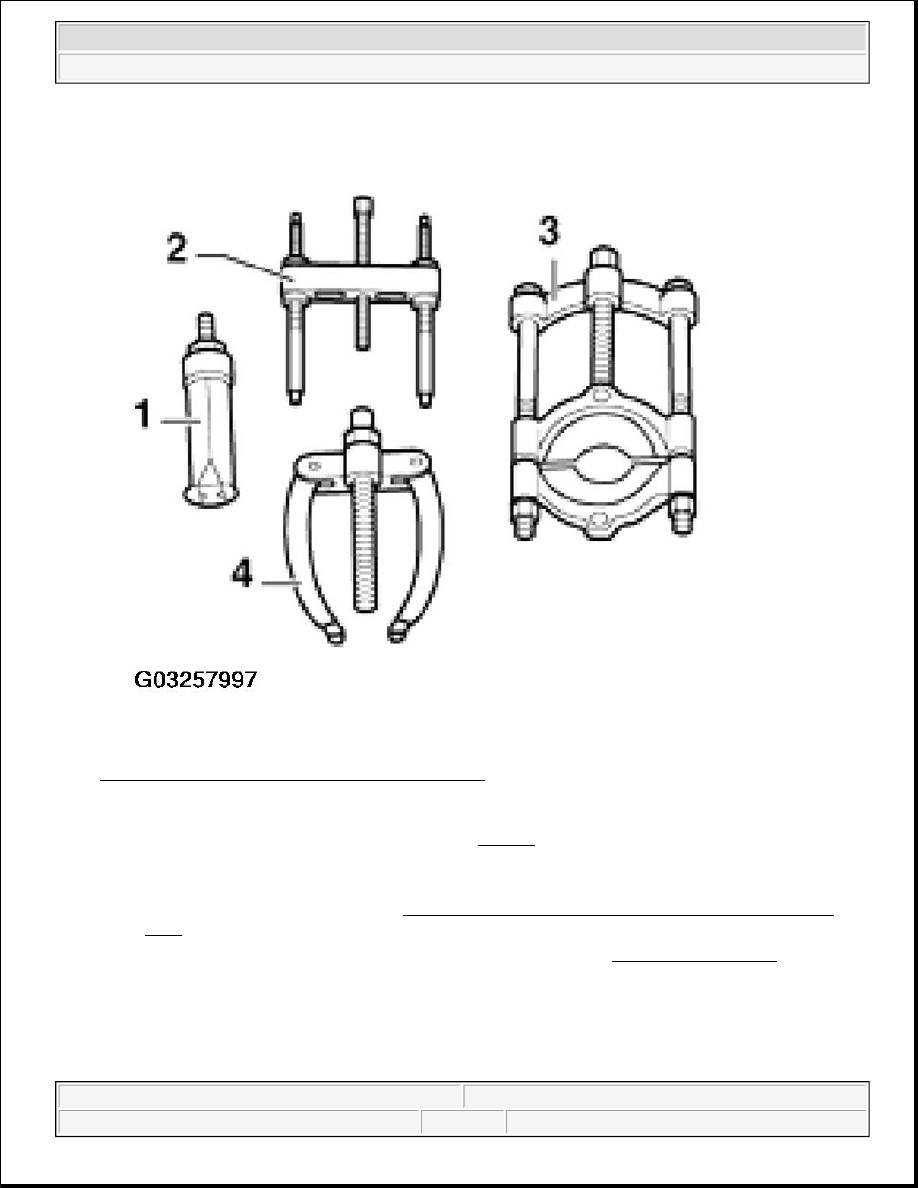

Fig. 28: Identifying 1 - Kukko 21/2 Internal Puller
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Transmission housing

z

Clamping in assembly bracket. See Securing transmission housing to assembly bracket with
bolts
 .

z

If replaced: adjust input shaft, output shafts and differential. See Adjustment overview .

2. Oil seal

z

Always replace

3. Oil drain plug, 30 N.m

z

Always replace

NOTE:

The following list refers to items in Fig. 29 .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



4. Stop sleeves

z

Driving out. See Driving out stop sleeve

z

Driving in. See Driving stop sleeve in onto stop

5. Oil filler plug, 30 N.m

z

Always replace

6. Locking pin

z

Is pressed into gate of selector shaft when adjusting outer selector mechanism. See SELECTOR
MECHANISM
 .

z

Driving out. See Driving out locking pin

z

Driving in. See Driving in locking pin onto stop

7. Bushing

z

For selector rods

z

Replace each time after removing

z

Pulling out. See Pulling out mounting bushing for selector rod .

z

Installing. See Driving selector rod mounting bushing in flush .

8. Needle bearing

z

Replace each time after removing

z

Pulling out Pulling reverse shaft needle bearing out of transmission housing .

z

Pressing in. See Pressing needle bearing into transmission housing .

9. Shim

z

For input shaft

z

Adjustment overview. See Adjustment overview .

10. Outer race/tapered roller bearing

z

For input shaft

z

Removing and installing. See from Input shaft, disassembling and assembling .

z

If replaced: Adjust input shaft. See Input shaft, adjusting .

11. Outer race/tapered roller bearing

z

For 5th, 6th and reverse gear output shaft

z

Removing and installing. See from Output shaft for 5th, 6th and reverse gear, disassembling
and assembling
 .

z

If replaced: adjust 5th, 6th and reverse gear output shaft. See Output shaft for 5th, 6th and
reverse gear, adjusting
 .

12. Shim

z

For 5th, 6th and reverse gear output shaft

z

Adjustment overview. See Adjustment overview .

13. Outer race/tapered roller bearing

z

For 1st-4th gear output shaft

z

Removing and installing. See Pulling tapered roller bearing outer race out of transmission



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle



housing .

z

If replaced: Adjust 1st-4th gear output shaft. See Output shaft for 1st-4th gears, adjusting .

14. Shim

z

For 1st-4th gear output shaft

z

Adjustment overview. See Adjustment overview .

15. Outer race/tapered roller bearing

z

For differential

z

Removing and installing. See from Differential, disassembling and assembling .

z

If replaced: adjust differential. See Differential, adjusting .

16. Shim

z

For differential

z

Adjustment overview. See Adjustment overview .

17. Oil seal

z

Replace. See OIL SEALS FOR FLANGED SHAFTS, REPLACING .



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle

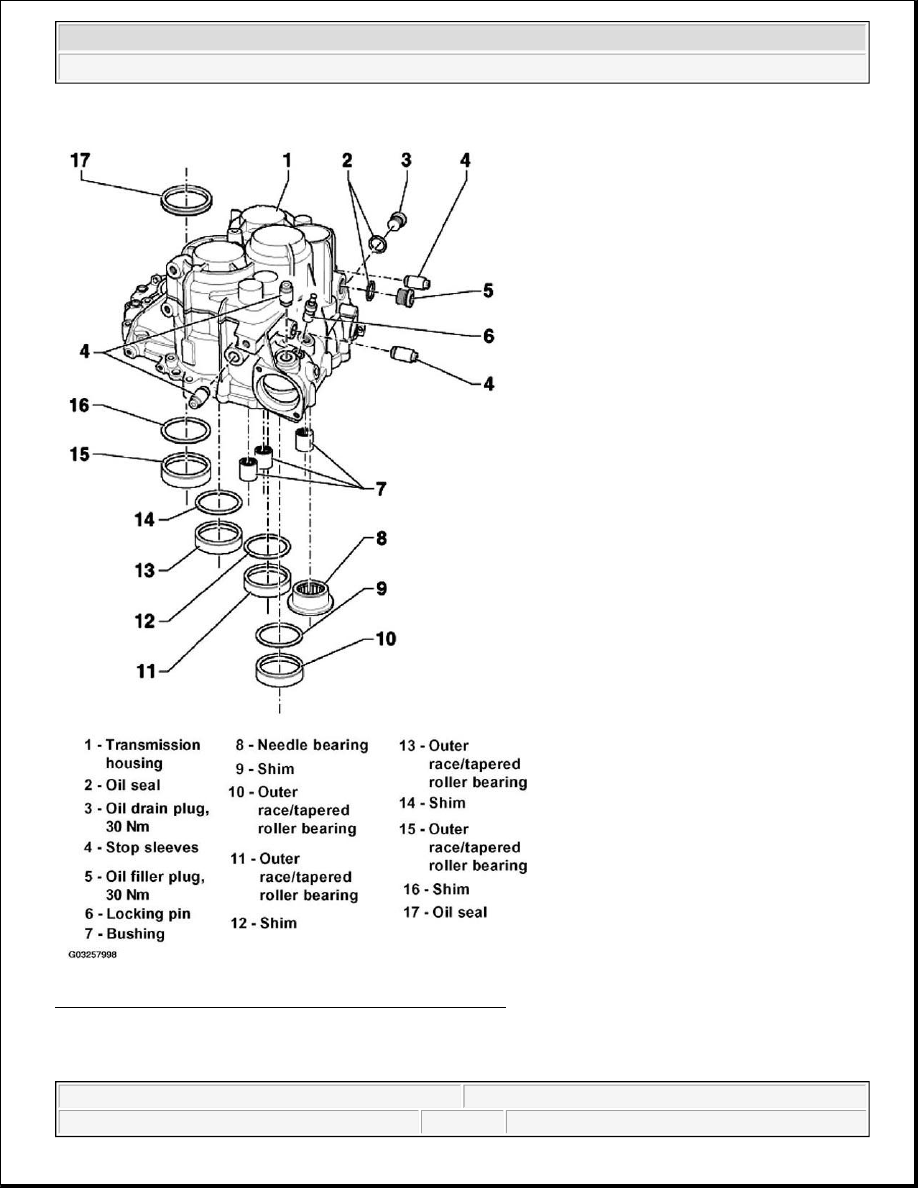

Fig. 29: Identifying Components Of Transmission Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Securing transmission housing to assembly bracket with bolts



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 & 6 Spd. Manual Transmission 02M - New Beetle
